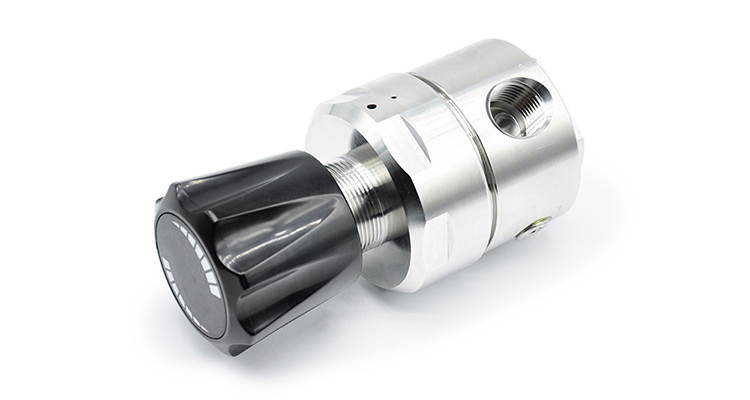

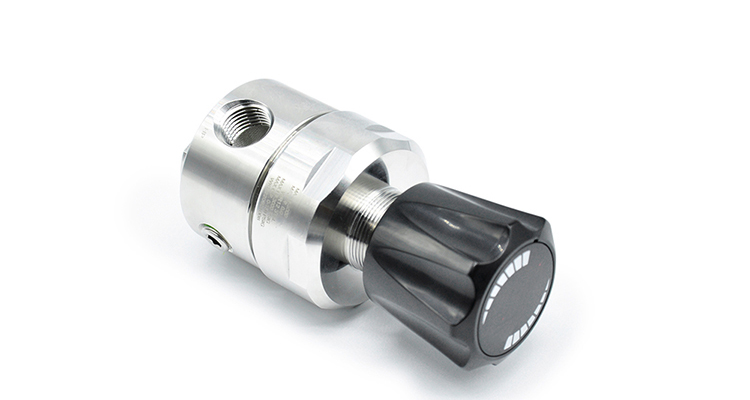

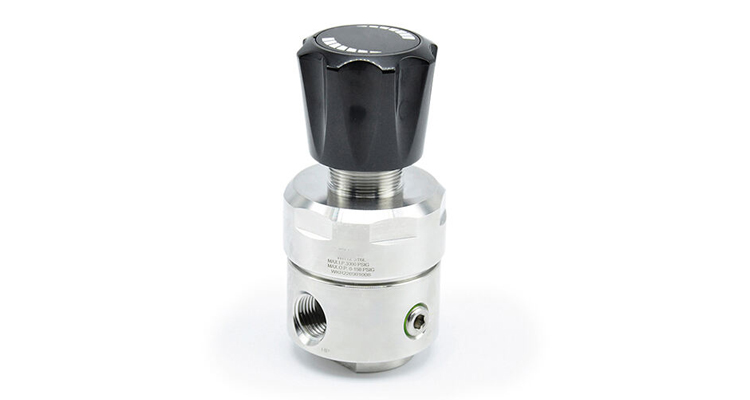

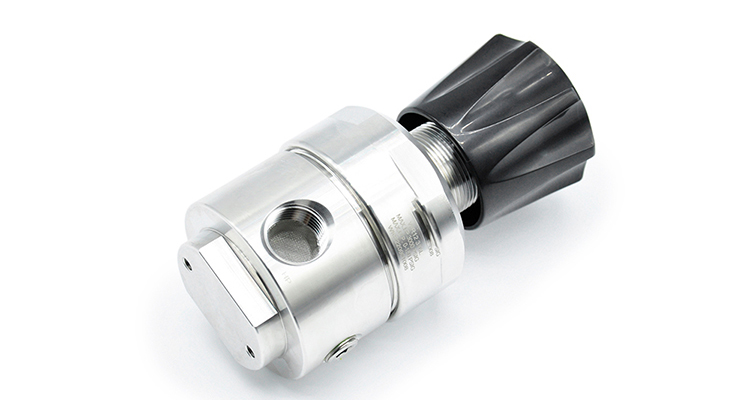

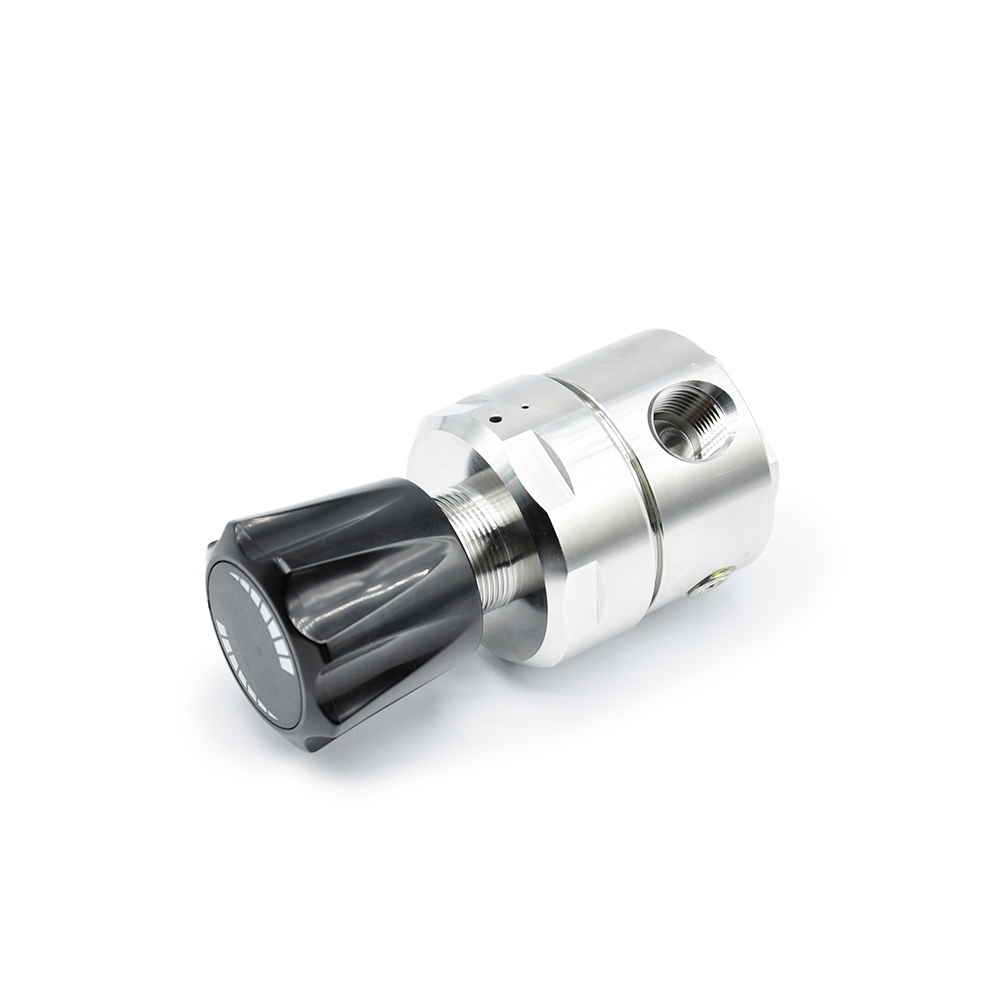

AFKLOK type Pressure regulator 1/2npt conversion 316 stainless steel line regulator

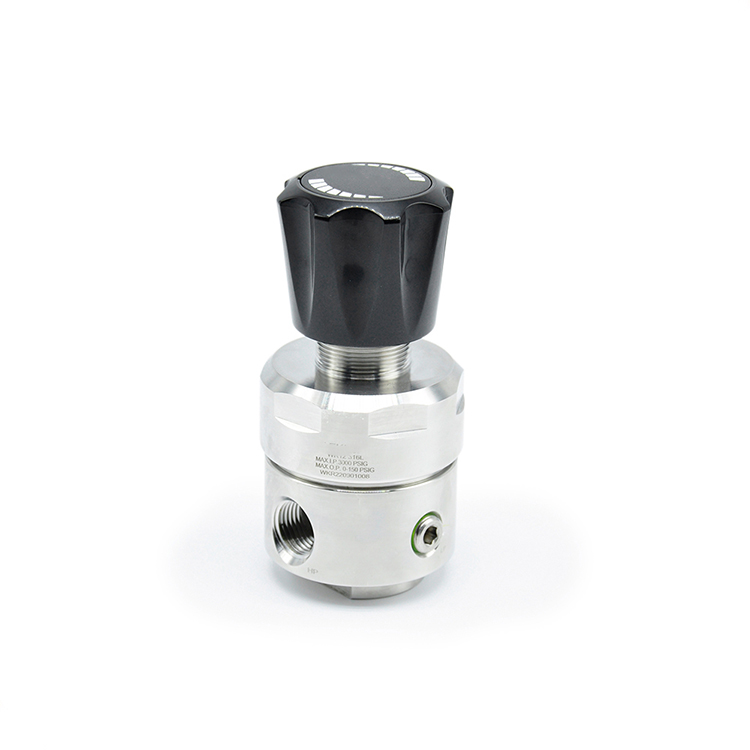

R12 PRESSURE REGULATOR

R12 Series stainless steel pressure reducers, single-stage diaphragm construction, stainless steel diaphragm

pressure transmission, stable output pressure, applied to medium flow gas system

DESIGN FEATURES

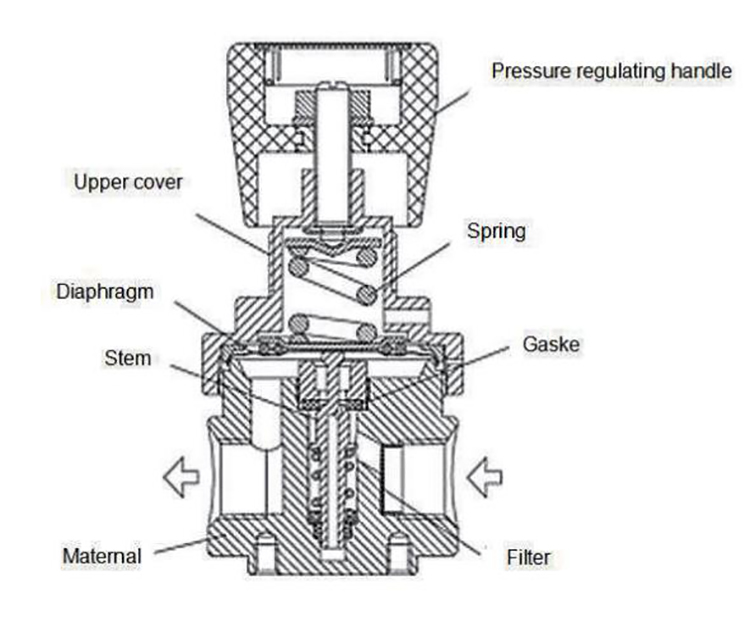

Single-stage diaphragm structure

Corrugated large diameter diaphragm improves sensitivity

Balanced spool design reduces pressure supply effect

Suitable for corrosive and toxic gases

20 μm filter element installed at inlet

Oxygen environment options are available

Technical Data

Max Inlet Pressure：0~3000psig

Outlet Pressure Range：0~250psi

Component Material：

Seat：PCTFE

Diaphragm：Hastelloy

Filter mesh: 316L

Working Temperature：-40℃～+60℃ -40℉～+140℉

Leak Rate (Helium)：

Internal： Bubble-tight

External：≤1×10-9mbar l/s

Flow Coeffificient (Cv)： 1.0

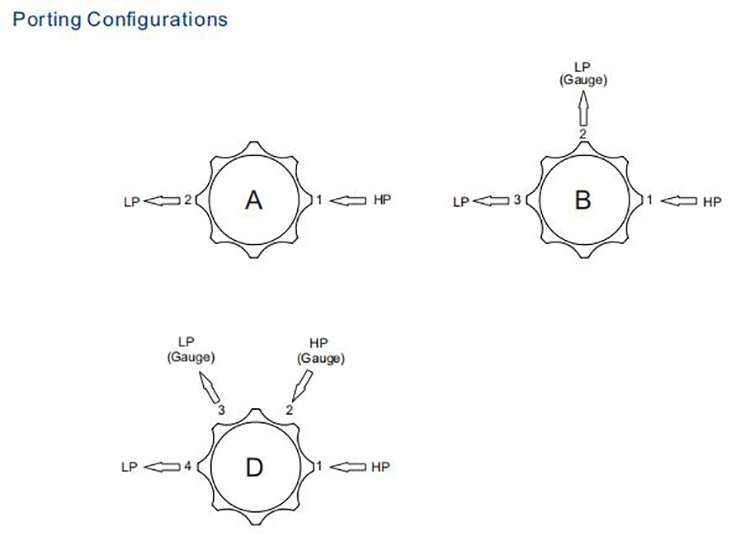

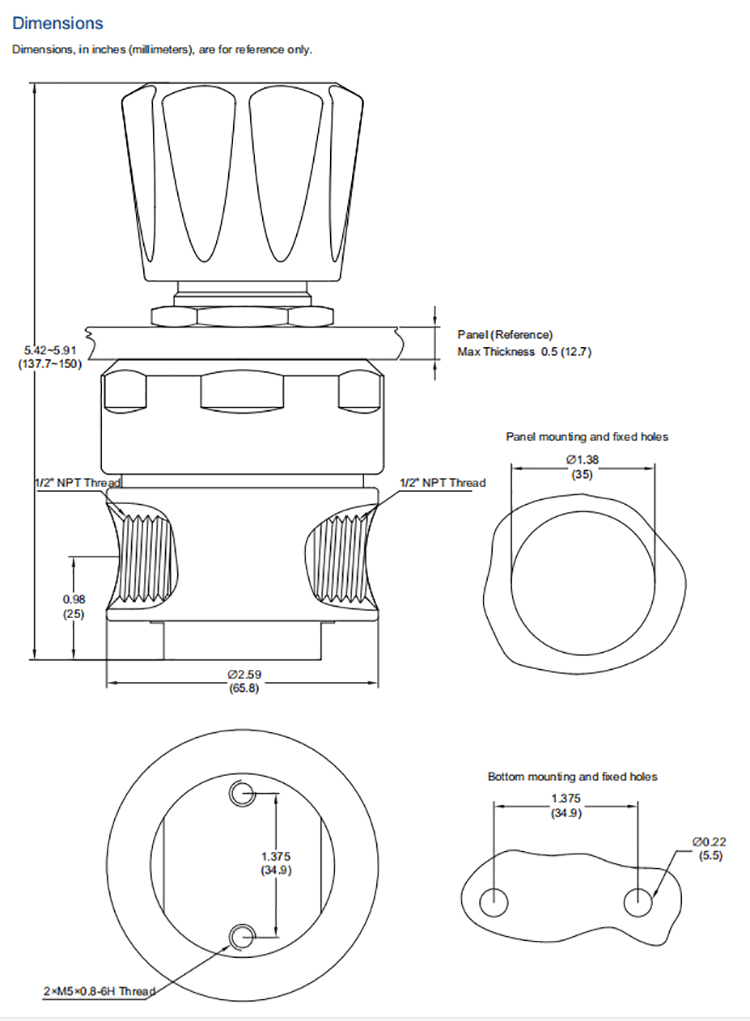

Body Thread：

Inlet port：1/2NPT

Outlet port：1/2NPT

Pressure gauge port：1/4NPT

Cleaning Technics

Standard WK-BA

The welded fittings are cleaned in accordance with our standard cleaning and packaging specifications

No suffixes need to be added when ordering

Oxygen Cleaning WK-O2

Specifications for cleaning and packaging of products for oxygen environments are available

This meets ASTM G93 Class C cleanliness requirements. When ordering, add -O2 to the end of the order number

Shenzhen Wofly Technology Co., Ltd is specialized in manufacturing gas pressure regulator, pipe fittings, full/semi-automatic switching devices, pipe fittings, valve instruments ect We also supply customizing and designing service for all stainless steel products.

We are in this field for 12 years. Own R&D Department and Design Team. Covering an area of 2500 Squre Meters 150Works, of whom 20Technicians. With our strict quality control procedure and excellent customer service. We have own High praise form our clients who came form Europe, Amercia, Asia, South America ect. In order to shorten the delivery time, we set up a warehouse to stock most of hot selling items.

The aim of our company is quality and prestige first. We sincerely welcome the co-parter form aborad.

1. What’s the MOQ?

All products are in stock, MOQ is 1 pcs, Generally according to the requirements of customers, no matter how many we can accept.

2.Do you test all goods before delivery?

We have the strict QC process and offer you the videos of all step.

3.If any question when I got the product, how to solve it?

The product have warranty and we will offer you the online or video technical support.

4.The product have warranty and we will offer you the online or video technical support?

Yes, MOQ is 100 piece.

5.How long will the shipment take?

If it by sea, it will take about 20~30days. If it's express, it will take 3~7days.

6.What kinds of payment do you accept?

T/T, Western Union, Paypal, credit card and trade assurance on Alibaba.

The AFKLOK’s Pressure Regulator is a game changer in the world of plumbing and construction. Perfect for use in a variety of industries, this regulator was engineered to deliver reliable and accurate pressure controls under the toughest conditions.

Crafted from 316 stainless steel, the AFKLOK’s Pressure Regulator was made to last. This durable construction makes this regulator highly resistant to corrosion and chemical damage, which makes it a reliable addition to any plumbing work or gas line system.

It was designed for optimal performance, by having a 1/2npt conversion that ensures easy and secure installation. The compact size of the regulator makes it perfect for use within tight spaces, while the customizable set-point allows for complete control over the machine's pressure.

Built to execute under a wide assortment of conditions, this regulator is the perfect solution whether you are operating in a high-temperature, high-pressure environment, or using harsh chemicals and other corrosive substances.

It is the top choice for professionals in the plumbing and construction industries with its superior performance and state-of-the-art construction. It was built to deliver long-lasting performance and its robust construction ensures that it is very resistant to damage and wear.

AFKLOK is synonymous with quality and reliability, and this regulator is no exclusion. It is backed by a united team of professionals who are dedicated to delivering the very best items for their customers.

If you are looking for a high-quality pressure regulator that will deliver reliable, accurate performances under even the toughest conditions, look no further than the AFKLOK’s Pressure Regulator. With its superior construction, customizable set-point ranges, and easy installation, this regulator is the ideal choice for professionals who demand the very best in their plumbing and gas line systems.
