Pressure Gauge

WOFLY is a leading Manufacturer, Supplier and Exporter of a wide range of gas equipments, available under the brand name AFK. Wofly's success yields from high-quality, innovative products, exceptional customer service, and unequaled technical expertise in the gas& oil industry WOFLY offers an extensive line of components including tube fittings, control valves, shut-off and solenoid valves, pressure relief and regulators.

Through the years we have learned how to properly match the gas regulation equipment with the application. Using the proper equipment for the job eliminates problems such as contamination, pressure variances, safety issues, and equipment mismatch.

Product Description

Specification

item	value
Warranty	1 Year
Customized support	OEM, ODM
Place of Origin	China
	Guangdong
Brand Name	AFKLOK
Model Number	YTF-50
Type	Low-Pressure Gauges
Material	SS304
Size	1/4in Male
Weight	0.25
Product Name	Stainless Steel Pressure Gauge
Material	Stainless Steel 304
Connection	1/4"NPT
Application	Industries
Pressure range	0-300psi
Dial Size	50mm

The Following Gauge Ranges are Also Available：

Pressure Gauge Range：0-30psi/0-60psi/0-100psi/0-140psi/0-150psi/0-160psi/0-200psi/0-300psi/0-600psi/0-1000psi/0-2000psi/0-3000psi/0-3500psi/0-4000psi

material：SS304

Size：1/4in Male NPT

Connection Type: Radial Connection

Please contact us if you need pressure gauges in these ranges

Packing & Delivery

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided

FAQ

1. What is the measuring range of this gauge?: It has a measuring range of 0 to 300 psi (pound-force per square inch.

2. What are the advantages of Stainless Steel 304?: Stainless steel 304 has good corrosion and vibration resistance and is suitable for a wide range of industrial environments.

3. What does radial connection mean?: Radial connection means that the connection interface of the pressure gauge is perpendicular to the dial.

4. What is the accuracy grade?: The accuracy level is usually ±1.0%, ±1.6%, ±2.5%, etc. The specific accuracy level may vary from product to product.

5. What is the ambient temperature?: Generally speaking, the ambient temperature range is from -40℃ to 70℃ (with liquid in the shell) or -25℃ to 70℃ (without liquid in the shell.

6. How do I select a pressure measurement point?: When selecting the pressure measurement point, the following points should be noted: to be selected in the measured medium straight flow of the pipe section part, do not choose in the pipeline corner, bifurcation, dead end or other easy to form a vortex; measurement of the pressure of the flowing medium, the pressure point should be perpendicular to the direction of flow, to remove the drilling burr; measurement of the pressure of the liquid, the pressure point should be in the pipeline, so that the pressure-conducting tube does not accumulate gas, gas measurement, the pressure point should be in the pipeline above, so that the pressure conduction tube When measuring liquid pressure, the pressure point should be at the lower part of the pipe so that no gas can be accumulated in the pressure-guide pipe.

7. What is the reason for the pointer not moving?: Possible reasons are: the valve of the calibrator is not opened; the pointer is loose and one end of the pointer touches the dial; the center hole of the sealing washer of the calibrator connector is blocked, so the working medium can not be transmitted into the gauge; the medium in the oil cup of the calibrator is too dirty, which clogs the spring tube or the transmission channel; the rubber skin at the top of the screw rod of the calibrator is damaged or the spring tube is ruptured, which leads to a large amount of oil leakage.

8. What is the reason for the pointer to fall back?: There may be oil leakage from the calibrator or the needle valve of the pressure gauge oil cup is not smooth resulting in poor sealing, or there may be cracks in the spring tube.

9. What is the reason for the needle skipping phenomenon?: The teeth of the sector gear may be corroded, worn, or stained, or the pointer shaft is tilted or bent to rub against one side of the dial.

9. What are the reasons for the needle not returning to zero?: The return error and tap displacement may be overshooting, the hair spring is not sufficiently coiled or tensioned, or the pointer is loose.

Wofly

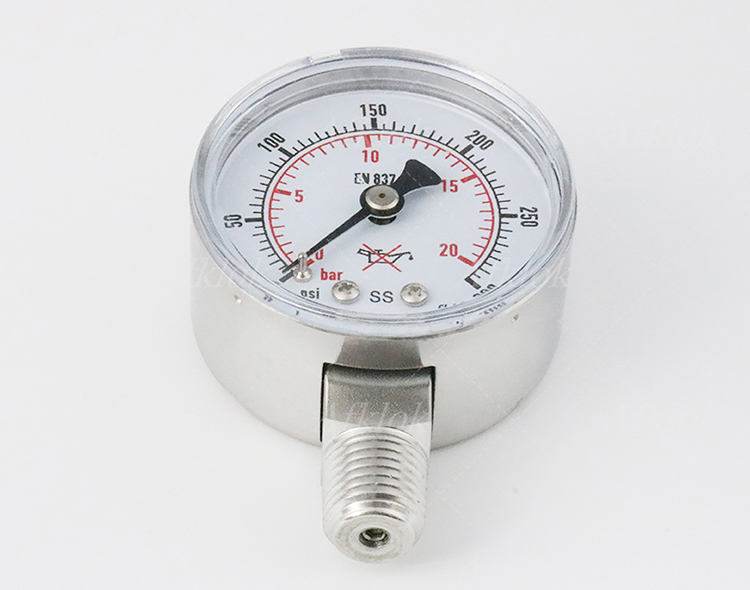

Introducing the Stainless Steel 304 1/4in Male Radial Pressure Gauge AFKLOK

The perfect tool for measuring pressure levels in various applications. With precision and accuracy this pressure gauge provides reliable measurements that you can trust

Crafted with high-quality stainless steel. The Wofly durable corrosion-resistant and can withstand harsh conditions. Designed to measure pressure levels from 0-30psi 60psi 100psi 300psi and 600psi – making it ideal for a range of applications including automotive industrial and household

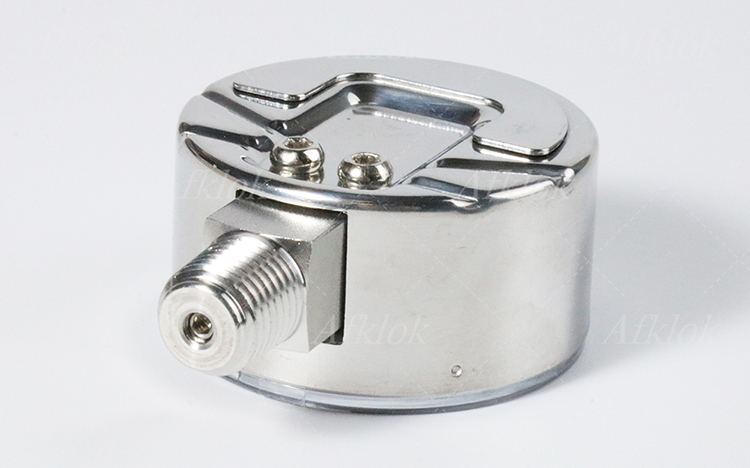

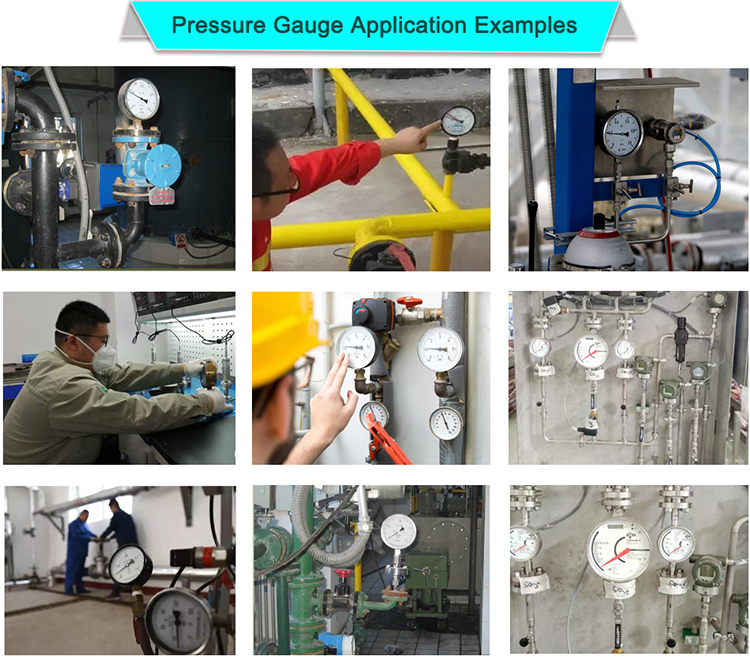

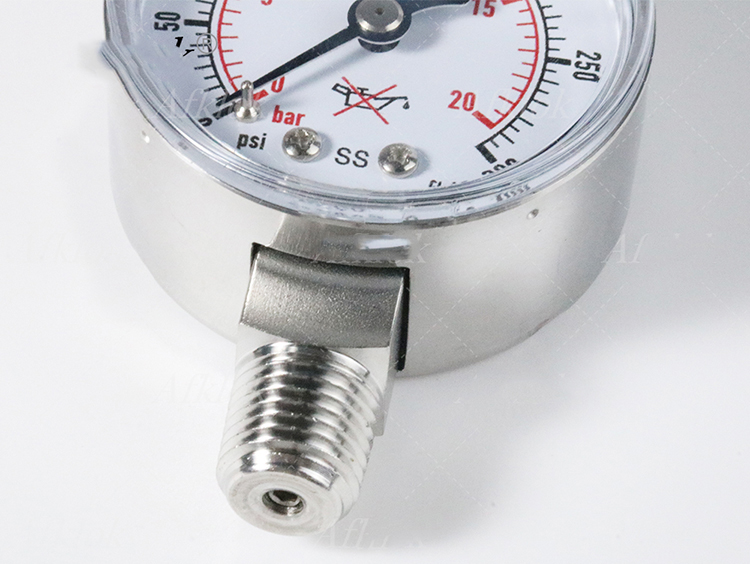

The radial design of the gauge allows for easy installation and reading of the pressure measurement. The 1/4in male thread helps to ensure a secure and reliable connection with your system. Whether you need to measure pressure in a hydraulic system an air compressor or a water pump this gauge provides accurate readings

The clear easy-to-read dial features a black and white color scheme for visibility in any lighting conditions. The dial face is large enough to read at a glance and the markings are clearly visible making it easy to determine pressure levels

An efficient and reliable choice for any pressure measurement needs. With its durable construction easy installation and accurate readings this radial pressure gauge is a valuable tool for both professional and amateur use Order yours today and experience the benefits
