Gas Control Panel

Launching, the 2x1 Pressure Control Panel by AFKLOK - a must-have addition for any pressure managing needs!

This control panel was made to make your work easier. It includes a hassle-free screen that will let you adjust your pressure controls with simplicity and accuracy. The panel has two force control settings, and features a number of features which makes it a great choice to any commercial or establishing commercial.

The AFKLOK’s 2x1 Pressure Control Panel was manufactured out of high-quality materials that confirm a durable and gratification dependable. The panel was created to withstand rigorous conditions and has been extensively tested to make sure it satisfies the maximum criteria of security and quality. It was designed to provide both durability and high-precision control, giving you exemplary outcomes.

The panel's two force control settings enable you to effortlessly switch between low and high pressures, rendering it your ideal choice to many applications. This panel can do the job whether you need to monitor and manage the force in a pneumatic or hydraulic system, or simply just want to monitor the force in a water supply system.

It comes with many other features which make it be noticed through its competitors along with its force control settings. It provides a variety of integral security systems, including thermal security, quick circuit security, and overcurrent security, making sure your gear and workers are safe on a regular basis.

The AFKLOK’s 2x1 Pressure Control Panel is the top choice to every stress control requires having its extremely intuitive software, easy-to-use control settings, and high level security features. It was engineered to offer superior performance and accuracy alongside its durable construction and top-quality elements, it was designed to last for a long time.

Product Description

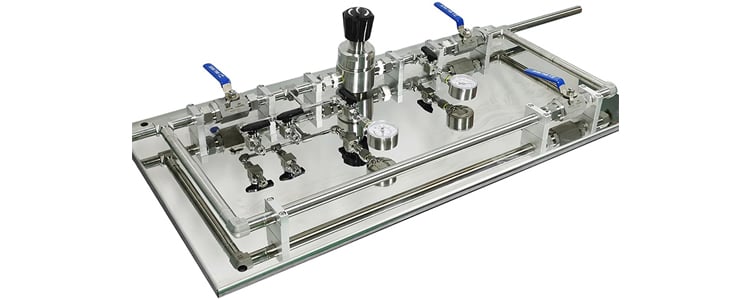

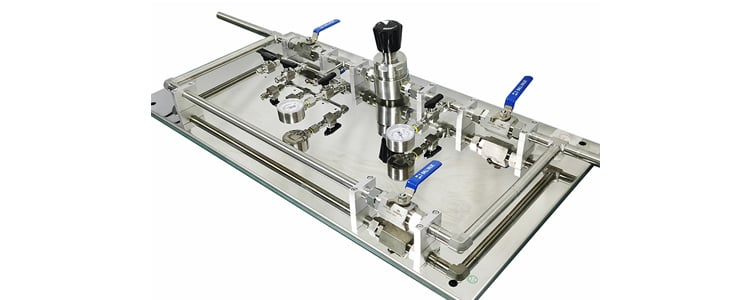

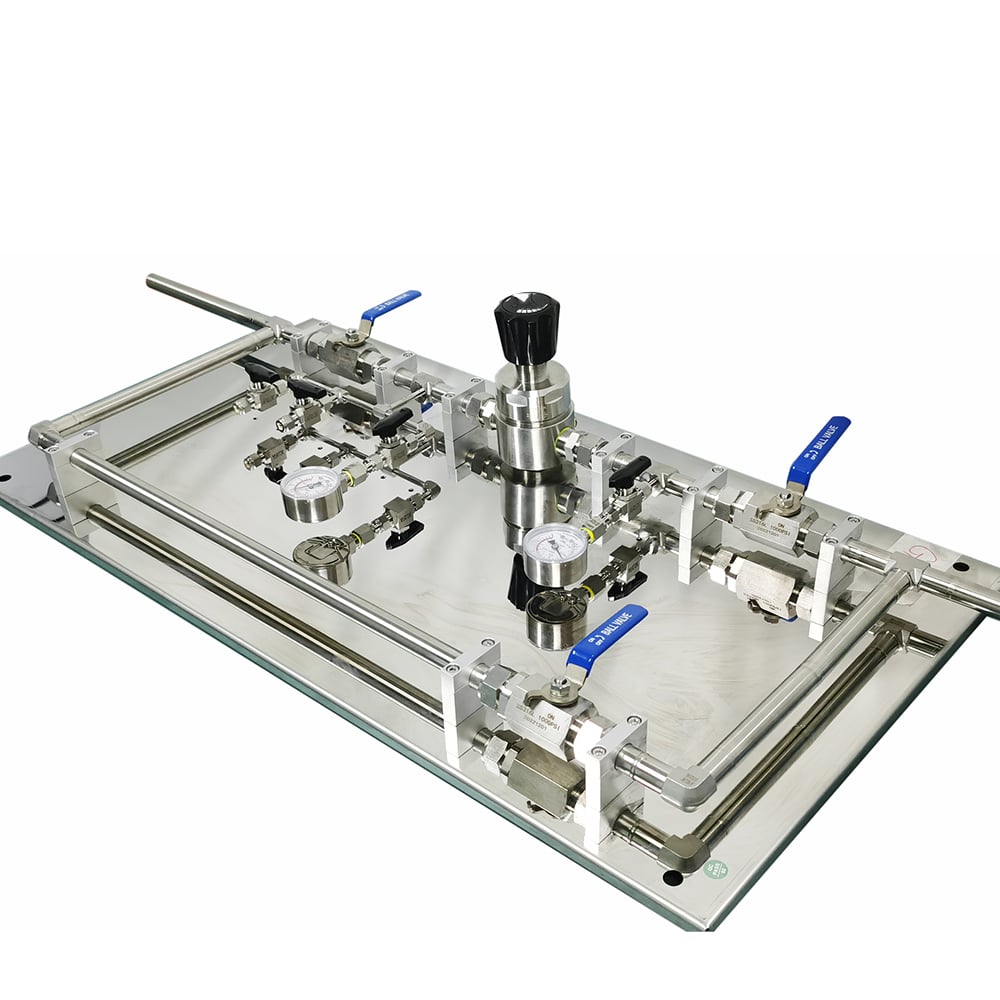

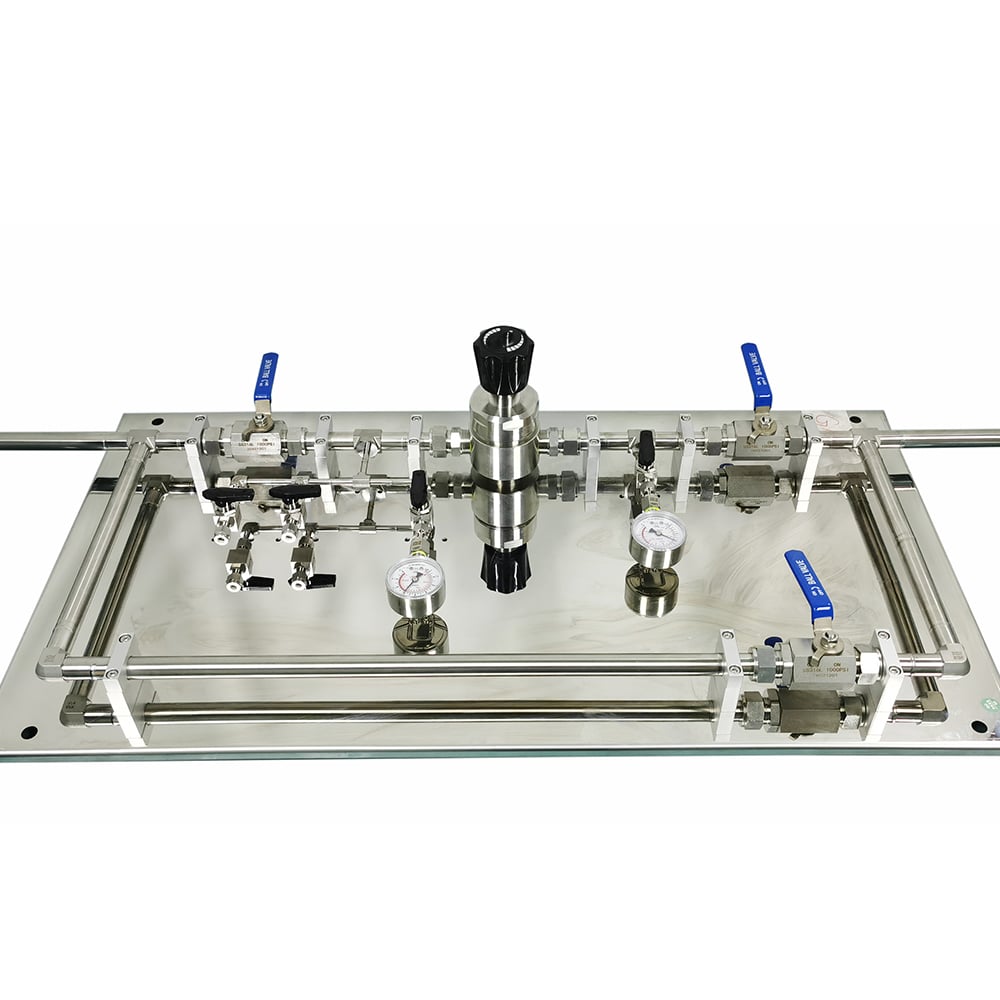

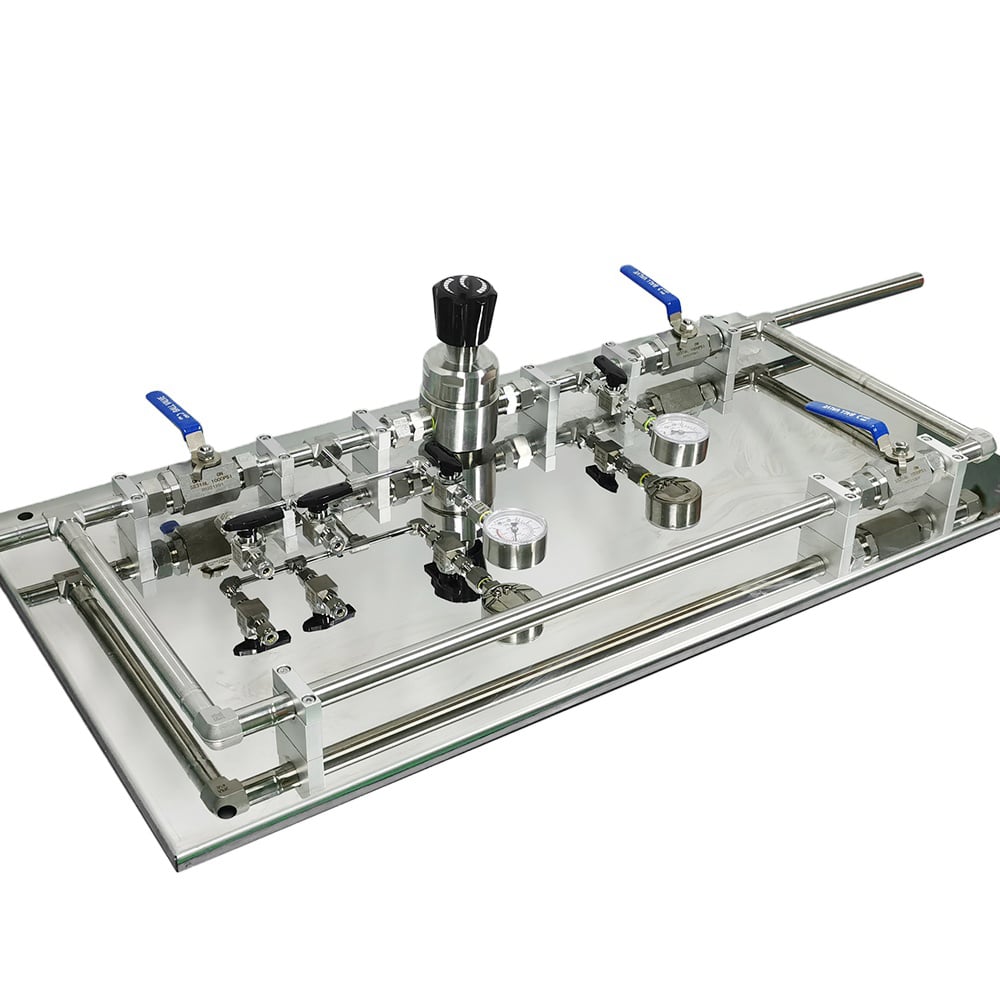

GAS DILIEVERY SYSTEM

It is used in the double-sided high-pressure gas cylinder to reduce the pressure supply. It can be continuously switched on both sides to achieve continuous gas supply and purge function. The maximum input pressure can reach 20.7Mpa(3000psi), corrosion resistance, clean shop assembly test, gas analysis Such as high purity gas.

Brand Name	AFKLOK
Inlet pressure	3000, 2200 psi
Outlet pressure	0~500psi
Connection	1/2", 1"NPT Optional
Working Temperature:	-40°C ~ 74°C -40°F ~ 165°F
Flow Rate:	see flow Curve Chart
Pressure Regulator Leakage Rate:	2 x 10-8atm.cc/sec He
Cv:	0.14

Material
Body:	316SS
O-ring:	316L SS
Diaphragm:	316SS or Hastelloy
Filter mesh:	316 SS
Valve seat	PCTFE

Features:

* Equipped R12 pressure regulator and high pressure ball valve

* Pressure regulator and pipe through the pressure test and leakage test

* Wall installation, easy to use and safe

* 2" stainless steel pressure gauge, reading clearly

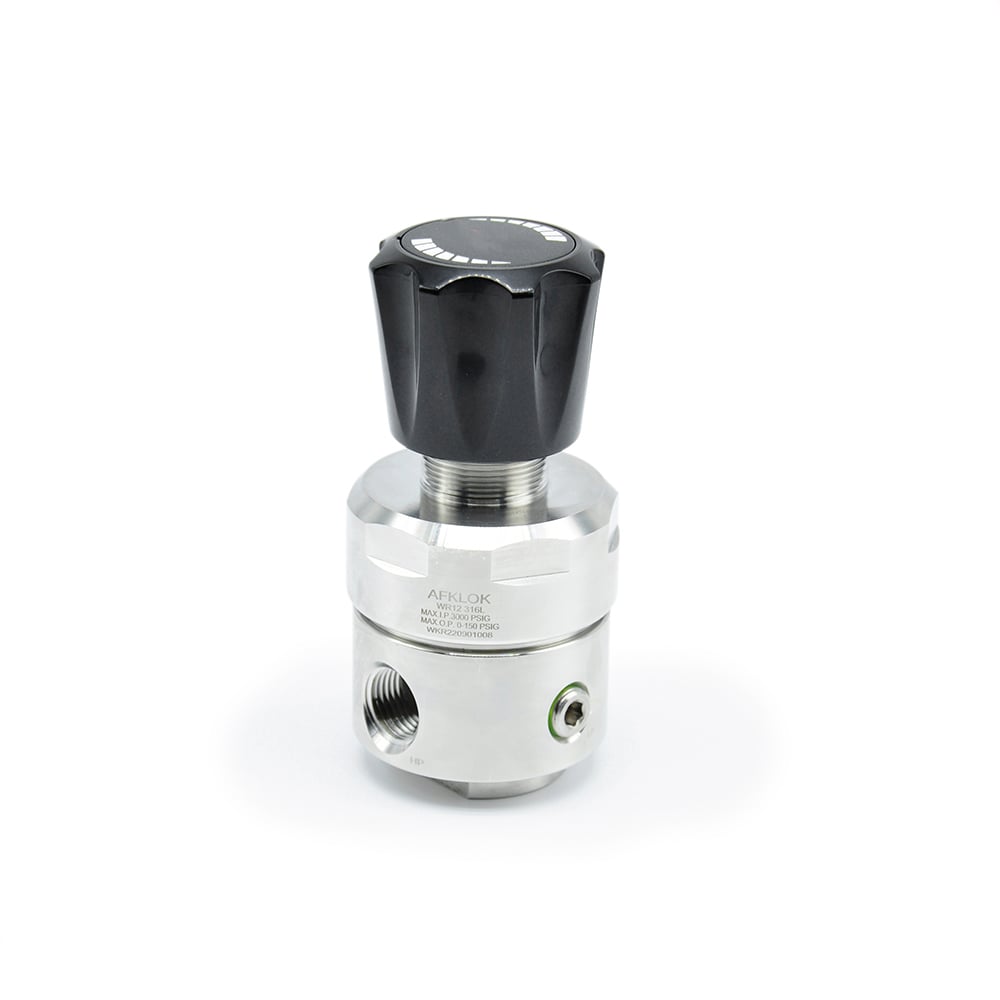

High flow pressure regulator

The pressure reducer that we offer is adjusted accurately, ensuring that the pressure is stable and the cleanliness is high, giving you superior results that you can depend on

Precision pressure guage

Our pressure gauge boasts a 1.6 grade accuracy and dual range, making it easy to read and giving you peace of mind that you can rely

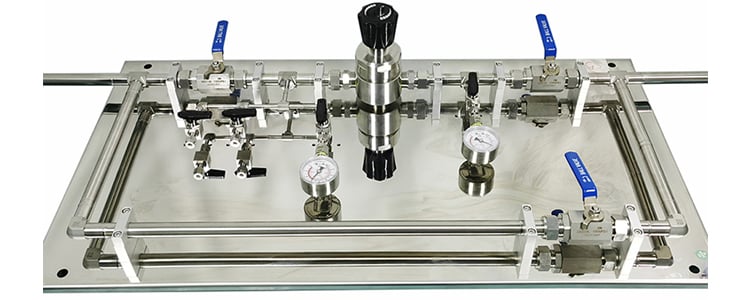

Mirror panel

It is more resistant to acid and corrosion, making it a durable and reliable choice. It is also very convenient to use as it allows you to check for impurities and observe the bottom of the part

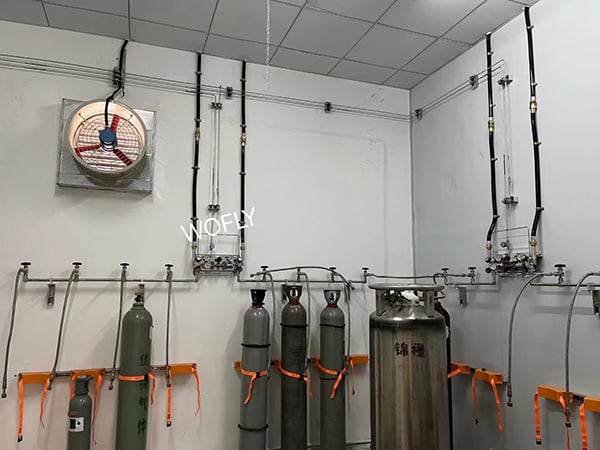

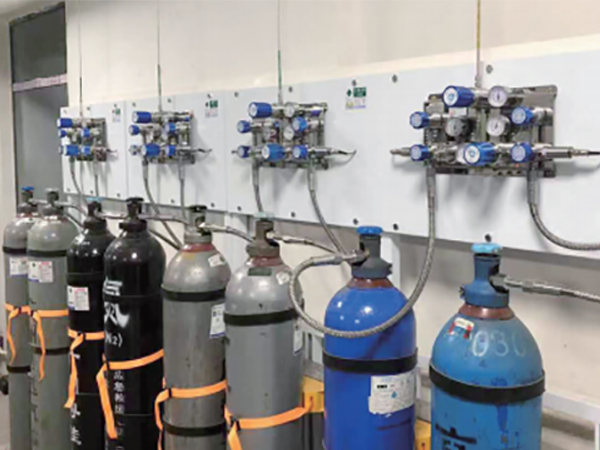

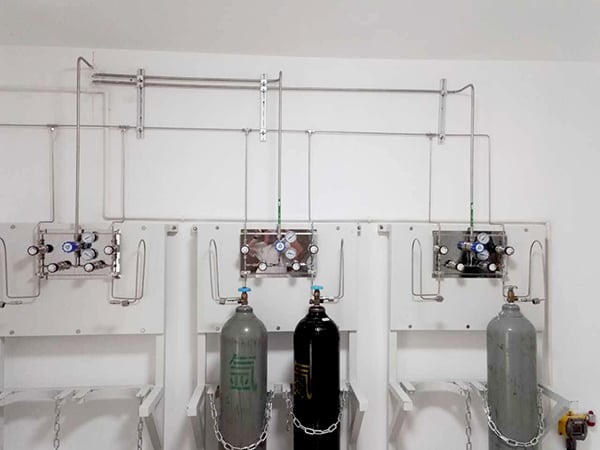

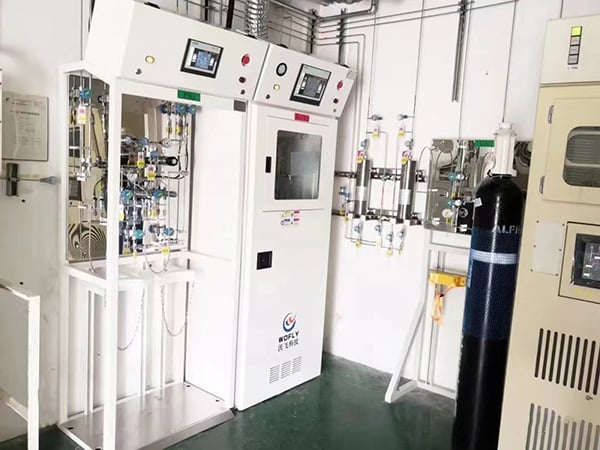

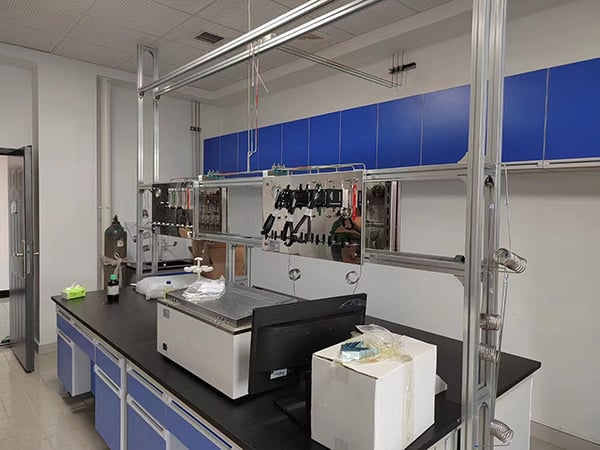

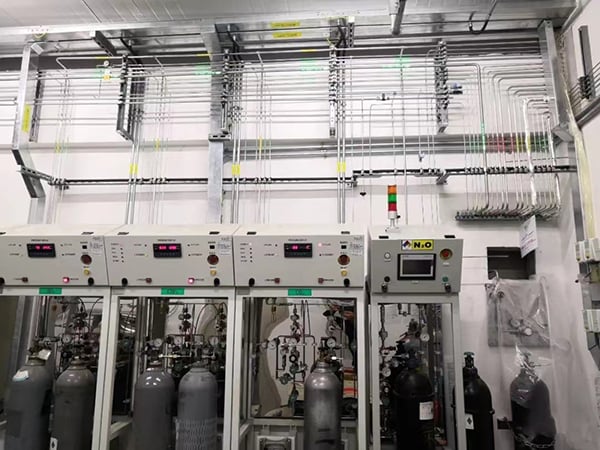

Application Area

Richcore Semiconductor Co
Tohoku University
Huawei Research Institute
Shenzhen Advanced Research Institute
Diamond Company
Tsinghua University Research Institute

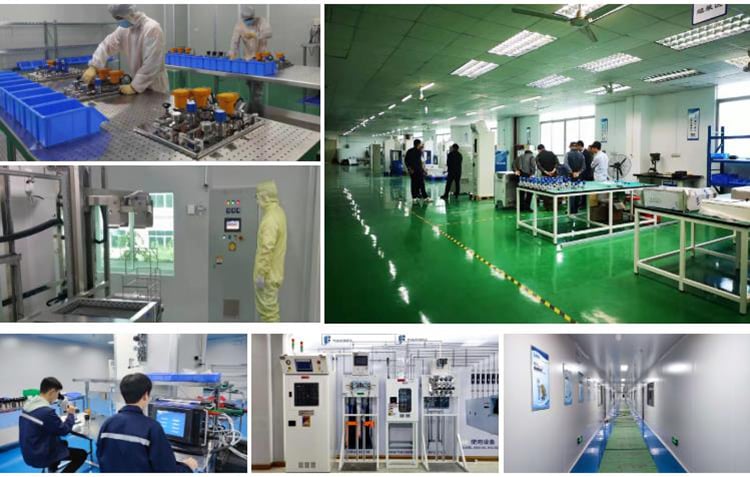

Company Profile

Shenzhen Wofly Technology Co Ltd was established in 2011, is a high-tech enterprise focusing on gas application technology. We have developed and produced gas semi-automatic switching manifold, gas pressure regulators, pipe and valve parts, joints; gas mixing and proportioning instrument; ultra-high purity gas supply panel; special gas cabinet, VMB valve box; scientific research test equipment; ultra-high pressure, ultra-low temperature gas system; high vacuum system and other products

"AKK, AFK-LOK, WOFLY" have become famous brands in the industry. The company has passed the IS09001 quality system certification. Our products have been tested and qualified by national certification laboratories and are widely used in university laboratories, scientific research and testing units, semiconductor, microelectronics, biopharmaceutical, medical, photovoltaic, LED, petrochemical, new materials, new energy and other fields

FAQ

1. What’s the MOQ?: All products are in stock, MOQ is 1 pcs, Generally according to the requirements of customers, no matter how many we can accept.

2. Do you test all goods before delivery?: We have the strict QC process and offer you the videos of all step.

3. If any question when I got the product, how to solve it?: The product have warranty and we will offer you the online or video technical support.

4. Do you accept OEM order? Can I make in my brand or any sticker?: Yes, MOQ is 100 piece.

5. How long will the shipment take?: If it by sea, it will take about 20~30days. If it's express, it will take 3~7days.

6. What kinds of payment do you accept?: T/T, Western Union, Paypal, credit card and trade assurance on Alibaba.
