 Ball Valve

Home /  Products /  Instrumentation Valves /  Ball Valve

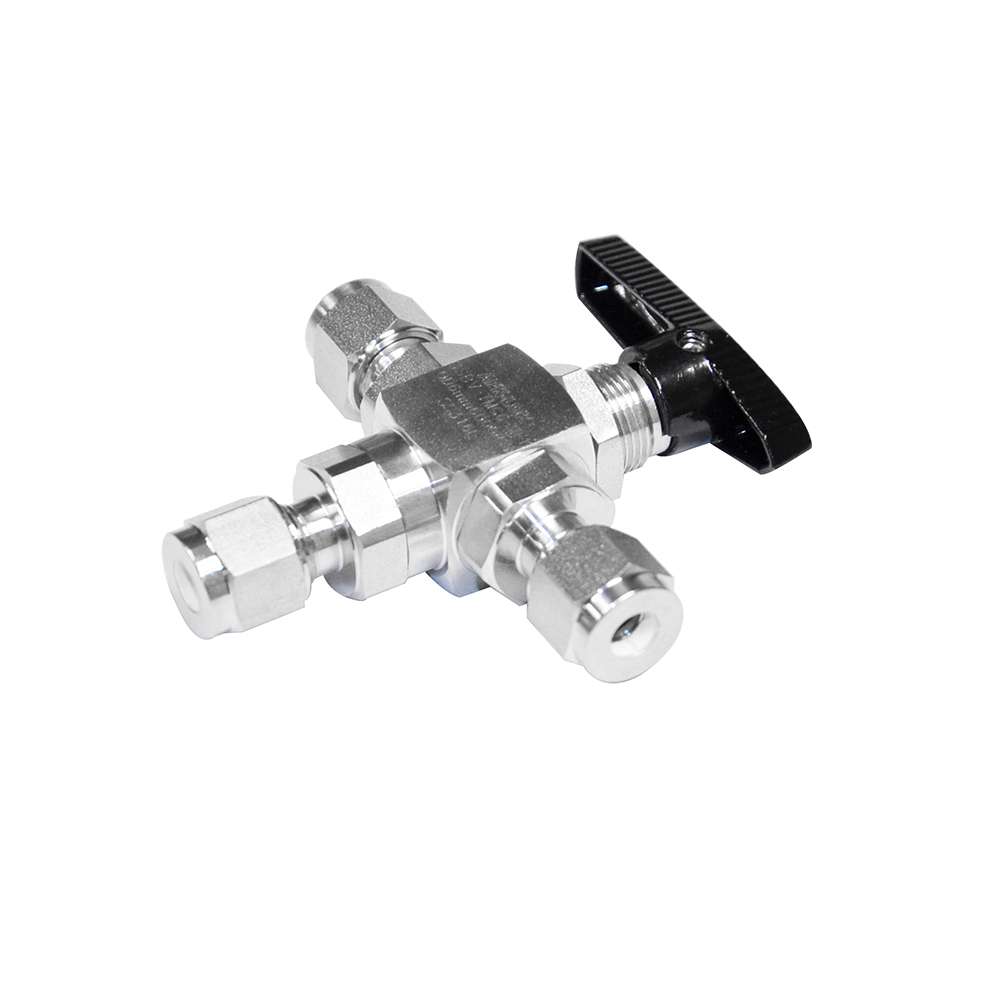

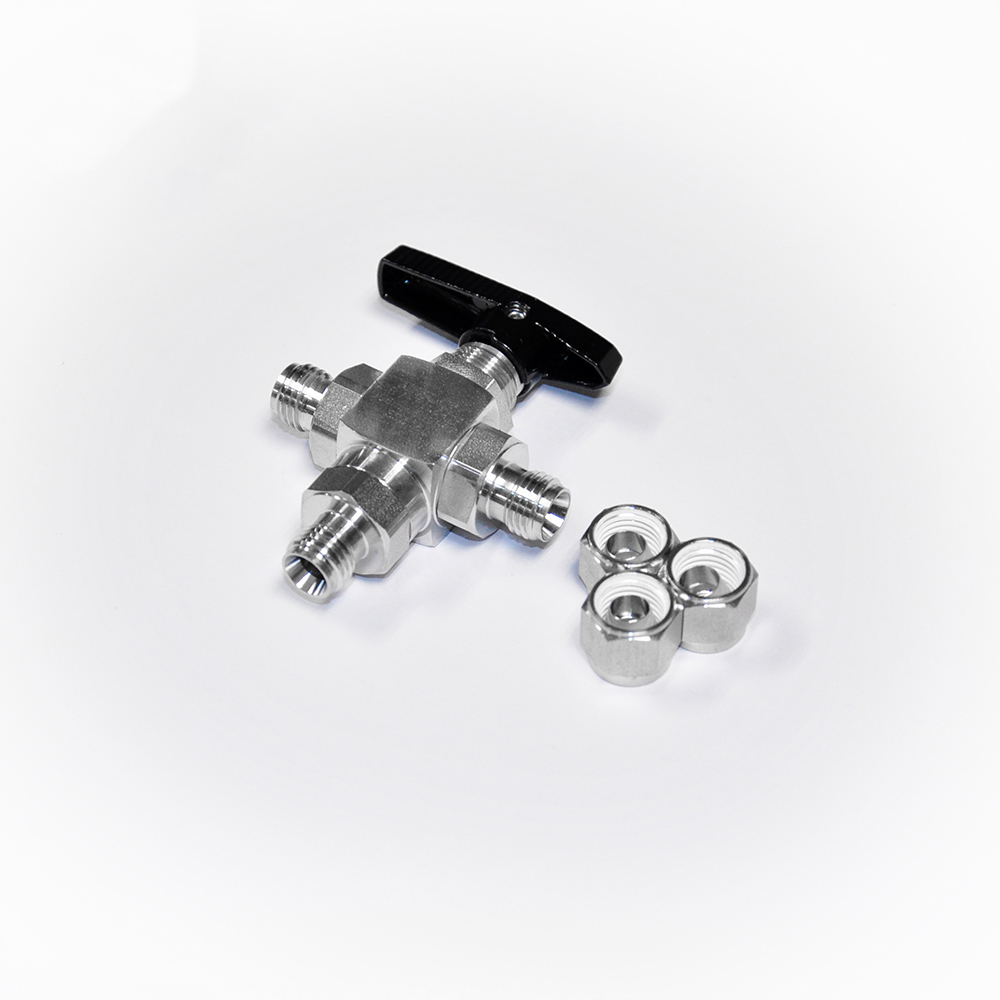

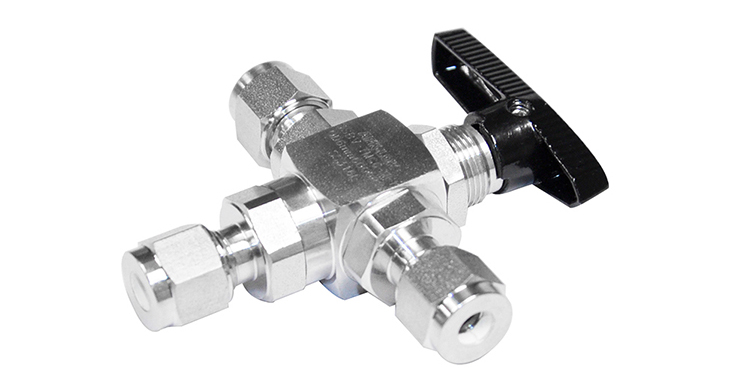

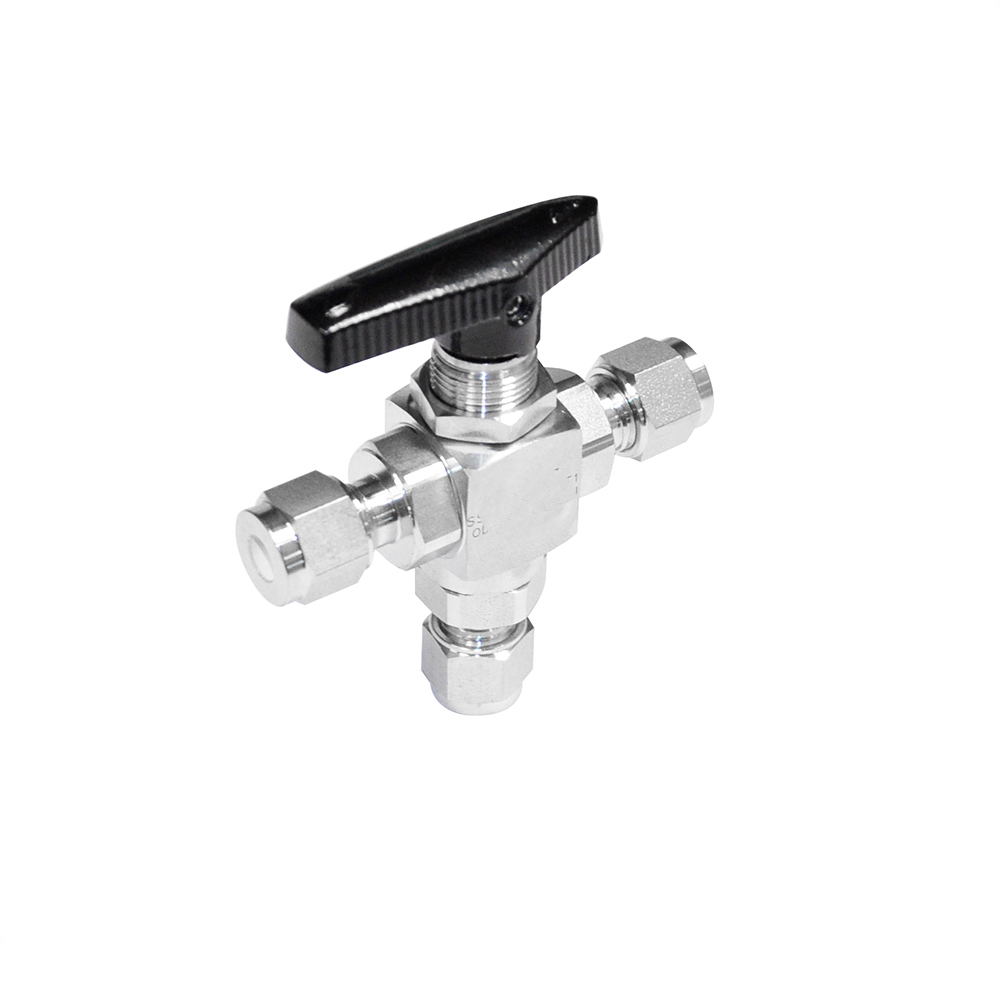

3/8 in Pipe Size 3/8 in Tube Size 3,000 psi CWP Max Pressure Compression ball valve


Product Description

AFK Instrument Ball Valve have been carefully manufactured and tested for High Pressure Applications. Instrumentation Ball Valve has come with a wide variety of port sizes, end connections, style, and temperature and pressure tolerance. They are highly durable and provide effective performance without any leakage. Instrumentation Ball Valves offered by us, are used primarily on upstream offshore/onshore oil production and initial processing installations. These valves either provides the directional control of fluids consumed in process power and instrumentation function. Our ball valves come at reasonable price and are in great demand due to its high quality and performance.

SPECIFICATION

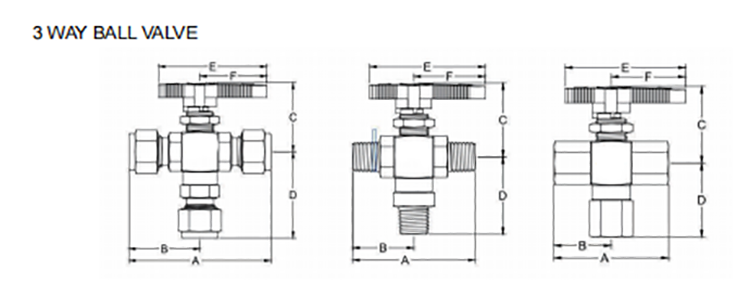

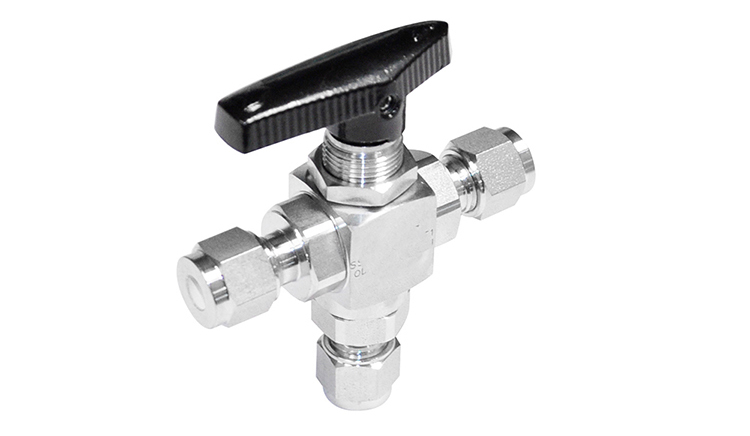

Item 3 Way Ball Vale
Working pressure: 0~25Mpa

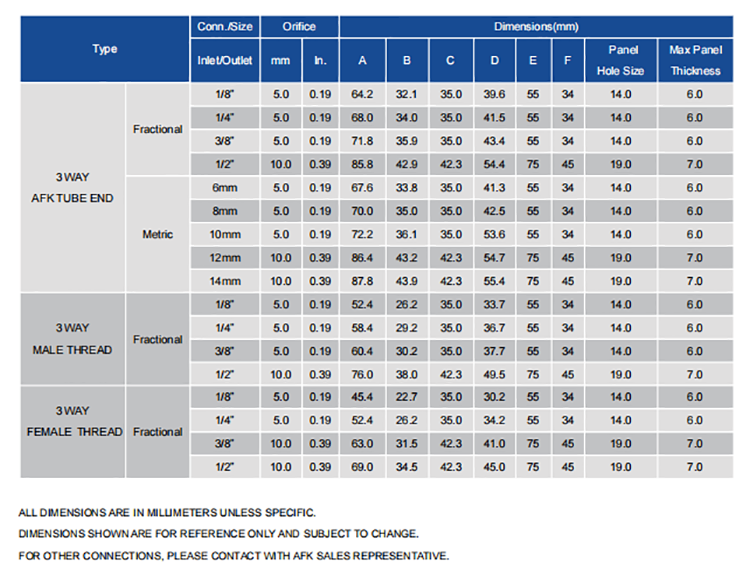

Size: 1/16"~1" or 3~25mm
Working temperature: 0~200℃
Medium: Oil, Gas and water
Techinis: Forged bar stock
OEM available
Certificate ISO9001, CE, RoHS
MATERIAL
1 Handle: 1 Nylon
2 Handle Set Screw: 1 Chrome-Plated Steel
3 Stem: 1 SS316/316L
4 Packing Bolt: 1 SS316/316L
5 Gland Packing: 2 TFM1600
6 Stem O-ring: 1 Viton
7 Panel Nut: 1 SS304
8 Boby: 1 SS316/316L
9 Ball: 1 SS316/316L
10 Seat: 2 PEEK
11 Spacer bracket: 2 SS316/316L
12 Boby O-ring 2 Viton
13 Body O-ring 2 Viton
14 End Cap 2 SS316


Variety

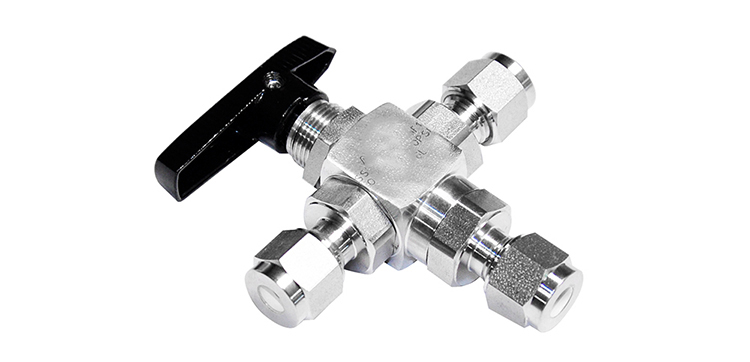

End connection options include male / female NPT, Tube OD Ferrule Compression, and ISO threads from 1/8″ to 1″. Configurations include 2-way, 3-way (side / bottom entry) and 4-way valves. We have Panel Mount type, Round Body 2 pcs Design as well as Square Body 3 pc Designs. Optional features include panel mounting, locking devices and upstream / downstream venting.


Material

Generally Ball Valves which are used for Instrumentation are made from Stainless Steel 316. The Panel Ball Valves and 3 way Ball Valve are in SS 316 or higher grade 90% of the time. Carbon Steel is used commonly for Round and Square Design Ball Valves. But for all we can do in SS, Brass, Inconel, Hastelloy, Titanium and Monel.





Application Area

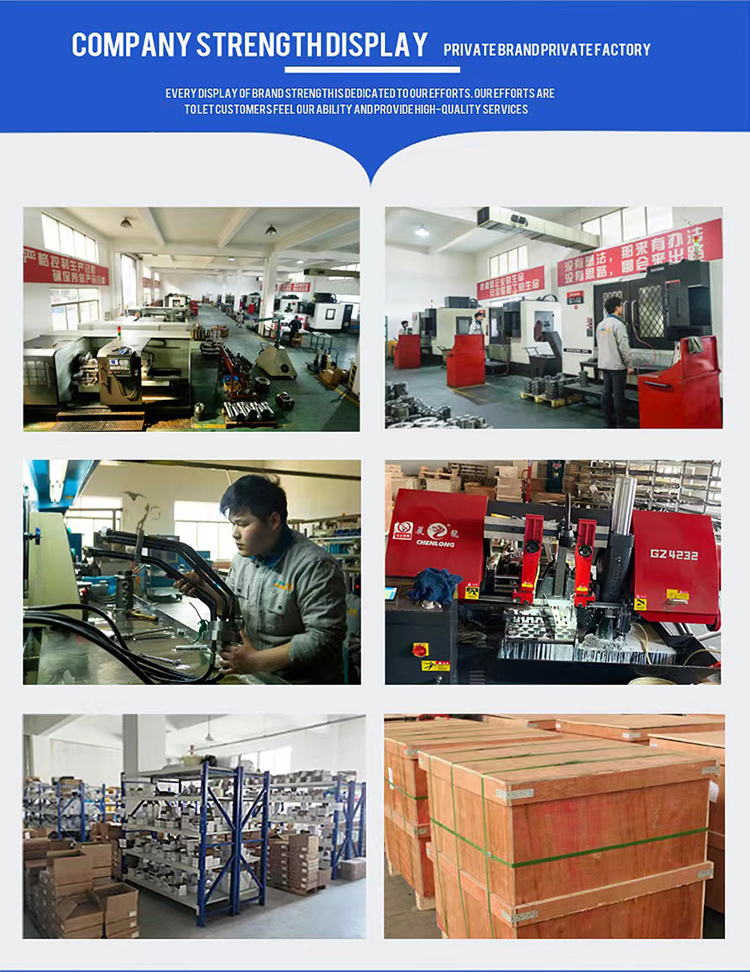

Company Profile

Shenzhen Wofly Technology Co, Ltd was established in 2011, is a high-tech enterprise focusing on gas application technology. We have developed and produced gas semi-automatic switching manifold, gas pressure regulators, pipe and valve parts, joints; gas mixing and proportioning instrument; ultra-high purity gas supply panel; special gas cabinet, VMB valve box; scientific research test equipment; ultra-high pressure, ultra-low temperature gas system; high vacuum system and other products. AKK, AFK-LOK, WOFLY" have become famous brands in the industry.

The company has passed the IS09001 quality system certification. Our products have been tested and qualified by national certification laboratories and are widely used in university laboratories, scientific research and testing units, semiconductor, microelectronics, biopharmaceutical, medical, photovoltaic, LED, petrochemical, new materials, new energy and other fields.

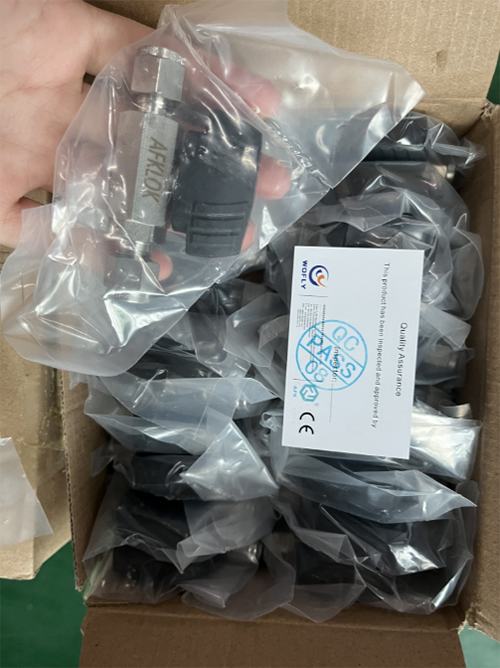

Packing & Delivery
  • DM_20241008163712_011.PNG

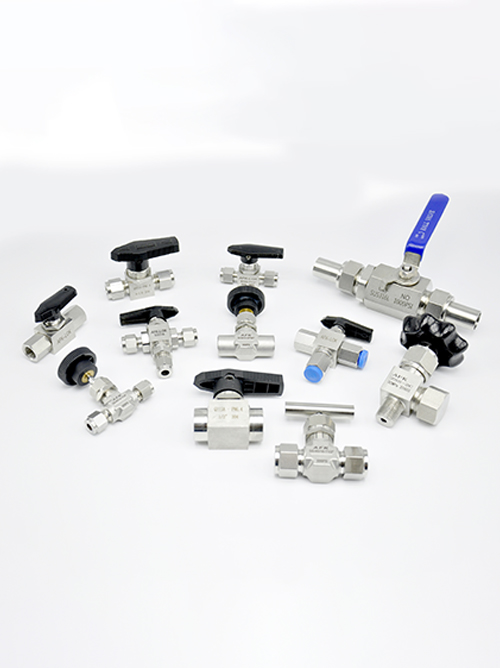

  • DM_20241008163712_012.jpg


FAQ
1. What’s the MOQ?
All products are in stock, MOQ is 1 pcs, Generally according to the requirements of customers, no matter how many we can accept.
2. Do you test all goods before delivery?
We have the strict QC process and offer you the videos of all step.
3. If any question when I got the product, how to solve it?
The product have warranty and we will offer you the online or video technical support.
4. Do you accept OEM order? Can I make in my brand or any sticker?
Yes, MOQ is 100 piece.
5. How long will the shipment take?
If it by sea, it will take about 20~30days. If it's express, it will take 3~7days.
6. What kinds of payment do you accept?
T/T, Western Union, Paypal, credit card and trade assurance on Alibaba.



Please click on Send Enquiry to get the latest catalogue and more details~






AFKLOK



Introducing the 3/8 in Pipe Size 3/8 in Tube Size 3, 000 psi CWP Max Pressure Compression ball valve - the ultimate solution for controlling the flow of liquids and gases in a wide range of industrial applications. Crafted with premium quality materials this ball valve is developed to last. With a maximum working pressure of 3, 000 psi CWP it would work for handling fluids under ruthless making it an choice is ideal use within hydraulic systems, oil rigs and other heavy-duty settings. As a result of its design is compact AFKLOK ball valve is simple to install and operate. Its compression fitting ensures a connection is secure preventing leaks and ensuring a regular flow of liquids. The ball valve's quarter-turn operation means that it can be opened and closed quickly allowing users to manage the flow of fluids with precision. Also made to withstand surroundings that are harsh. Its construction is durable allows to withstand extreme temperatures and chemical exposure without losing its performance or durability.



This will make it ideal for use in applications where corrosive and materials which are abrasive present. Highly versatile. Its compact size and design is lightweight it suitable for use in a range of industries, including chemical oil and gas pharmaceutical and more. It could be used to control a range is wide of, including liquids gases chemicals and also steam. The AFKLOK 3/8 in Pipe Size 3/8 in Tube Size 3, 000 psi CWP Max Pressure Compression ball valve is an excellent choice for those in need of high-quality durable and reliable ball valves. With its strong construction, easy operation and versatility it is sure to meet the needs of any industrial operation. Invest in the AFKLOK ball valve today and experience the difference in quality and performance firsthand.
