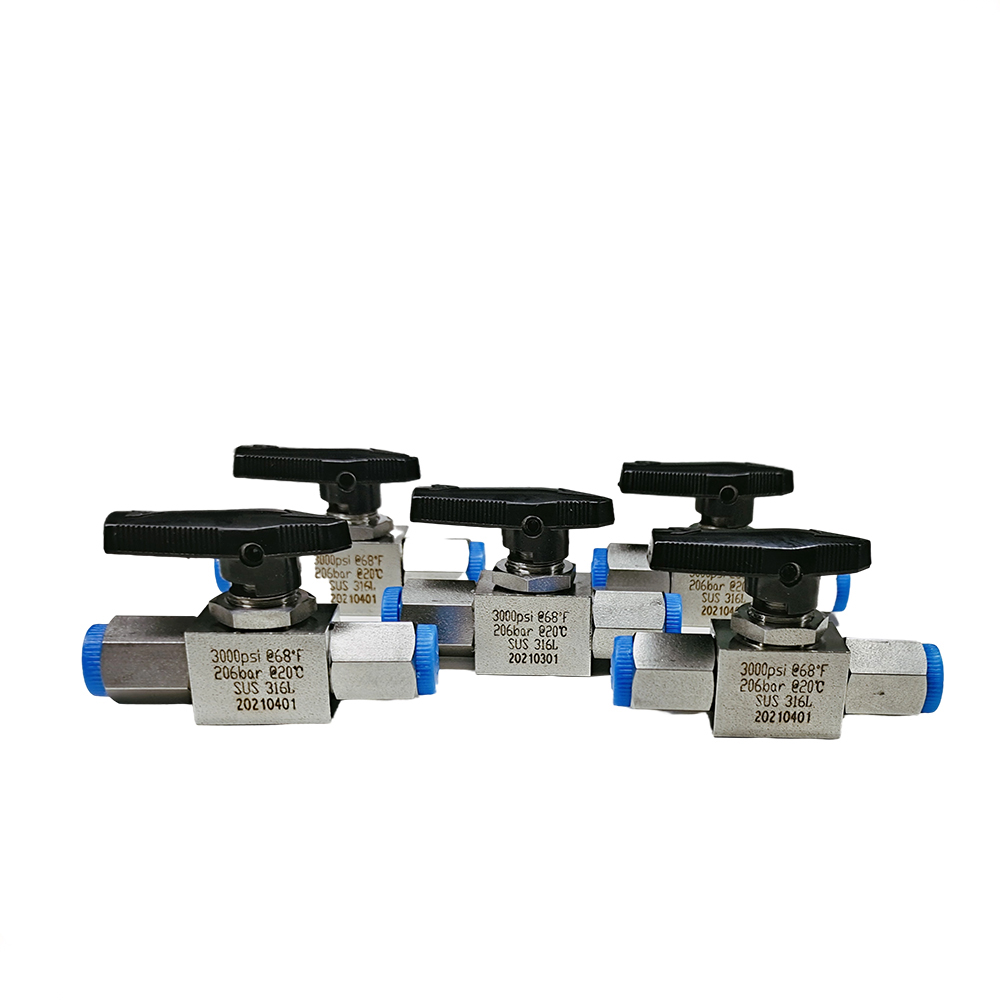

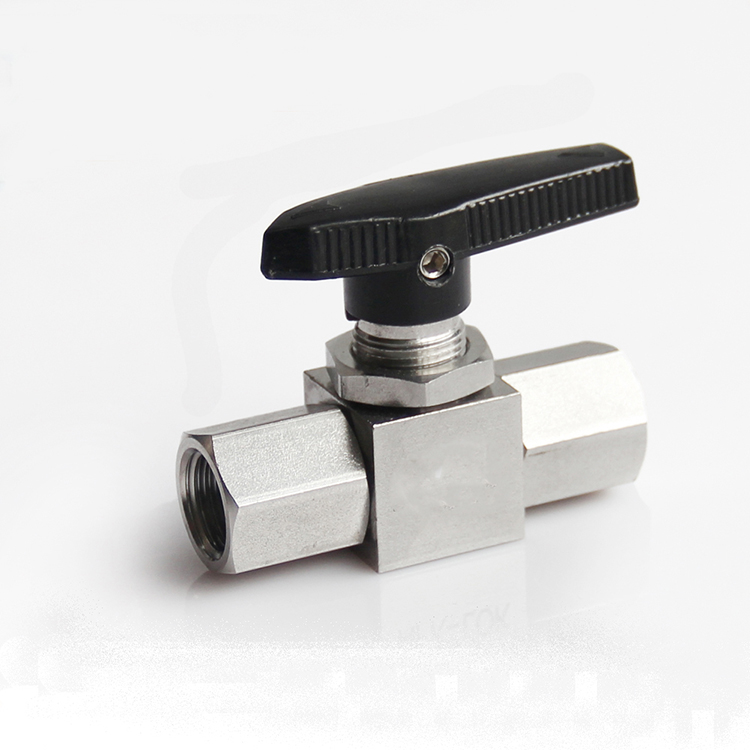

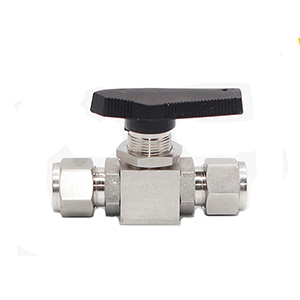

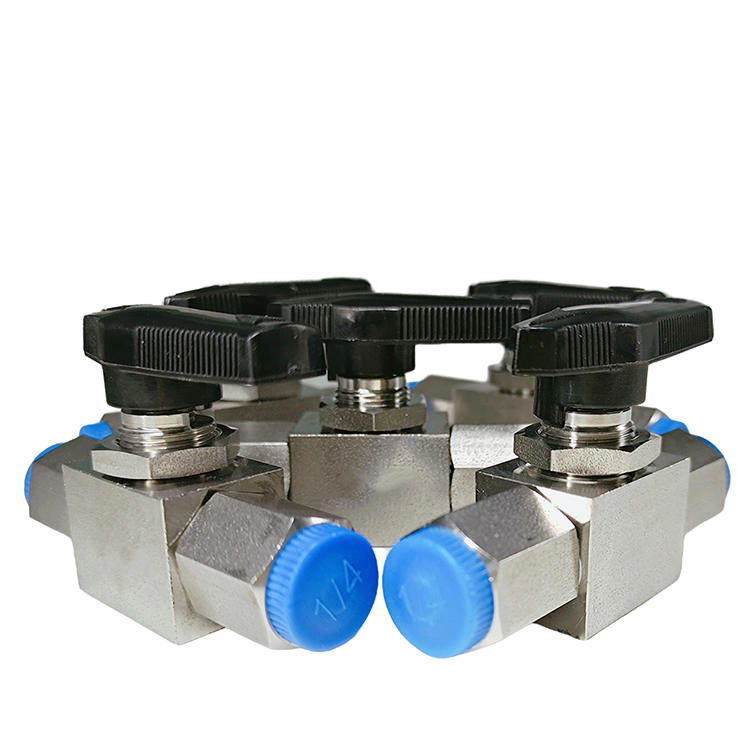

Presents the 316L Stainless-steel Female Thread Two-Way Instrumentation Ball Valve a manual control valve that can handle high-pressure gas up to 3000psi. This valve is perfect for industrial applications that require reliable and precise control over gas flow.
Constructed from durable 316L stainless steel, this Ball Valveis built to last. The AFKLOK female thread design ensures a secure and tight connection for optimal gas flow control. and with the option of two sizes 1/4in or 3/8in - this Ball Valvecan accommodate a wide range of gas flow requirements.
The two-way instrumentation design of this Ball Valveenables precise control over gas flow direction, allowing you to customize the flow to your specific needs. The manual control feature means you can easily adjust the gas flow on-demand, without the need for additional tools or equipment.
This Ball Valveis rated for high pressure up to 3000psi, making it ideal for industrial and commercial applications. Whether you're operating a gas-powered generator, powering a furnace, or managing a chemical system, this Ball Valveoffers the control and dependability you need.
Invest in the AFKLOK 316L Stainless-steel Female Thread Two-Way Instrumentation Ball Valveand enjoy peace of mind knowing your gas flow is in good hands. AFKLOK is a trusted brand with a reputation for quality and reliability, backed by a team of professionals dedicated to ensuring customer satisfaction.
Order today and experience the power of precise gas flow control with the AFKLOK 316L Stainless-steel Female Thread Two-Way Instrumentation Ball Valve.
| item | value |
| Warranty | 1 year] |
| Type | , Stop & Waste Valves, Globe Valves |
| Customized support | OEM, ODM, OBM |
| Place of Origin | China |
| Guangdong | |
| Brand Name | AFKLOK |
| Model Number | BVS6 |
| Application | Gas, Water, liquid |
| Temperature of Media | -53℃ to 148℃(-65℃to 300℉) |
| Media | Gas, Water, liquid |
| Port Size | 1/8in; 1/4in; 3/8in; 1/2in |
| Structure | BALL |
| Packing | TFM1600 |
| Body material | Stainless Steel 316 |
| Valve type | High Performance |
316L stainless steel has particularly good corrosion resistance, atmospheric corrosion resistance and high temperature strength due to the addition of molybdenum, and its resistance to grain boundary corrosion is excellent. The forging process makes the joint model performance and mechanical properties good and long service life.
The design of the tube joint has advanced geometry design features, the front ferrule is pushed into the joint body.
The front ferrule is pushed into the body of the fitting and the tube to form the main seal, while the back ferrule The back ferrule hinges inward to provide a strong grip on the tubing.
Insert the tube into the bottom of the fitting body, tighten the nut by hand, and then twist it 1 and 1/4 turns with a wrench.
The nut is silver-plated to prevent galling. The nut is silver-plated to prevent galling and can be re-installed many times.
Shenzhen Wofly Technology Co., Ltd. is specialized in manufacture ring gas pressure regulator, pipe fittings, full/semi-automatic switching devices, pipe fittings, valve instruments ect. We also supply customizing and designing service for all stainless steel products. We are in this field for 12 years. Own R&D Department and Design Team. Covering an area of 2500 Squre Meters. 150Works, of whom 20Technicians. With our strict quality control procedure and excellent customer service. We have own High praise form our clients who came form Europe, Amercia, Asia, South America ect. In order to shorten the delivery time, we set up a warehouse to stock most of hot selling items. The aim of our company is quality and prestige first. We sincerely welcome the co-parter form aborad.
Our friendly team would love to hear from you!
