Product Features

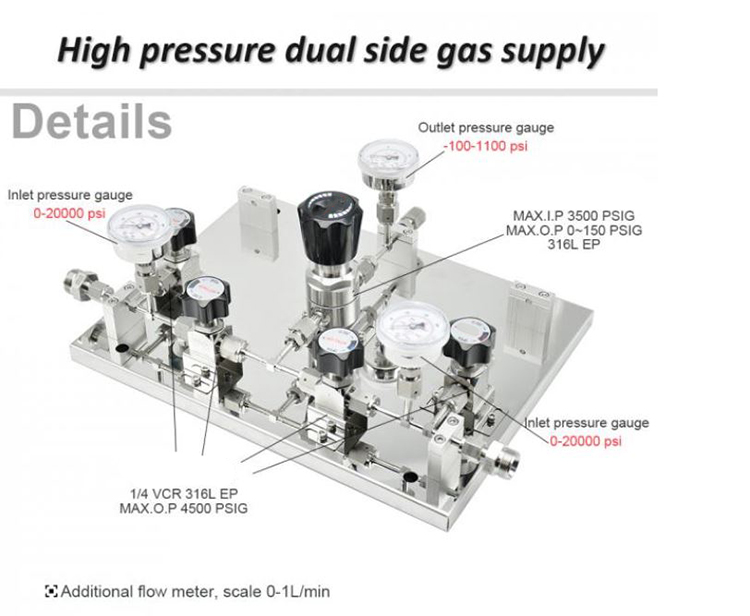

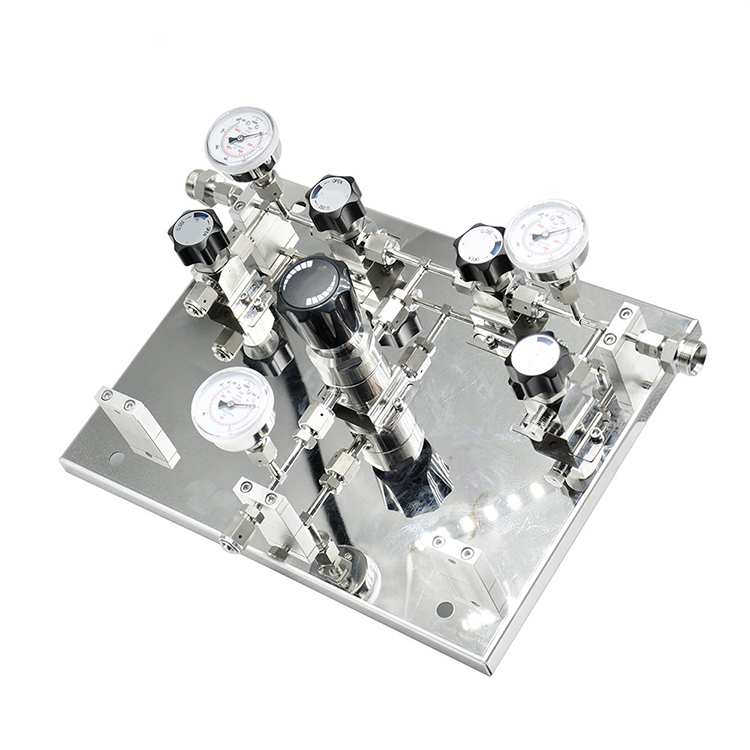

Panel mounted
Semi-Automatic Changeover
Double-stage pressure reduction minimizes pressure and flow fluctuation
All components are mounted on a single panel for easy maintenance
Diaphragm valve connections are orbital welded to minimize contamination and leakage. (Note :This feature applies to specific models
Benefits:
* Reliability: The system's design ensures a reliable gas supply, even during cylinder changeovers, preventing costly downtime
* Purity: Orbital welding of diaphragm valve connections maintains gas purity, critical in applications sensitive to
contaminants
* Ease of Use: The semi-automatic changeover reduces the need for manual intervention, making the system user-friendly and efficient
* Maintenance Efficiency: The panel-mounted design streamlines maintenance activities, allowing technicians to quickly address issues without extensive system disassembly
| item | value |
| Application | General |
| Port Size | 1/4 |
| Warranty | 1 Year |
| Place of Origin | China |
| Hunan | |
| Model Number | WL200 |
| Power | Manual |
| Temperature of Media | High Temperature |
| Brand Name | AFKLOK |
| Structure | Double-stage |
| Media | Gas |
| Customized support | OEM, ODM |
| Material | 316L SS |
| Max inlet pressure | 3000 psig |
| Outlet Pressure | 0~25, 0~50, 0~100, 0~150, 0~250psig |
| Working temperature | -40~+165℉(-40~+74℃ |
| Cv of Pressure regulator | 0.14 |
| Applicable gas | O2, N2, CO2, C2H2, C3H8 |
| Application areas | Lab, Semiconductor material, lithium battery, solar photovoltaic |
Packing details : inner box + white box + export carton
Selling units : single unit
Sing package size : 30 x 30 x 30 cm
Sing package gross weight : 2.5 kg
Moisture Analyzer
Granularity Analyzer
O2 Analyzer
WOFLY is a leading Manufacturer, Supplier and Exporter of a wide range of gas equipments, available under the brand name AFK. Wofly's success yields from high-quality, innovative products, exceptional customer service, and unequaled technical expertise in the gas & oil industry WOFLY offers an extensive line of components including tube fittings, control valves, shut-off and solenoid valves, pressure relief and regulators. Through the years we have learned how to properly match the gas regulation equipment with the application. Using the proper equipment for the job eliminates problems such as contamination, pressure variances, safety issues, and equipment mismatch.
2024 APE
Wofly participated in Asia Photonics Expo(APE) 2024 to meet face-to-face with customers
2023 OCTF
Wofly participated in OCTF 2023 and widely praised by customers in Southeast Asia
Factory exhibition hall
Factory exhibition hall
More than 100 m2 Class 100 Clean Workshop
More than 1000 m2 Class 1000 Clean Workshop
CNC machine
Oil-free Helium Leak Detectors
Case 1 : Laboratory gas supply
Case 2 : Chemical industry gas supply
Case 3 : Industrial production gas supply
Case 4 : Fuel and lithium batteries gas supply
Wofly
The 316SS Semi-Automatic Changeover System is an item this is top-of-the-line offers reasonably limited solution for anyone looking for reliable and efficient changeover systems with regards to their semiconductor labs. Made to switch between two gas sources automatically while ensuring the processes remain. uninterrupted. The 316SS construction of the technique also guarantees maximum durability and durability rendering it a fantastic selection for those buying an answer that is lasting.
Simple to utilize convenience that is ensuring convenience for its operators. The Wofly it is also made with manual energy functionality allowing for seamless switchovers in case there is any charged power outages. This feature ensures there is no disruption to your process maximum that is facilitating without any downtime.
Ideal for labs that are looking a changeover system that can handle a gas movement that is moderate. It includes the functionality to control fuel flow prices up to 50 LPM which makes it a great choice for those buying a product that will handle a capacity that is comparable.
Expertly developed to suit the precise requirements of semiconductor labs. It really is suitable for different gas types and is appropriate many applications research this is certainly including and manufacturing.
The Wofly 316SS Semi-Automatic Changeover System arises from a brand name that is committed to delivering performance this is certainly excellent quality. With more than a decade of experience in the market. Wofly has earned a reputation being a reliable and brand this is trustworthy solutions which can be engineered towards the highest requirements.
