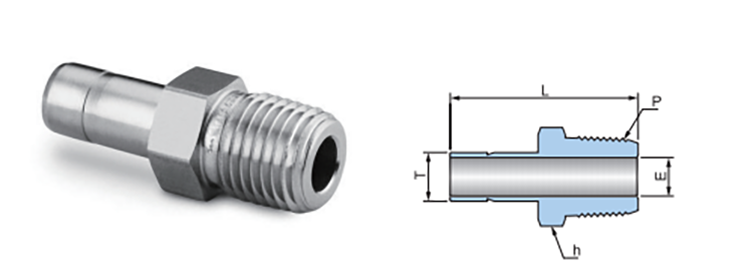

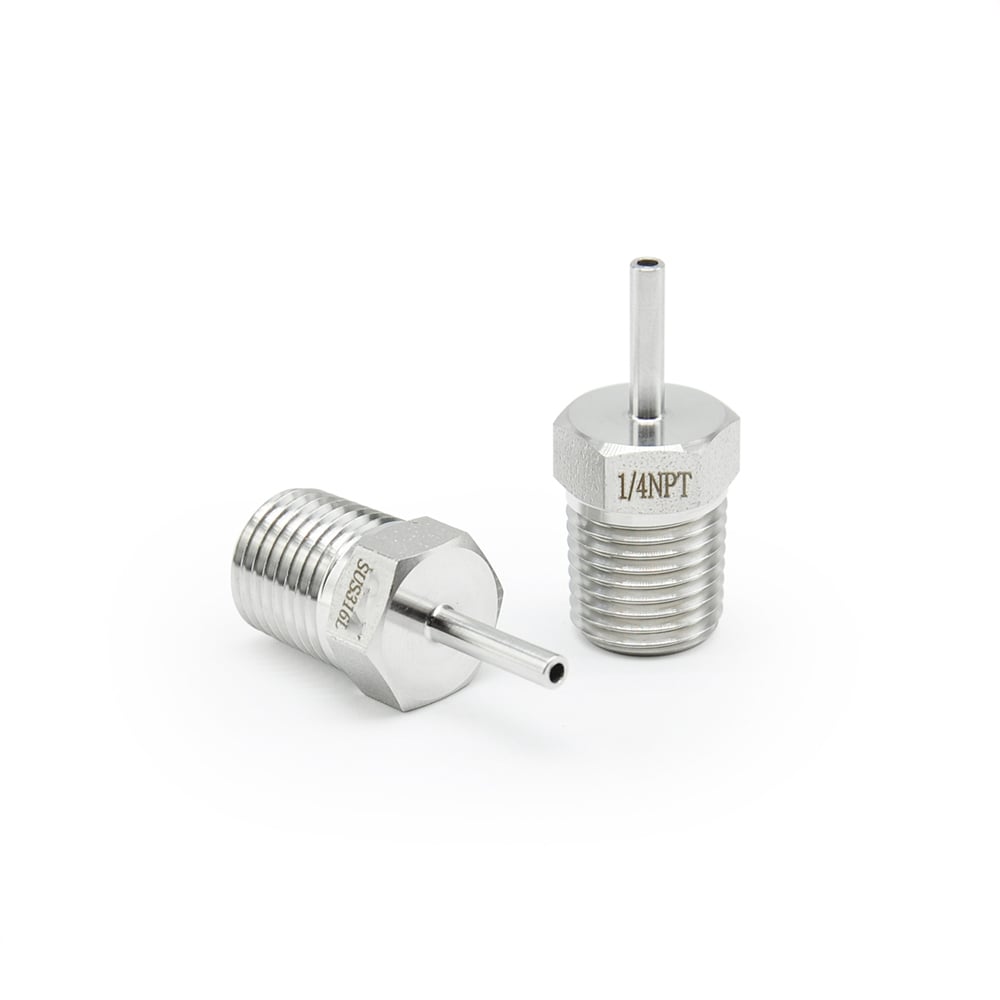

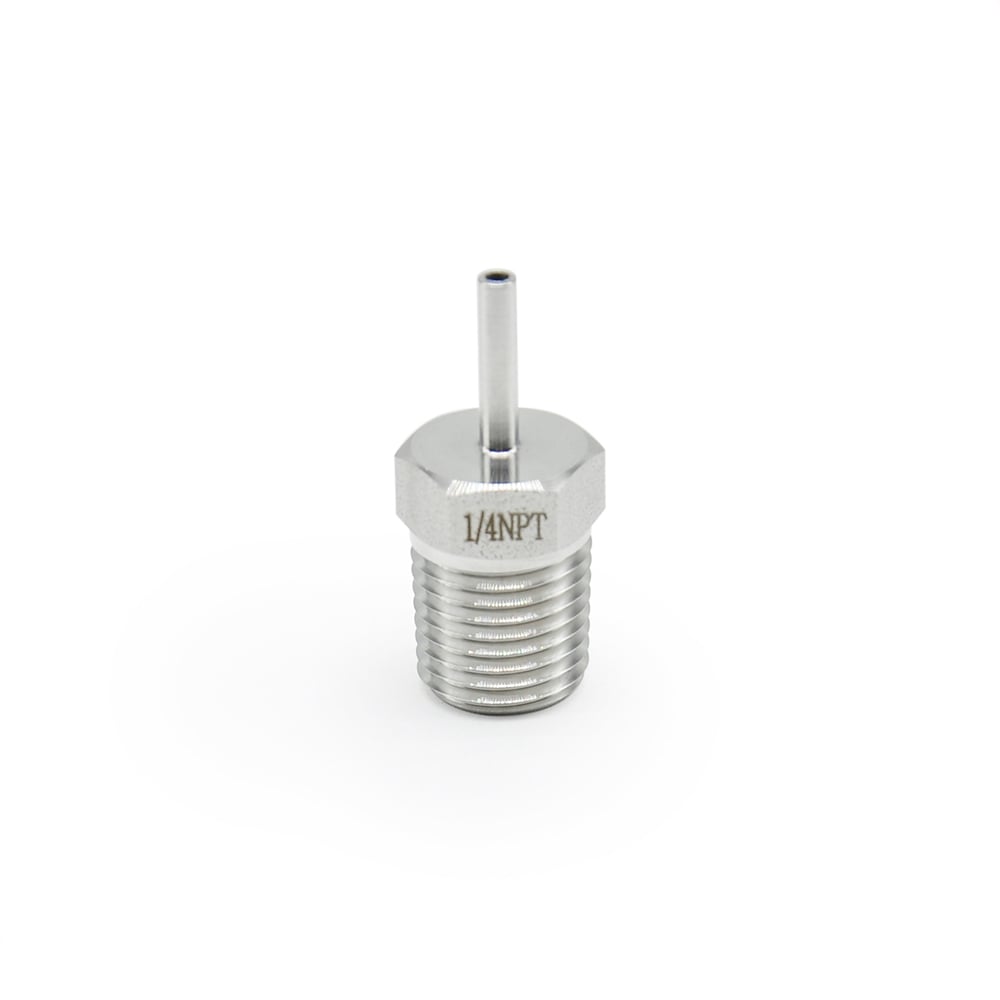

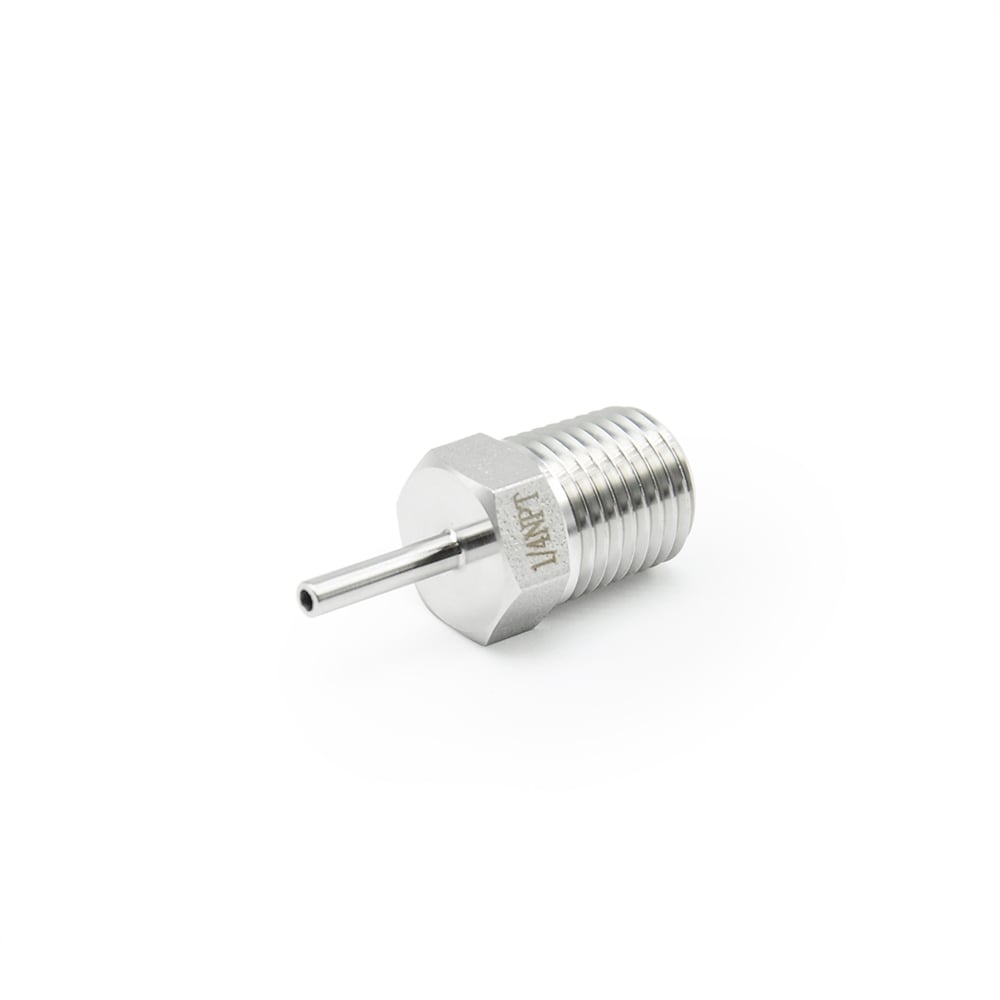

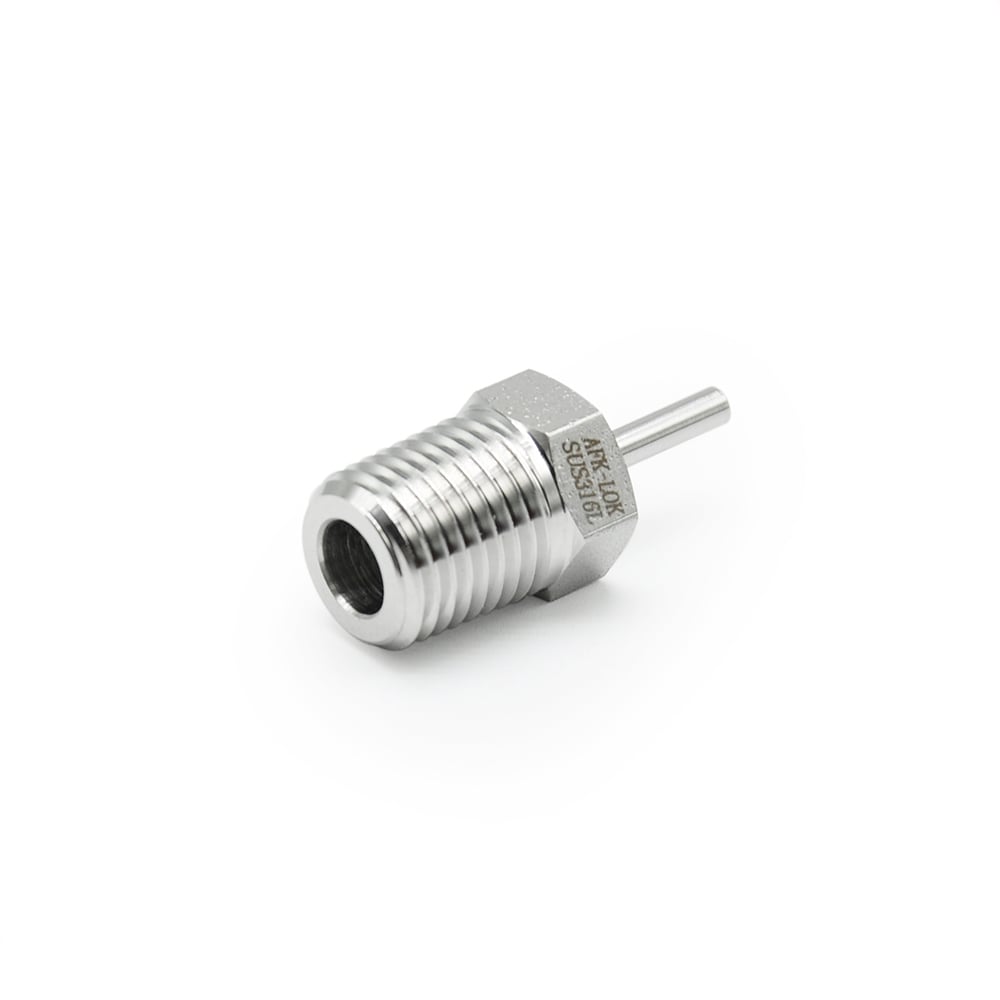

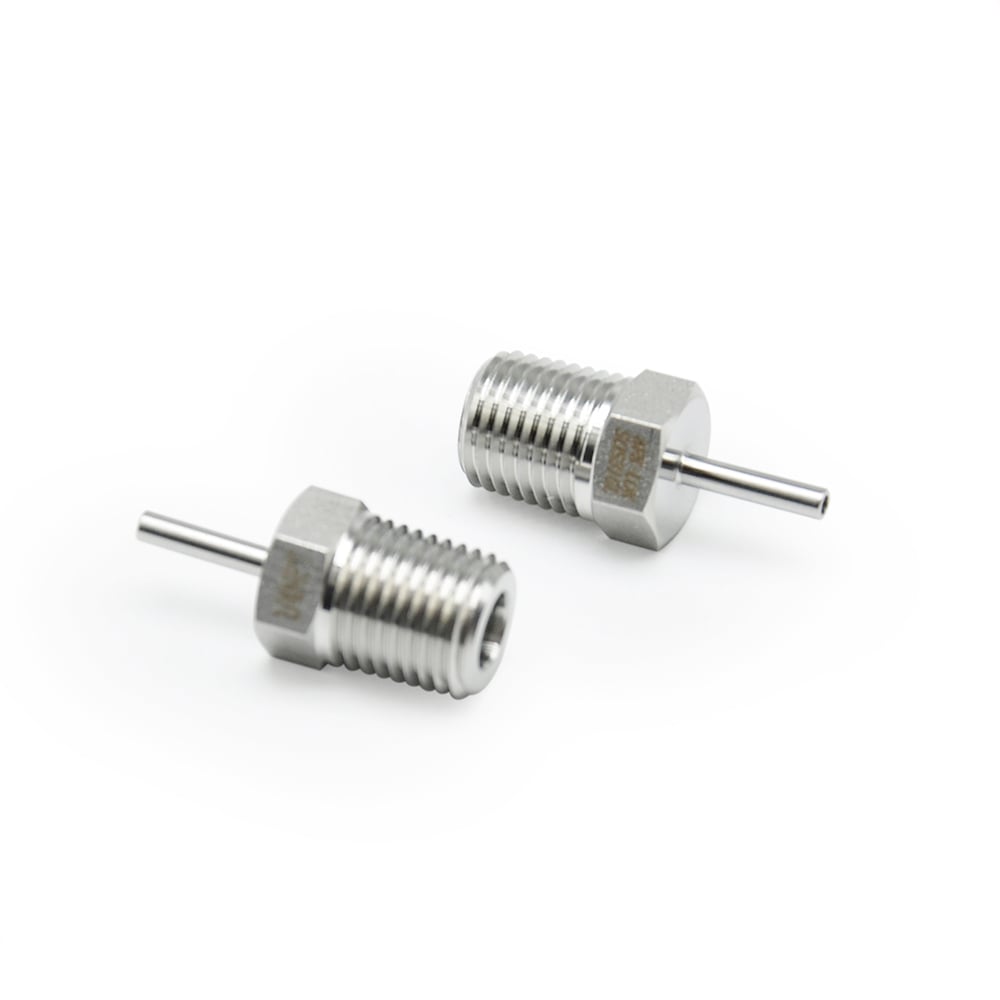

6mm Weld Fittings x 1/4 NPT Male Threaded Pipe Fittings SS316 Nipple Fitting

Working Pressure

1. The working pressures shown are based on ANSI/ASME B31.3 at ambient temperature, to determine working pressures in accordance with ANSI/ASME B31.1, multiply the working pressures by 0.94

2. Use the allowable working pressure at ambient temperature to multiply the elevated temperature factors to get the working pressure at elevated temperature. Materials Material Bar Stock Forgings Designator 316 stainless steel ASTM A276, ASME SA479 ASTM A182, ASME SA182 SS 316L stainless steel 6L 904L stainless steel ASTM B649 ASTM A182 904L

◎ Using the same materials to weld will ensure the same coefficients of expansion and good welding.

◎ Tungsten Inert Gas (TIG) Welding is recommended.

316 stainless steel as standard material

◎ Straight fittings are manufactured from quality bar stock. Shaped fittings are made by forging

◎ Quality machining of all ports ensures consistent welding

◎ Radius junction design for elbows provides smooth flow path

◎ All fittings are cleaned to remove oil, grease and loose particles

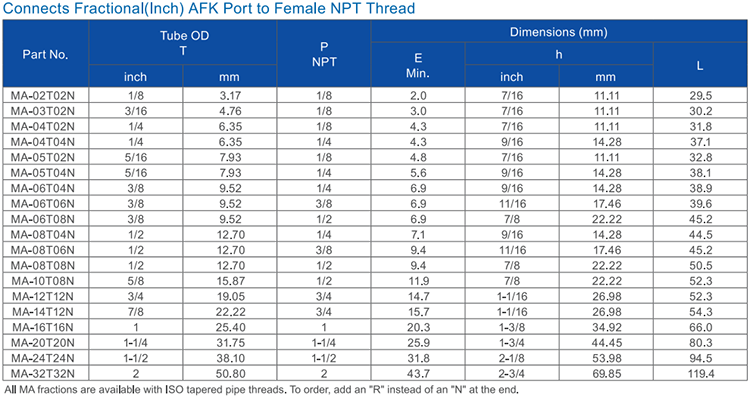

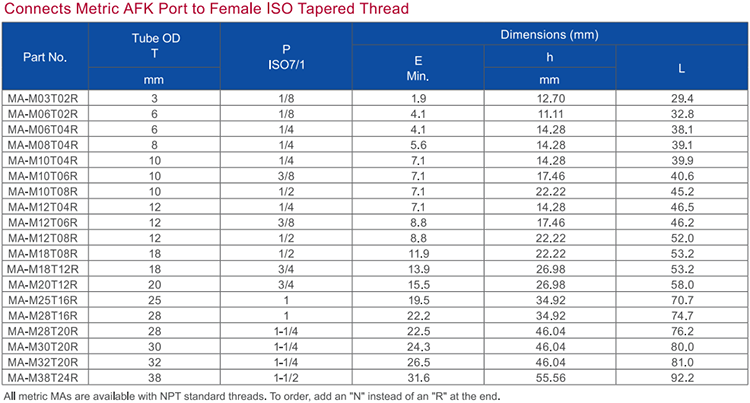

◎ Every fitting is marked with size, material and heat number Technical Data ◎ Sizes range from 1/8" to 2" and 6 mm to 38 mm.

◎ Working Temperature: Material Minimum Temperature Maximum Temperature 316 stainless steel -325°F (-198°C) 1000°F (538°C) 316L stainless steel -325°F (-198°C) 850°F (454°C) 904L stainless steel -325°F (-198°C) 700°F (371°C)

We have a variety of products, products of different sizes and styles of packaging is also different, but each cargo our outer packaging will be wrapped around a circle of tape or wrap stretch and internal filling tight to avoid shaking, so that the excellent protection of the product will not be damaged.

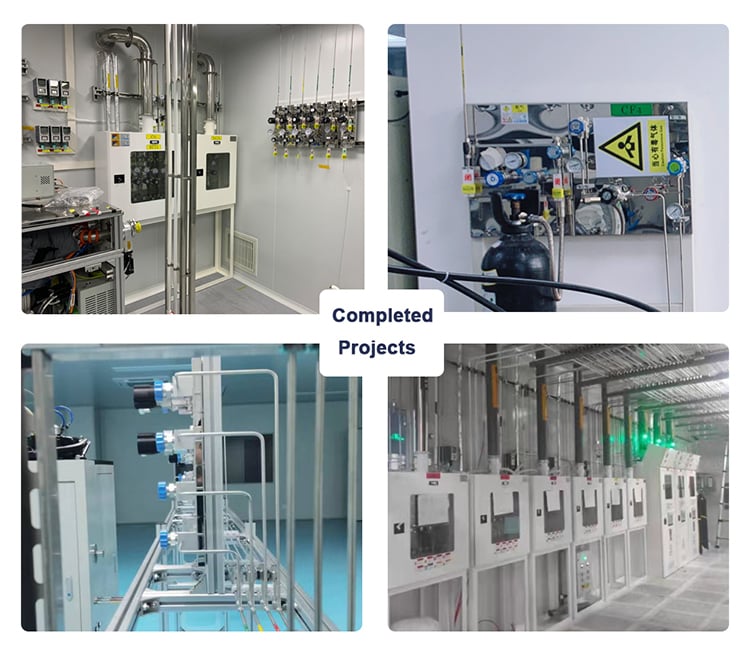

Shenzhen Wofly Technology Co., Ltd. was established in 2011, is a professional engaged in the design and installation of gas systems engineering, technical services consulting and supporting product production and sales as one of the national high-tech enterprises. Headquartered in Shenzhen, Wuhan Subsidiary Company, Hong Kong subsidiary and the Xi'an Office. We provide high-performance and high-quality turnkey solutions for the design and installation of bulk gas system, electronic special gas system, laboratory gas system, industrial central gas supply system, clean gas pipeline, Takasumi chemical liquid supply system, Local Scrubber tail gas treatment system, etc.. The project covers semiconductor, integrated circuit, photoelectric, new energy, microelectronics, optical fiber, biological medicine, Scientific Research Institute, Standard Testing, university and college and other high-tech fields.

1. Is the flow rate of the pressure reducer adjustable?

Yes, we can adjust it according to your needs and choose the model.

2. What products can you provide?

We can supply pressure reducers (for inert, toxic and corrosive gases), diaphragm valves (Class BA and EP), couplings (VCR and conventional), needle and ball valves and check valves (ferrule, internal, external and G-tooth available), cylinder couplings, etc.

3. Can you provide samples to test? For free?

We can provide free samples, and due to their high value, you should bear the cost.

4. Can you make the products based on our requests, such as connection, thread, pressure and so on?

Yes, We have experienced technical team and can design and produce the products according to your requirements. Take a pressure regulator for example, we can set the range of pressure gauge according actual working pressure, if the regulator is connected to a gas cylinder, we can add an adaptor such as CGA320 or CGA580 to connect the regulator with the cylinder valve.

5. What payment methods for chose?

For small order, 100% Paypal, Western Union and T/T in advance. For bulk purchase, 30%T/T, Western Union, L/C as deposit, and 70% balance paid before shipment.

6. How about the lead time?

Usually, delivery time is 5-7 working days for sample, 10-15 working days for mass production.
