AFKLOK
The attachments for g90 gas compressed cabinet Cylinder holder set is an enhancement important individual that take advantage of compressed gases. This body allows risk-free area for keeping protect of cylindrical tubes that might safeguard each you your team coming from prospective potential dangers.
The attachments are produced towards suit completely because of the attachments for g90 gas compressed situation Cylinder holder set, guaranteeing there's no possibility connected with the cylindrical tubes tipping or even going down over. This AFKLOK set consists of Cylinder owners produced coming from resilient products which will endure utilize significant offering individuals possessing a resilient device that will withstand for an although long.
The set is produced your benefit in your move, along with simple setup suggestions consisted of. using this particular set particular you're most probably towards securely preserve your Cylindrical tubes without the required for personalized adjustments. The owners are an easy job towards set up change. It is a simple job towards set up change in a number of situation dimensions.
Apart from this, the Cylinder owners are produced towards easily lapse within outdoors using this particular situation. They are flexible adequate towards suit Cylindrical tubes of a number of dimensions, allowing optimal flexibility towards the storing area of each cylinder. The owners are offered different dimensions towards rather suit Cylinder different.
Utilizing the Accessories for g90 gas compressed cabinet Cylinder holder set, you do not require to become stressed over your Cylindrical tubes rolling or even befalling in globs in globs in globs of area. The proprietor set allows the Cylindrical tubes end up being kept, upright avoiding any type of risk of mishaps or even risks. Furthermore, Cylinder substitute is practical problem-free although the Cylindrical tubes are offered will easily be altered.
This variety of attachments is fantastic for discovered in different environments for circumstances production blossoms, clinical labs, in some cases in industrial setups. The resilience reliability amongst these owners’ trigger all of them towards end up being a possession great any type of work environment where gas compressed could be used typically.

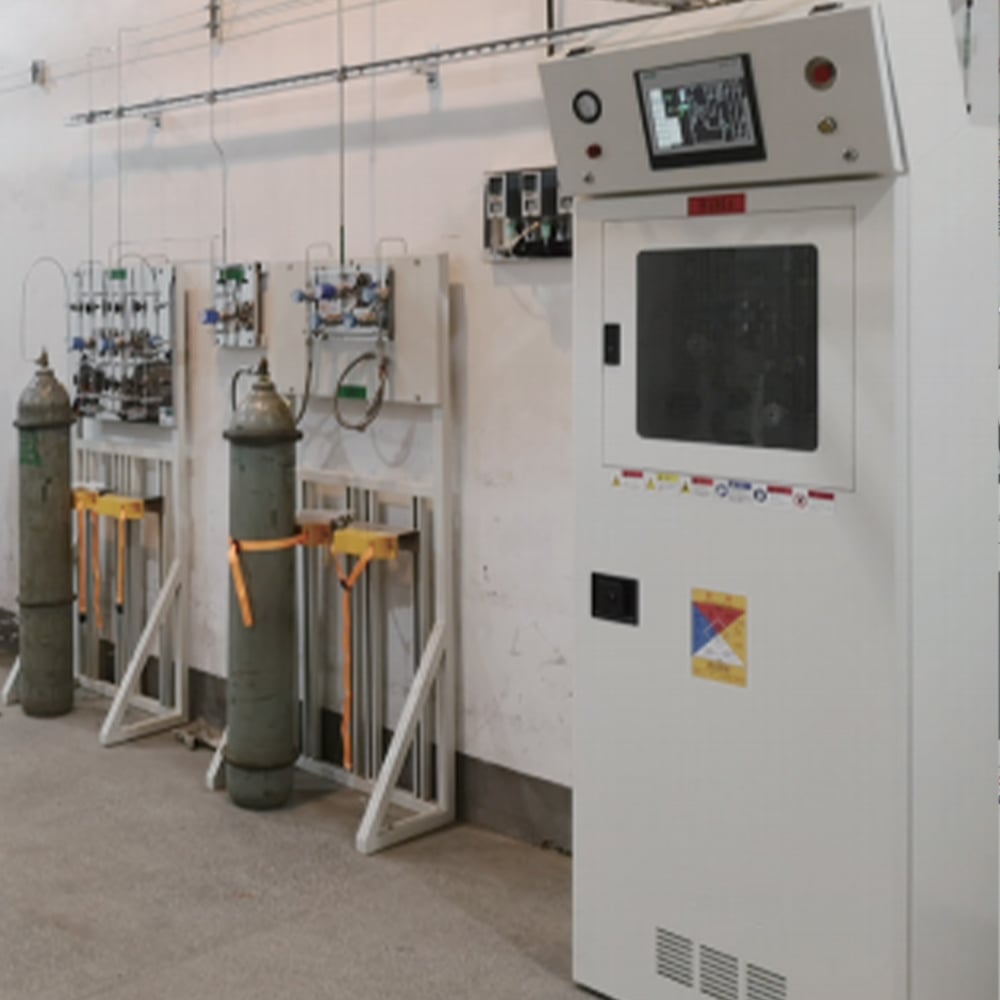

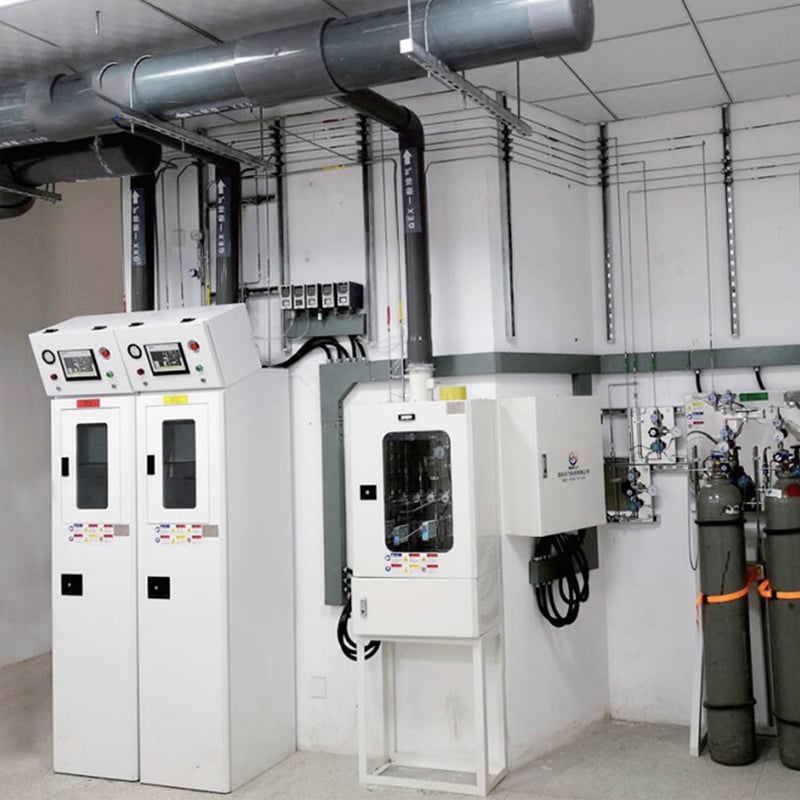

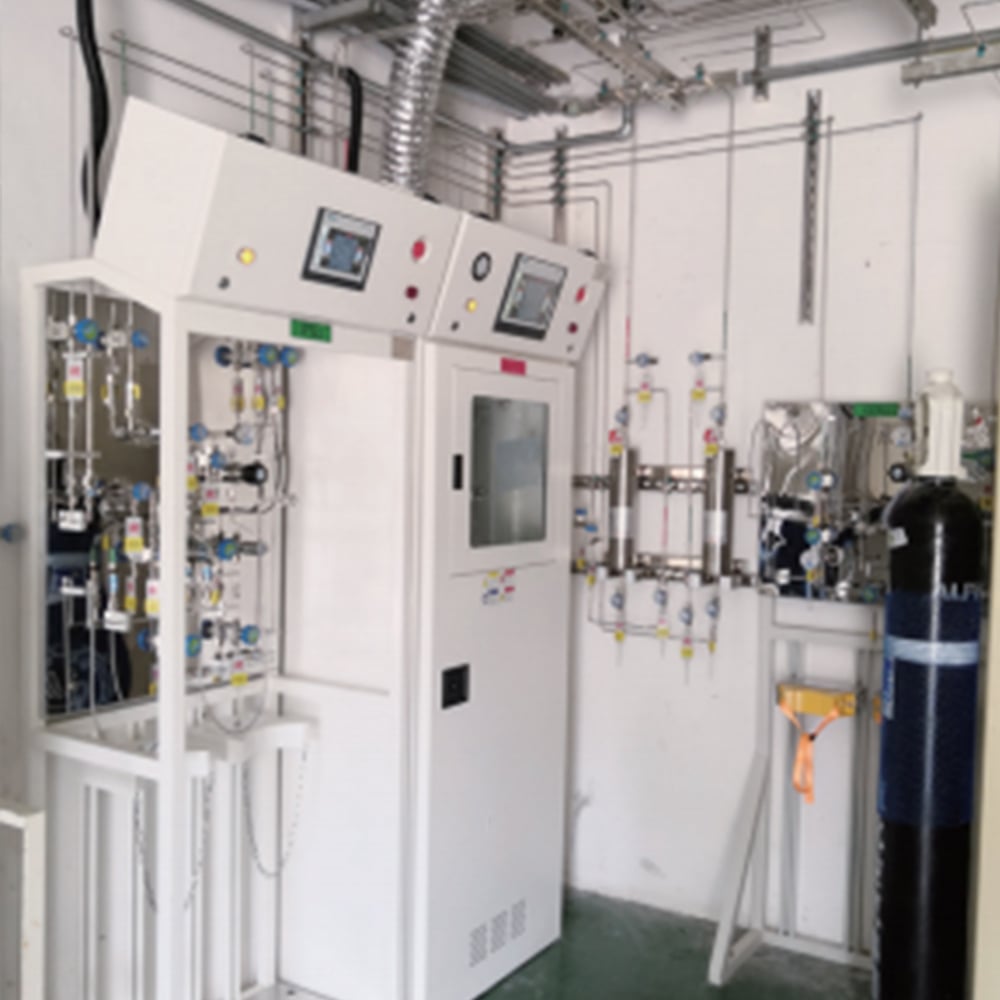

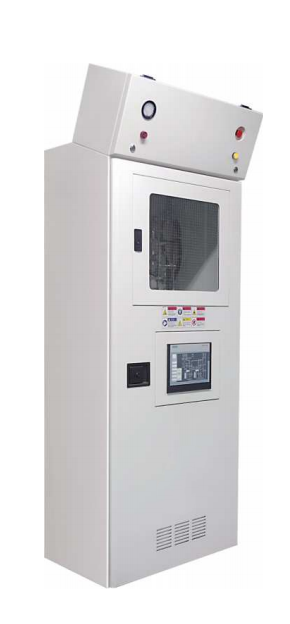

Gas cylinder cabinets feature auto or manual process panels. Both options include either PLC-style or Life safety-style controllers specific to the panel design, as well as dedicated process outlets and a built-in auto crossover feature. Our two-cylinder gas cabinets can be used to enclose process gases in either process/purge or process/process setups. Three-cylinder gas enclosures can be configured for process/process/purge with dedicated outlets, or with an auto crossover setup. Both options include a dedicated purge cylinder in the same enclosure. See individual product listings for additional information and specifications.
Feature:
Certified SEMI and EN 14470-1 Safety lock with key Automatic maintenance free certified air duct closing system Non sparking hinge made in natural iron with brass plug Thermo dilatant sealing (DIN 4102) Prepared for tubes insertion Steel folding ramp for easy cylinder loading Adjustable shelves for small cylinders (1 included.
| Gas Type: | CH4, SIH4, H2 and other flammable and explosive gases |

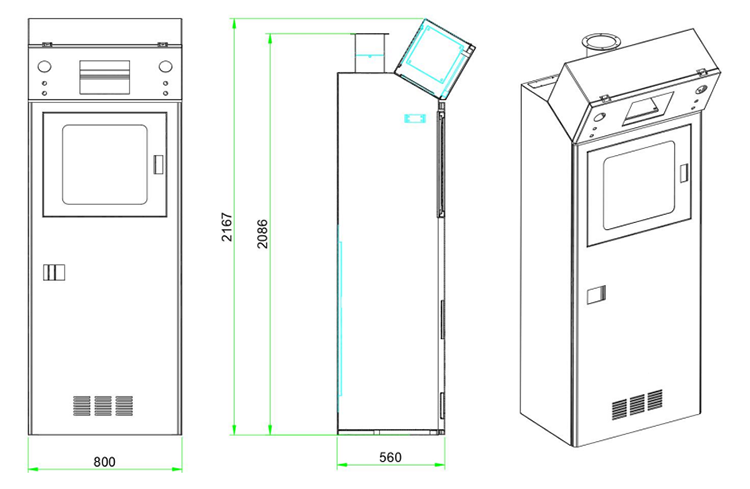

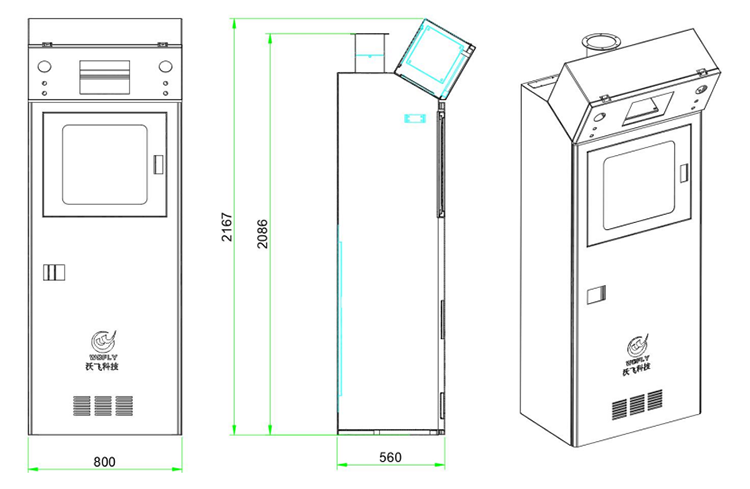

| Dimension: | 800*540*2300 mm |
| Connetion: | 1/4" VCR inlet, 1/4" VCR outlet. |
| Puring and evacuation interface: | Puring inlet 1/4 "VC, 20SLM; evacuation outlet 1/2 "VCR, 30SLM. |
| Control valve drive gas connection: | inlet 1/4" ferrule, 10 SLM. |
| Working gas pressure: | -30-160PSI (adjustable). |
| Auxiliary gas pressure range: | control pressure for pneumatic valves: 80 Psi ± 10 Psi (compressed air or pneumatic nitrogen). |
| GN2 (evacuation operation): | 90 Psi ±10 Psi; PN2 (purge operation): 80 Psi ±10 Psi. |
| Operating ambient temperature: | between 5 °C and 35 °C. |
| Ambient humidity: | non-condensing state 0 ~ 80% |
| Equipment spraying: | water pressure: 3 ~ 4Bar |
| Water flow: | 145LPM @ 2.1barg |
| Electricity requirement: | AC 220V/50Hz 0.6KW |
| Operating system: | PLC system (Siemens) with 10" touch screen |
| Signal: | Digital RS-485 (D-NET possible). |
| Factory test: | meet the national standard five testing standards |

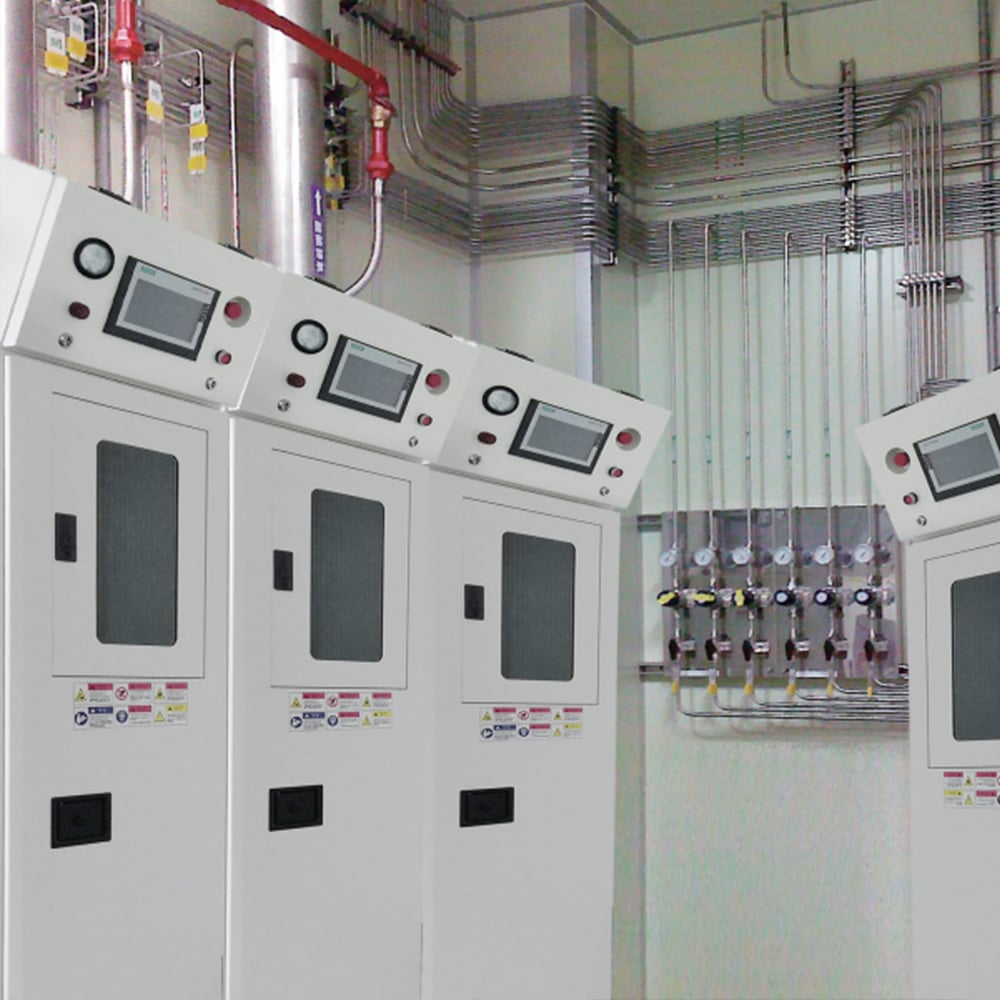

Our Gas Cylinder Storage Cabinets are widely used in automotive manufacturing, petrochemical, industrial manufacturing, laboratory, food industry, power industry, new energy and other fields. We have been recognized by customers with good performance and high quality service.

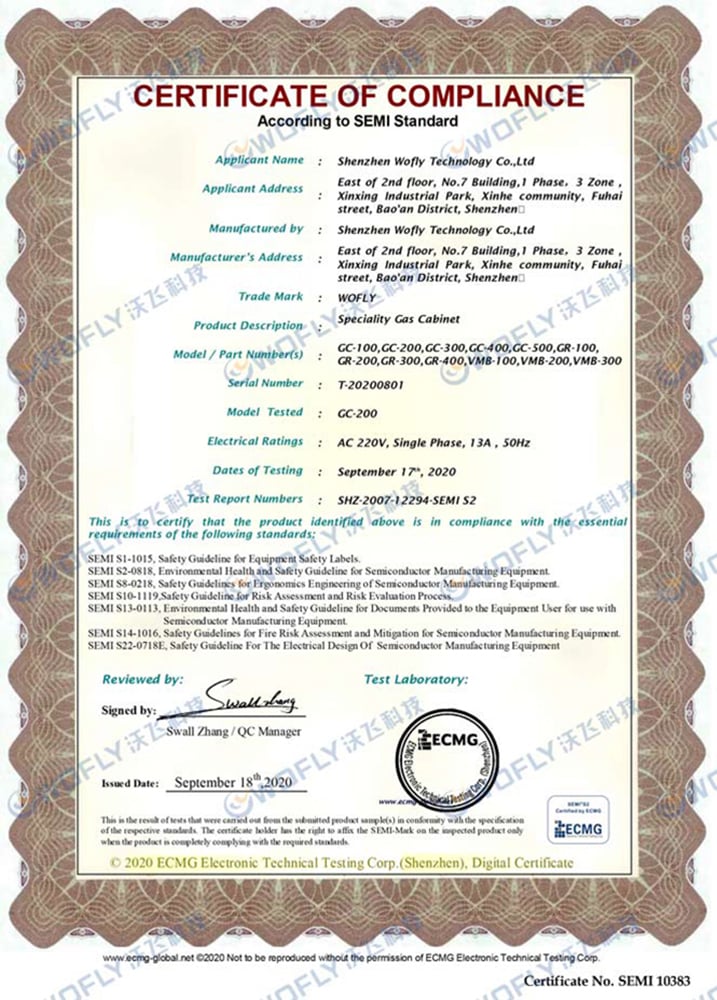

WOFLY automatic special gas cabinet (GC) has SIME S2 certification, alarm detection alarm function, the first time to find the leak and stop the spread of leaking gas, timely alarm treatment, to avoid greater accidents, to ensure normal production and staff personal safety.

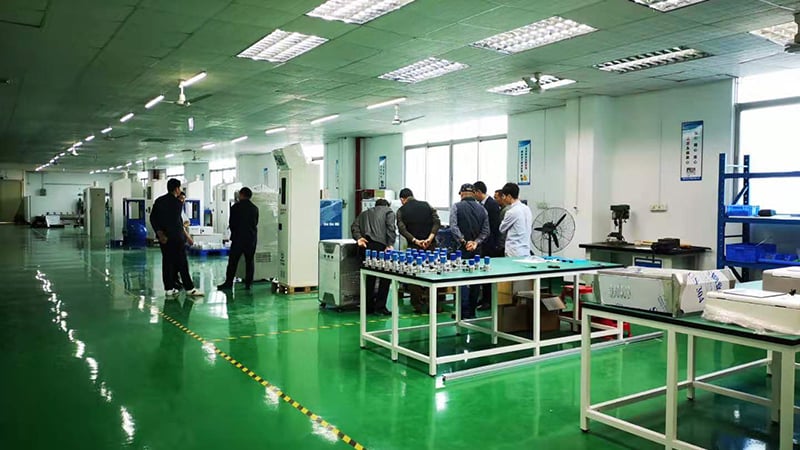

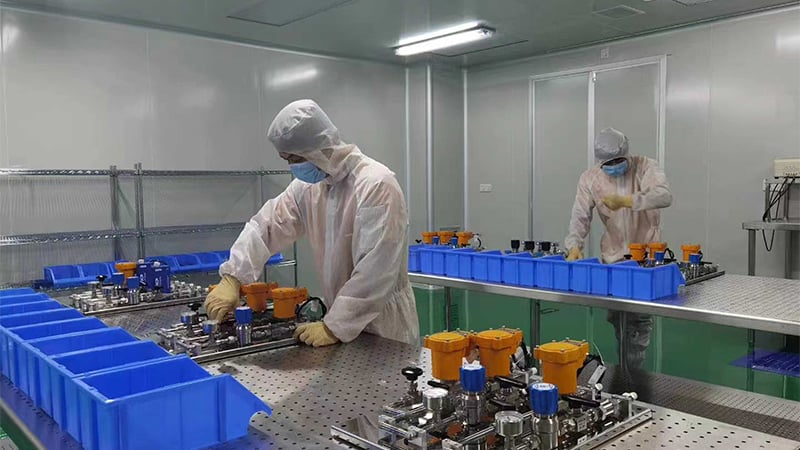

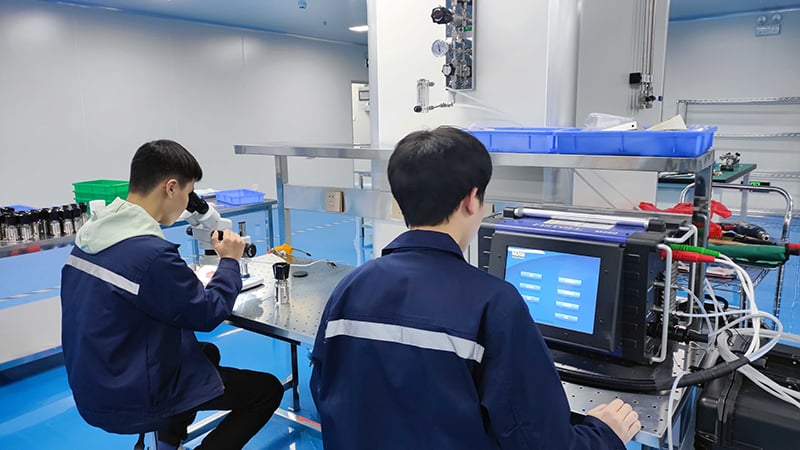

SHENZHEN WOFLY TECHNOLOGY CO,. Ltd. is one of the pioneer suppliers for gas full/semi-automatic switching devices, GR cabinets, VMB cabinets, gas mixers, gas pressure regulator. pipe fittings and other products. Founded in the year 2001 with passion and committed to fulfilling customer’s demands with excellent products and service WOFLY has been a leader in the industry due to the design and manufacture of high-performance “Dual ferrule compression heat transfer tube accessories” UHP(Ultra High Purity Application Parts and Valves” designed with its own technology since 2019. 150Workers, 5000 m2 workshop, ISO, CE, RoHS, EN certificated, one hour reach ShenZhen port, this is how we keep superior quality and competitive cooperation for global valued customers We work closely with our customers to provide not only high-quality products but also technical product knowledge in order to meet the demanding application requirements.
