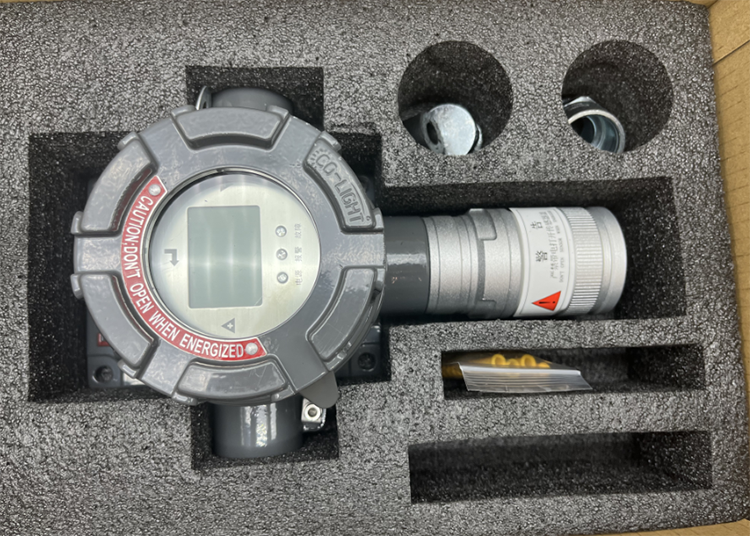

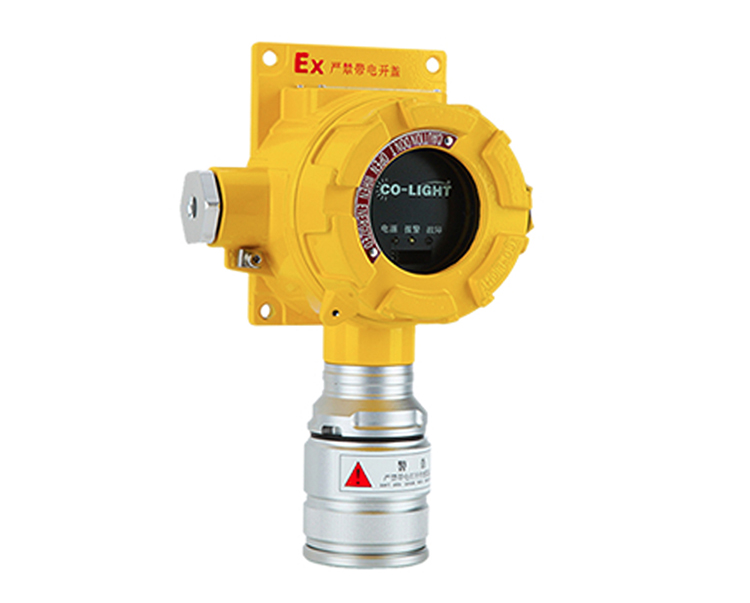

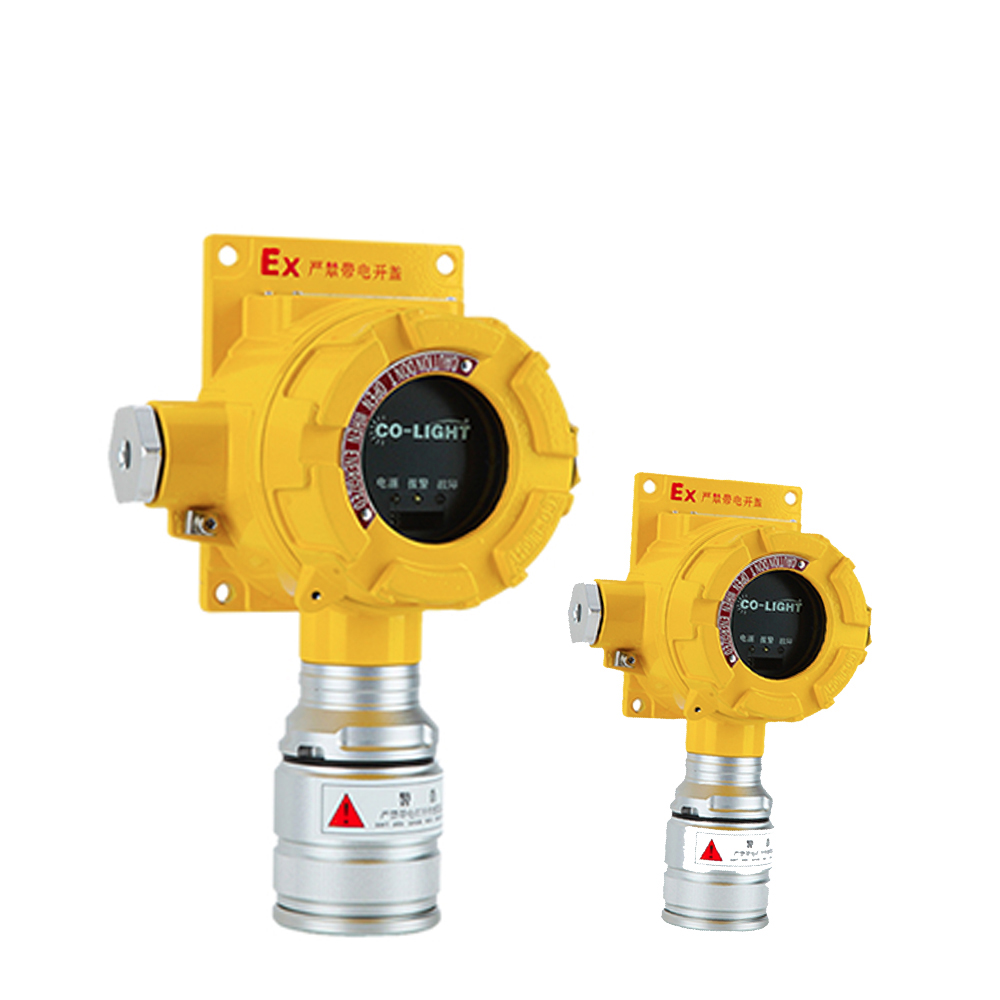

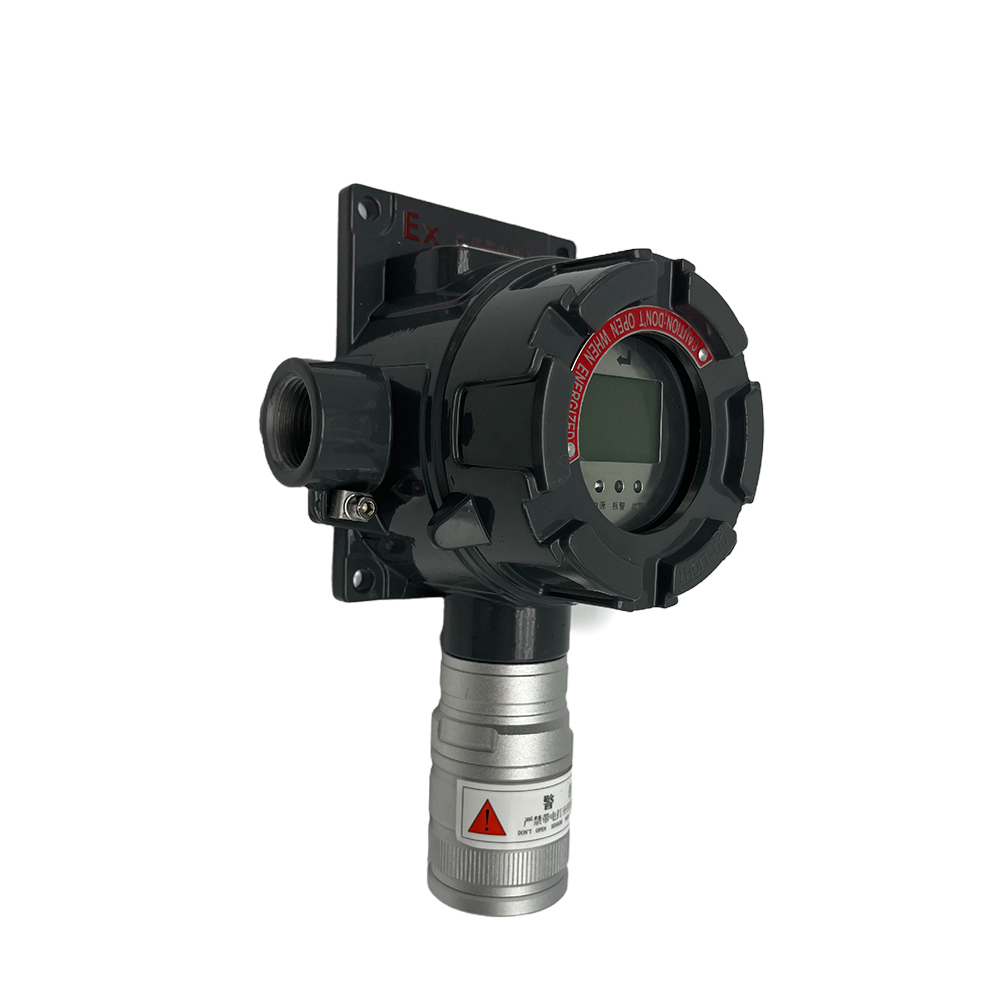

CO800 series gas detectors
The CO800 series gas detectors are instruments installed in flammable, explosive, or toxic gas environments. They are widely used in industries such as petroleum, petrochemical, steel, gas, and pharmaceuticals. They come with a display and magnetic bar operation, allowing for the replacement of different sensor models based on the type of gas to be detected
Features:

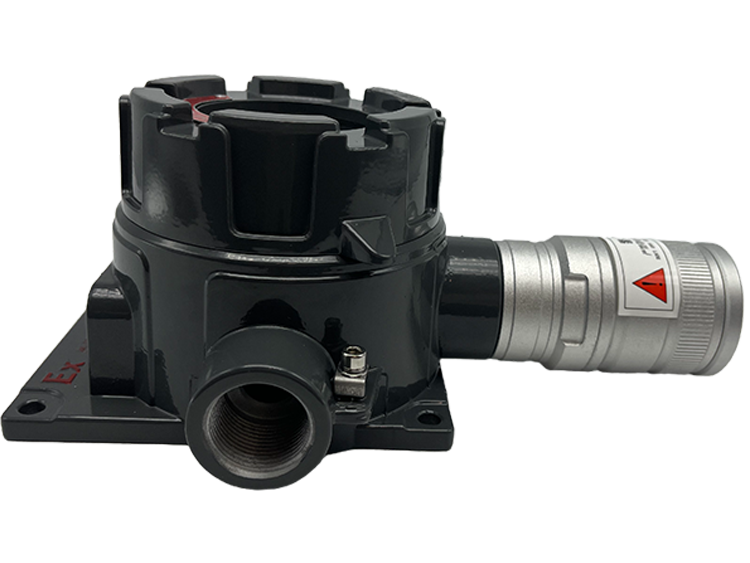

--The GT-CO800 fixed gas detector is a new generation of intelligent safety monitoring instrument. The sensors can be calibrated offline or online and can be freely replaced with different types of gas sensors. It also provides real-time fault diagnosis for the sensors and instruments.
--The GT-CO800 fixed gas detector operates using a magnetic bar, which enhances safety and convenience. --The GT-CO800 fixed gas detector adopts a modular design, ensuring easy and quick installation and maintenance. - --The GT-CO800 fixed gas detector fully complies with relevant national standards. It can output a standard 4-20mA signal and can be connected to various control instruments.
It is equipped with two relay outputs: one for gas alarm output that can be connected to external devices such as sound and light alarms, and another for fault alarm output that can send instrument fault alarm signals to the control room. It also has a standard RS485 communication interface, allowing for remote communication using the MODBUS RTU protocol to transmit data to PLC, DCS, or PC devices. --The intelligent sensor adopts a plug-and-play method for convenient and quick operation. The sensor module is designed with pin connections, making on-site maintenance easy.
Electrical performance:
Detection principle: catalytic combustion type or electrochemical type
Detection of gases: combustible gases, carbon monoxide, hydrogen sulphide, ammonia, chlorine, oxygen, etc. Accuracy: ±3%FS Power supply: 24VDC (voltage range: 16 to 32VDC)
Power consumption: <3w>Output signal: 4-20mA standard current; MODBUS RTU protocol (optional) Two sets of relay outputs 1A/24VDC (optional)
Mechanical performance

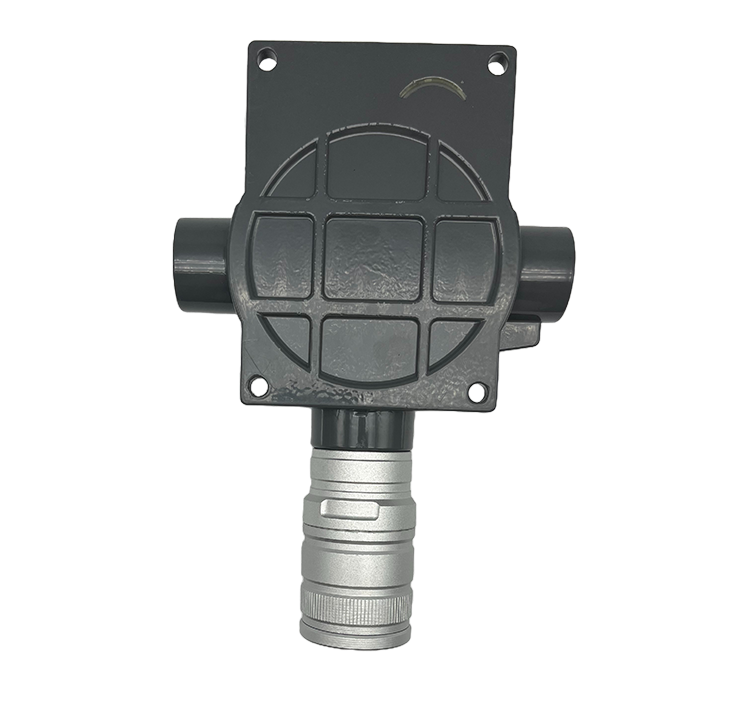

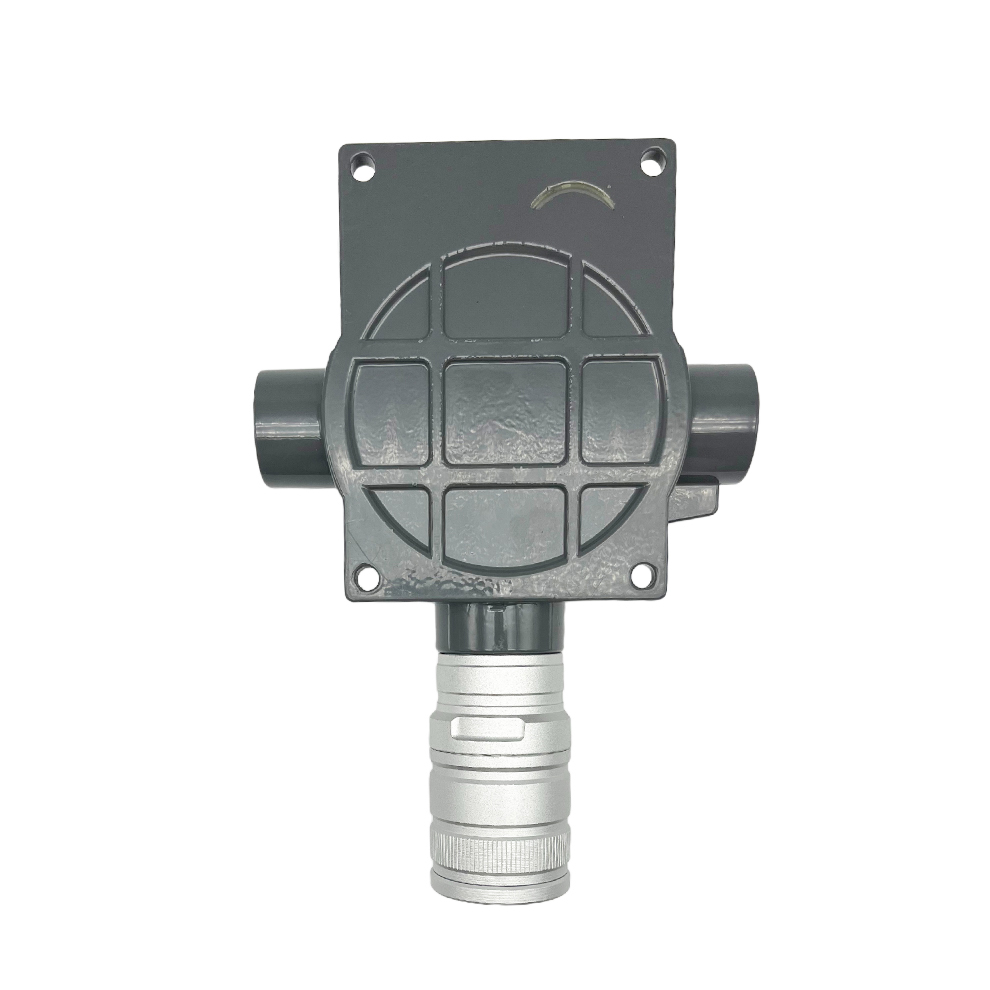

Main body material: aluminium alloy or stainless steel; sensor housing: stainless steel
Explosion-proof connection thread: G3/4 female thread
Protection class: IP66
Weight: 1.88kg
| Adaptation range (Pa) | 10~1.3x10 |
| Open/close time | Standard ex works: DNS63/20S80≤DN≤200/30SD |
| Special designation: DN≤32/4S; 10S; 60SDN>40/6S; 15S; 205; 60S | |
| Medium temperature (C) | 25~+80(sealing material is nitrile rubber) |
| 30~+150(sealing material is fluor elastomer) | |
| Flange standards | JB919; GB6070 |
| Control circuits | Standard factory: AC220V/50Hz Switching type Specially specified: AC380V; DC24V; Switching type 4~20mA DC Regulating type 1~5VA DC |
| Regulating type Standard: with passive contact type Specially specified: DC regulated type 4-20mADc regulated type 1~5V | |
| Signal feedback | Standard ex works: with passive contact type |
| Specially specified: DC regulated type 4-20mADc regulated type 1~5V |

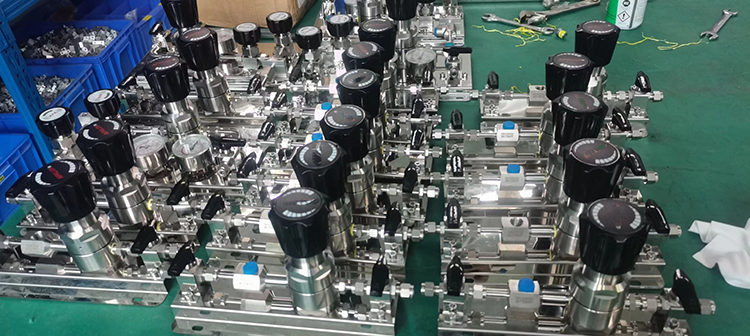

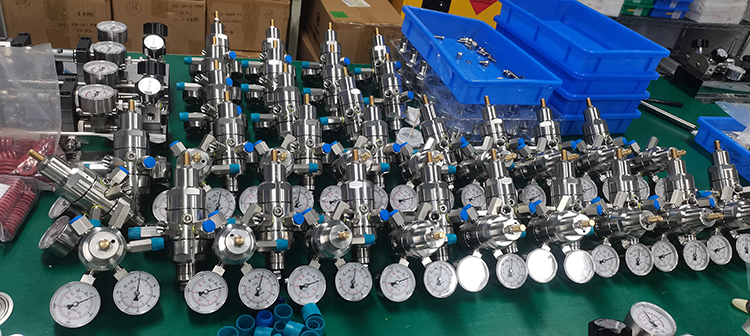

Shenzhen Wolfly Technology Co., Ltd. is specialized in manufacture ring gas pressure regulator, pipe fittings, full/semi-automatic switching devices, pipe fittings, valve instruments etc. We also supply customizing and designing service for all stainless-steel products.
We are in this field for 12 years. Own R&D Department and Design Team. Covering an area of 2500 Square Meters. 150Works, of whom 20Technicians. With our strict quality control procedure and excellent customer service. We have own High praise from our clients who came from Europe, America, Asia, South America etc. In order to shorten the delivery time, we set up a warehouse to stock most of hot selling items.
The aim of our company is quality and prestige first. We sincerely welcome the co-partner form a board
