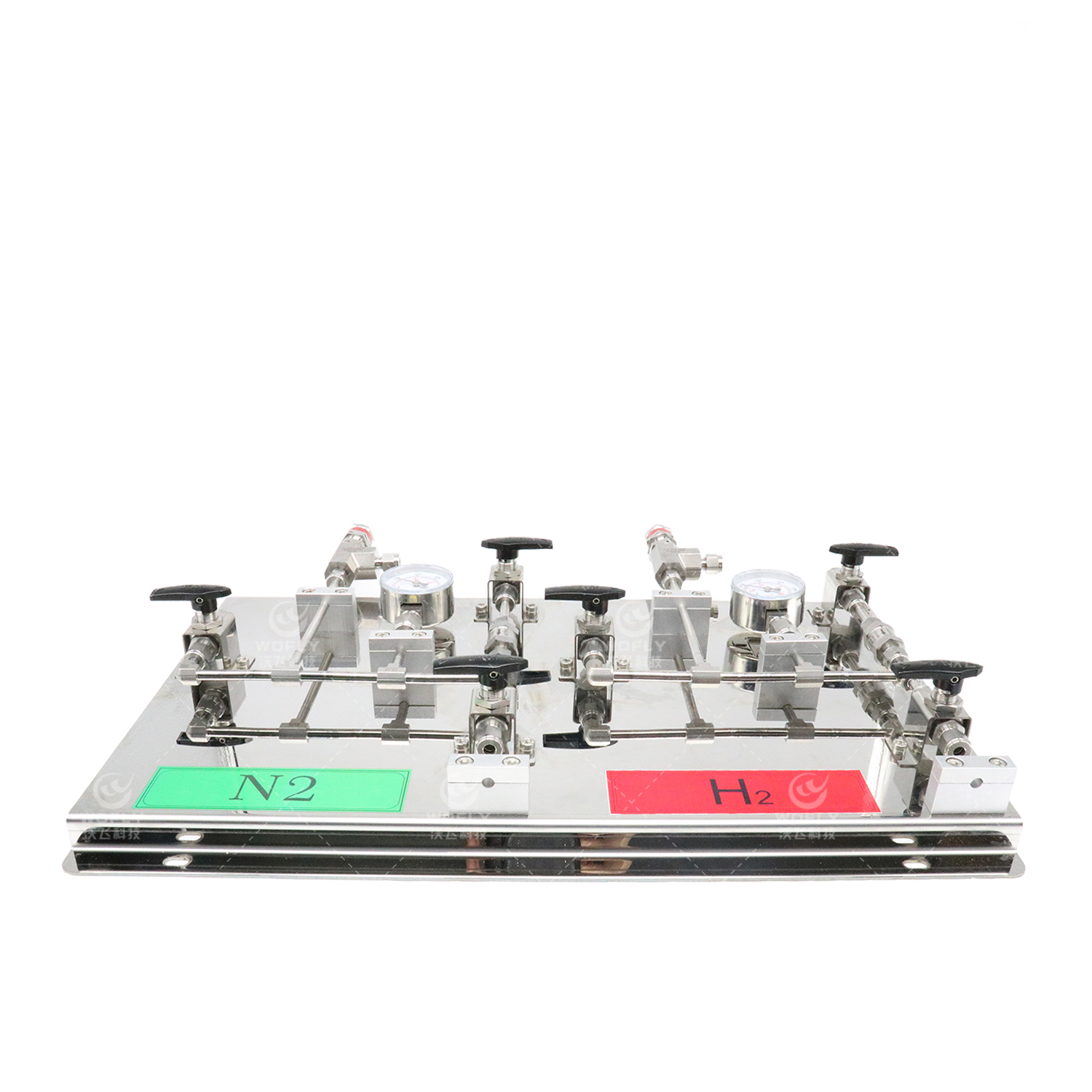

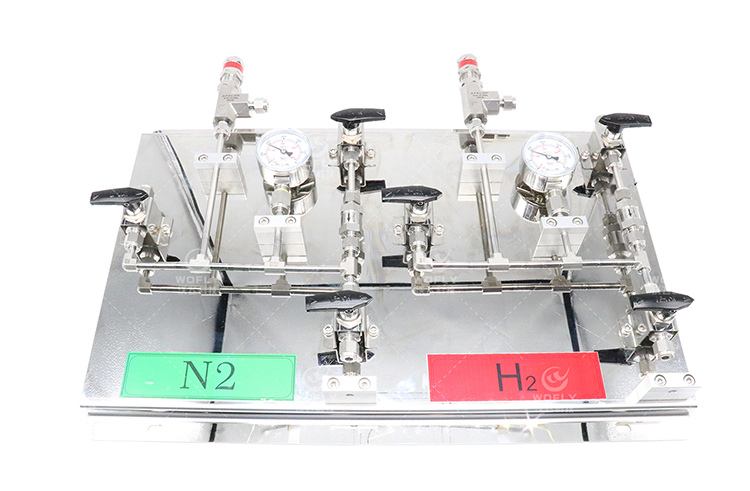

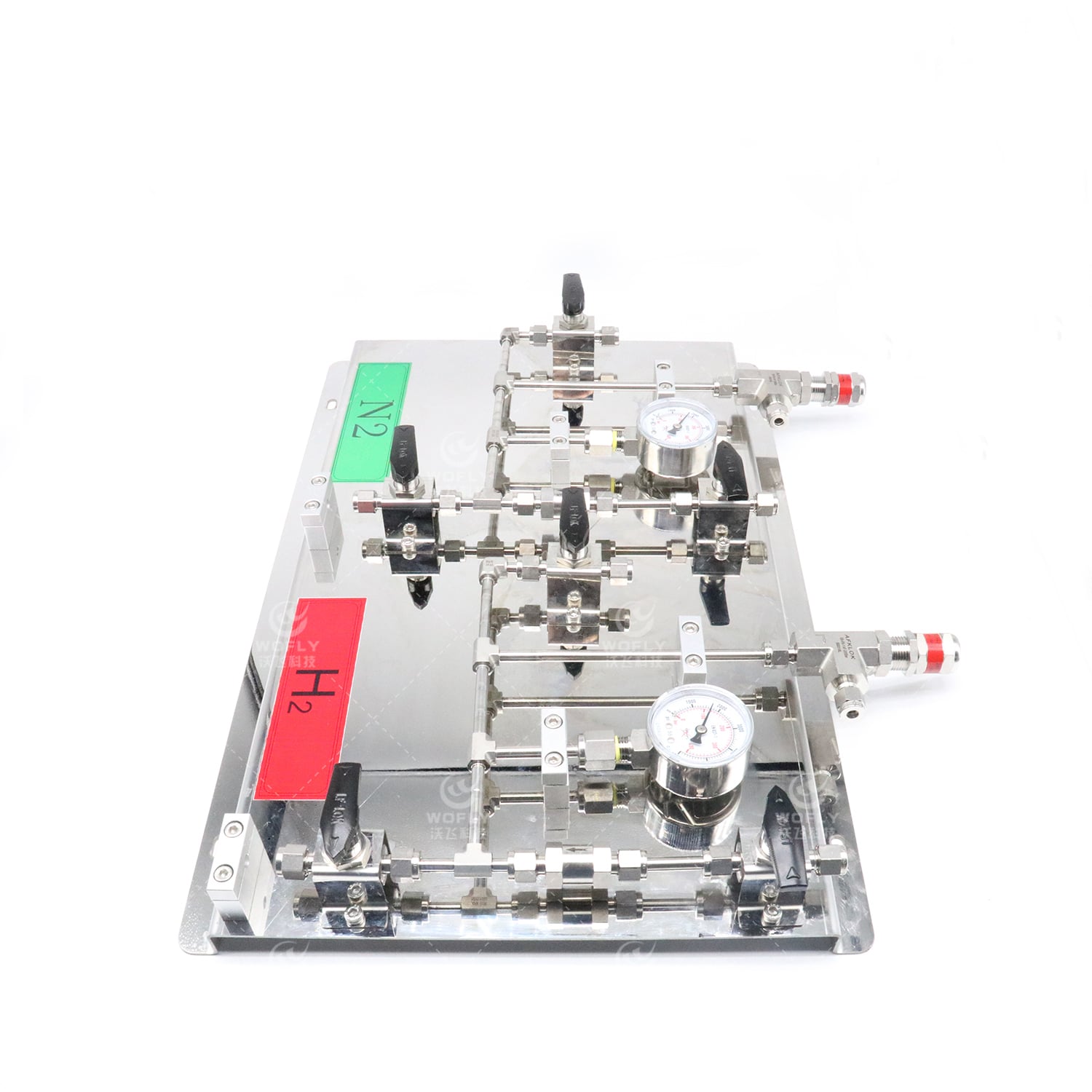

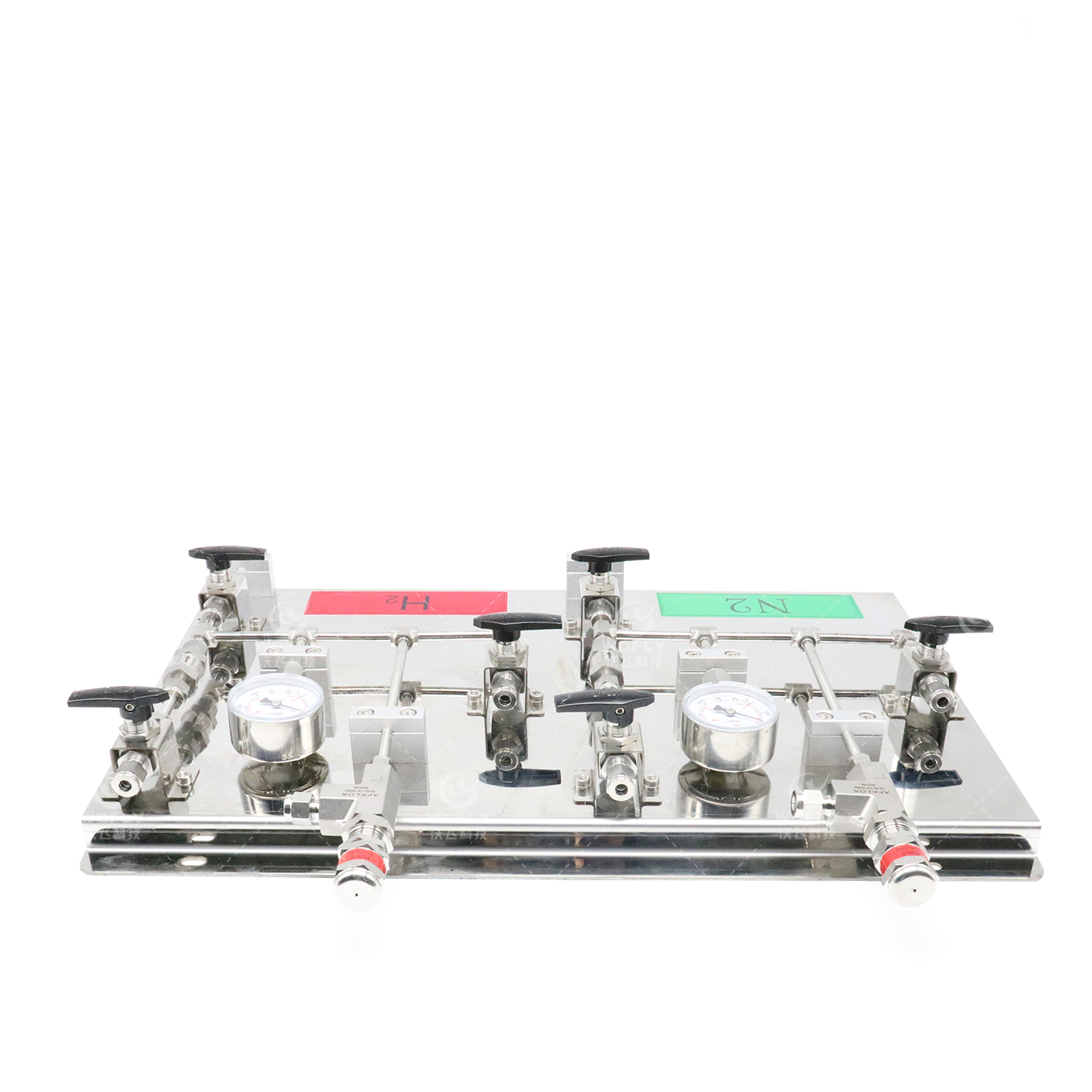

The Connector Fittings As Well As Valve Fittings Needed to Make One of These Gas Control Panels Are As Follows:
Valve Accessories
Ball valve：6pcs(Ferrule connection 1/4in)
safety valves：2pcs(Ferrule connection 1/4in)
check valve：2pcs(Ferrule connection 1/4in)
Instrumentation
pressure gauge：2pcs(Axial connection male thread 1/4in)
Fitting Accessories
Welding Tee：6pcs(1/4" Weld x 1/4" Weld Tee)Welded Elbow：2pcs(1/4" Weld x 1/4" Weld Elbow)Welded to male threaded fittings：2pcs(1/4" Weld x 1/4" Male)Welding to female threaded fittings：2pcs(1/4" Weld x 1/4" Female)
Cylinder connectors CGA580 x 1/4" Male：1pcs
Cylinder connectors CGA350 x 1/4" Male：1pcs
High Pressure Hose：2pcs(1/4" Female)
Stainless Steel Tube：4m(1/4" BA)
Aluminum pipe clamps：6pcs(1/4")
screws：M5*8 12pcs and M5*35 12pcs
Stainless Steel 304 Panel：1pcs
These are some of the basic accessories of the customized panel, we will be customized according to customer needs and the flow rate of the choice of media to be used need to be provided by the customer before we can give the best accessories pressure solution.
| item | value |
| Warranty | 1 Year |
| Customized support | OEM, ODM |
| Place of Origin | China |
| Guangdong | |
| Brand Name | AFKLOK |
| Model Number | WL100 |
| Type | Gas Regulator |
| Material | SS316 |
| Size | 1/4 |
| Product name | Gas Control Panels |
| Material | Stainless Steel |
| Application | Laboratory |
| MOQ | 1 Pcs |
| Inlet pressure | 3500psi |
| Inlet connection | CGA350/CGA580 |
| Outlet connection | 1/4in OD |
| Gas type | H2 N2 |
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided
WOFLY is a leading Manufacturer, Supplier and Exporter of a wide range of gas Equipement, available under the brand name AFK. Wofly's success yields from high-quality, innovative products, exceptional customer service, and unequaled technical expertise in the gas& oil industry. WOFLY offers an extensive line of components including tube fittings, control valves, shut-off and solenoid valves, pressure relief and regulators. Through the years we have learned how to properly match the gas regulation equipment with the application. Using the proper equipment for the job eliminates problems such as contamination, pressure variances, safety issues, and equipment mismatch.
Language Spoken: English, Chinese
AFKLOK
If you work in the semiconductor industry, then you know the importance of accurate gas calibration. You need to ensure that your instruments are measuring the right amount of gases, or you risk losing valuable time and profit. This is where the Double Gas Supply High Purity Panel System from comes in.
Trusted in the semiconductor industry, known for the precision equipment. The Double Gas Supply High Purity Panel System is no exception, offering the type or type of precision and effectiveness you will need. This system is made for gas calibration, and it does the working task perfectly.
Comprises of top-quality designed elements to endure. The AFKLOK panel itself is constructed from stainless, resistant to wear and corrosion. The fuel delivery system is composed of high purity steel is stainless that was created to guarantee the purity of the gasoline brought to your instruments.
Ensures that you'll calibrate two different gases simultaneously. This is a crucial feature in the event that you need to perform quick calibration without using the time to switch gasoline sources in the event that you need to calibrate instruments that want two different gases, or. This feature ensures if you have plenty of work to achieve that you obtain twice the work done within the same amount of the time, described as a huge benefit.
Another great feature is the accuracy is high offers. This technique was created to provide gasoline is accurate, by having a precision of as much as 0.1%. This means you time and money in the end that you may be confident that your particular instruments are measuring the right amount of gas, which can save.
Quite simple to use. It is sold with clear instructions making it very easy to set up and run. The gas valves are easy to adjust, and the operational system was created to be user-friendly. This means you are able to consider your projects, not on trying to figure out utilizing the system.
The AFKLOK Double Gas Supply High Purity Panel System is an excellent choice for anyone who needs to perform gas calibration in the semiconductor industry. It is accurate, efficient, and easy to use, making it a valuable addition to any lab. With its high-quality construction and excellent features, you can be confident that this system will provide you with the accuracy and reliability you need.
