Home / Products / Gas Cabinets
Gas cylinder cabinets feature auto or manual process panels. Both options include either PLC-style or Life safety-style controllers specific to the panel design, as well as dedicated process outlets and a built-in auto crossover feature. Our two-cylinder gas cabinets can be used to enclose process gases in either process/purge or process/process setups. Three-cylinder gas enclosures can be configured for process/process/purge with dedicated outlets, or with an auto crossover setup. Both options include a dedicated purge cylinder in the same enclosure. See individual product listings for additional information and specifications.
Feature:
Certified SEMI and EN 14470-1 Safety lock with key Automatic maintenance free certified air duct closing system Non sparking hinge made in natural iron with brass plug Thermo dilatant sealing (DIN 4102) Prepared for tubes insertion Steel folding ramp for easy cylinder loading Adjustable shelves for small cylinders (1 included.
| Gas Type: | CH4, SIH4, H2 and other flammable and explosive gases |
| Dimension: | 800*540*2300 mm |
| Connetion: | 1/4" VCR inlet, 1/4" VCR outlet |
| Puring and evacuation interface: | Puring inlet 1/4 "VC, 20SLM; evacuation outlet 1/2 "VCR, 30SLM |
| Control valve drive gas connection: | Inlet 1/4" ferrule, 10 SLM |
| Working gas pressure: | -30-160PSI (adjustable |
| Auxiliary gas pressure range: | Control pressure for pneumatic valves: 80 Psi ± 10 Psi (compressed air or pneumatic nitrogen |
| GN2 (evacuation operation): | 90 Psi ±10 Psi; PN2 (purge operation): 80 Psi ±10 Psi |
| Operating ambient temperature: | Between 5 °C and 35 °C |
| Ambient humidity: | Non-condensing state 0 ~ 80% |
| Equipment spraying: | Water pressure: 3 ~ 4Bar |
| Water flow: | 145LPM @ 2.1barg |
| Electricity requirement: | AC 220V/50Hz 0.6KW |
| Operating system: | PLC system (Siemens) with 10" touch screen |
| Signal: | Digital RS-485 (D-NET possible |
| Factory test: | Meet the national standard five testing standards |

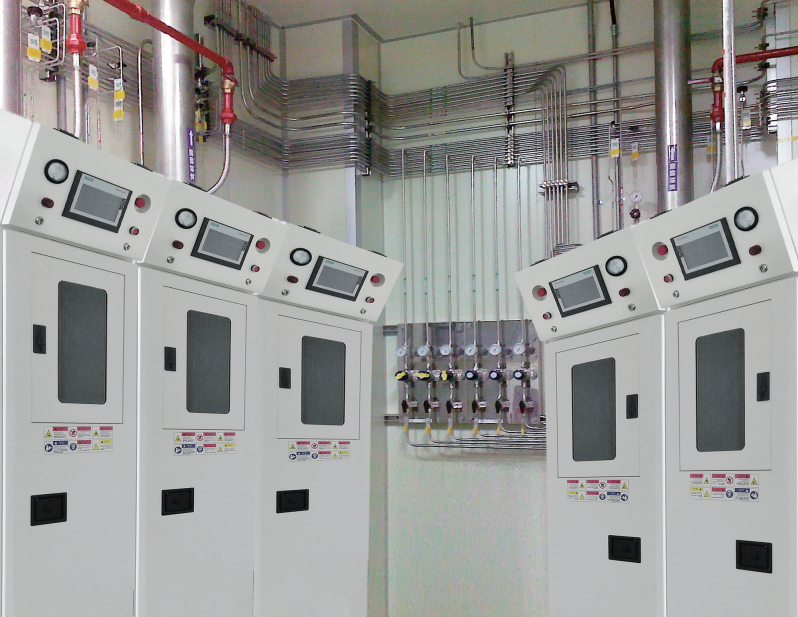

Our Gas Cylinder Storage Cabinets are widely used in automotive manufacturing, petrochemical, industrial manufacturing, laboratory, food industry, power industry, new energy and other fields. We have been recognized by customers with good performance and high quality service.
WOFLY automatic special gas cabinet (GC) has SIME S2 certification, alarm detection alarm function, the first time to find the leak and stop the spread of leaking gas, timely alarm treatment, to avoid greater accidents, to ensure normal production and staff personal safety.
SHENZHEN WOFLY TECHNOLOGY CO,. Ltd. is one of the pioneer suppliers for gas full/semi-automatic switching devices, GR cabinets, VMB cabinets, gas mixers, gas pressure regulator. pipe fittings and other products. Founded in the year 2001 with passion and committed to fulfilling customer’s demands with excellent products and service WOFLY has been a leader in the industry due to the design and manufacture of high-performance “Dual ferrule compression heat transfer tube accessories” UHP(Ultra High Purity Application Parts and Valves” designed with its own technology since 2019. 150Workers, 5000 m2 workshop, ISO, CE, RoHS, EN certificated, one hour reach ShenZhen port, this is how we keep superior quality and competitive cooperation for global valued customers We work closely with our customers to provide not only high-quality products but also technical product knowledge in order to meet the demanding application requirements.
Wofly

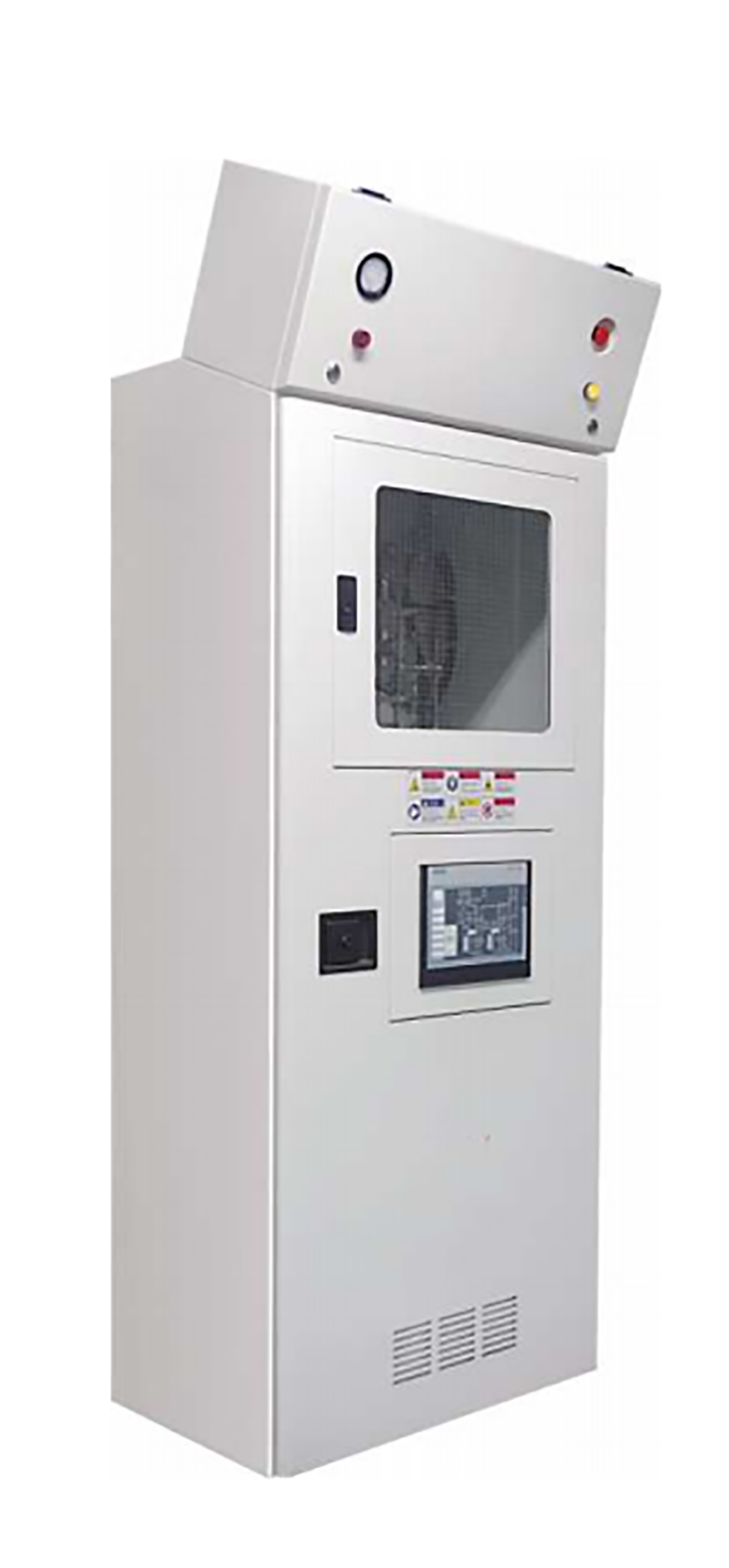

Introducing the Factory Direct Gas Cylinders Cabinet
Ideal safe and efficient storage space of gas cylinders. Designed to be explosion-proof this case provides protection that is maximum fire as well as other dangers
Made out of high-quality materials durability this is certainly ensuring longevity. The Wofly strong construction resistant to corrosion making sure the cabinet remains in top condition for years in to the future. It is coated by having a powder that is rust-resistant extra protection against damage and wear
Comes with a lock that is secure which helps in order to avoid unauthorized access and theft. This adds an layer that is extra of to your premises protecting your investment from potential loss or damage
Is sold with an alarm system which immediately alerts you in the eventuality of a gas leak or any other emergency that is associated. This particular feature helps it be more straightforward to appropriately respond quickly and to any incident minimizing the danger of harm or injury
The inner lining for the cabinet is made to give cushioning that is extra protection for your gas cylinders. This ensures you need them that they stay scratch-free as well as in top condition prepared for usage when
Built to be utilized indoors and out-of-doors. It comes down with ventilation holes which help to maintain the perfect temperature and prevent the build-up of moisture. This helps to give the shelf life of one's gasoline cylinders and means that they stay static in optimal condition to be used
An easy task to install with assembly taking only a mins being few. As soon as installed it entails upkeep that is minimal it a convenient and practical solution for gas cylinder storage
Protect your gas cylinders as well as your investment by purchasing this today
