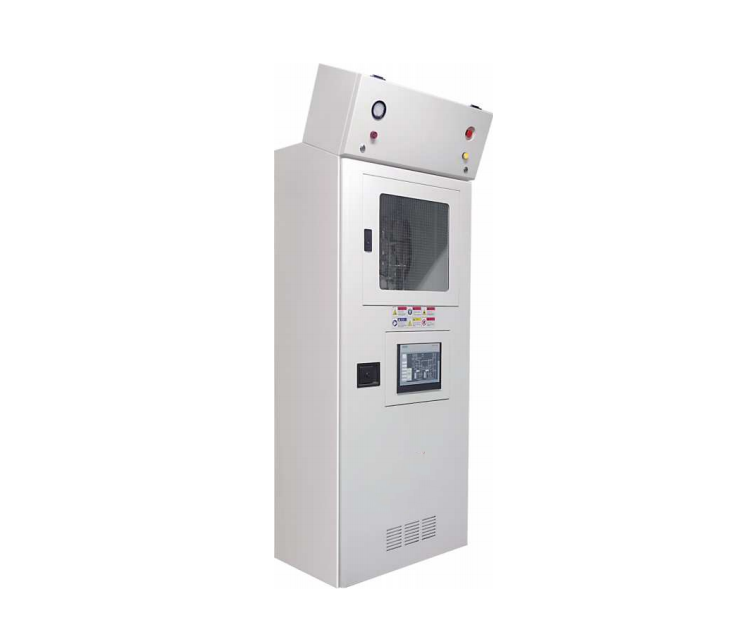

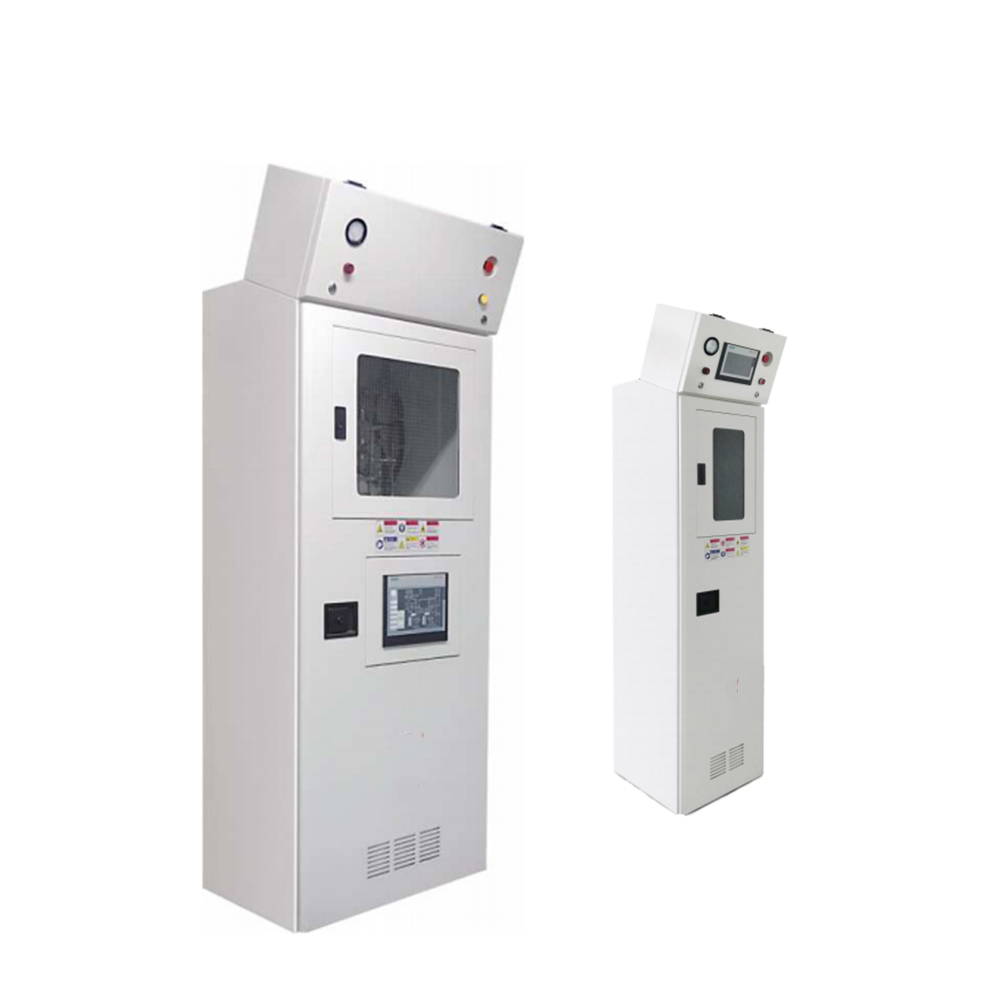

WOFLY Gas Cylinder Cabinets

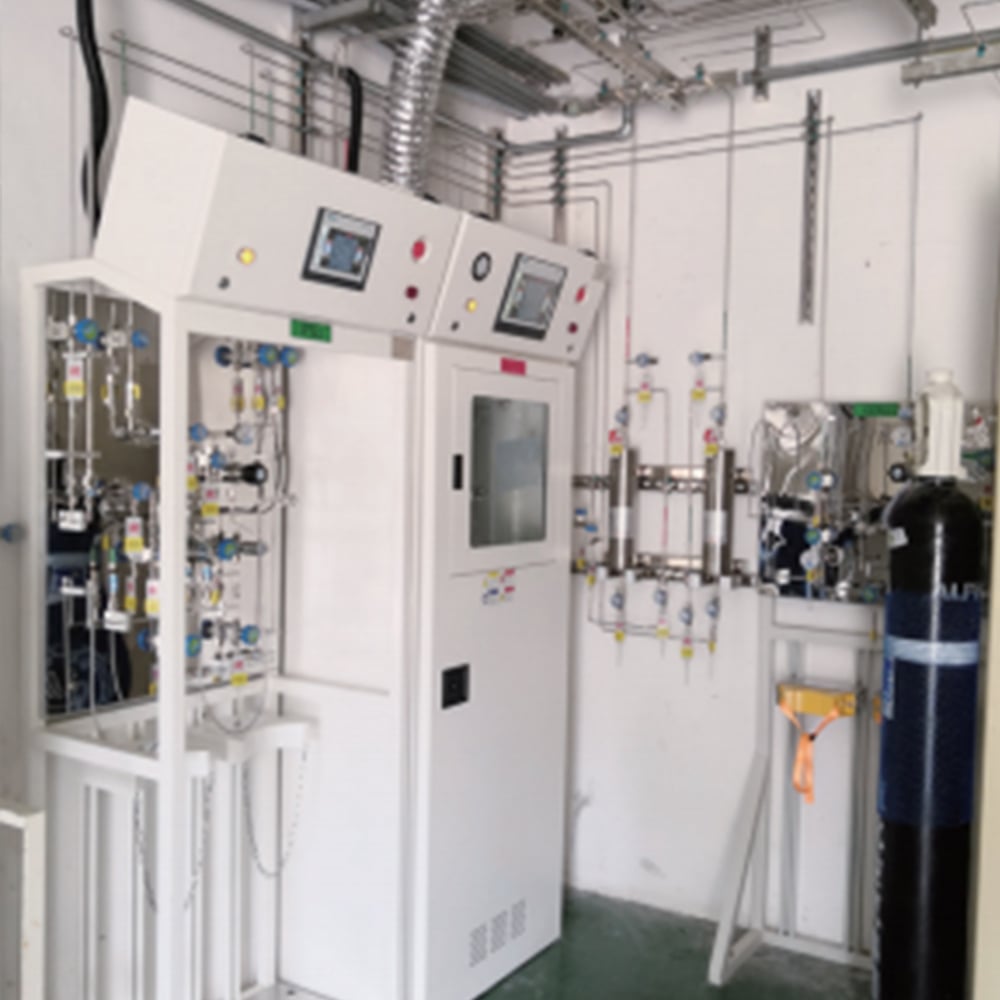

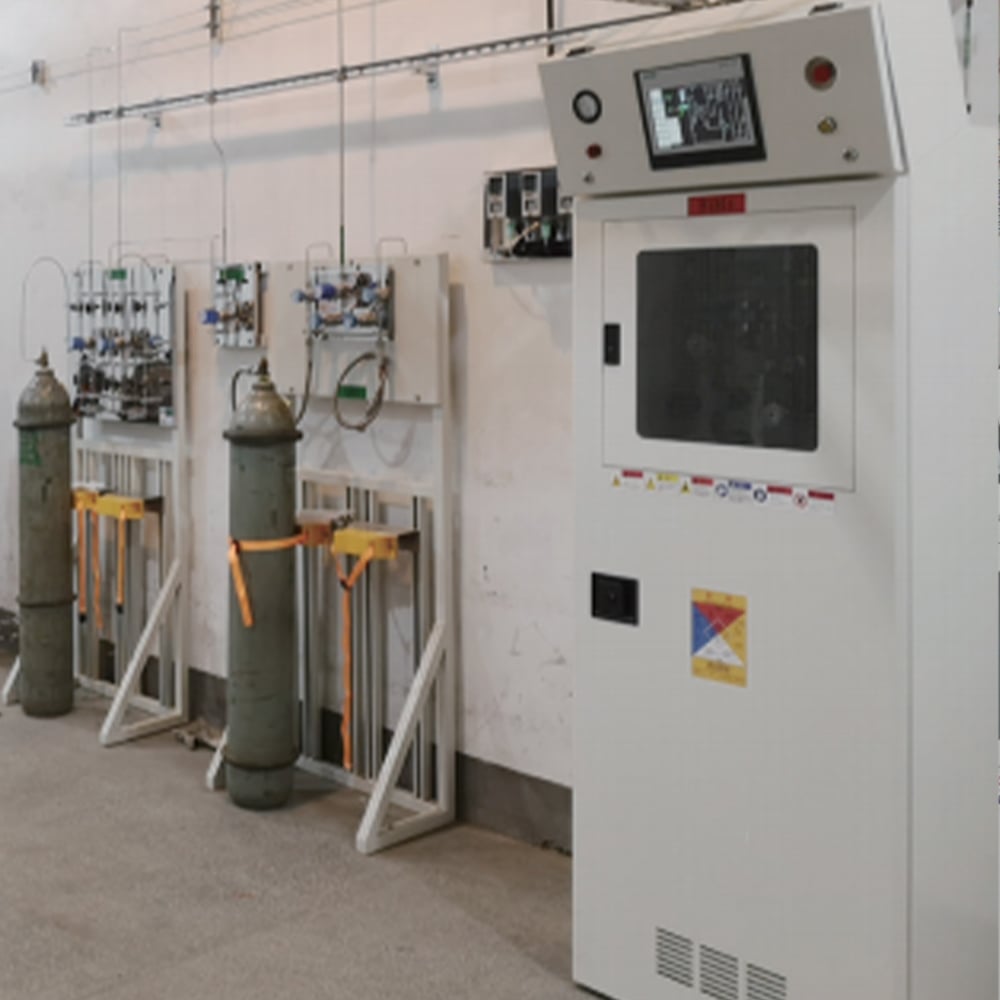

Gas cylinder cabinets feature auto or manual process panels. Both options include either PLC-style or Life safety-style controllers specific to the panel design, as well as dedicated process outlets and a built-in auto crossover feature. Our two-cylinder gas cabinets can be used to enclose process gases in either process/purge or process/process setups. Three-cylinder gas enclosures can be configured for process/process/purge with dedicated outlets, or with an auto crossover setup. Both options include a dedicated purge cylinder in the same enclosure. See individual product listings for additional information and specifications.
Feature:
1. Constructed of durable, 1 2mm galvanized steel with a tough powder-coat paint to provide excellent corrosion resistance.
2. Equipped with explosion-proof windows on the door, making it convenient to observe.
3. Pass holes set on the side ensure well ventilation.
4.2-point manual latch with keyed lock prevents unauthorized access.
5. Adopted stationary chain to keep cylinders standing vertically.
6. Sturdy, foldable pedal on the bottom helps to load and unload easily.
7. Combustible gas detector system has certification with ExdⅡ CT6 and IP65.
8. Alarm device will be activated flashlight and buzzer once system detects leakage of gas.
9. Two air-exhaust systems are optional. One equips with fan and leakage is expelled externally to reduce gas concentration inside. The other provides port for connecting between main exhaust system and cabinet
| Gas Type: | CH4, SIH4, H2 and other flammable and explosive gases |

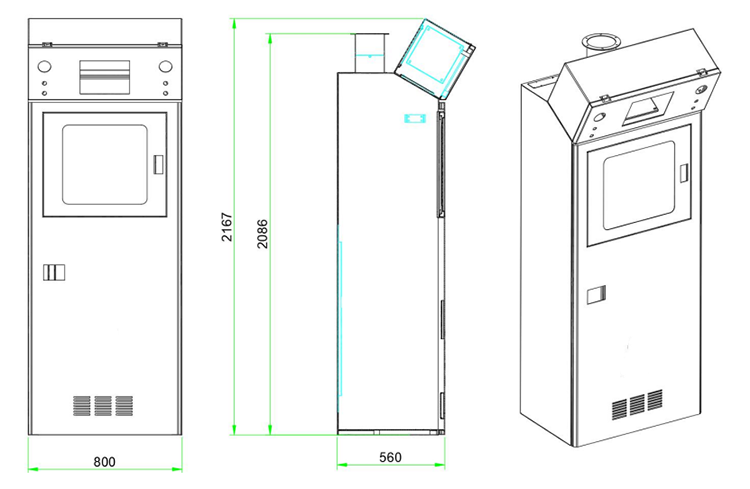

| Dimension: | 800*540*2300 mm |
| Connetion: | 1/4" VCR inlet, 1/4" VCR outlet |
| Puring and evacuation interface: | Puring inlet 1/4 "VC, 20SLM; evacuation outlet 1/2 "VCR, 30SLM |
| Control valve drive gas connection: | inlet 1/4" ferrule, 10 SLM |
| Working gas pressure: | -30-160PSI adjustable |
| Auxiliary gas pressure range: | control pressure for pneumatic valves: 80 Psi ± 10 Psi compressed air or pneumatic nitrogen |
| GN2 evacuation operation: | 90 Psi ±10 Psi; PN2 purge operation: 80 Psi ±10 Psi |
| Operating ambient temperature: | Between 5 °C and 35 °C |
| Ambient humidity: | Non-condensing state 0 ~ 80% |
| Equipment spraying: | Water pressure: 3 ~ 4Bar |
| Water flow: | 145LPM @ 2.1barg |
| Electricity requirement: | AC 220V/50Hz 0.6KW |
| Operating system: | PLC system Siemens with 10" touch screen |
| Signal: | Digital RS-485 D-NET possible |
| Factory test: | Meet the national standard five testing standards |

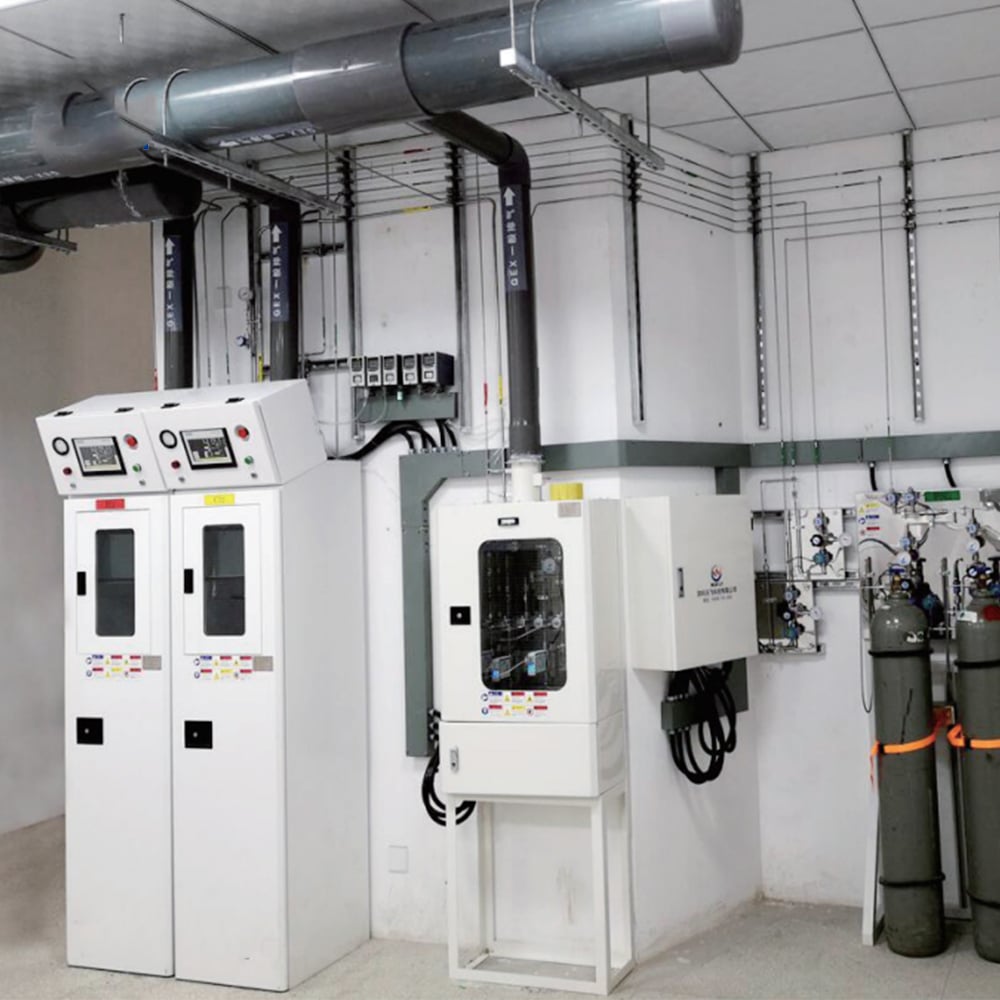

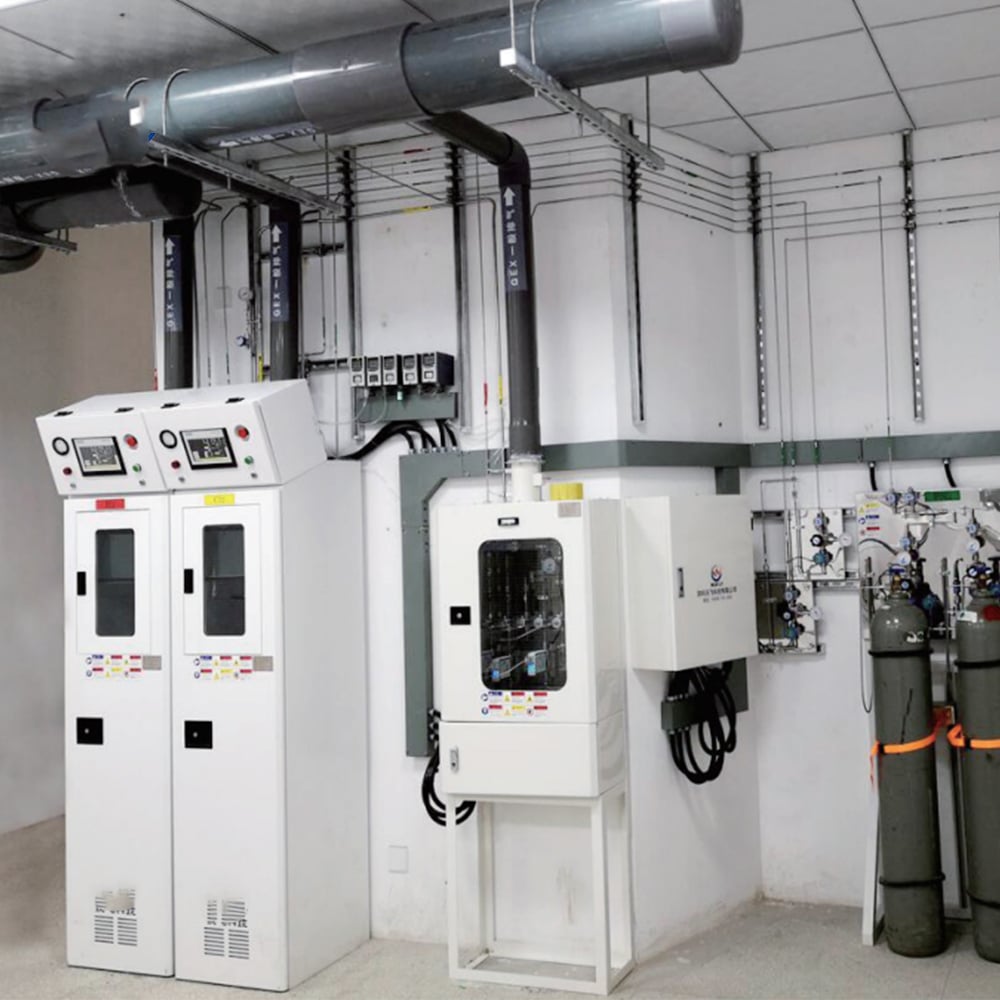

Our Gas Cylinder Storage Cabinets are widely used in automotive manufacturing, petrochemical, industrial manufacturing, laboratory, food industry, power industry, new energy and other fields. We have been recognized by customers with good performance and high quality service.

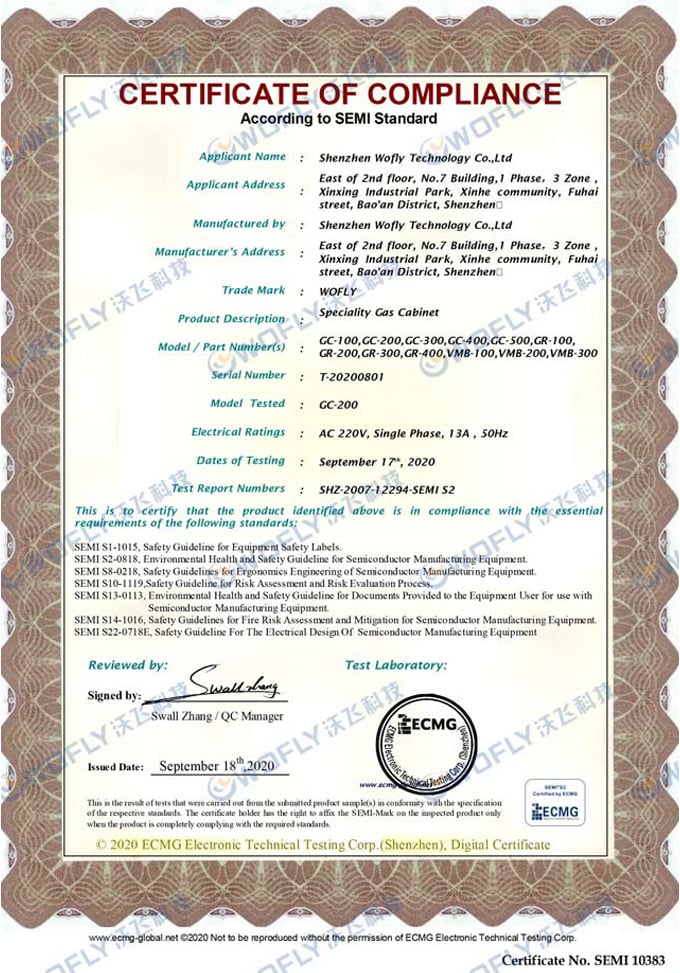

WOFLY automatic special gas cabinet (GC) has SIME S2 certification, alarm detection alarm function, the first time to find the leak and stop the spread of leaking gas, timely alarm treatment, to avoid greater accidents, to ensure normal production and staff personal safety.

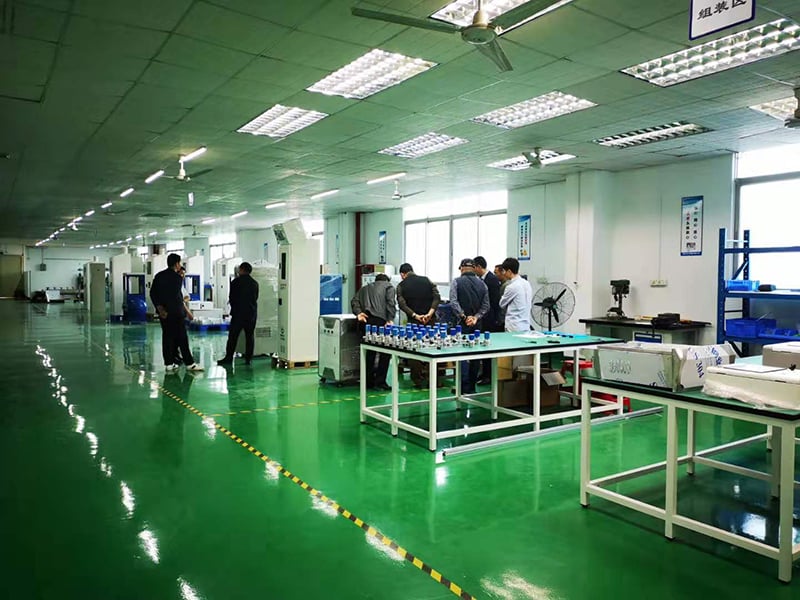

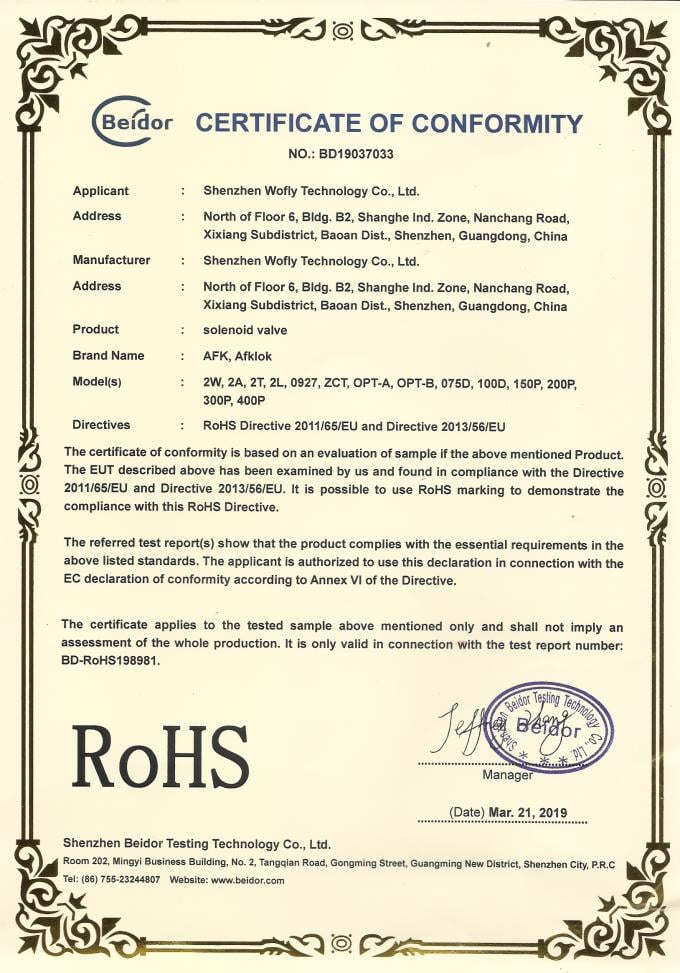

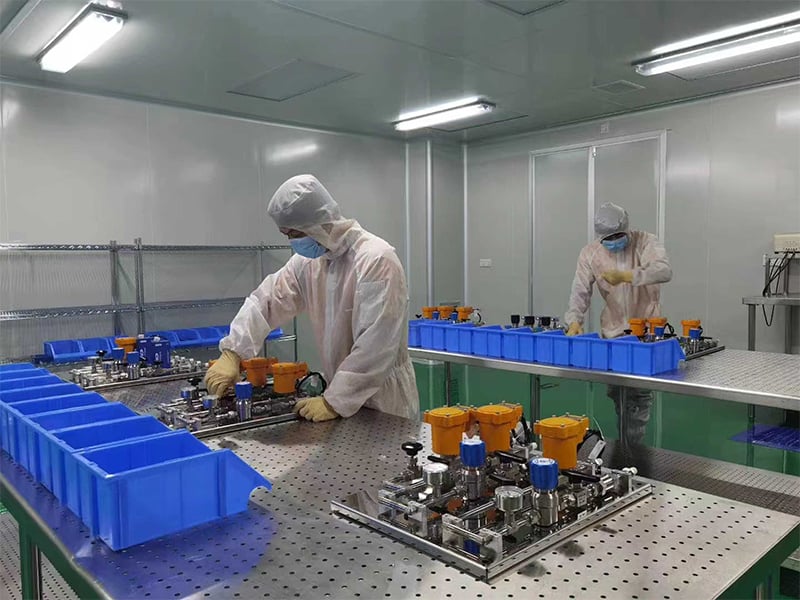

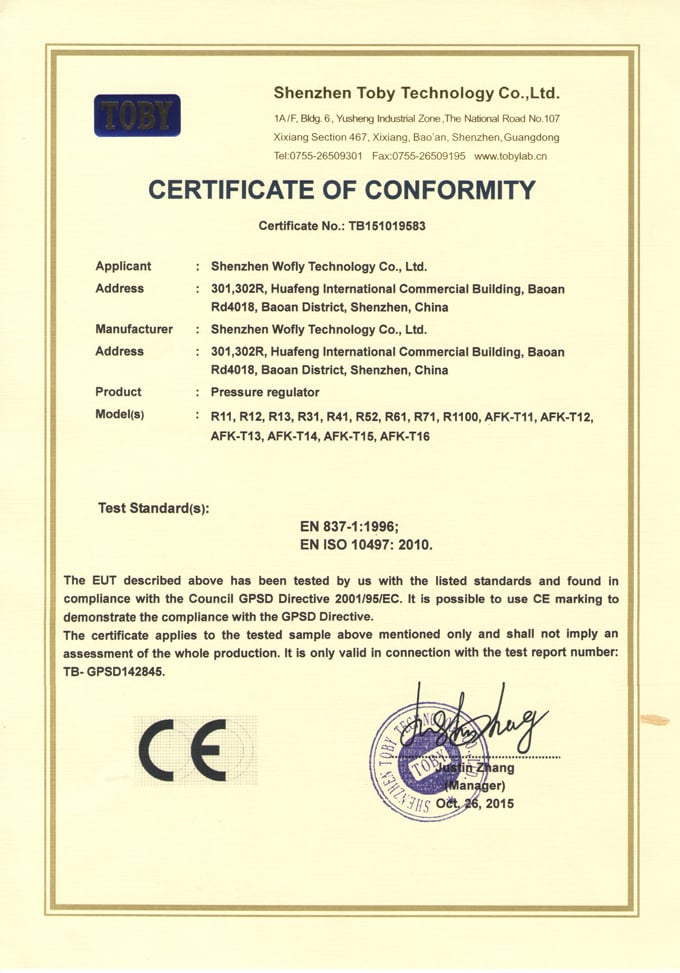

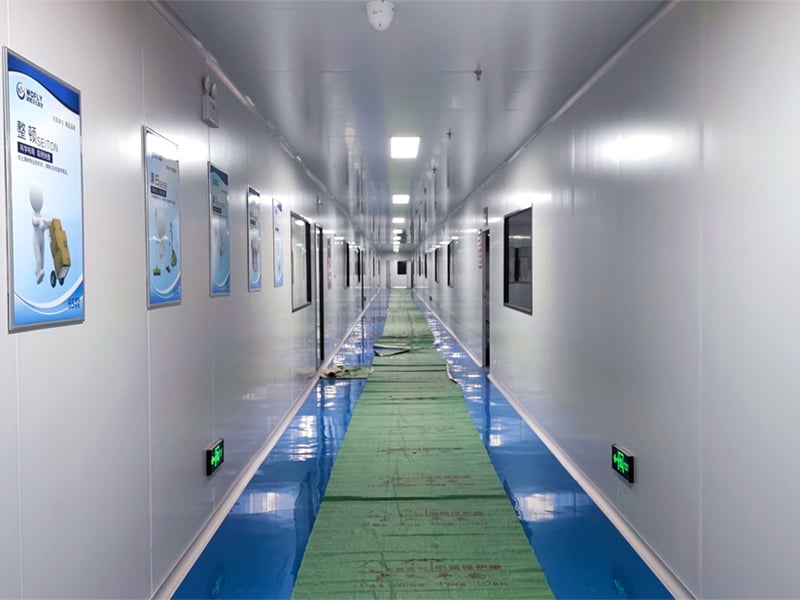

SHENZHEN WOFLY TECHNOLOGY CO Ltd. is one of the pioneer suppliers for gas full/semi-automatic switching devices. GR cabinets, VMB cabinets, gas mixers, gas pressure regulator. pipe fittings and other products. Founded in the year 2001 with passion and committed to fulfilling customer’s demands with excellent products and service. WOFLY has been a leader in the industry due to the design and manufacture of high-performance “Dual ferrule compression heat transfer tube accessories” UHP(Ultra High Purity Application Parts and Valves” designed with its own technology since 2019.150Workers, 5000 m2 workshop, ISO, CE, RoHS, EN certificated, one hour reach ShenZhen port, this is how we keep superior quality and competitive cooperation for global valued customers. We work closely with our customers to provide not only high-quality products but also technical product knowledge in order to meet the demanding application requirements.
Wofly
The Gas Cylinder Cabinet with 2 Doors and 3 Cylinders is a high-quality storage solution for your gas cylinders. Designed to provide optimal protection and security for your gas cylinders. Constructed with durable materials that can withstand harsh environmental conditions such as heat cold and moisture. The shelves and panels are made of high-quality steel sheets that are reinforced with galvanized coating to resist rust and corrosion. Coated with a weather-resistant epoxy powder that ensures durability and long-lasting protection. The finish is not only attractive but functional too making this cabinet an ideal choice for indoor/outdoor applications. Designed to accommodate 3 standard gas cylinders with diameters of up to 12 inches. With 2 doors you have easy access to all your cylinders making it easy for you to organize and keep track of your gases.
The doors are hinged for easy opening and locking and come with a latch system to secure your cylinders. Also features adjustable shelves that are perfect for storing tools gauges and other small equipment. This convenient feature will help you organize your work area allowing you to be more productive and efficient. Equipped with a gas manifold system that makes it easy to connect and operate your gas cylinders. Designed to ensure safety and ease of use making it perfect for both industrial and home use. Get one today and protect your investment.
