Gas Manifold methods with Automatic Switch-over manufacturing Adjustable is just a gas body high-quality was created towards offer reliable effective gas source towards different requests. This gas revolutionary body is created towards typically satisfy helped due to the requirements of various business requests, creating this an essential for anybody looking for a reliable gas source service cost-effective.
The gas manifold body is created with automated switch-over innovation that assurances gas continuous, whenever one cynical tube is vacant. This AFKLOK specific include reduces downtime helps towards guarantee that gas source is preserved constantly. with this body practical there's no have to by hand change in between cylindrical tubes because the innovation takes appropriate treatment of the instantly.
The manufacturing linked with gas manifold body is adjustable, that creates it suitable various requests needs. The gas motion cost is managed towards typically satisfy the particular needs when it concerns request, guaranteeing efficiency safety and safety ideal. This include specific specifically required for requests where accuracy precision is important.
The AFKLOK Gas Manifold Systems exist in different dimensions types, that makes it easy towards choose the option appropriate the using. Whether you require a body when it concerns lab bit of a huge vegetation industrial AFKLOK consists of a treatment which will help you., the gadget is developed with first-class products that guarantee resilience service lifestyle long.
AFKLOK is simply a brand widely known the gas source market that provides reliability high-top premium. The Gas Manifold Body with Automatic Switch-over Output Adjustable is amongst the listing of items that many the brand name offers. The label brand name has produced a performance history of providing high-top premium gas reliable services that satisfy up with the demands of different business.

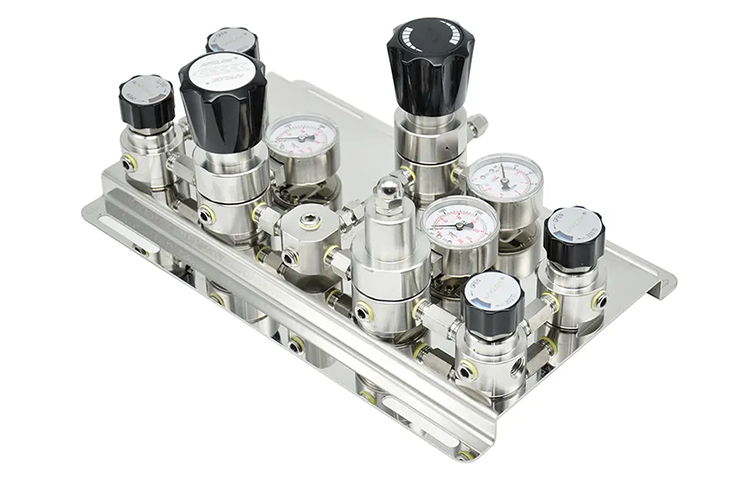

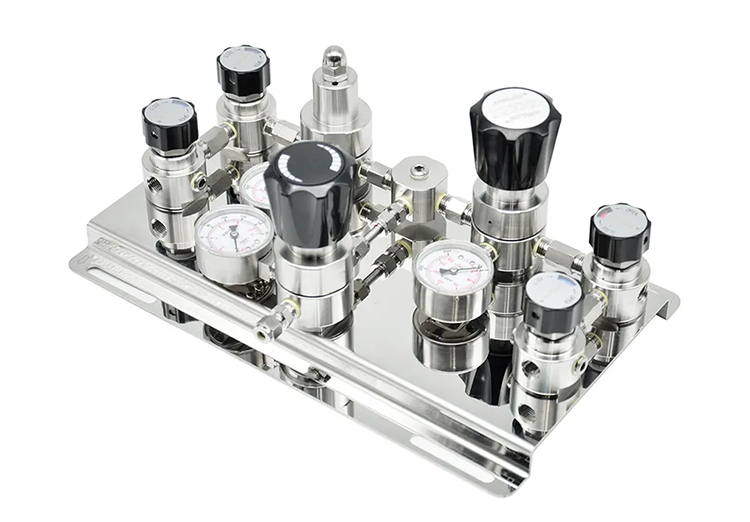

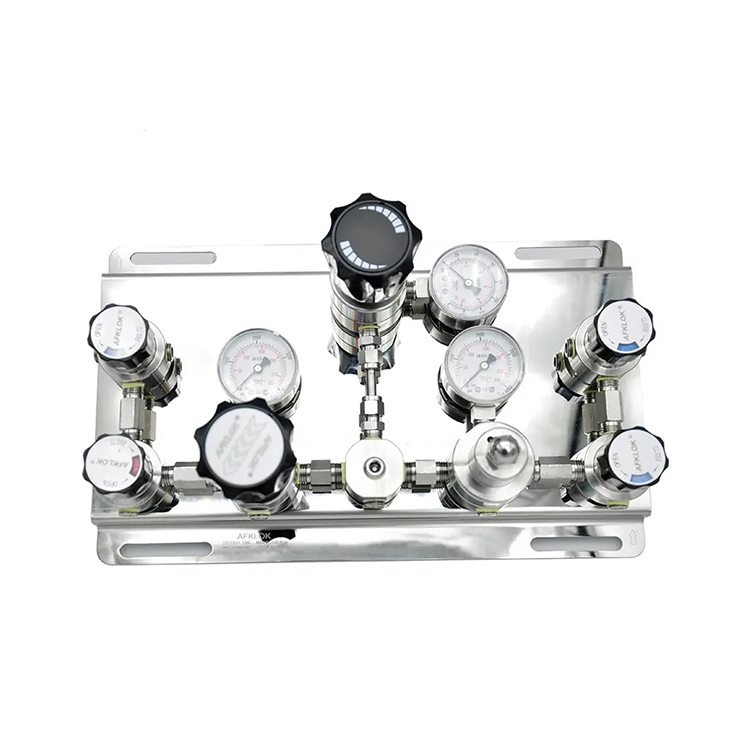

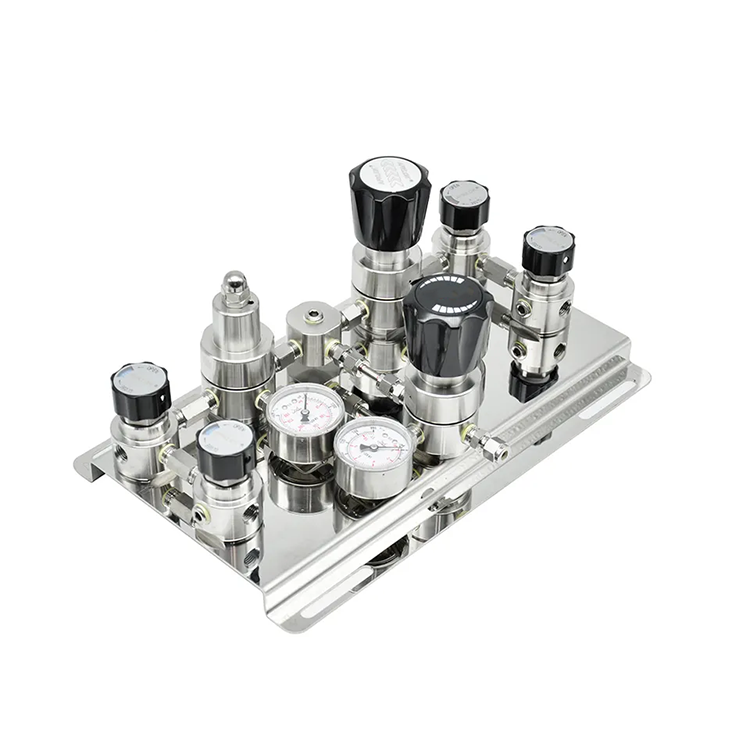

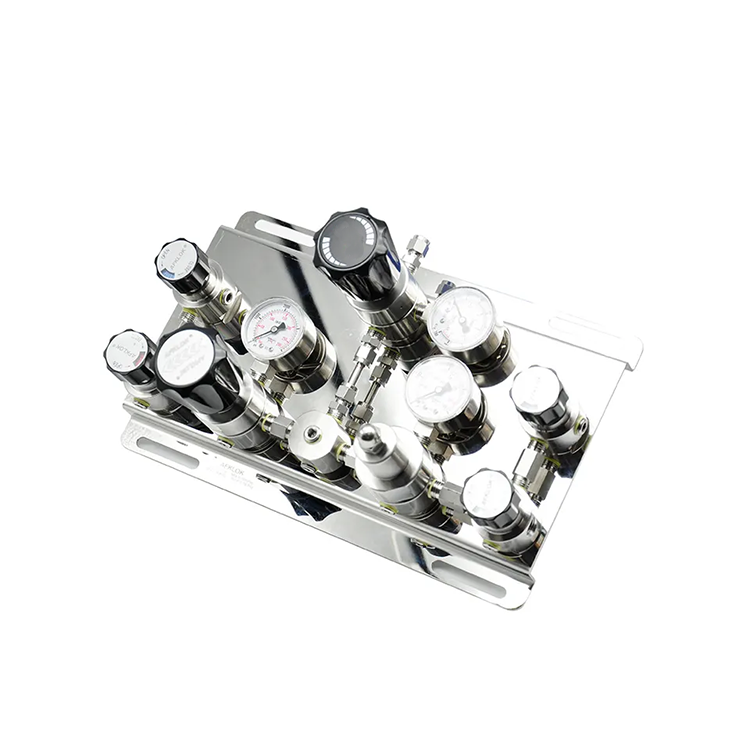

Stable Pressure Automatic Changeover device for cylinder manifold

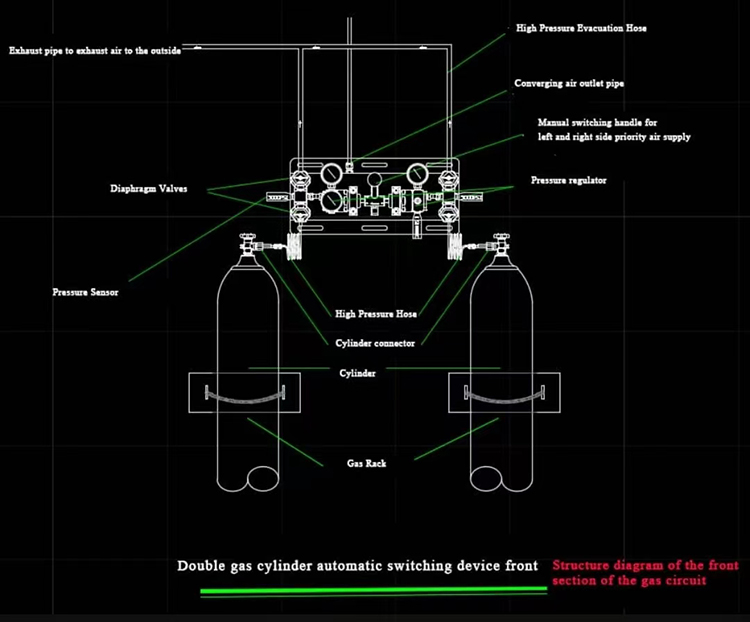

It is suitable for high pressure gas cylinders and pressure relief gas supply on both sides, through the automatic
changeover to realize continuous gas supply, with the function of purging.
The maximum input pressure of 20.7 Mpa (3000 psi), corrosion, clean workshop assembly test, suitable for laboratory, high purity gas such as gas analysis.
▶ Suitable for uninterrupted air supply, one end is automatically switched to the other end when exhausted
▶With gas source priority selection handle, priority supply source can be set
▶The WR12 pressure reducing valve is used as a prototype valve for corrosive and toxic gases.
▶Using WV8H diaphragm valve as a prototype valve
▶Inlet installation of 20 micron filter element
▶Oxygen environment application options are available
▶Output pressure is within a certain range and is factory set
| Brand Name | AFKLOK |
| Max Inlet pressure | 3000psi |
| Outlet pressure | 25, 50, 100, 150, 250 ps |
| Connection | 1/4"NPT |
| Working Temperature: | -40°C ~ 74°C (-40°F ~ 165°F) |
| Flow Rate: | see flow Curve Chart |
| Pressure Regulator Leakage Rate: | 2 x 10-8atm. cc/sec He |
| Cv: | 1.1 |
| Material | |
| Body: | 316SS |
| O-ring: | 316L SS |
| Diaphragm: | 316SS or Hastelloy |
| Filter mesh: | 316 SS |
| Valve seat | PCTFE |

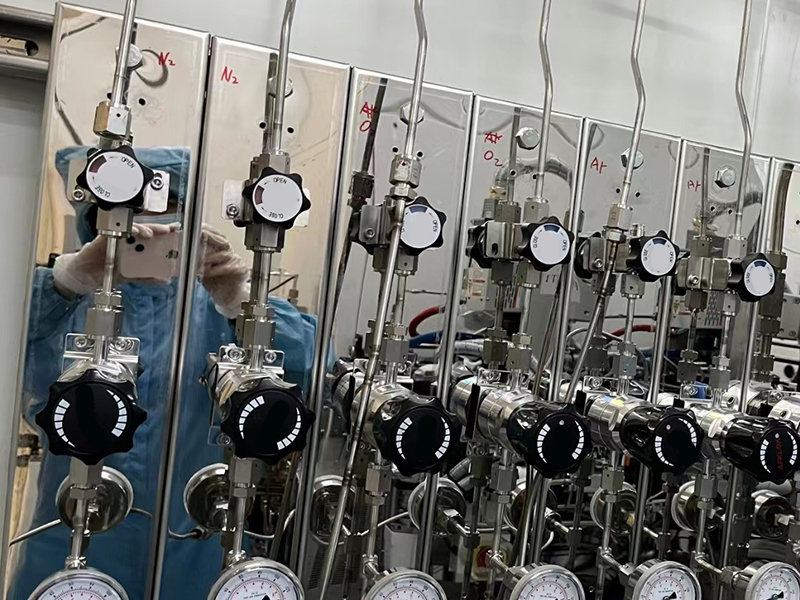

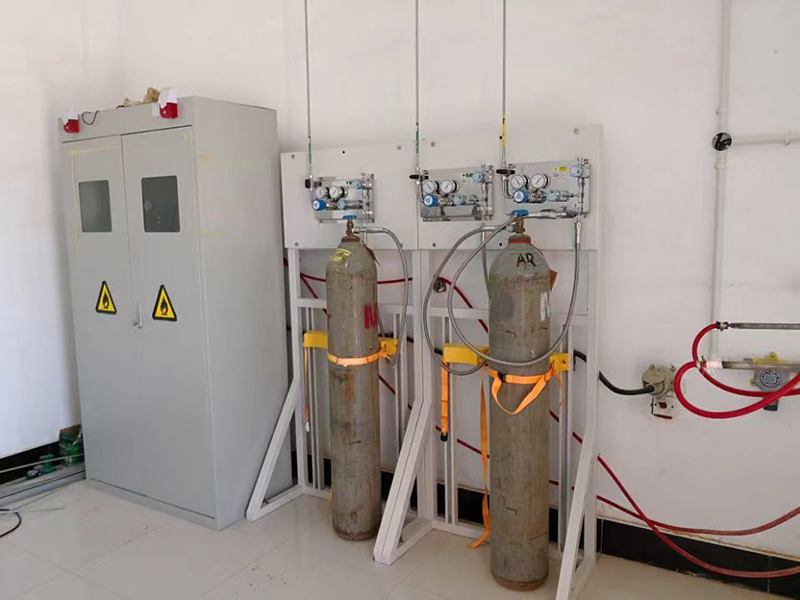

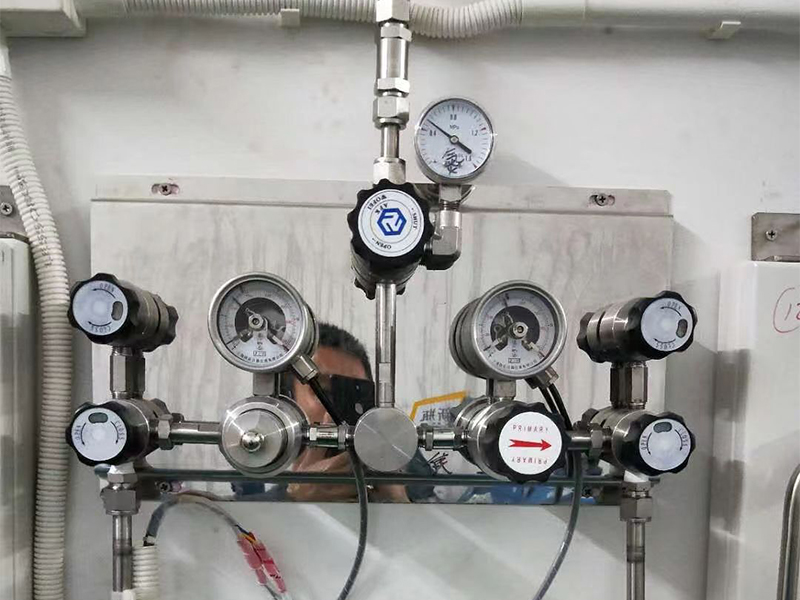

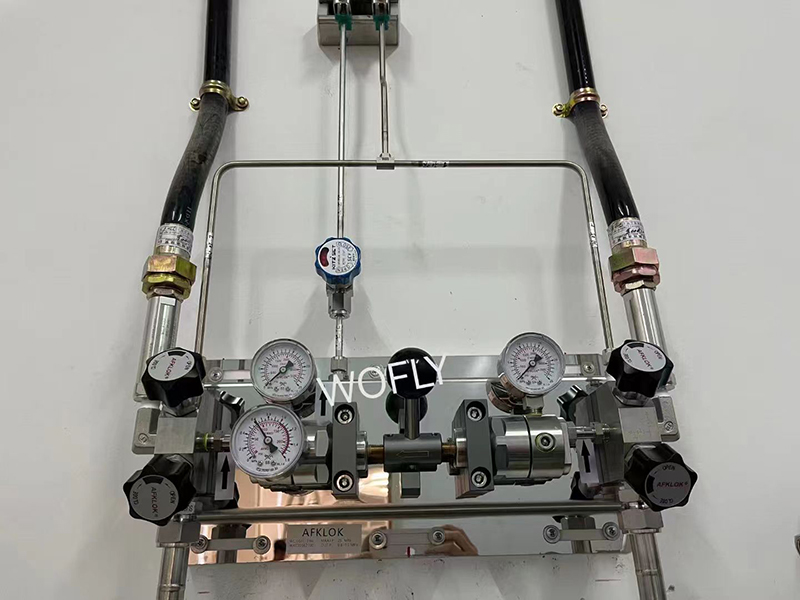

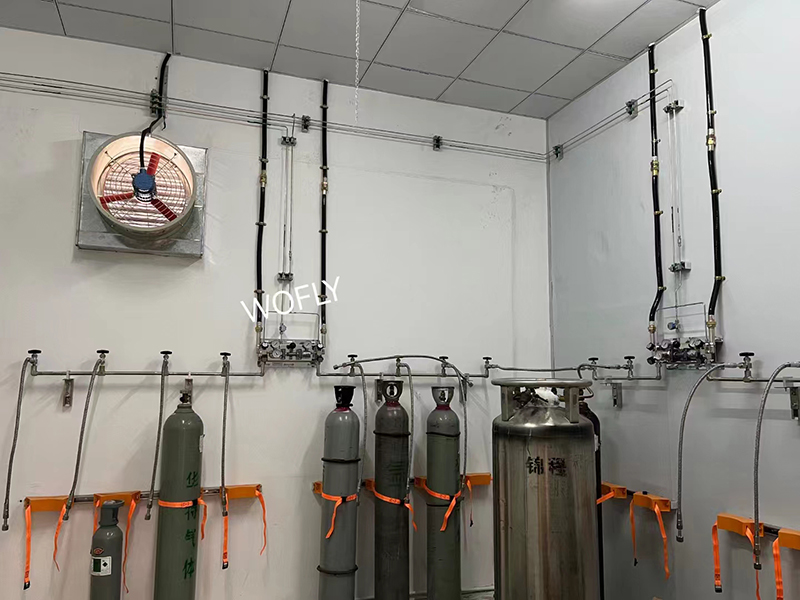

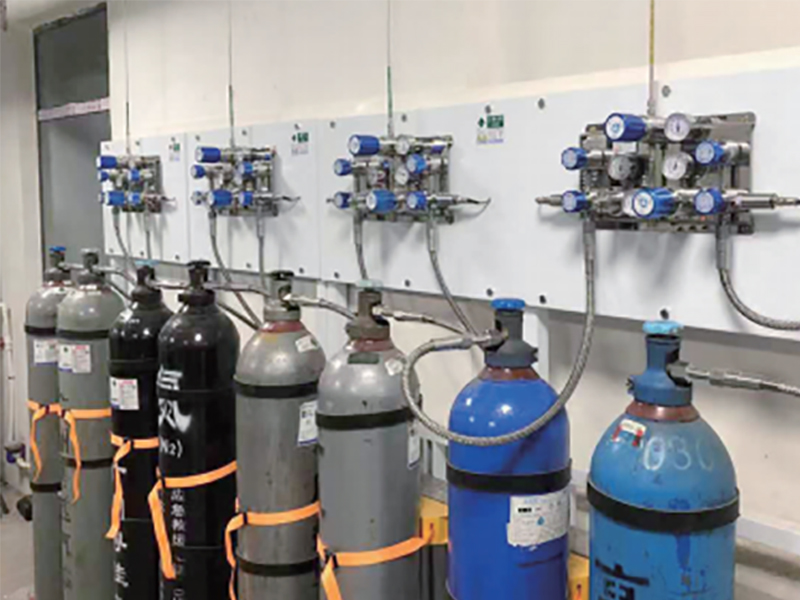

Some feedback pictures from customers
Shenzhen Wofly Technology Co,. Ltd. was established in 2011, is a high-tech enterprise focusing on gas application technology. We have developed and produced gas semi-automatic switching manifold, gas pressure regulators, pipe and valve parts, joints; gas mixing and proportioning instrument; ultra-high purity gas supply panel; special gas cabinet, VMB valve box; scientific research test equipment; ultra-high pressure, ultra-low temperature gas system; high vacuum system and other products.
AKK, AFK-LOK, WOFLY" have become famous brands in the industry. The company has passed the IS09001 quality system certification. Our products have been tested and qualified by national certification laboratories and are widely used in university laboratories, scientific research and testing units, semiconductor, microelectronics, biopharmaceutical, medical, photovoltaic, LED, petrochemical, new materials, new energy and other fields
