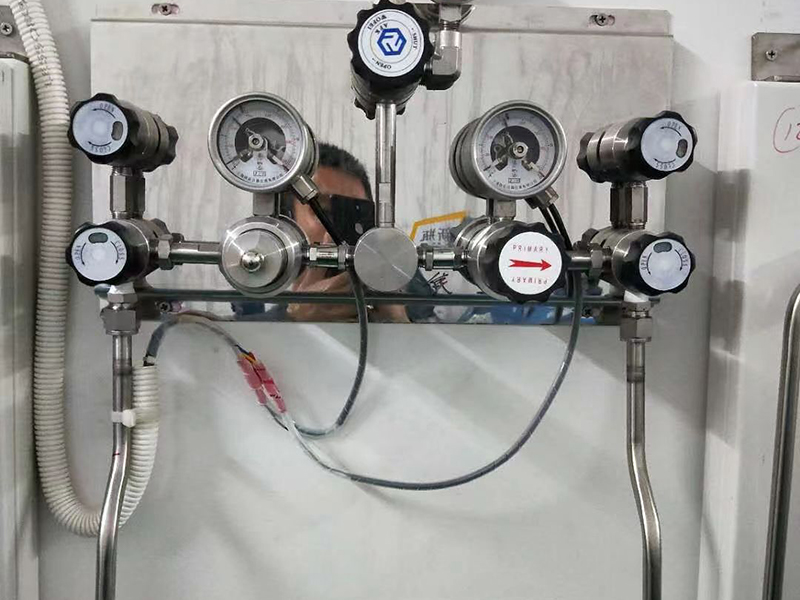

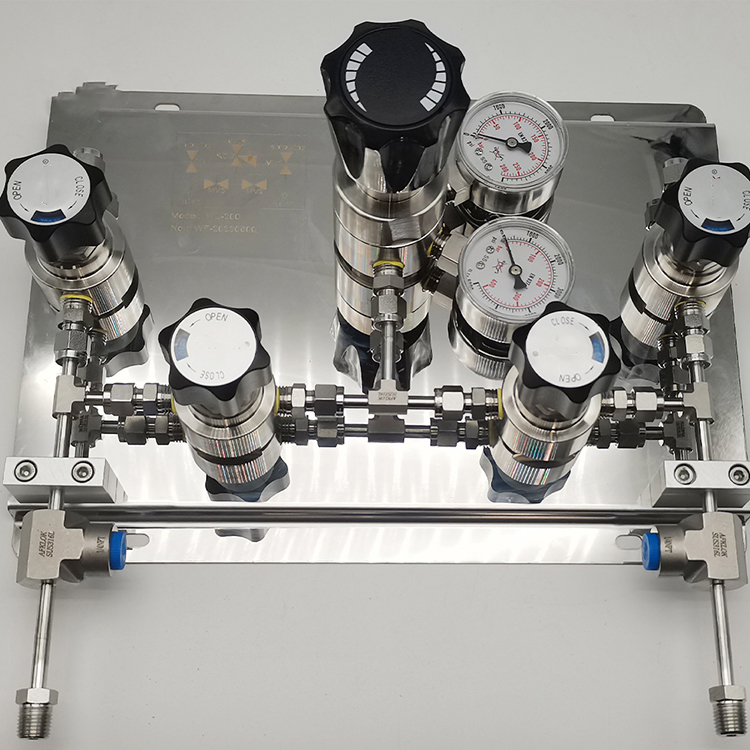

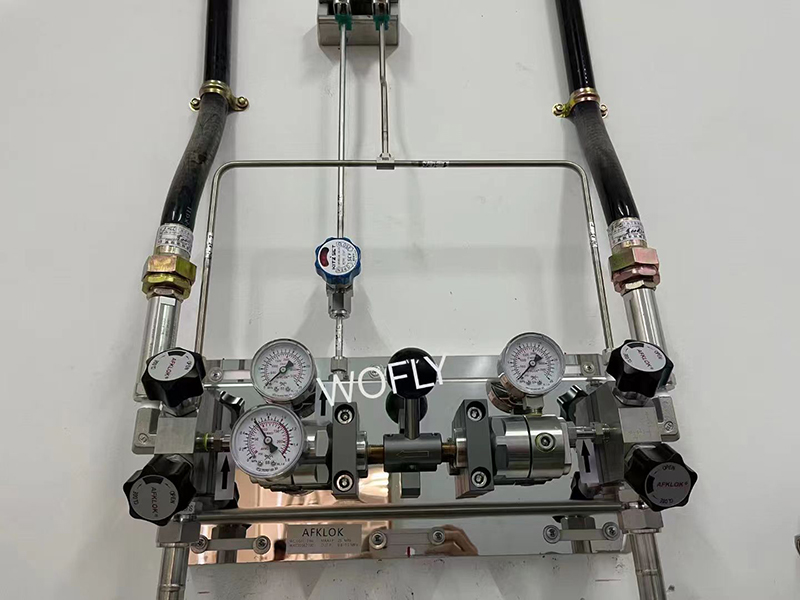

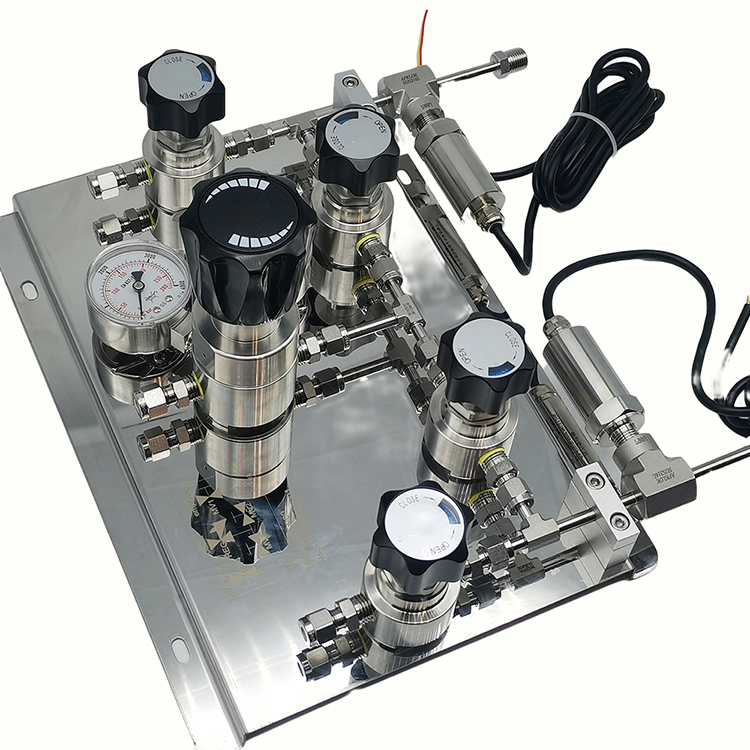

Dual side Gas supply panel
It is used in the double-sided high-pressure gas cylinder to reduce the pressure supply. It can be continuously switched on both sides to achieve continuous gas supply and purge function. The maximum input pressure can reach 20.7Mpa(3000psi), corrosion resistance, clean shop assembly test, gas analysis Such as high purity gas.
| Max Inlet pressure: | 3500.2200psi |
| Max. Output pressure: | 25.50, 100, 150, 250psi |
| Inlet Connection: | 1/4" tube fitting, 1/4" FSR, 1/2FSR |
| Output Connection: | 1/4" tube fitting, 1/4" FSR |
| Working Temperature: | -40℃~74℃ |
| Pressure Regulator Leakage Rate: | 2 x 10-8 atm. cc/sec He |
| Cv: | 0.14 |
| No. | Parts | Materiails |
| 1 | Body | 316 stainless steel |
| 2 | Seat | PU, PTFE, PC, PCTFE |
| 3 | Inlet Connection | 1/4"tube fittings, 1/4"FSR, 1/2"FSR |
| 4 | Output Connection | 1/4"tube fittings, 1/4"FSR |
| 5 | Body of Diapfgram | 316 stainless steel |
FEATURE
• The pressure relief panel is suitable for corrosive and mixed gases with purity higher than 6.0
• Single or double stage pressure reducing valves are available
• High precision pressure control
• Bound diaphragm construction
• Automatic track welding of VCR joints
• Built-in filters
• Pressure reducing valves can be used in vacuum
• Configure bursting discs
• Manual exhaust diaphragm stop valve (HPV)
• Manual intake diaphragm stop valve (HPI)
• Diaphragm globe valves can be operated or pneumatic
• 100 % helium test
• Assembled in an ISO 5.0 grade clean room

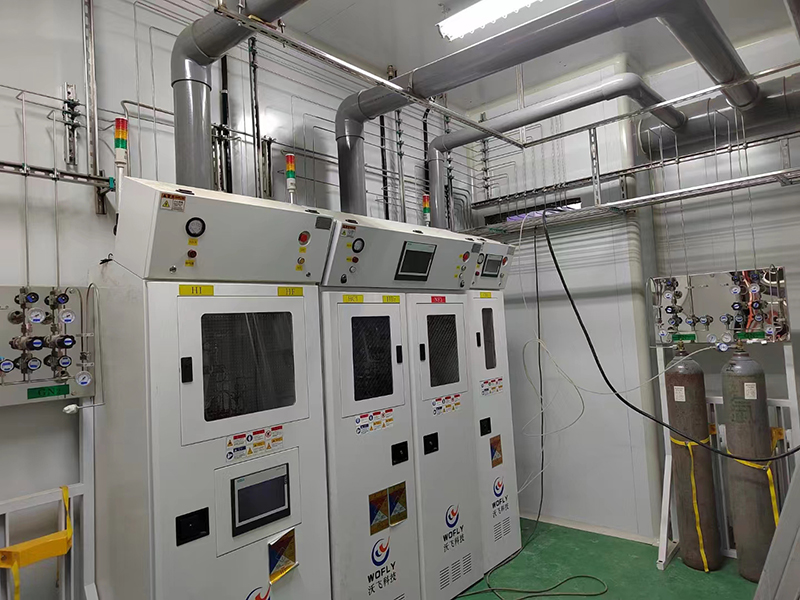

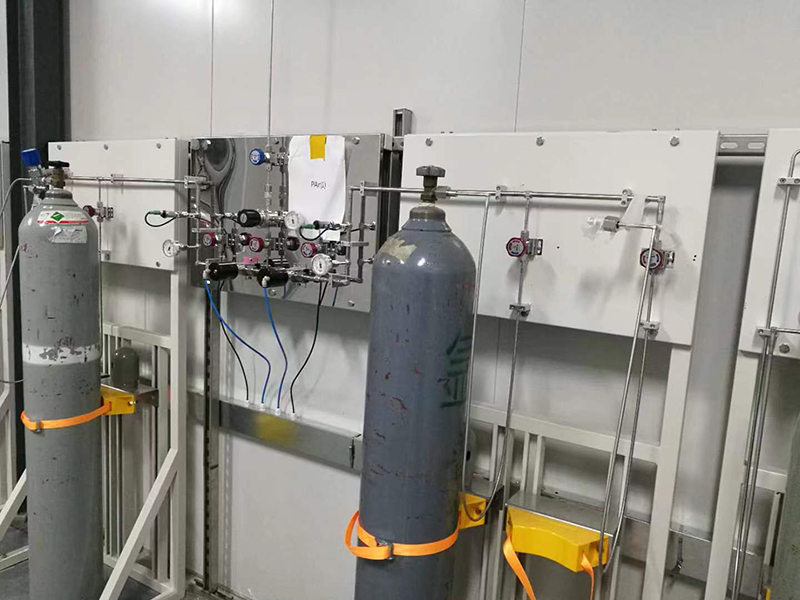

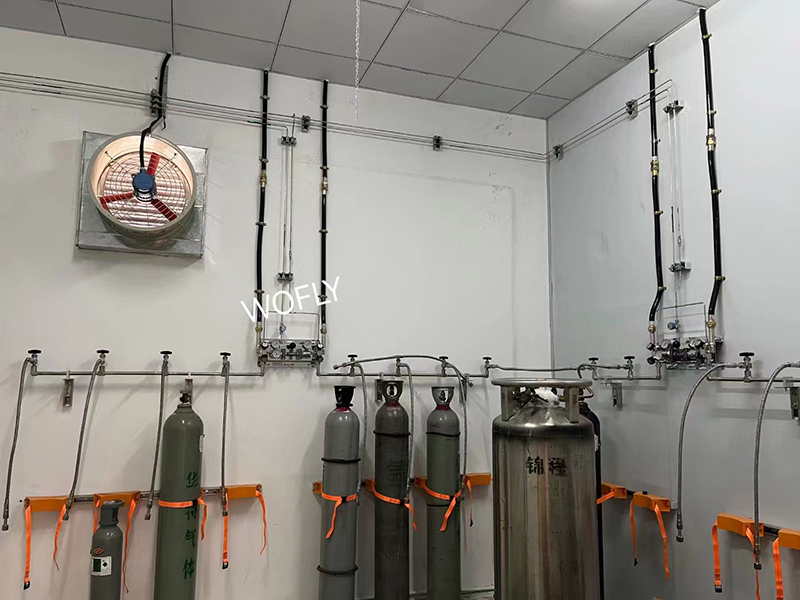

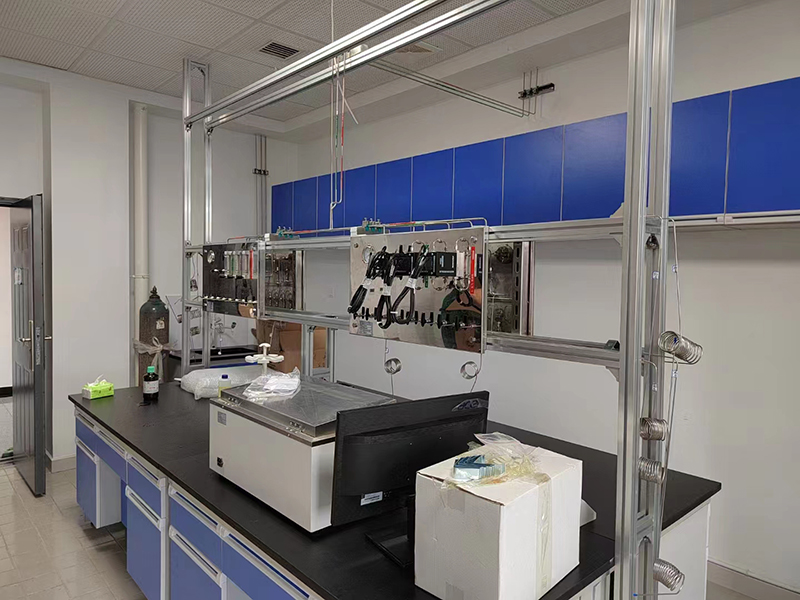

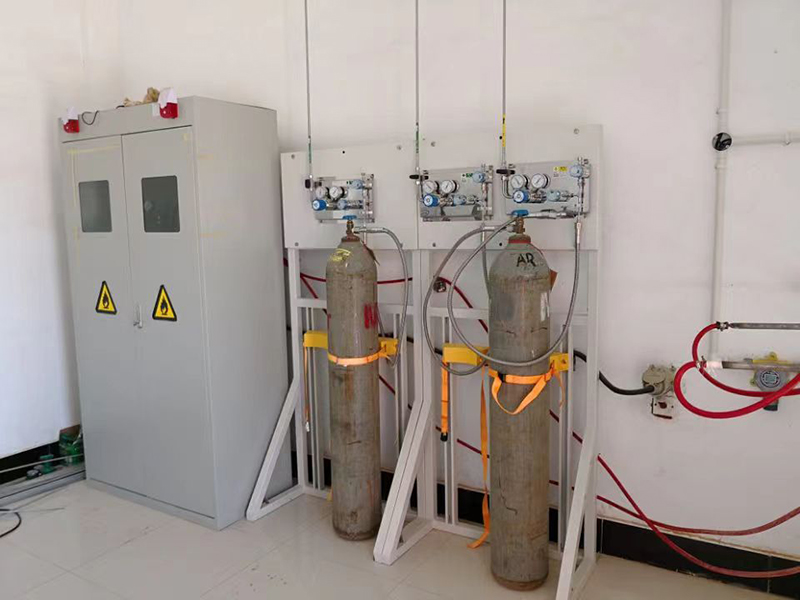

We provides a full range of laboratory gas pipeline gas supply systems to meet the gas requirements and safety of different experiments. The gas supply equipment adopts convergent discharge, carries out double bottles with manual and semi-automatic automatic switching function, with low pressure alarm device, real-time monitoring of gas pressure, concentration detection alarm and exhaust air to ensure the normal gas demand of customers and the safety of life and property.
SHENZHEN WOFLY TECHNOLOGY CO,. Ltd. is one of the pioneer suppliers for gas pressure regulators, gas full/semi-automatic switching devices, valve instruments, pipe fittings and other products.
Founded in the year 2001 with passion and committed to fulfilling customer’s demands with excellent products and service. WOFLY has been a leader in the industry due to the design and manufacture of high-performance “Dual ferrule compression heat transfer tube accessories” UHP(Ultra High Purity Application Parts and Valves” designed with its own technology since 2019.
150Workers, 5000 m2 workshop, ISO, CE, RoHS, EN certificated, one hour reach ShenZhen port, this is how we keep superior quality and competitive cooperation for global valued customers.
We work closely with our customers to provide not only high-quality products but also technical product knowledge in order to meet the demanding application requirements.
AFKLOK

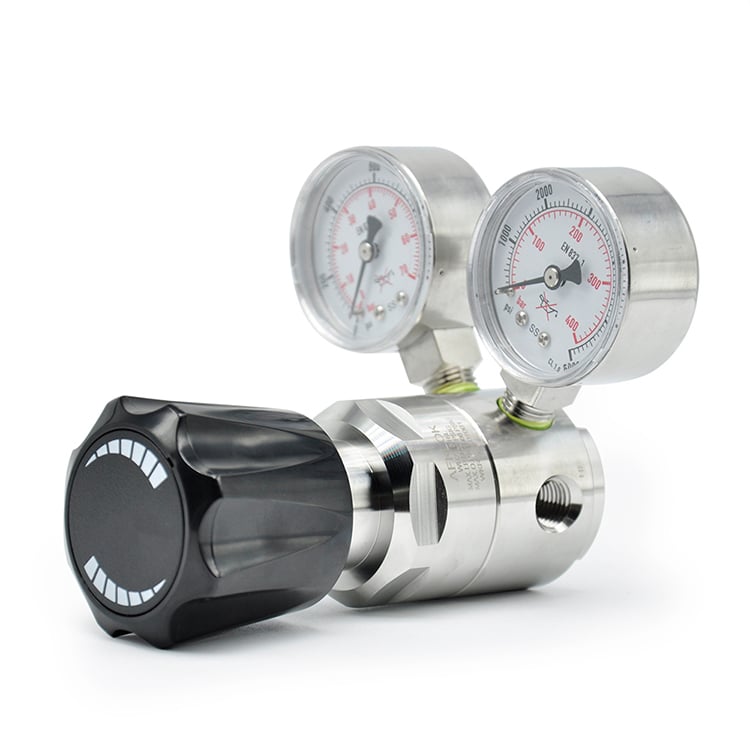

The High Purity Gas Cylinder Regulator is the perfect accessory for people who need reliable and top-quality equipment for their nitrogen or inert gases. This regulator is engineered to delivers gas flow rates from 0-100 liters per minute, allowing you to regulates the pressures and volume of your gases with precision.
Built to manage pressures as high as 3000 PSI, rendering it suitable for use in a number of applications. for research, welding, manufacturing or other industrial applications, this regulator is versatile sufficient to satisfy your needs whether you need it.
Made out of top-quality materials and having a sleek, ergonomic design, the AFKLOK regulator provides long-lasting durability, excellent performance, and procedure is easy. Its integrated pressure is spring-loaded valve offers additional security against over-pressurization or damage to the regulator.
The inlet is regulator’s is readable, ensuring that it is possible to monitor the pressure level quickly and accurately. It’s equipped having a pressure is quarter-turn valve that provides easy fine-tuning of force, providing you precise control over your fuel flow.
Suitable to be used with All inert gases including nitrogen, helium, argon, and neon. It’s additionally simple to set up, which means you don’t have to be worried about complicated setups or installation procedures.
Whether you’re a professional welder, scientist, or industrial workers, the AFKLOK High Purity Gas Cylinder Regulator provides the reliable, efficient and safe performances you need to get the job done properly. with its excellent quality, high-performances features, and durability, the AFKLOK regulator is one of the best choices for managing and regulating your nitrogen or inert gas supply. Plus, the AFKLOK brands is a trusted name in gas cylinder equipment and offers outstanding customer services and support, ensuring you get the most out of your investment.
