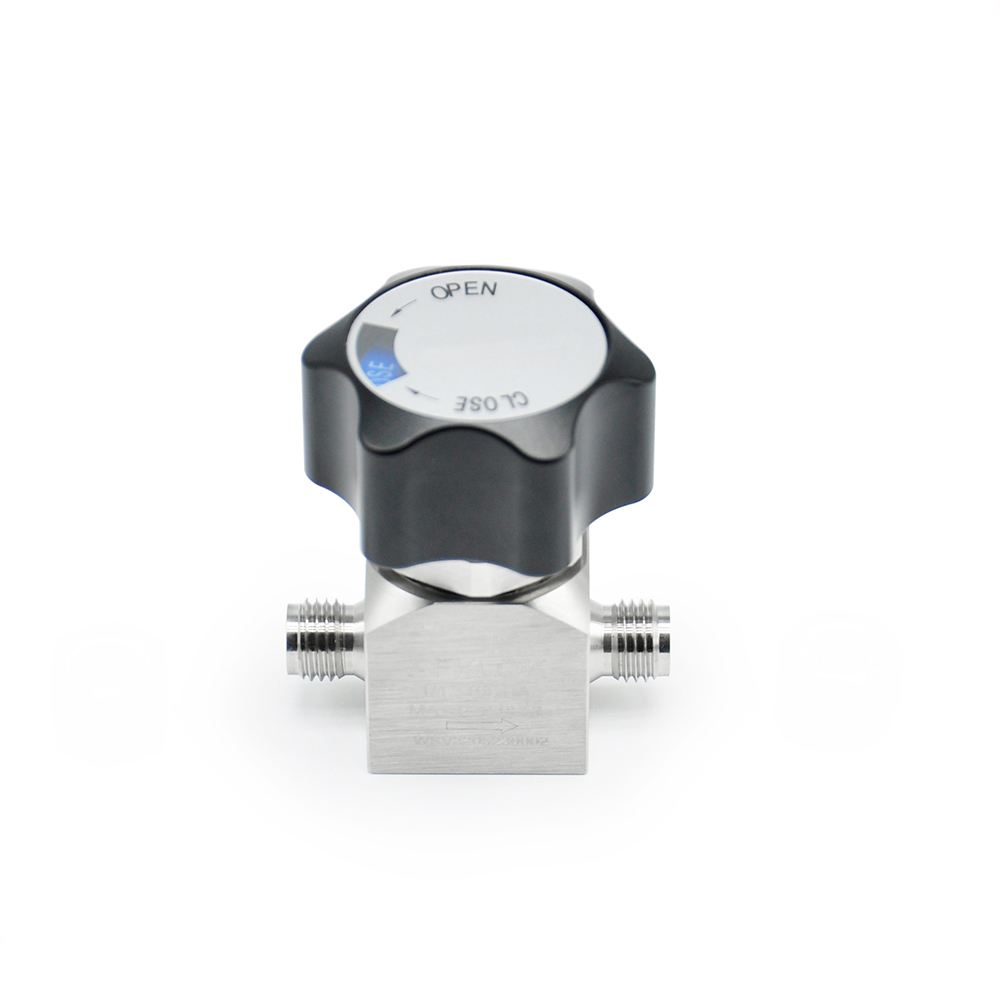

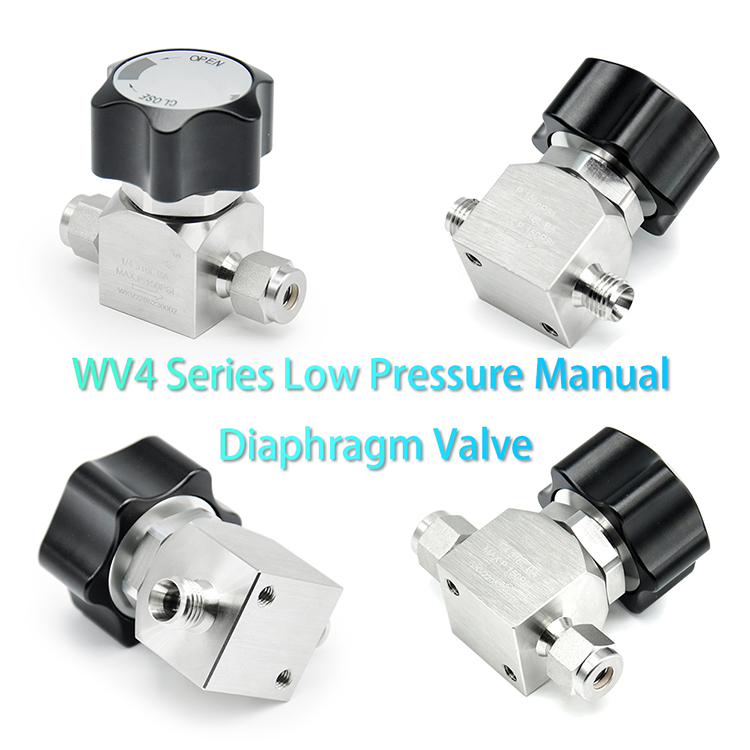

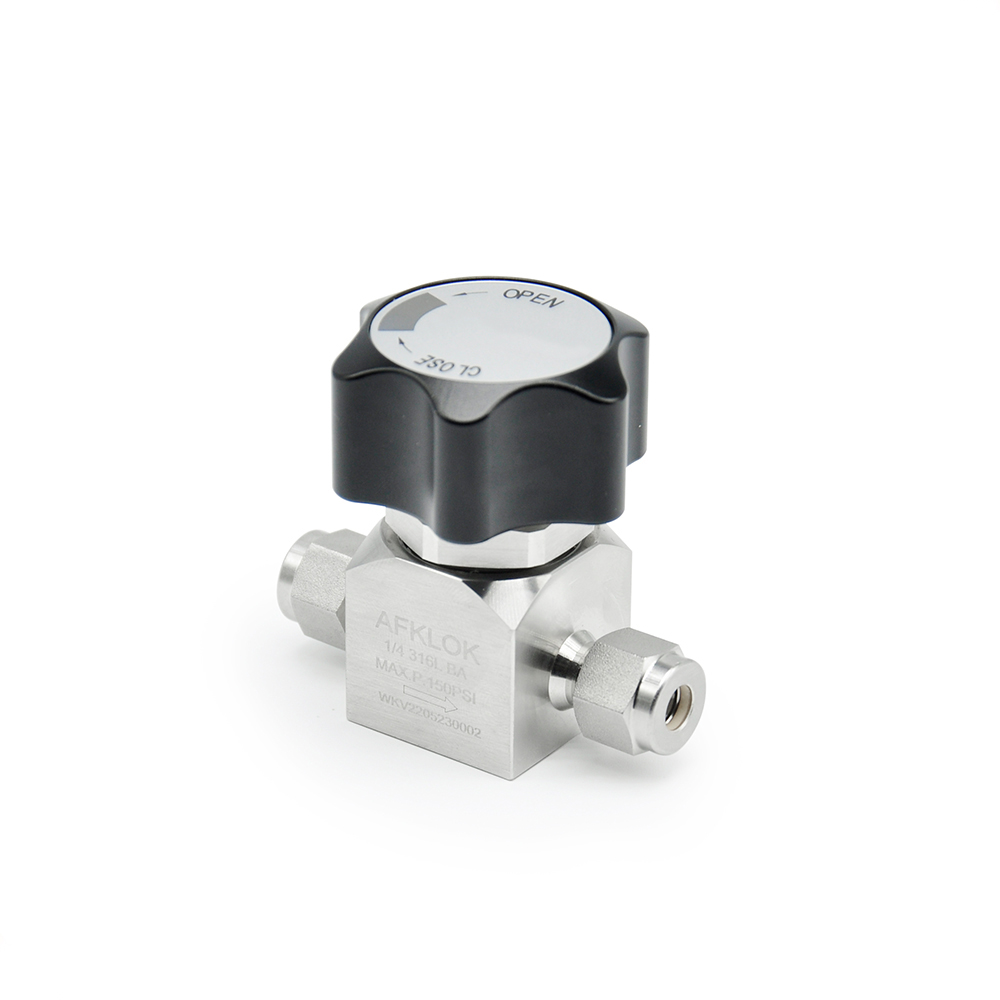

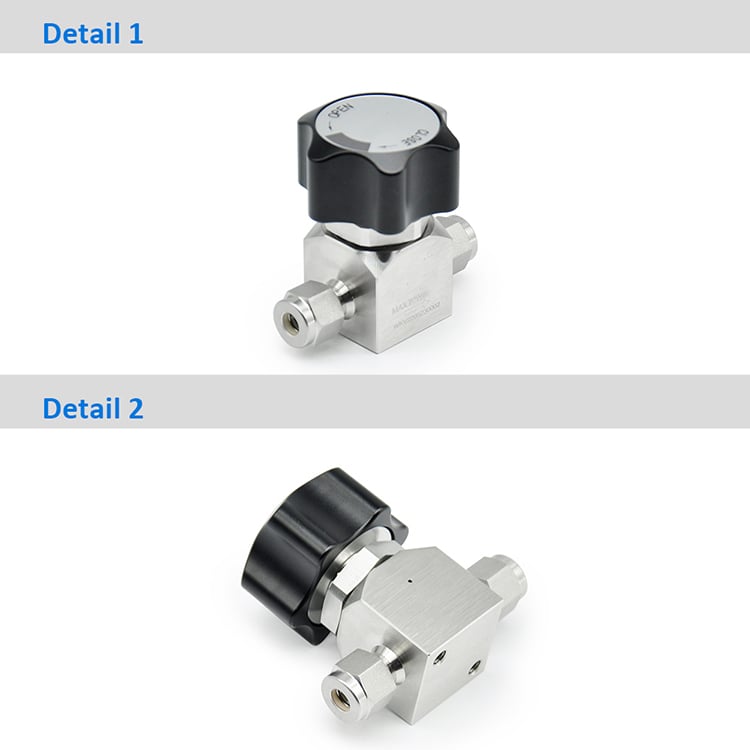

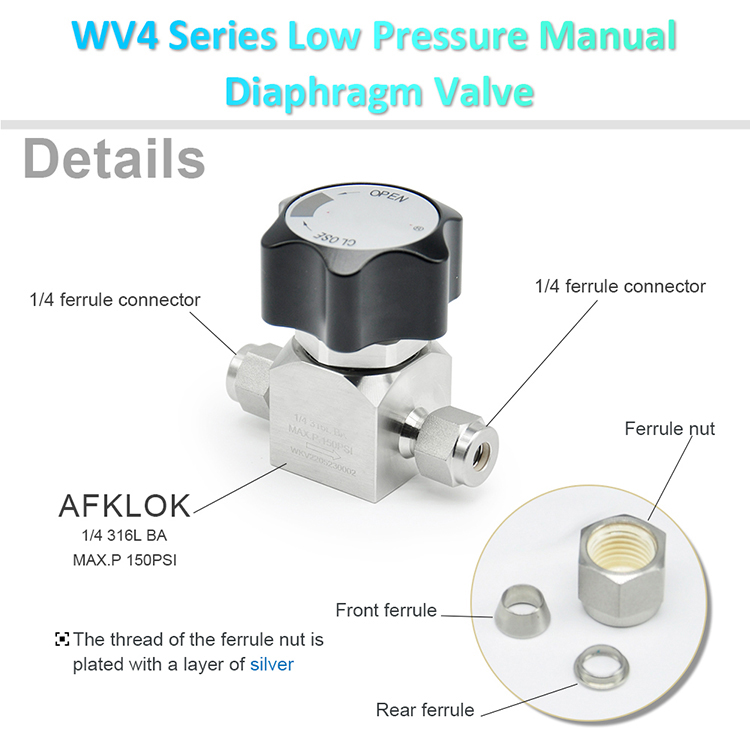

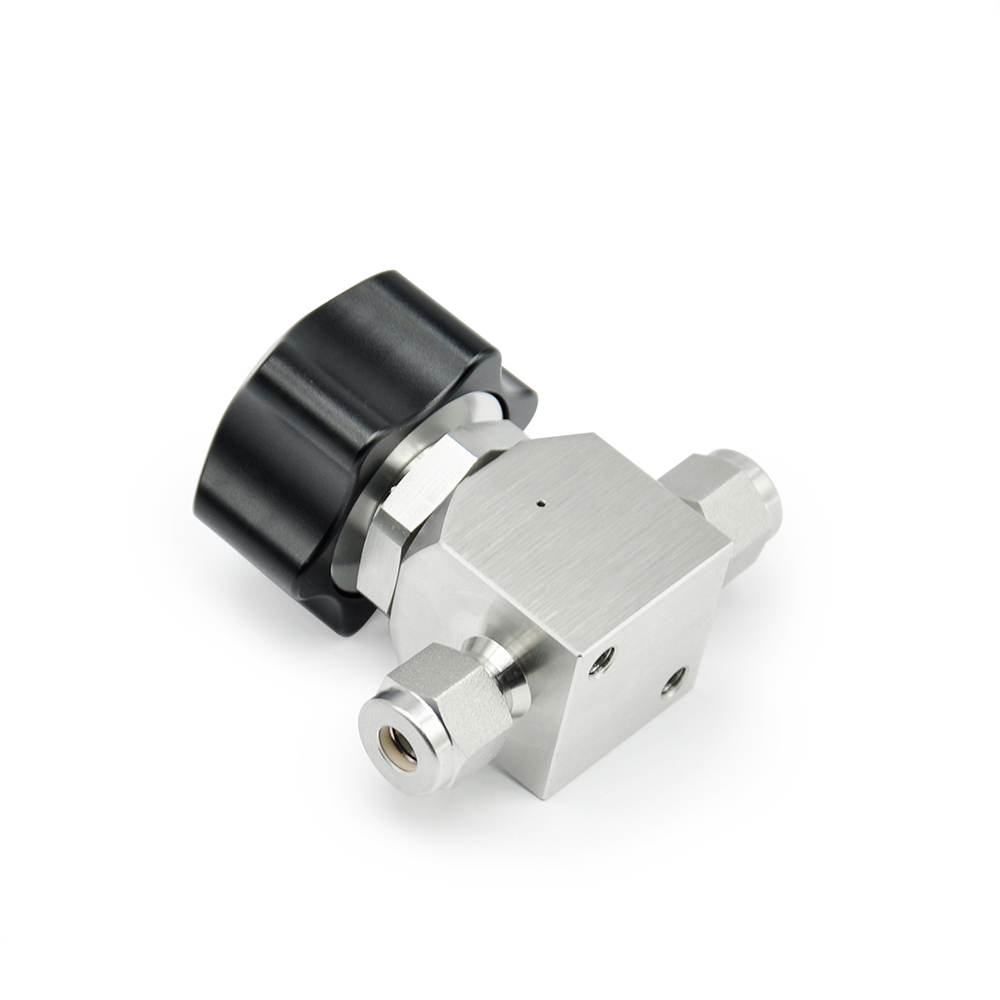

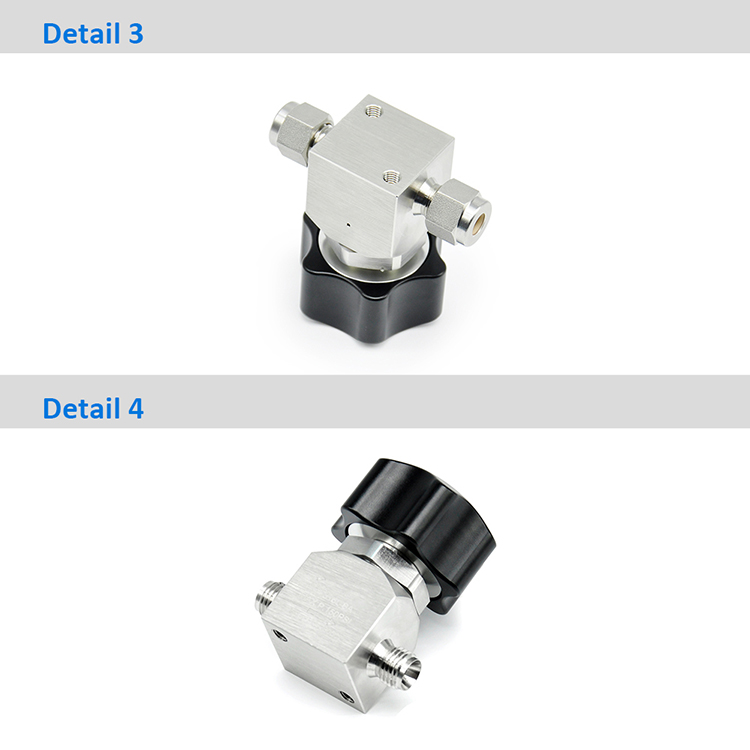

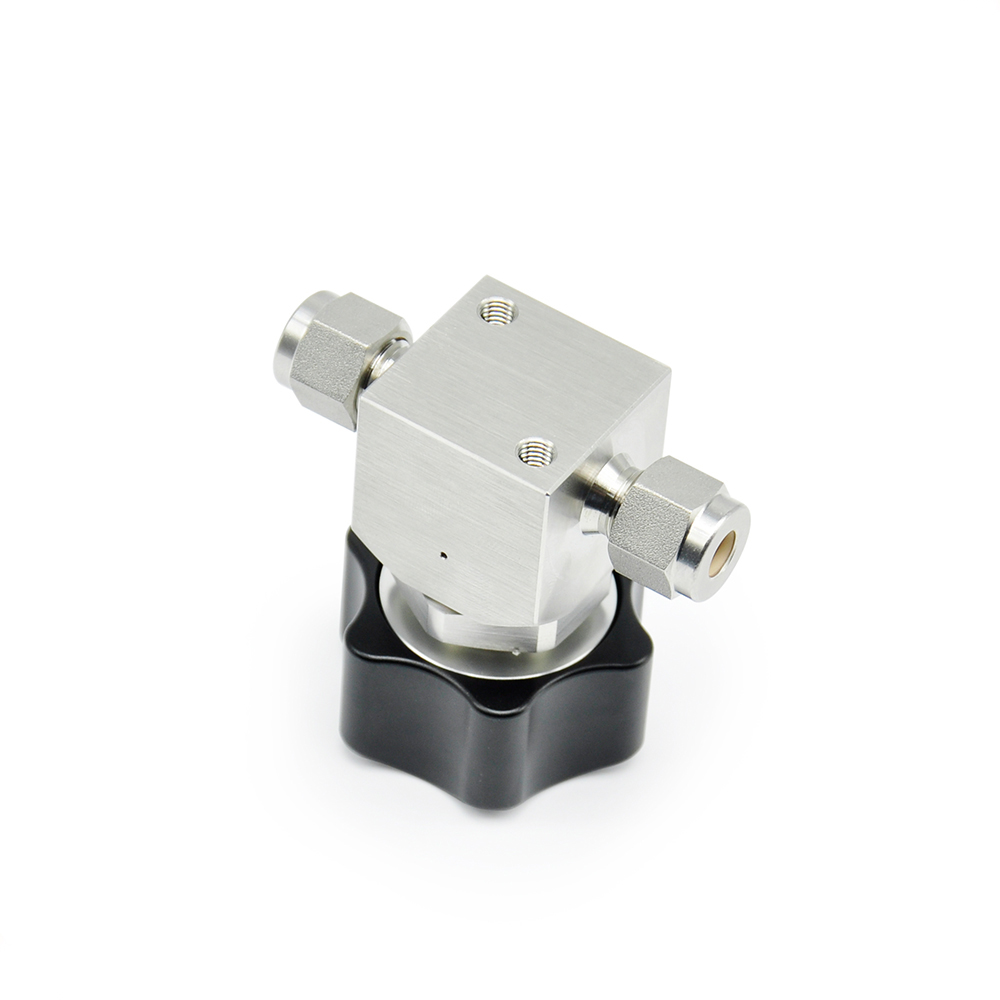

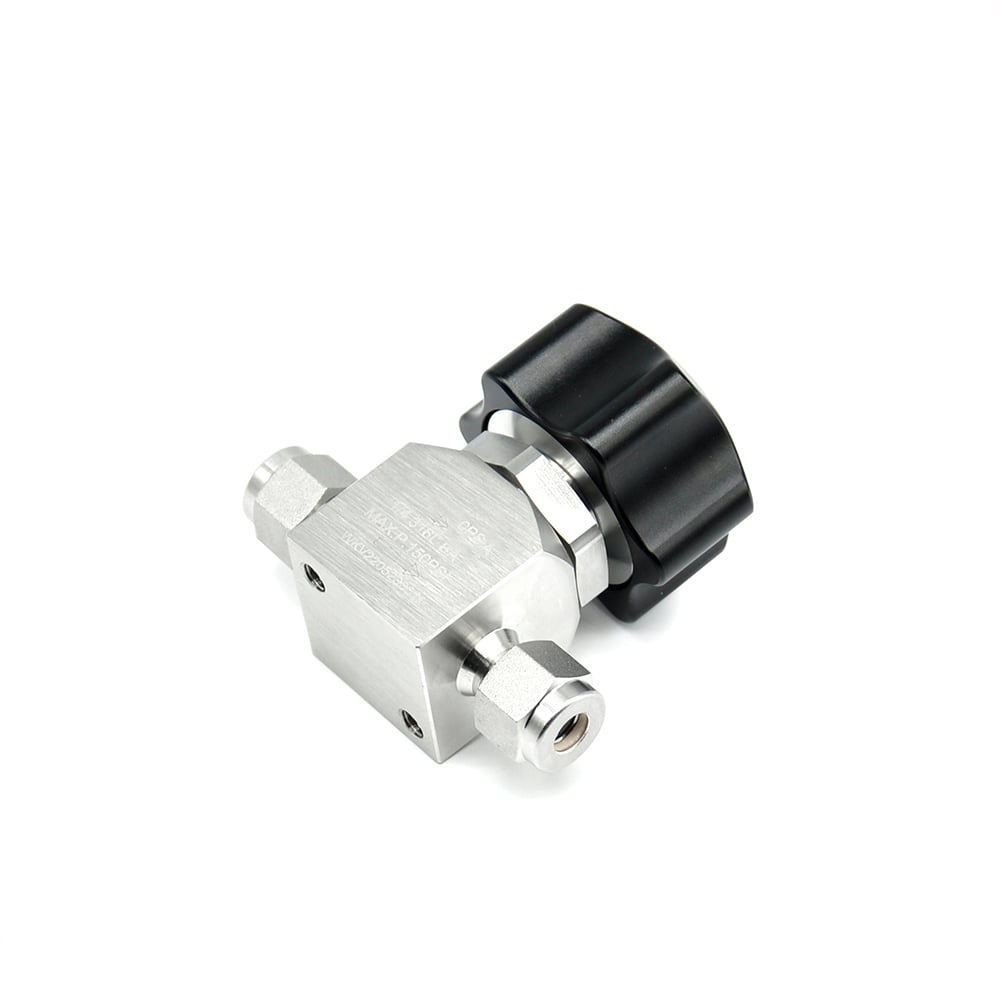

Features
1. Metal-to-metal seal for leak-free service in the vacuum to high pressure range
2. Small internal volume for complete purging of the flow path
3. Fully encapsulated valve seat design for greater durability and corrosion resistance
4. Nickel-cobalt alloy diaphragm for greater durability and corrosion resistance
5. Standard roughness of Ra0.25μm (BA grade) or electrolytic polished Ra0.13μm (EP grade) available
6. Leakage rate<1 x="" 10-9="" std="" cm3="">

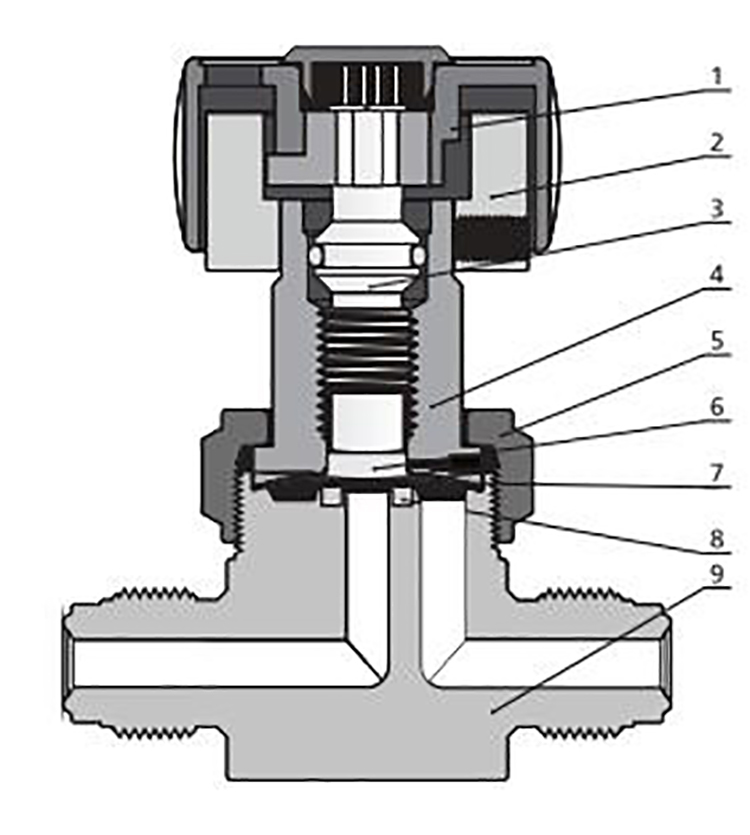

| Serial number | element | texture of material |
| 1 | Handle | Aluminium |
| 2 | Actuators | Aluminium |
| 3 | Valve stem | 304 SS |
| 4 | Bonnet | S17400 |
| 5 | Bonnet nuts | 304 SS |
| 6 | Buttons | 304 SS |
| 7 | Diaphragm (2) | Nickel-cobalt alloys |
| 8 | Valve seat | PCTFE or PFA |
| 9 | Valve body | 316L SS or 316L VAR 316L VIM-VAR |
| Technical data | |
| Port size | 1/4", 3/8" |
| Flow coefficient (Cv) | 0.27 |
| Inner diameter | 0.16 in. (4.1 mm) |
| Maximum working pressure | 10 bar (150 psig) |
| Pneumatic actuator working pressure | 4.2~6.2 bar (60~90 psig) |
| Operating temperature | PCTFE:-23~65℃(-10~150℉) |
| PFA:-23~150℃(-10~302℉) | |
| Leakage rate (helium) | ≤1×10 mbar l/s |
| ≤1×10 mbar l/s | |
| Flow data | ||
| Air @ 21°C (70°F) 10.2 | ||
| Water @ 16°C (60°F) | ||
| Pressure drop to atmospheric pressure bar (psig) | Air (l/min) | Water (l/min) |
| 0.68 (10) | 86 | 3.2 |
| 3.4 (50) | 230 | 7.2 |
| 6.8 (100) | 410 | 10.2 |
Cleaning process
Standard (WK-BA)
Welded joints are cleaned according to our standard cleaning and packaging specifications, to be ordered without the addition of a suffix.
Cleaning for oxygen (WK - O2) Product cleaning and packaging specifications for use in oxygen environments are available, and this meets ASTM G93 Class C cleanliness requirements; to order, add -O2 to the ordering number.
Ultra High Purity (WK-EP) Available in controlled surface finish, electrolytically polished Ra 0.13μm, ultrasonically cleaned in deionised water. To order, add - EP to the order number.

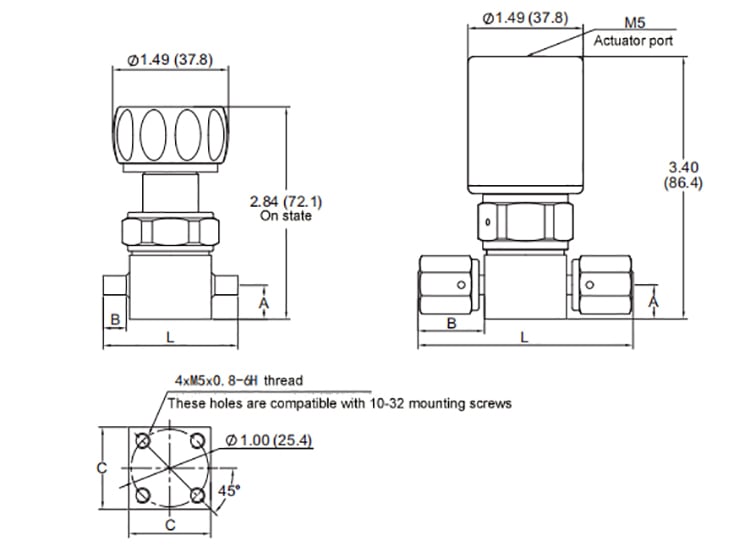

| Basic Order Number | Port types and sizes | Dimensions in. (mm) | |||
| A | B | C | L | ||
| WV4-6L-TW4- | 1/4" Tube butt weld fittings | 0.44 (11.2) | 0.30 (7.6) | 1.06 (26.9) | 1.74 (44.2) |
| WV4-6L-TW6- | 3/8" Tube butt weld fittings | 0.44 (11.2) | 0.26 (6.6) | 1.06 (26.9) | 1.74 (44.2) |
| WV4-6L-FR4- | 1/4" female thread MCR fitting | 0.44 (11.2) | 0.86 (21.8) | 1.06 (26.9) | 2.78 (70.6) |
| WV4-6L-MR4- | 1/4" integral male MCR fitting | 0.44 (11.2) | 0.62 (15.7) | 1.06 (26.9) | 2.24 (57.0) |
