Shape Instruction

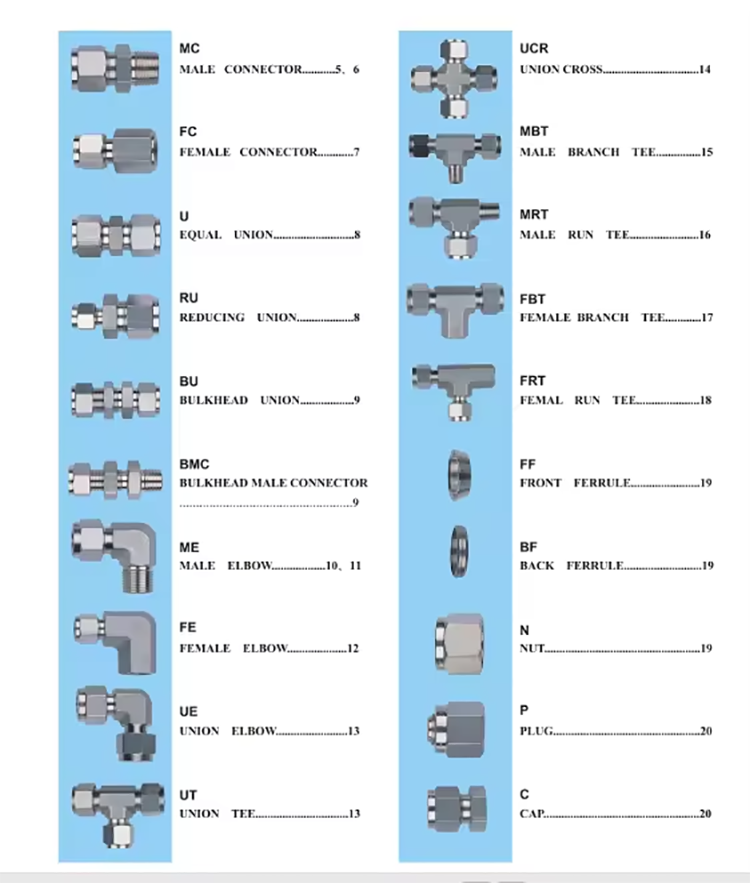

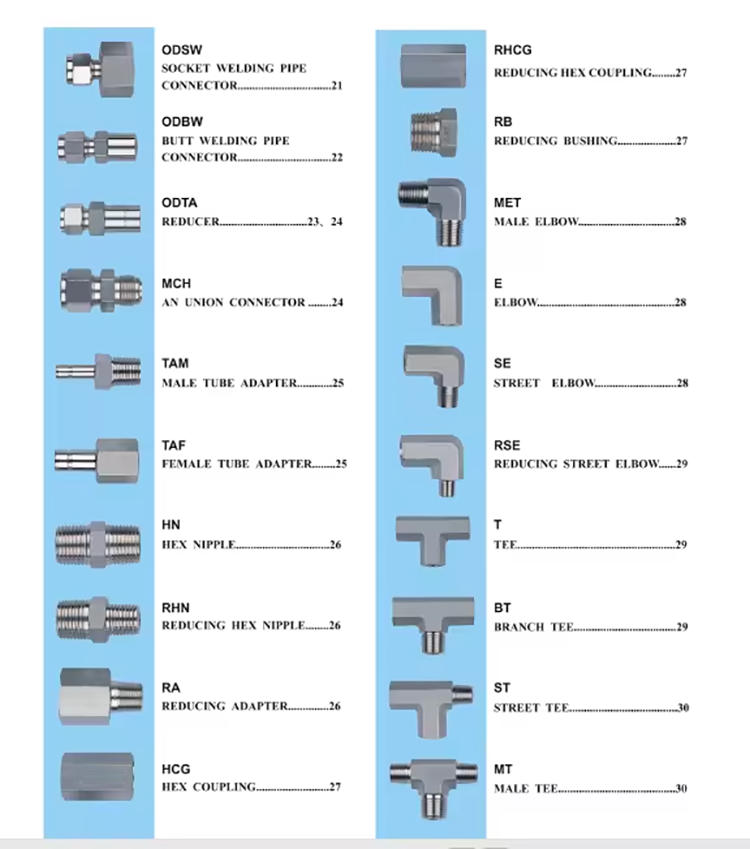

* Straight union: like U, MC, TAF etc * 90° elbow: like ME, UE, EBW, FE etc * T tee, 3 way: like MRT, MBT, UT, MT etc * Cross 4 way: like UCR etc
Connection Instruction
* Thread: NPT male thread, NPT female thread, PT male thread, PT female thread * Ferrule: Like U and UCR, it can be directly connected to tube or plastic hose * Welded: Like one end of ODSW * Tube: Like one end of TAM
Feature

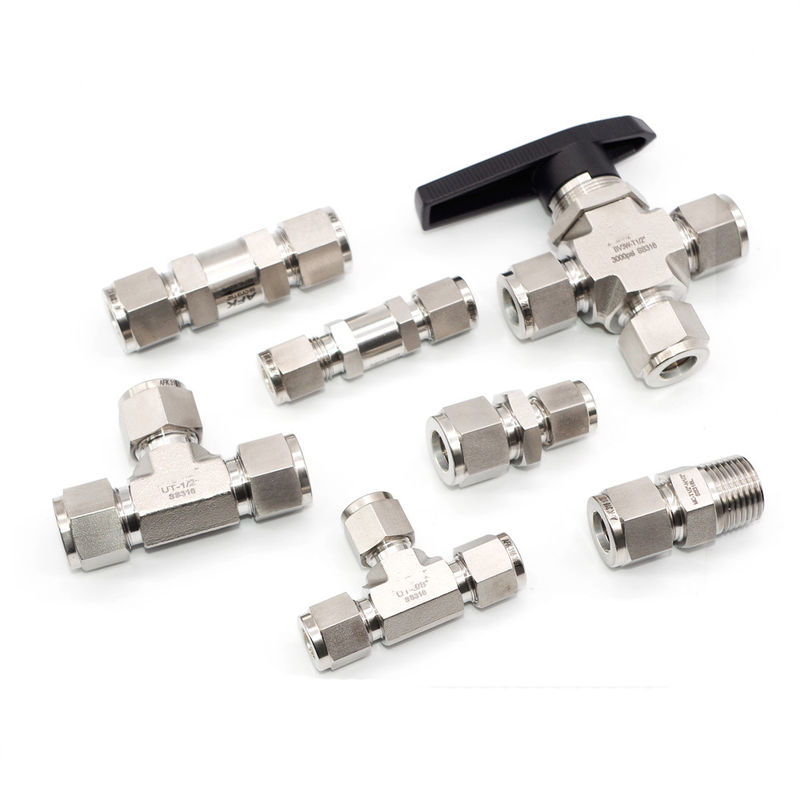

* All the compression fittings are used for gas or oil. * Highest pressure: 3000psi 206bar, 20.6MPa * Very very low leak, can be negligible zero leak * Long service life * Warranty one year
| Item | Value |
| Warranty | 1 years |
| Customized support | OEM, ODM |
| Place of Origin | China |
| Guangdong | |
| Brand Name | AFKLOK |

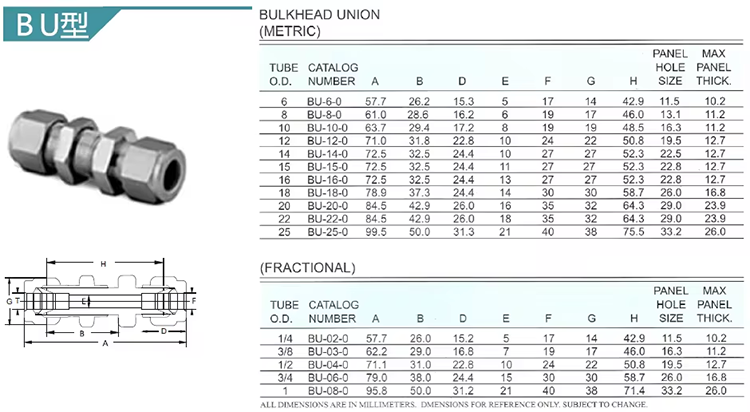

| Model Number | BU |
| Technics | Forged |
| Connection | Bulkhead+ tube ferrule |
| Shape | Equal |
| Head Code | Hexagon |
| Applicable Fluid | Nitrogen, hydrogen, oxygen, argon, ammonia, propane, air and other gases |
| Working Pressure Range | 0-3000psig |
| Size | 1/8", 1/4", 3/8", 1/2", 3/4", 1", 4mm, 6mm, 8mm, 10mm, 12mm |
| Body Shape | Straight union, 90degree elbow, tee 3 way, cross 4 way |
WOFLY is a leading Manufacturer, Supplier and Exporter of a wide range of gas equipment, available under the brand name AFK. Wofly's success yields from high-quality, innovative products, exceptional customer service, and unequaled technical expertise in the gas& oil industry. WOFLY offers an extensive line of components including tube fittings, control valves, shut-off and solenoid valves, pressure relief and regulators. Through the years we have learned how to properly match the gas regulation equipment with the application. Using the proper equipment for the job eliminates problems such as contamination, pressure variances, safety issues, and equipment mismatch.
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided FAQ
Wofly
The Lab 1/4" 3/8" 8mm pipe union bulkhead fitting connector is a reliable and efficient way to connect pipes. Made by Wofly a brand known for producing high-quality plumbing and HVAC products. Measuring 1/4 inch 3/8 inch and 8mm. Designed to work with a variety of pipe sizes. Its bulkhead design allows it to fit securely and create a leak-free seal. Whether you're working on a DIY project or a professional plumbing installation this connector is designed to make your work easier. Made from durable materials. Built to last.
Its sturdy construction ensures that it can withstand the pressure and force placed on pipes during use. The connector's rugged design helps eliminate the risk of wear and tear or corrosion making it a reliable solution for many years to come. Compact size and easy-to-use design this connector is a great choice for those who need a reliable piping solution without the need for a lot of tools or equipment. It can be easily installed with basic hand tools which makes it accessible for almost anyone. Designed to be versatile. Its compatibility with a range of different pipe sizes makes it a great solution for a variety of applications from home plumbing to industrial uses. Its bulkhead design makes it ideal for applications in tight spaces or hard-to-reach areas. Get this today.
