Materials of Construction
Body: stainless steel
Seat: PU, PTFE, PCTFE.
Inlet Connection: 1/4"tube fitting, 1/4"FSR, 1/2"FSR
Outlet Connection: 1/4" tube fitting, 1/4"FSR
Body of Diaphragm Valve: stainless steel
Features

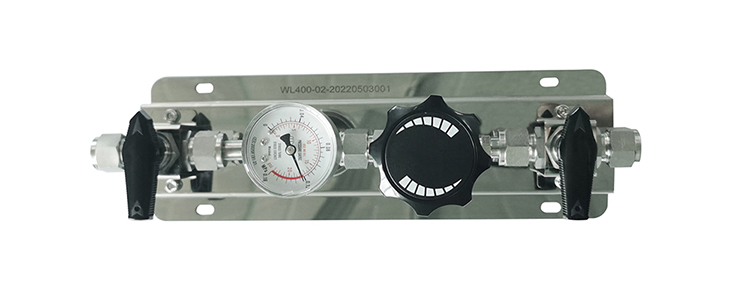

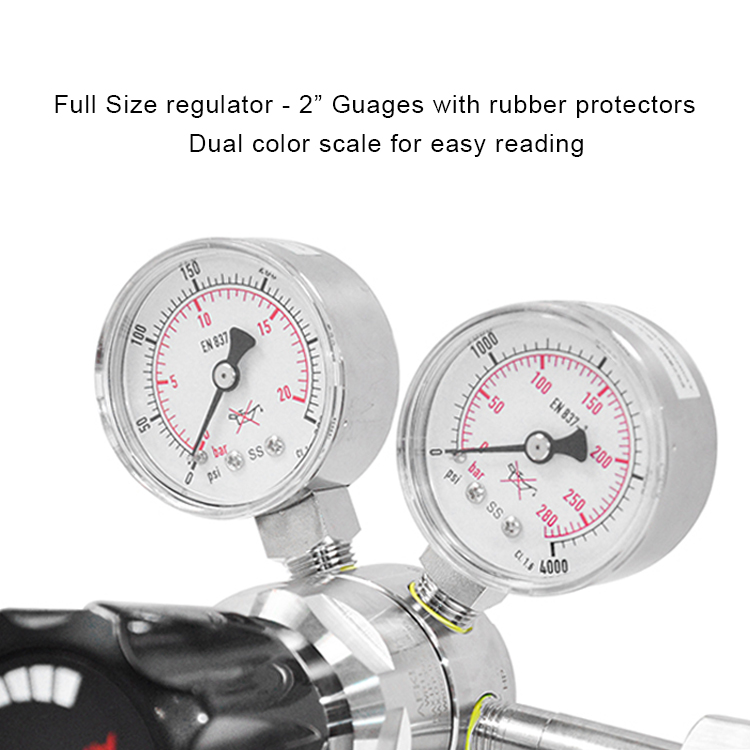

Equipped R11 pressure regulator and high-pressure ball valve Regulator and pipe through the pressure test and leakage test Wall installation, easy to use and safe 2" stainless steel pressure gauge, reading clearly
| Max. Inlet Pressure | 3000, 2200 psi |
| Max. Outlet Pressure | 25, 50, 100, 150, 250 psi |
| Working Temperature: | -40°C ~ 74°C (-40°F ~ 165°F) |
| Pressure Regulator Leakage Rate | 2 x 10-8 atm. cc/sec He |
| CV: | 0.14 |

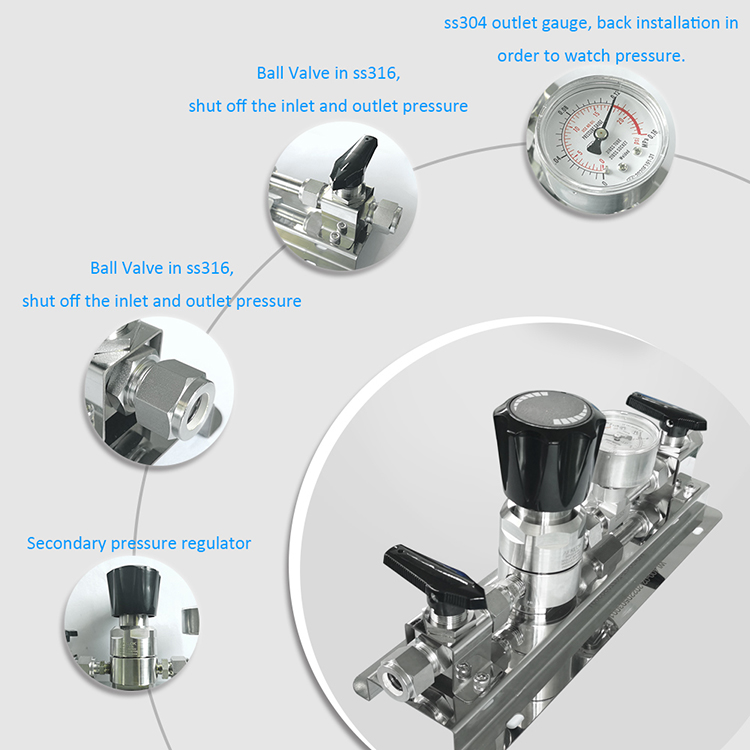

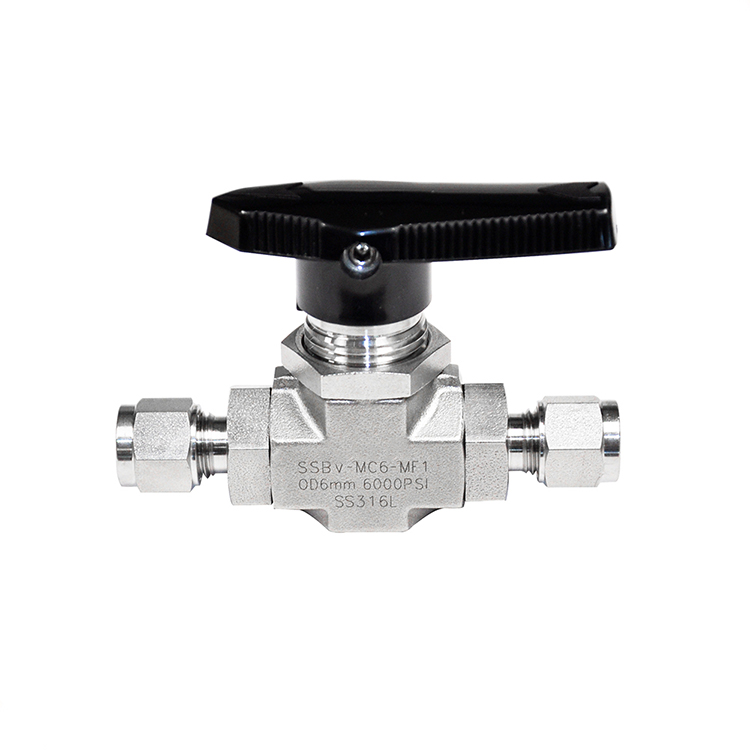

Stainless steelBall Valve
Flexible adjustment, anti-corrosion and anti-acid
CV 2.5 pressure gauge
Applicable to various gases, conventional inert gases, toxic gases, corrosive gases, etc.

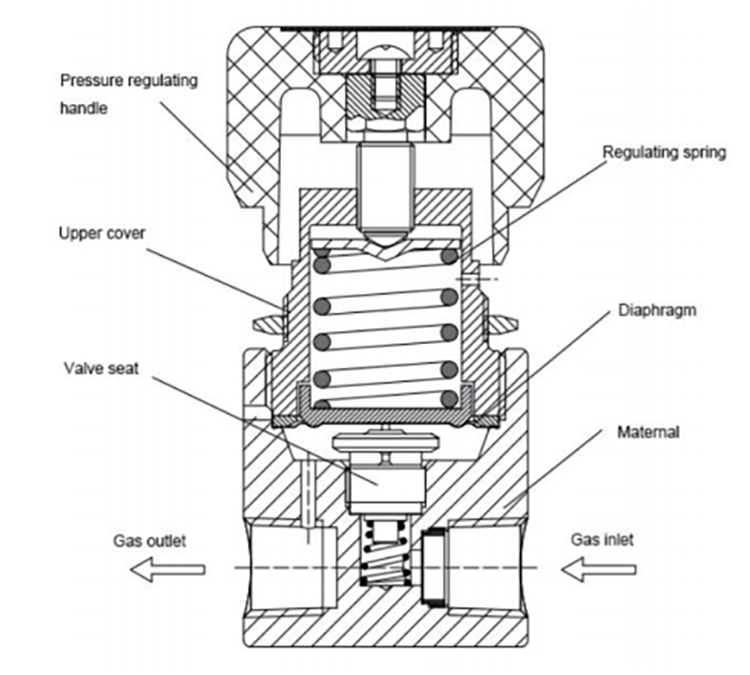

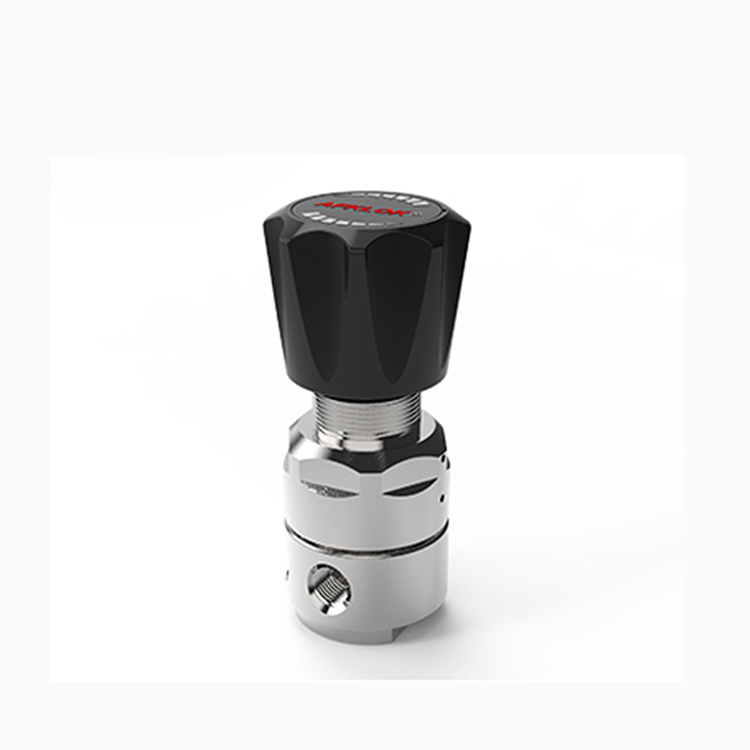

R11 pressure regulator
Good sealing design, stable pressure regulation
Shenzhen Wofly Technology Co., Ltd. is specialized in manufacture ring gas pressure regulator, pipe fittings, full/semi-automatic swiching devices, pipe fittings, valve instruments ect. We also supply customizing and designing service for all stainless steel products.
We are in this field for 12 years. Own R&D Department and Design Team. Covering an area of 2500 Squre Meters. 150Works, of whom 20Technicians. With our strict quality control procedure and excellent customer service. We have own High praise form our clients who came form Europe, Amercia, Asia, South America ect. In order to shorten the delivery time, we set up a warehouse to stock most of hot selling items.
The aim of our company is quality and prestige first. We sincerely welcome the co-parter form a board.
AFKLOK

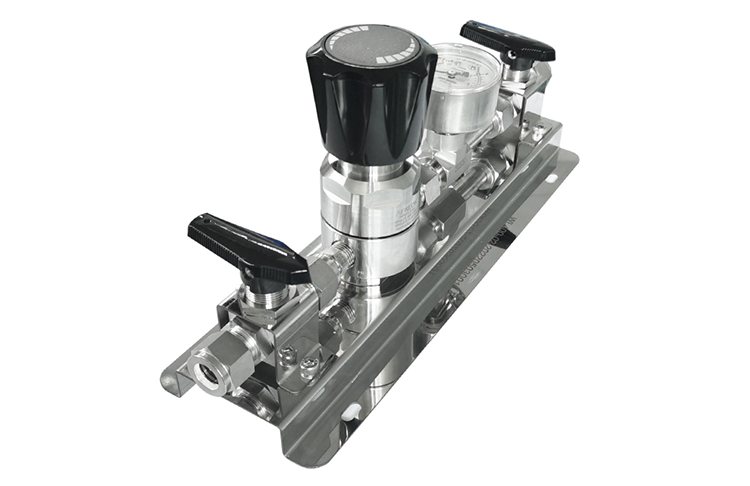

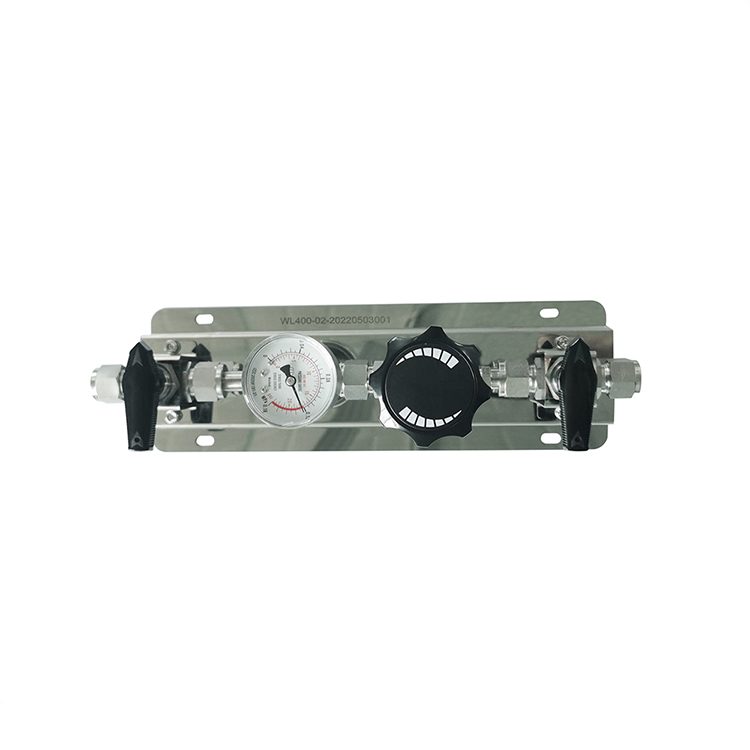

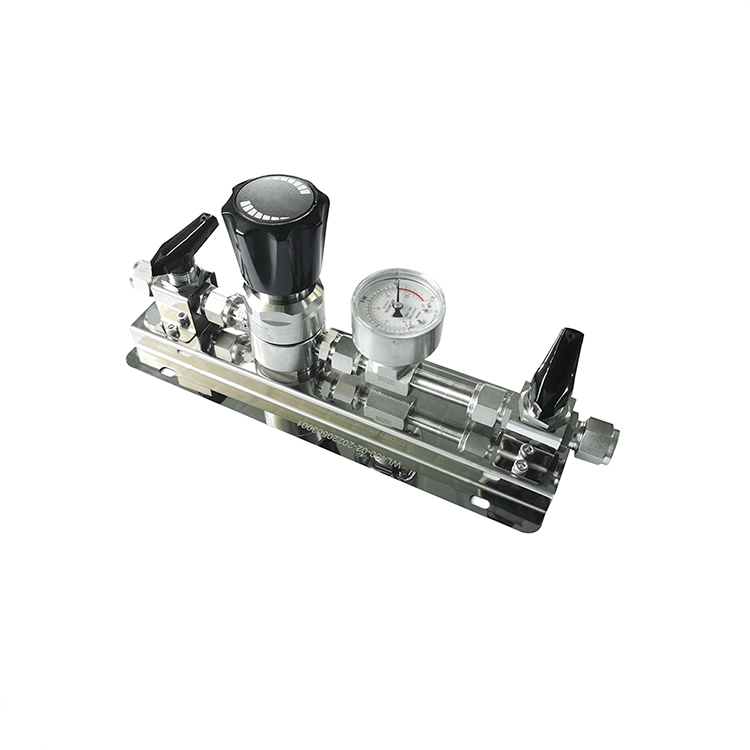

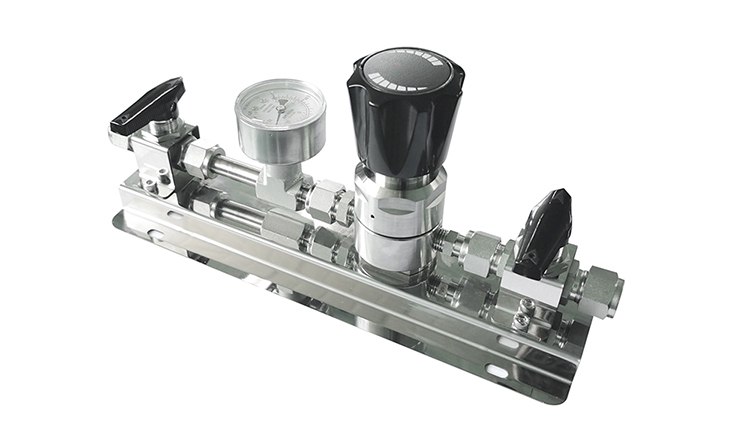

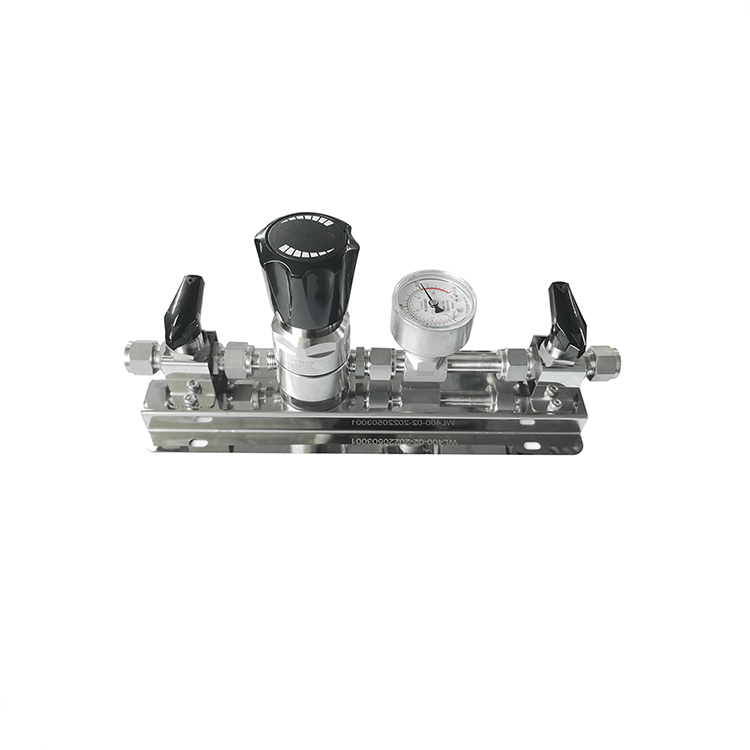

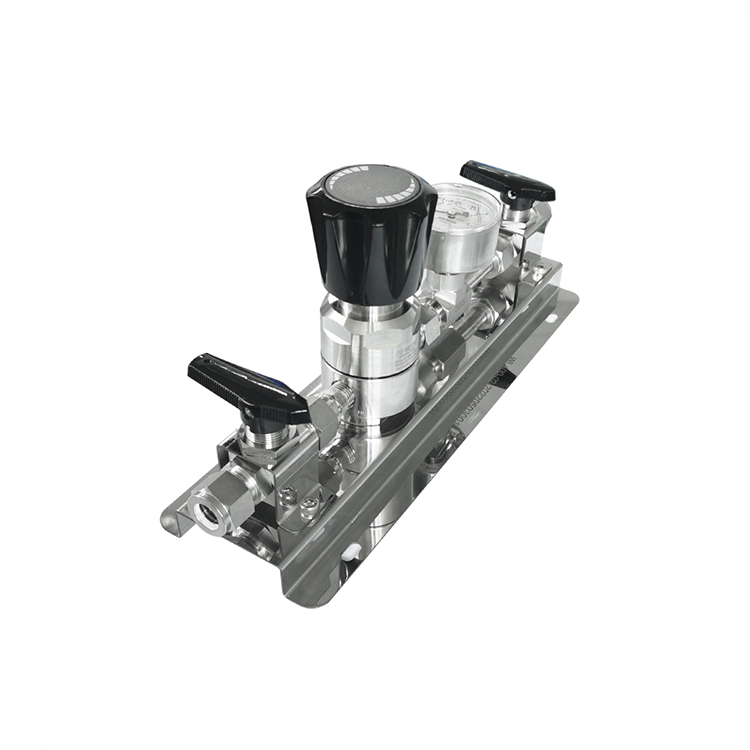

The Laboratory 316L Stainless-steel manual switching panel convergent terminal secondary pressure regulator is a top-of-the-line product guaranteed to keep your laboratory running smoothly and efficiently.
Made through the quality is greatest 316L stainless steel built to last and withstand perhaps the most demanding laboratory surroundings. Having its sleek and design is sturdy it'll easily merge with all the overall look and feel of your laboratory and gives a dependable and durable treatment for your pressure regulation needs.
Easy to use and allows for quick and efficient adjustments to your pressure settings. This AFKLOK feature will help speed your workflow up and enable you to get more done in less time.
Ensures that there is very Bit, if any, pressure fall downstream. This particular feature shall help raise the accuracy of your stress measurements and make that your experiments are carried out safely and accurately.
The pressure is secondary on this product is another great feature that will enhance the overall performance and longevity of your laboratory gear. By giving a reliable and source is constant of downstream, you can make that all your equipment is operating at optimal amounts and creating accurate and reliable results.
The ideal solution for the pressure regulation requires whether you're conducting research, operating experiments, or performing other laboratory work.
With its durable and reliable construction, easy-to-use design, and an array of advanced features, this product is sure to meet all your laboratory requirements. So why wait? Invest in the AFKLOK Laboratory 316L Stainless-steel manual switching panel convergent terminal secondary pressure regulator today and discover the power of precision and accuracy in your laboratory work.
