Low Pressure 1000 Psi 316 Double Ferrule Forged Compression Ball Valve

Product Description

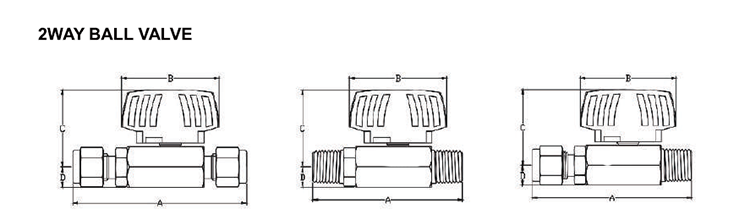

Instrument Ball Valve

2PC Ball Valve-1000PSIG

Characteristics

Black handle with arrow indicates flow direction

End connection available with AFK tube endï¼ BSPT or NPT male thread

Specification
Features Low Pressure Ball Valve
1 two pieces cold drawn bar body
2 body material stainless steel SS316/316L
3 Max. allowed working pressure 1000psig (69bar)
4 with Fluororubber O-ring and PTFE packing
5 100% factory tested
Low Pressure 1000 Psi 316 Double Ferrule Forged Compression Ball Valve manufacture

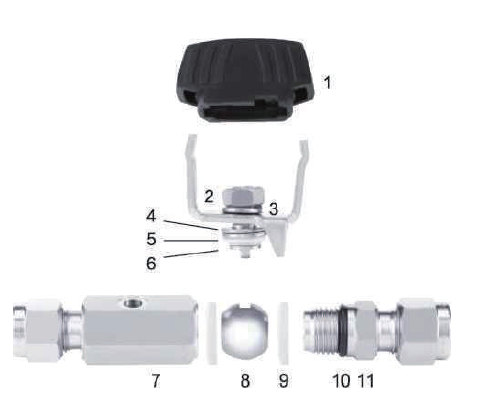

Features of Ball Valve
Item part descrption Qty Material
1 handle 1 nylon
2 Locking Nut 1 SS304
3 Spring washer 1 SS304
4 washer 2 SS304
5 gland packing 2 PTFE
6 stem 1 SS316/316L
7 body 1 SS316/316L
8 ball 1 SS316/316L
9 seat 2 PTFE
10 body o-ring 1 Fluororubber
11 end cap 1 SS316/316L
Ordering Information
C- 2 BV- S6- 02 A- 1P
Classification Product type Vavle type Material Size fractional Size metric Connection type Max. working pressure
C: valve 2: 2PC BV: 2 way ball valve S6: SS316 04: 1/4" 6: 6mm A: AFK tube end 1P: 1000Psi
S6L: SS316L 06: 3/8" 8: 8mm MR: male BSPT thread
08: 1/2" 10: 10mm MN: male NPT thread
012: 3/4" 12: 12mm
18: 18mm
Packing & Delivery
Company Profile

WOFLY is a leading Manufacturer, Supplier and Exporter of a wide  range of gas equipments, available under the brand name AFK. Wofly's success yields from high-quality, innovative products, exceptional customer service, and unequaled technical expertise in the gas& oil industry. WOFLY offers an extensive line of components including tube fittings, control valves, shut-off and solenoid valves, pressure relief and regulators. Through the years we have learned how to properly match the gas regulation equipment with the application. Using the proper equipment for the job eliminates problems such as contamination, pressure variances, safety issues, and equipment mismatch

FAQ
1. who are we?
We are based in Guangdong, China, start from 2011, sell to Southeast Asia(20.00%), Africa(20.00%), Eastern Asia(10.00%), Mid East(10.00%), Domestic Market(5.00%), South Asia(5.00%), Northern Europe(5.00%), Central America(5.00%), Western Europe(5.00%), South America(5.00%), Eastern Europe(5.00%), North America(5.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3. what can you buy from us?
pressure regulator, Tube fittings, solenoid valve, Needle valve, check valve
4. why should you buy from us not from other suppliers?
We have a couple of years with professional engineers and dedicated technicians. can provide security products for you
5. what services can we provide?
Accepted Delivery Terms: FOB, CIF, EXWï¼;
Accepted Payment Currency: USD, CNY;
Accepted Payment Type: T/T, L/C, Western Union;
Language Spoken: English, Chinese
