Instrument Ball Valve

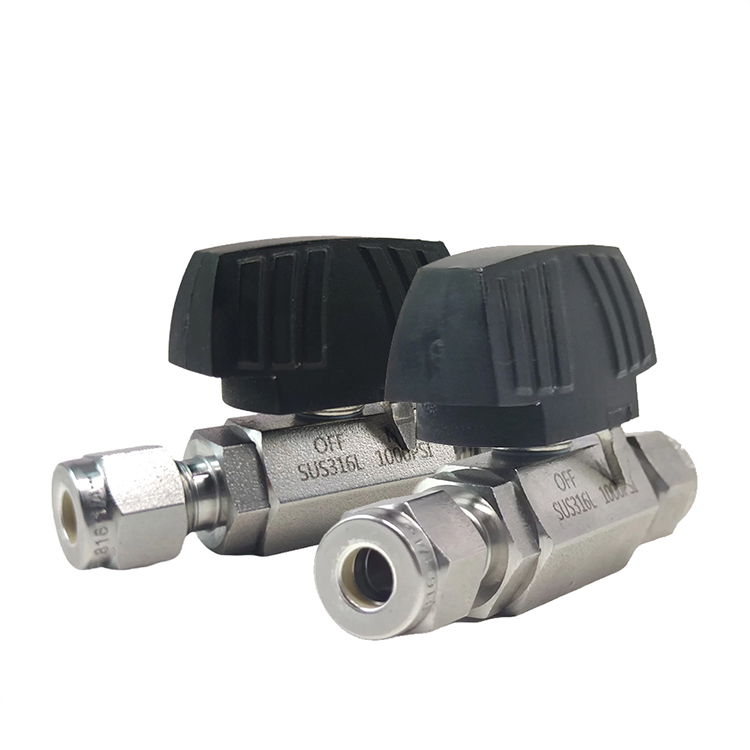

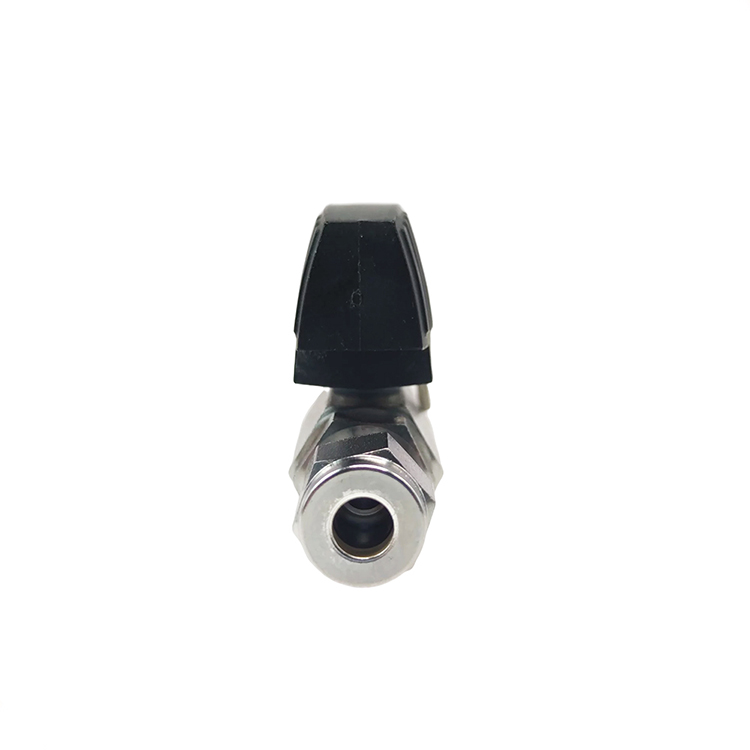

2PC Ball Valve-1000PSIG
Characteristics
Black handle with arrow indicates flow direction
End connection available with AFK tube endï¼BSPT or NPT male thread
| Features Low Pressure Ball Valve | |
| 1 | two pieces cold drawn bar body |
| 2 | body material stainless steel SS316/316L |
| 3 | Max. allowed working pressure 1000psig ï¼69barï¼ |
| 4 | with Fluororubber O-ring and PTFE packing |
| 5 | 100% factory tested |

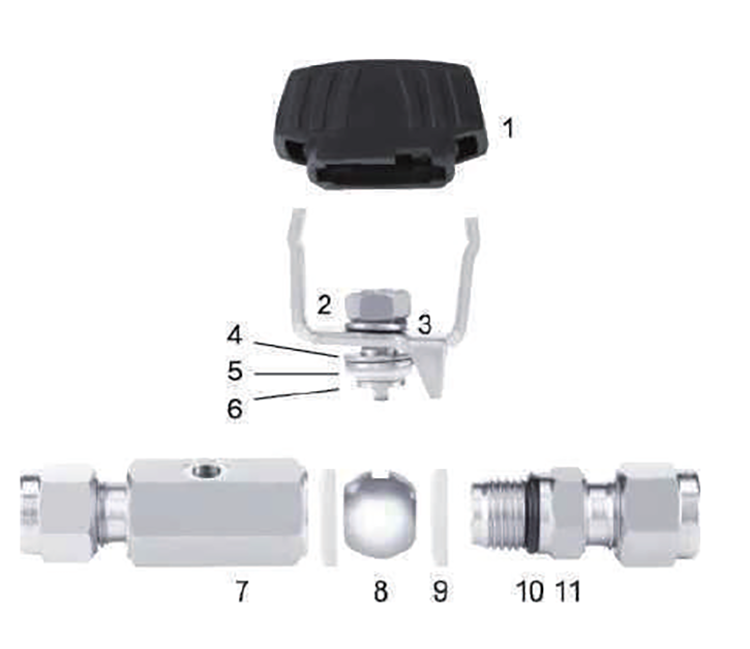

| Features of Ball Valve | |||
| Item | part descrption | Qty | Material |
| 1 | handle | 1 | nylon |
| 2 | Locking Nut | 1 | SS304 |
| 3 | Spring washer | 1 | SS304 |
| 4 | washer | 2 | SS304 |
| 5 | gland packing | 2 | PTFE |
| 6 | stem | 1 | SS316/316L |
| 7 | body | 1 | SS316/316L |
| 8 | ball | 1 | SS316/316L |
| 9 | seat | 2 | PTFE |
| 10 | body o-ring | 1 | Fluororubber |
| 11 | end cap | 1 | SS316/316L |
| Ordering Information | |||||||
| C- | 2 | BV- | S6- | 2 | A- | 1P | |
| Classification | Product type | Vavle type | Material | Size fractional | Size metric | Connection type | Max. working聽 pressure |
| C: valve | 2: 2PC | BV: 2 way ball valve | S6: SS316 | 04: 1/4" | 6: 6mm | A: AFK tube end | 1P: 1000Psi |
| S6L: SS316L | 06: 3/8" | 8: 8mm | MR: male BSPT thread | ||||
| 08: 1/2" | 10: 10mm | MN: male NPT thread | |||||
| 012: 3/4" | 12: 12mm | ||||||
| 18: 18mm | |||||||
WOFLY is a leading Manufacturer, Supplier and Exporter of a wide range of gas equipments, available under the brand name AFK. Wofly's success yields from high-quality, innovative products, exceptional customer service, and unequaled technical expertise in the gas& oil industry. WOFLY offers an extensive line of components including tube fittings, control valves, shut-off and solenoid valves, pressure relief and regulators. Through the years we have learned how to properly match the gas regulation equipment with the application. Using the proper equipment for the job eliminates problems such as contamination, pressure variances, safety issues, and equipment mismatch.
Wofly
The Low Pressure 1000 Psi 316 Double Ferrule Forged Compression Ball Valve from Wofly. The best addition to just about any piping system. Ideal for use in low-pressure applications as much as 1000 psi which makes it a choice this is certainly great a number of industrial and commercial settings. Extremely strong and corrosion-resistant rendering it an essential device for projects that want long-lasting and gratification this is certainly dependable. The dual ferrule design provides a super taut safe seal preventing leaks and ensuring fluid control this is certainly optimal.
Features an easy lever that is on/off allows you to quickly and easily adjust flow rates making it a great selection for situations that demand precise flow control. The construction that is forged maximum reliability and durability also in harsh conditions making it a reliable choice for many applications. Installation is quick and effortless making it a selection this is certainly very good found in both new construction jobs and retrofits.
The stress this is certainly low means you can make use of this ball valve in many different systems without fretting about surpassing its limitations. Easy to maintain. The design that is two-piece disassembly and cleaning a breeze which will help extend the life regarding the product while also decreasing maintenance times and costs. Grab yours now.
