MFC SERIES Flow Controller/Meter
Gas mass flowmeter main function is to measure a variety of single gas or mixed gas, no control function, divided into digital type with display (left), analog type without display (right), digital type mainly has RS485 communication can be connected to a computer or PLC can be field panel adjustment: analog type output 0-5V or 4-20MA can not be field adjustment, can be connected to PLC or flow control instrument
FEATURE:
1. Small size, does not occupy space 2. With display, fast reading flow rate 3. Good material, longer service life 4. Control mode and analog quantity can be selected 5. High accuracy 6. Fast response time 7. Low failure rate
| Gas flow meter parameters | ||
| 1 | Flow range | (0~5,10,20,30,50,100,200,300,500...)SCCM |
| (0~1,2,3,5,10,50,100,200,500.) SLM | ||
| 2 | Accuracy: | ±1%F S |
| ±0.5%F S | ||
| 3 | Linearity | ±0.5~1.5%F S |
| 4 | Repeatability | ±0.2%F S |
| 5 | Responding time | Electrical characteristics:10sec gas characteristics (1~4)sec |
| 6 | Differential pressure range | 0.1~0.5MPa |
| 7 | Max pressure | 3MPa |
| 8 | Working temperature | 0~70℃ |
| 9 | Digital value | RS485 MODBUS |
| 10 | Analog value | DC 0~5V ,4~20mA |
| 11 | Power supply | DC +15V/24V,flow meter＜400mA,flow controller＜ |
| 600mA | ||

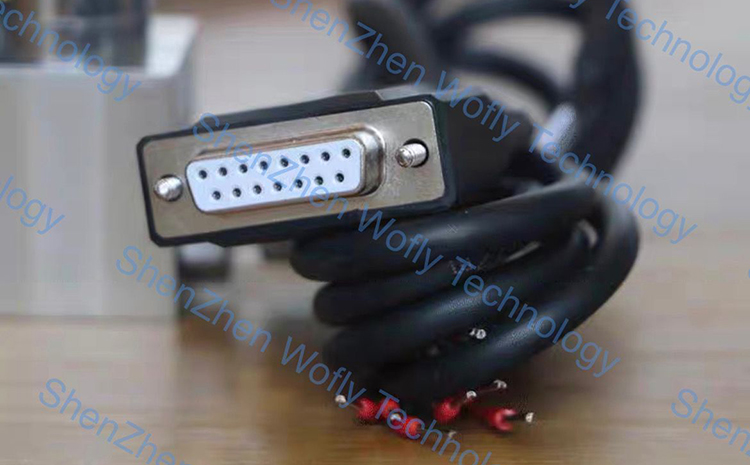

| 12 | Electrical connection | DB15 |
| 13 | Leakage rate | 1×10-8SCCSHe |
| 14 | Material of base | 316L Stainless steel |
| 15 | Seal material | FKM,nitrile butadiene rubber,chloroprene rubber |
| 16 | Glad hand | Φ3,Φ6,Φ10,1/8〞,1/4〞, 3/8〞 |
SHENZHEN WOFLY TECHNOLOGY CO Ltd is one of the pioneer suppliers for gas pressure regulators, gas full/semi-automatic switching devices, Flow meter, valve instruments, pipe fittings and other products. Founded in the year 2001 with passion and committed to fulfilling customer’s demands with excellent products and service
WOFLY has been a leader in the industry due to the design and manufacture of high-performance “Dual ferrule compression heat transfer tube accessories” UHP(Ultra High Purity Application Parts and Valves” designed with its own technology since 2019 150Workers, 5000 m2 workshop, ISO, CE, RoHS, EN certificated, one hour reach ShenZhen port, this is how we keep superior quality and competitive cooperation for global valued customers
We work closely with our customers to provide not only high-quality products but also technical product knowledge in order to meet the demanding application requirements
Wofly

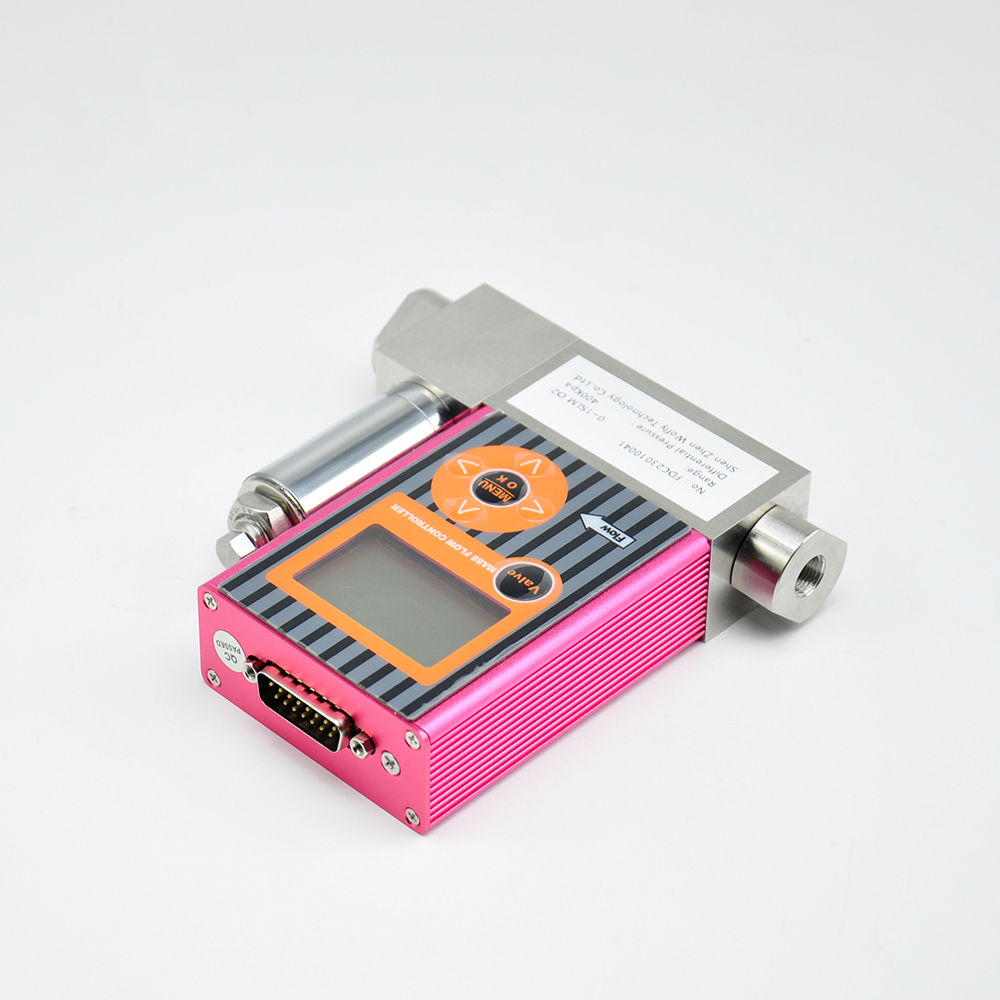

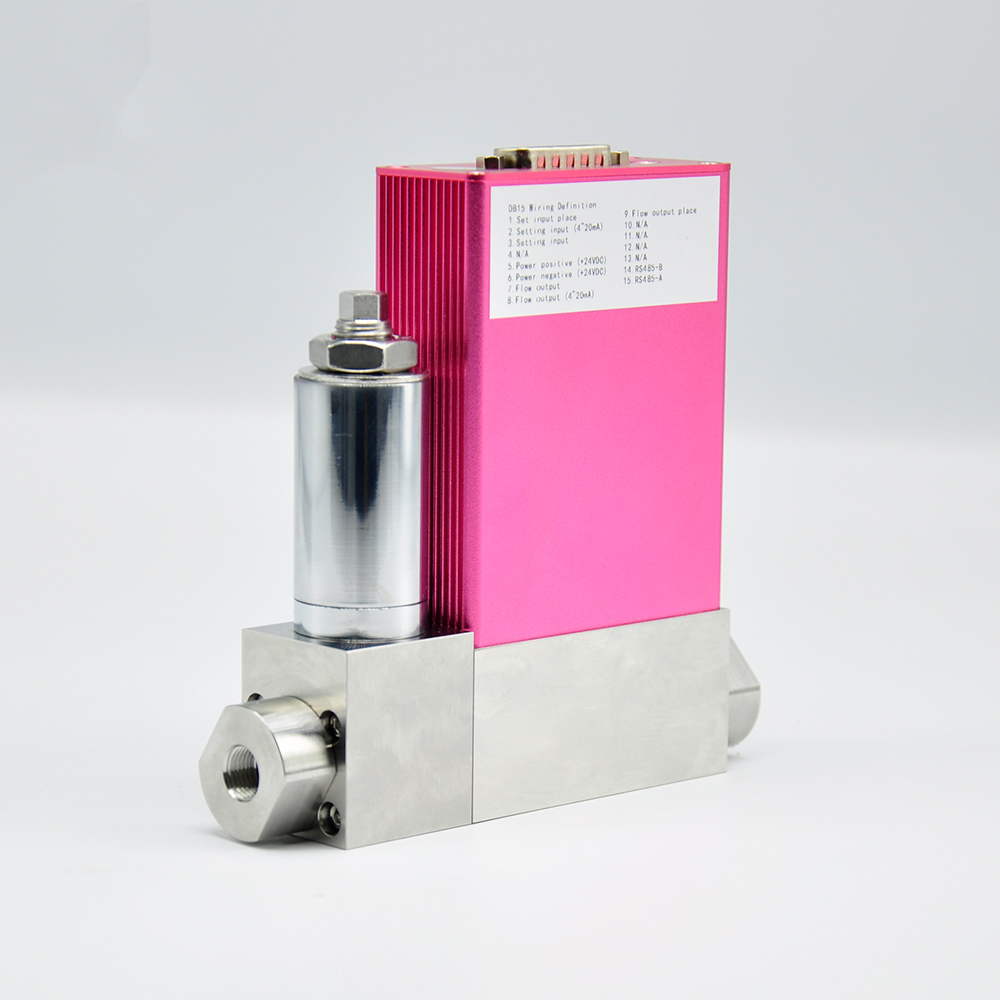

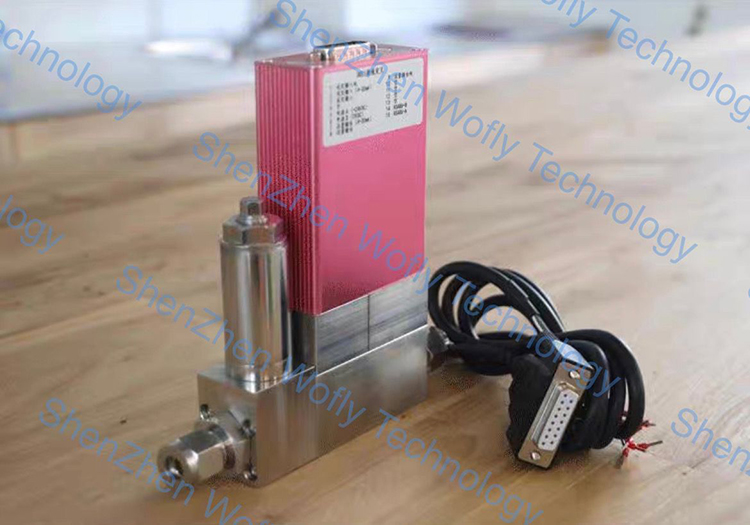

The Wofly Mass Flow Controller 0-500sccm Flow Range Digital display digital flow meter is a must have for any laboratory or industrial application that requires precise and accurate gas flow control. Designed to provide reliable performance with a flow range of 0-500sccm and a digital display
A versatile and easy-to-use device that comes with a digital flow meter that can measure the flow rate in real time. It ensures timely and precise control of the flow rate of the gas. Wofly equipped with a high-performance proportional valve that is responsible for ensuring accuracy in flow control. The proportional valve works by opening and closing according to the set flow rate. This feature ensures consistency in the output and avoids any fluctuations hence providing a stable and reliable performance
Comes with a digital display that shows the current flow rate totalized flow and setpoint. It allows users to easily monitor the flow rate and ensures appropriate gas usage. This device also allows users to set the required flow rate and lock it in place for precise control over the gas flow
Accurate. The device has an accuracy of +/- 1% of the full scale which is highly recommended for most industrial applications. It also operates at a maximum pressure of 100 psi and a temperature range of 10-60°C which makes it suitable for a wide range of applications. The device is also compatible with a wide range of gases including helium argon nitrogen carbon dioxide and many more
Easy installation and use. It comes with a compact design that makes it easy to mount in tight spaces. The device has a user-friendly interface that allows for easy configuration and monitoring of the flow rate. It is also designed to be extremely durable ensuring that it can withstand harsh environments and last for a long time
Get yours today and experience top-notch gas flow control
