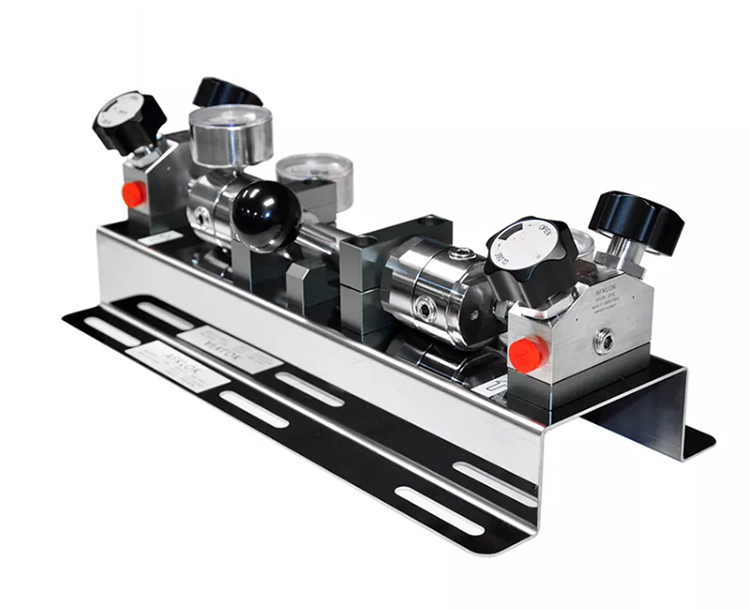

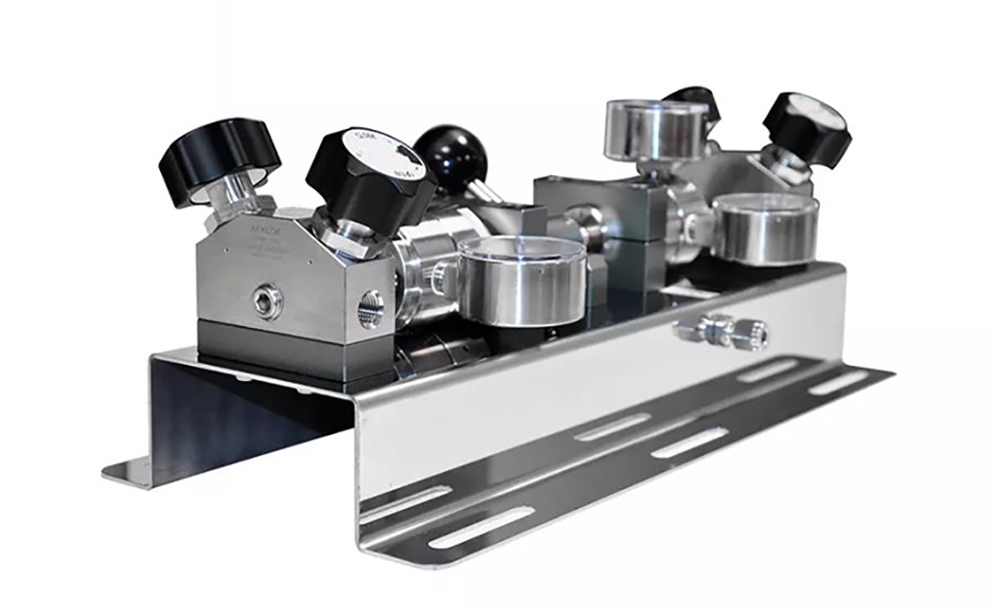

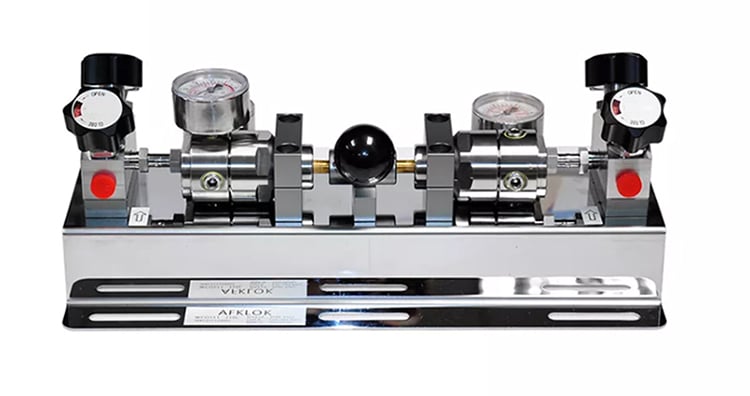

WL300 Series Semi-automatic Changeover Device
It is suitable for high pressure gas cylinders and pressure relief gas supply on both sides, through the automatic changeover to realize continuous gas supply, with the function of purging.
The maximum input pressure of 20.7 Mpa (3000 psi), corrosion, clean workshop assembly test, suitable for laboratory, high purity gas such as gas analysis.
SPECIFICATION
Max. Inlet Pressure: 3000, 2200 psi
Max. Outlet Pressure: 25, 50, 100, 150, 250 psi
Working Temperature: -40°C ~ 74°C (-40°F ~ 165°F)

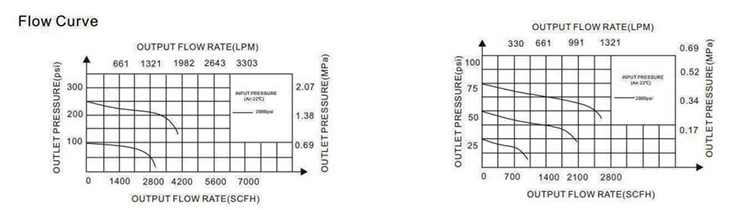

Flow Rate: see flow Curve Chart
Pressure Regulator Leakage Rate: 2 x 10-8 atm. cc/sec He
Cv: 0.14
DESIGN FEATURES
Pressure regulator for special gas
Equipped relief pressure valve
Pressure regulator and pipe through the
pressure test and leakage test
2"stainless steel pressure gauge, reading clearly
The knob of diaphragm valves with on/off logo
| No. | Parts | Materiails |
| 1 | Body | stainless steel |
| 2 | Seat | PU, PTFE, PC, PCTFE |
| 3 | Inlet Connection | 1/4"tube fittings, 1/4"FSR, 1/2"FSR |
| 4 | Output Connection | 1/4"tube fittings, 1/4"FSR |
| 5 | Body of Diapfgram | stainless steel |
1. Ensure continuous supply of gas, save gas exchange time, keep the enterprise production continuity and improve the output
2. With purging function to ensure high purity of gas
3. Automatic switching, easy to operate, no need for manual monitoring

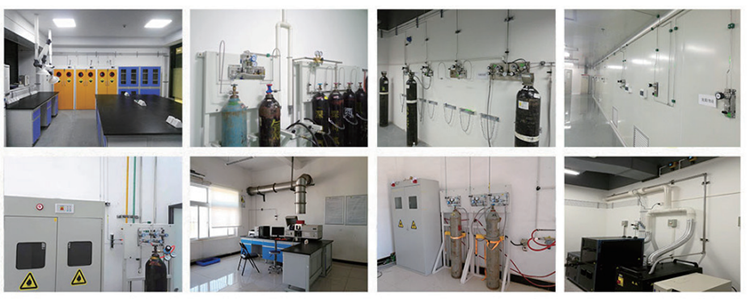

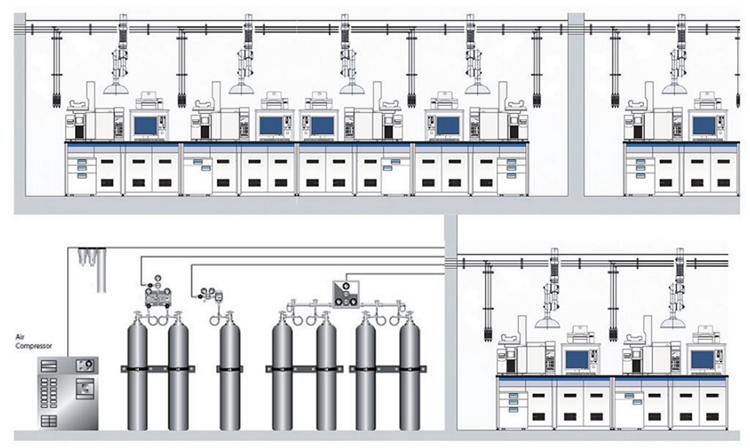

We provides a full range of laboratory gas pipeline gas supply systems to meet the gas requirements and safety of different experiments. The gas supply equipment adopts convergent discharge, carries out double bottles with manual and semi-automatic automatic switching function, with low pressure alarm device, real-time monitoring of gas pressure, concentration detection alarm and exhaust air to ensure the normal gas demand of customers and the safety of life and property.
Shenzhen Wolfly Technology Co., Ltd. is specialized in manufacture ring gas pressure regulator, pipe fittings, full/semi-automatic switching devices, pipe fittings, valve instruments etc. We also supply customizing and designing service for all stainless-steel products.
We are in this field for 12 years. Own R&D Department and Design Team. Covering an area of 2500 Square Meters. 150Works, of whom 20Technicians. With our strict quality control procedure and excellent customer service. We have own High praise from our clients who came from Europe, America, Asia, South America etc. In order to shorten the delivery time, we set up a warehouse to stock most of hot selling items.
The aim of our company is quality and prestige first. We sincerely welcome the co-partner form a board.
AFKLOK
The Special Gas Regulator is the perfect solution for laboratory gas supply needs. With its high-quality construction and reliable performance, it ensures safe and efficient delivery of gas to various equipment and instruments in labs.
Crafted making use of premium-grade materials this regulator offers superior durability and durability making it appropriate both short and use is long-term. Its robust design guarantees that the regulator can withstand laboratory is harsh including extreme temperatures vibrations and pressure fluctuations.
Features a precise and stress control procedure is customizable. The AFKLOK regulator automatically adjusts the gas pressure in line with the desired range supplying a consistent availability of fuel to the equipment is connected. It incorporates a screen is user-friendly enables simple setting and monitoring of the gasoline stress.
Equipped with a gasoline is unique manifold system that ensures an uninterrupted supply of gasoline to multiple instruments simultaneously. The manifold system enables the connection all the way to ten different gas lines making it ideal for labs with numerous gears is gas-dependent.
Straightforward to install and operate many thanks to its plug-and-play design. Its ergonomic panel system is made with safety and convenience in mind providing access is straightforward all controls and features. It is available in a compact size which makes it easy to maneuver around and mount in tight laboratory spaces.
Afflicted by rigorous quality and safety testing to make maximum safety and dependability. It is supported by a manufacturer's guarantee users giving of brain in case of any defects or faults.
The AFKLOK Special Gas Regulator is a high-quality gas regulator ideal system for laboratory gas supply needs. Combining superior durability precision and versatility this regulator guarantees safe and reliable gas supply to laboratory equipment and instruments. Its unique gas supply manifold system easy-to-use interface and plug-and-play design make it an efficient and convenient solution for any laboratory setting.
