Pressure Gauge

AFKLOK

The Stainless-steel Flange Diaphragm with Gauge manometer 0 - 200 PSI is merely a dependable and force durable designed for a quantity of commercial and commercial applications. This technique is made out of top-quality metal stainless, which makes it resistant to corrosion plus in a situation to withstand harsh conditions ecological making it is going to offer accurate readings for a long time as time goes by.

Among the many unique top features of this stress measure is its flange diaphragm design. This AFKLOK design enables more stress accurate when compared with gauges conventional given that it minimizes the total amount of distortion that could take place because of alterations in force. The flange diaphragm normally stronger and dependable than conventional gauges, which makes it suitable for use within demanding surroundings.

This stress gauge includes a gauge manometer makes it possible for effortless and accurate readings with this force into the system besides the flange diaphragm. The measure is easy to learn and has now a selection of 0-200 PSI, rendering it suited to a number wide of. The measure could be an easy task to install, having a mounting straightforward that will require just basic tools.

The AFKLOK Stainless-steel Flange Diaphragm with Gauge manometer 0 - 200 PSI is merely an item versatile may be used in many different companies, including production, automotive, aerospace, and much more. It truly is appropriate usage by having an array of liquids, including atmosphere, water, and oil, rendering it adaptable to numerous applications.

Product Description

YTP series diaphragm pressure gauge is composed of a general pressure gauge of different types and an isolator composed of connectors with specific requirements. Through this connection, the general Bourdon tube pressure gauge increases the performance of measuring the pressure of medium with strong corrosion, high temperature, high viscosity or containing solid plankton and easy to solidify. The gate stone pressure gauge is widely used to measure the pressure of fluid medium in the production process of petrochemical, alkali making, chemical fiber, dyeing, chemical, pharmaceutical, steel, food and other industries.

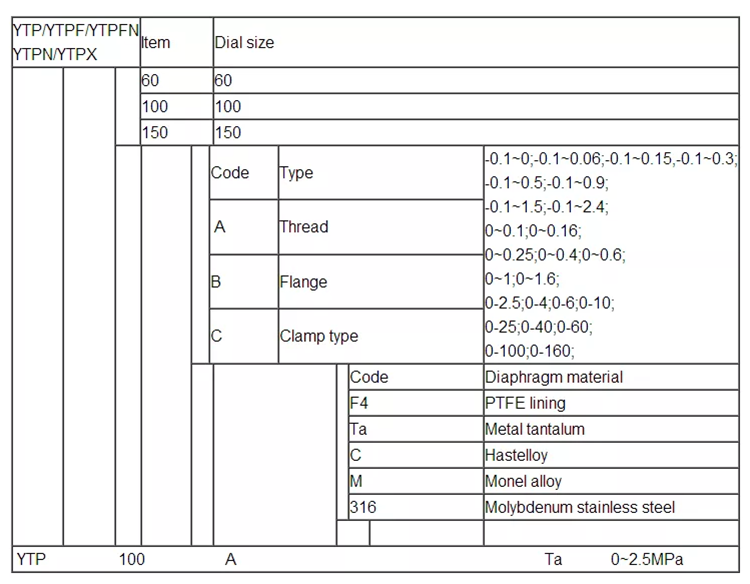

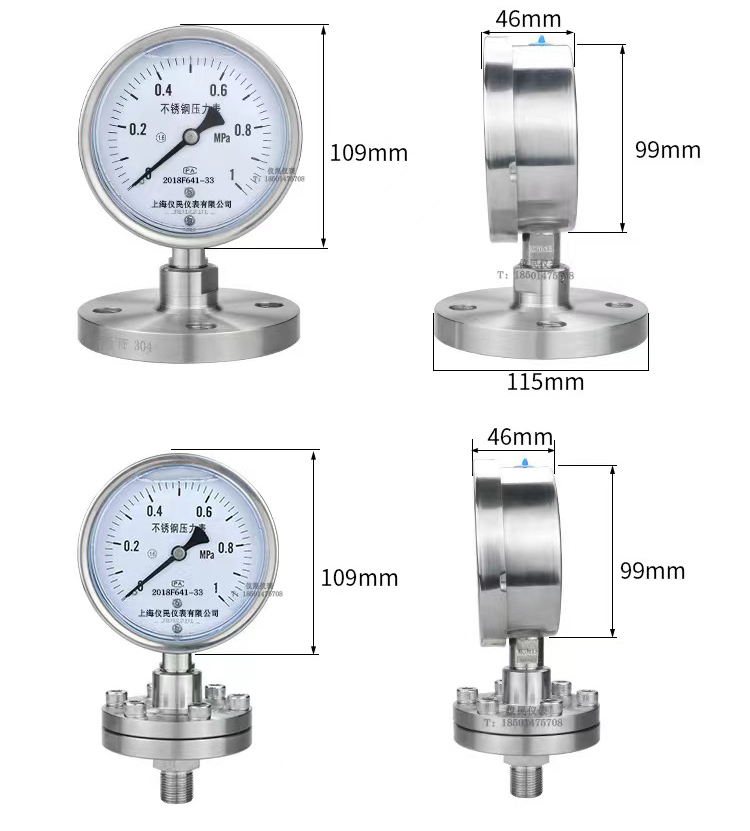

Specification

Case size	100mm,150mm
accuracy	±1.5%
Case Material	Stainless steel
Range	pressure 0~0.1Mpa-60Mpavacuum-0.1~0Mpa
Spring tube material	SS316
Movement material	Stainless steel
Diaphragm material	316SS, HC, Ta, Monel PTFE Coating
Threaded connection size	M20*1.5 or 1/2NPT(other on request)
Flange connection size	ANSI, JIS, DIN, HG20592-97
Ambient temperature	-40~+70℃
Degree of protection	IP55, IP65
Filling working fluid	Silicone oil (optional glycerin or fluorine oil)

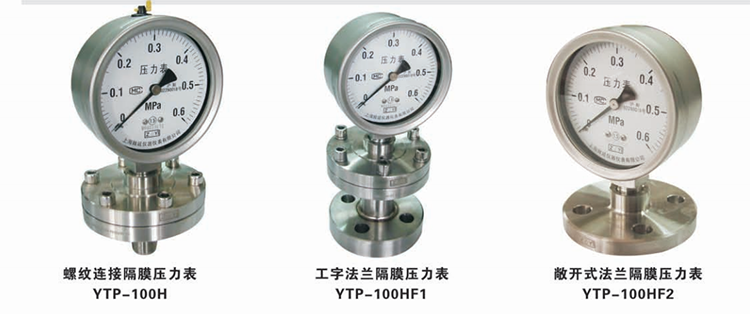

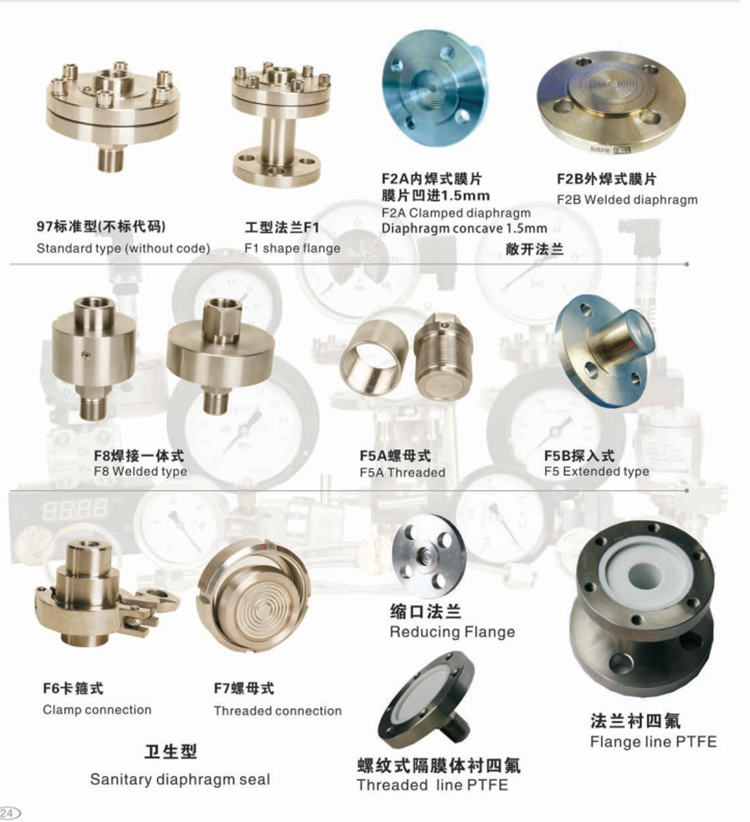

Products Show

The diaphragm pressure gauge structure principle

When the pressure of the measurement mediumP role hand diaphragm, the diaphragm deformation, compression pressure instrument measuring system seal liquid, so that the formation of P an AP pressure. When the rigidity of the diaphragm is small enough, then into the P ground root is small, the pressure gauge measuring system to form the pressure is close to the pressure of the measurement medium.

Technic

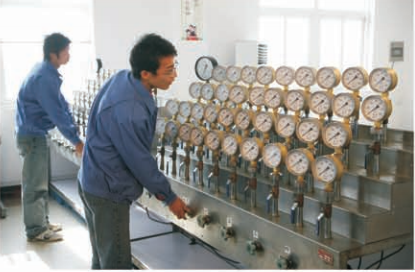

Strict inspection

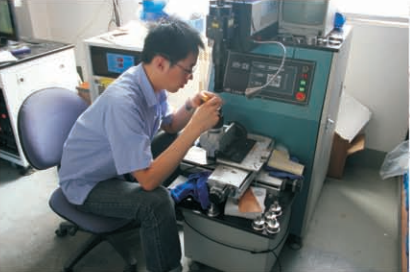

Laster welding and later marker

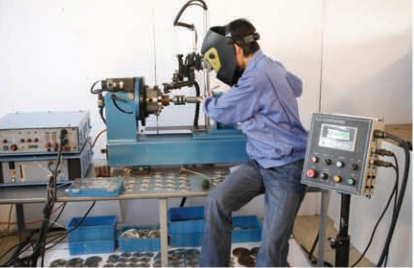

Plasma welding

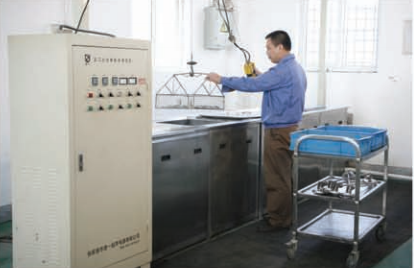

Ultrasonic Cleaner

More mutual benefit on big order size

Company Profile

Shenzhen Wolfly Technology Co., Ltd. is specialized in manufacture ring gas pressure regulator, pipe fittings, full/semi-automatic switching devices, pipe fittings, valve instruments etc. We also supply customizing and designing service for all stainless-steel products We are in this field for 12 years. Own R&D Department and Design Team. Covering an area of 2500 Square Meters. 150Works, of whom 20Technicians. With our strict quality control procedure and excellent customer service. We have own High praise from our clients who came from Europe, America, Asia, South America etc. In order to shorten the delivery time, we set up a warehouse to stock most of hot selling items The aim of our company is quality and prestige first. We sincerely welcome the co-partner form a board

FAQ

1. What’s the MOQ?: All products are in stock, MOQ is 1 pcs, Generally according to the requirements of customers, no matter how many we can accept.

2. Do you test all goods before delivery?: We have the strict QC process and offer you the videos of all step.

3. If any question when I got the product, how to solve it?: The product have warranty and we will offer you the online or video technical support.

4. Do you accept OEM order? Can I make in my brand or any sticker?: Yes, MOQ is 100 piece.

5. How long will the shipment take?: If it by sea, it will take about 20~30days. If it's express, it will take 3~7days.

6. What kinds of payment do you accept?: T/T, Western Union, Paypal, credit card and trade assurance on Alibaba.
