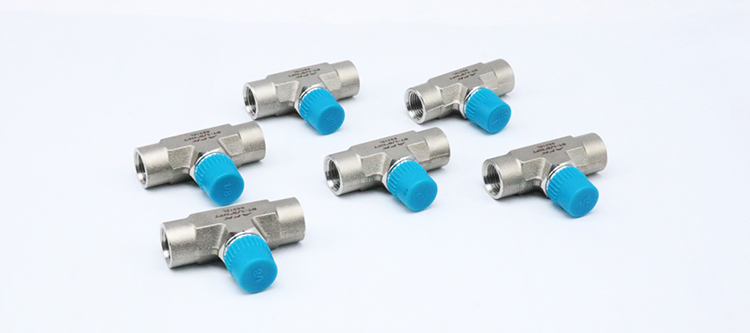

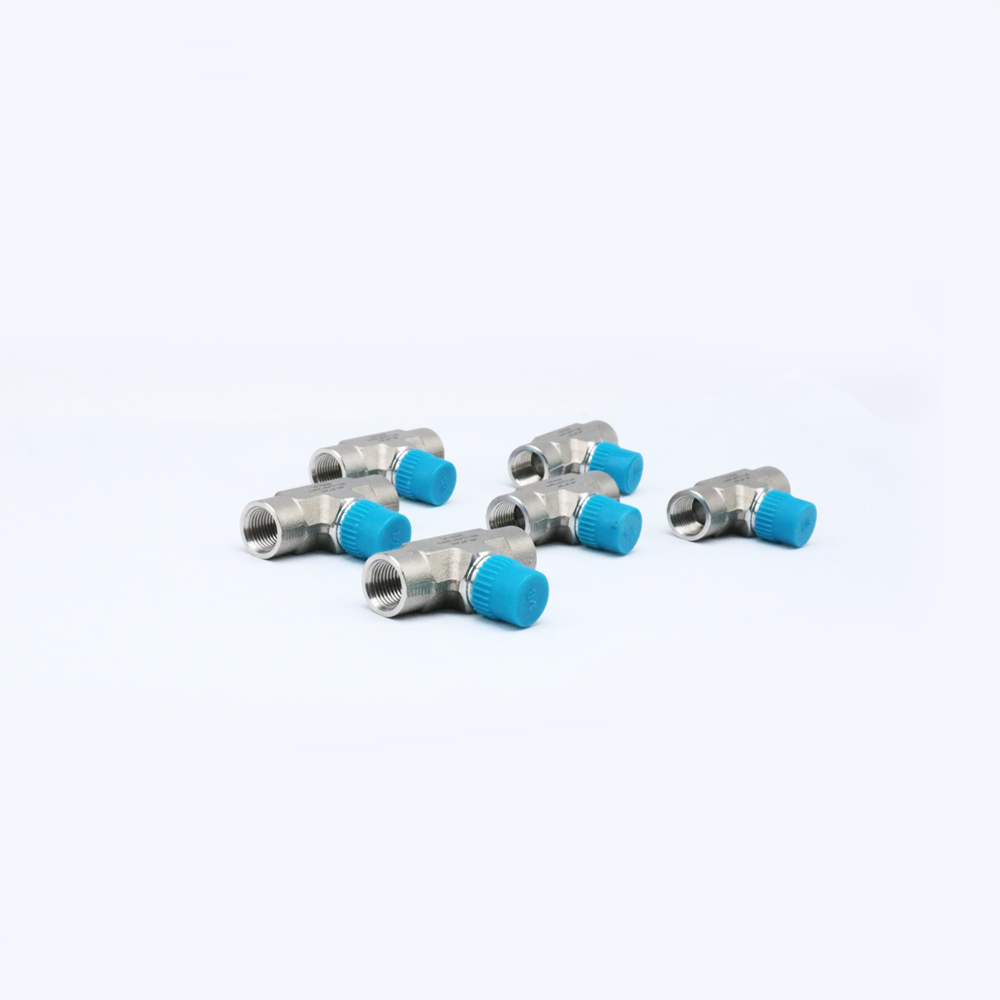

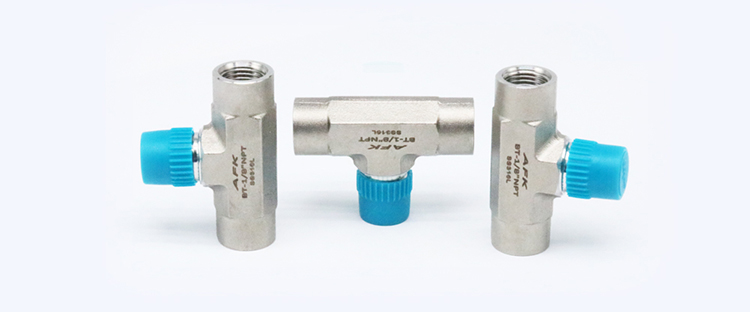

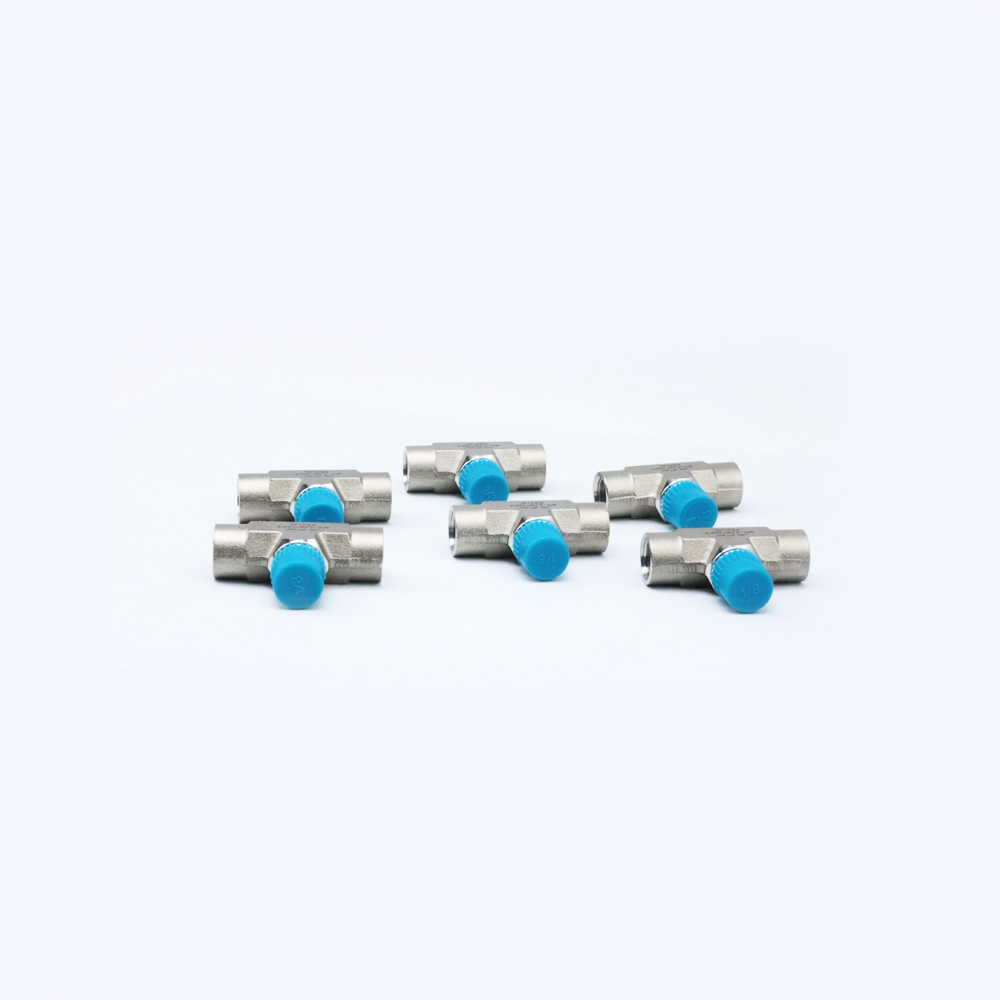

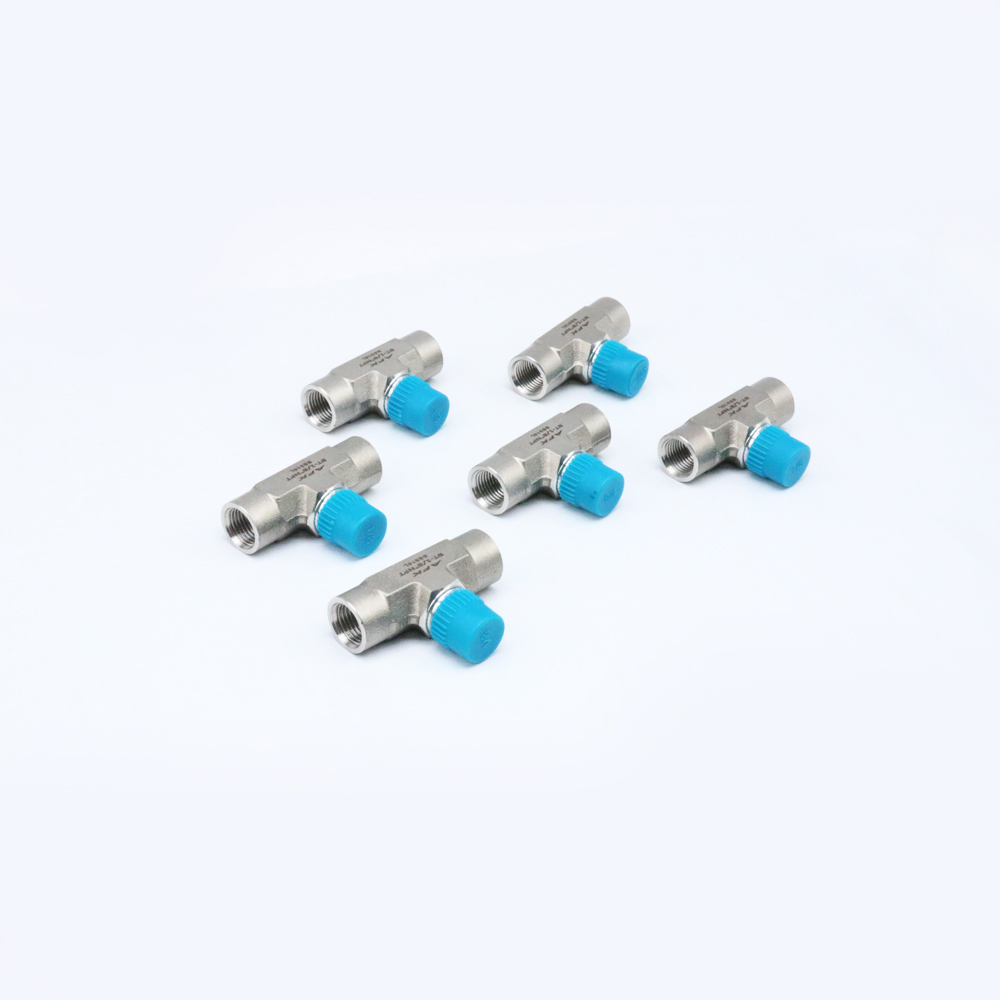

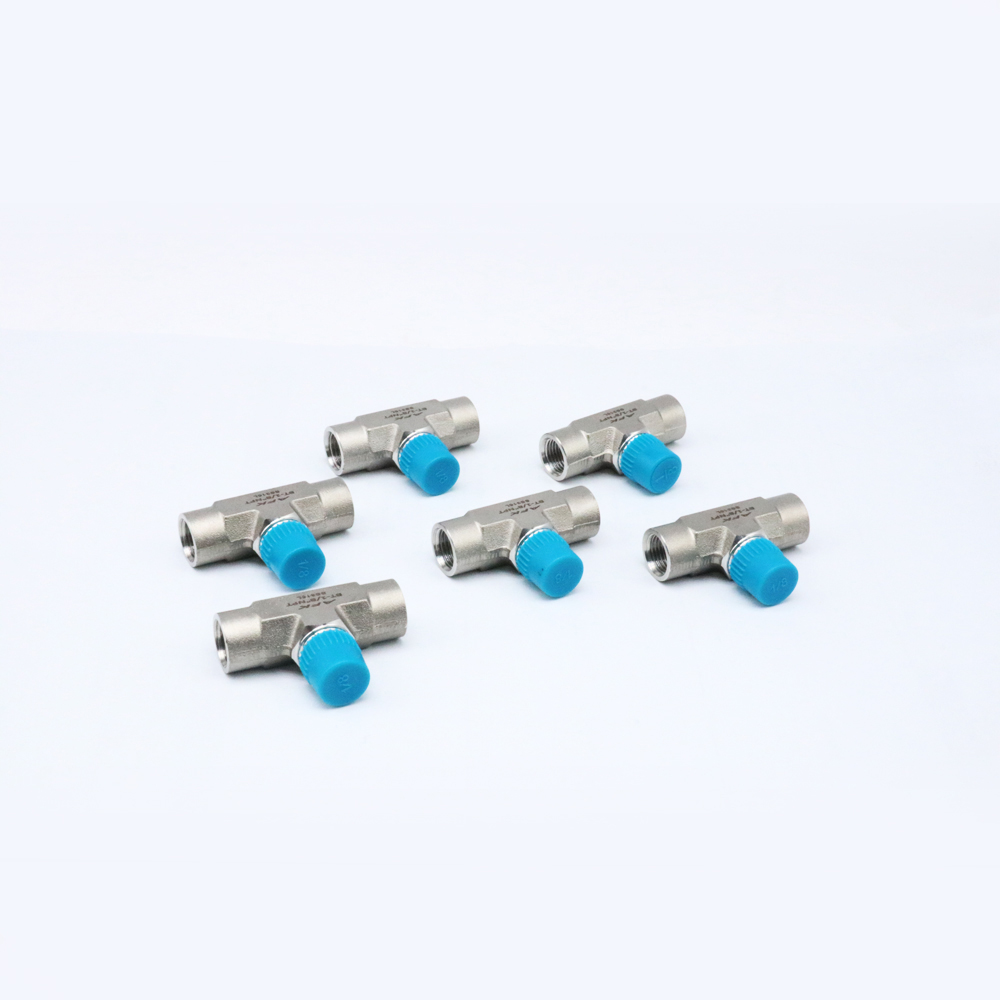

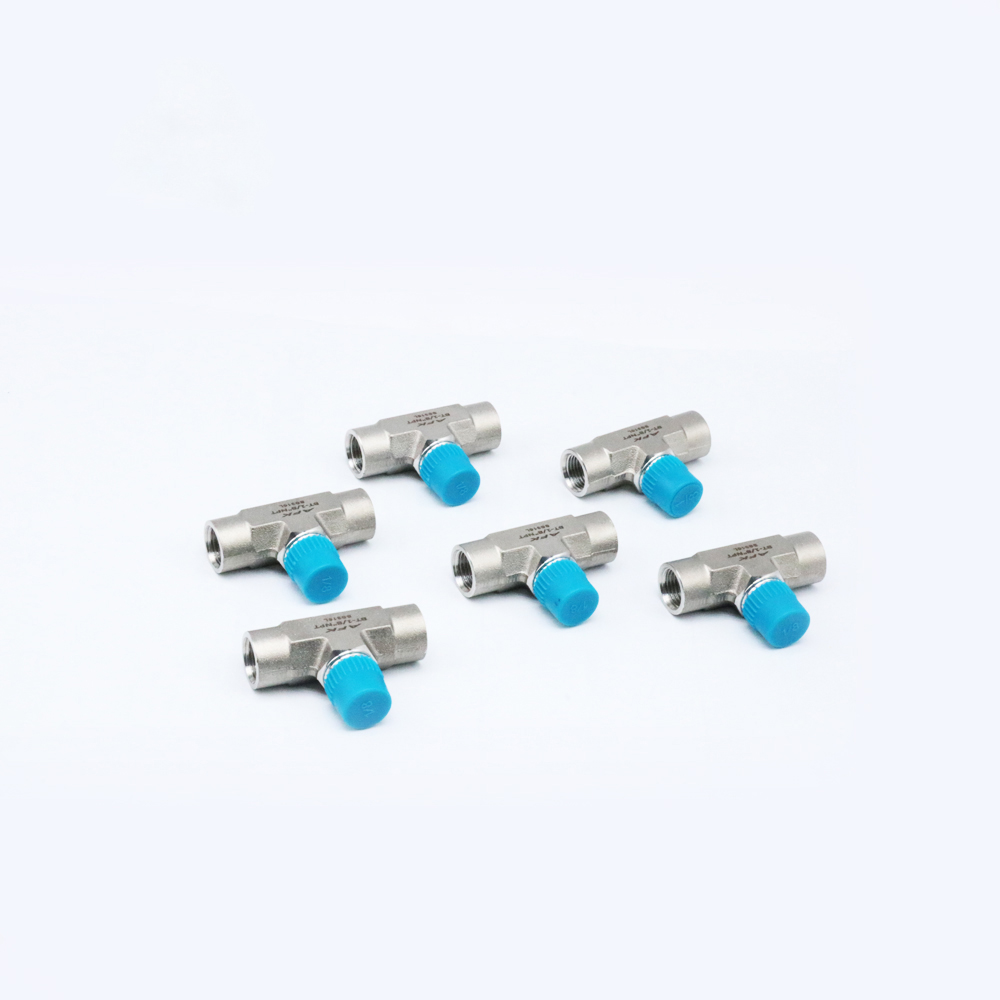

Launching the Tee Fitting Male Branch Tee Stainless-steel 316 forged Tee Pipe Fittings 1/8" Female x 1/8" Male x 1/8" Female Brand, a perfect solution for anyone buying dependable and tee fitting durable.

Produced from top-notch metal stainless, this fitting is built final and withstand harsh conditions.

Beautifully made with a branch male, this Tee AFKLOK Fitting supplies a connection protected three pipelines.

The 1/8" female x 1/8" male x 1/8" female proportions fully grasp this fitting well suited for a number of commercial applications.

This Tee Fitting will suit your purposes whether you are in the chemical, pharmaceutical, or food processing industry.

The AFKLOK Brand Tee Fitting utilizes forged technology make power optimal accuracy.

The process forging supplies a smooth and finish clean maintaining your pipelines neat and free from leakages.

The Tee Fitting's sturdy construction additionally resists corrosion and oxidation, making this a solution affordable can withstand many years of usage.

As a result of its compact design and simplicity of installation, this Tee Fitting will save you time valuable work.

The Tee Fitting Male Branch Tee Stainless-steel 316 forged Tee Pipe Fittings 1/8" Female x 1/8" Male x 1/8" Female AFKLOK Brand is great for piping systems that want superior and durability.

The Tee Fitting Male Branch Tee Stainless-steel 316 forged Tee Pipe Fittings 1/8" Female x 1/8" Male x 1/8" Female AFKLOK Brand is fashioned with security in your mind its durability and strength.

The fitting's connection points are curved, reducing the risk of any accidents due razor-sharp contained sides in services are often inferior products.

Company Profile

WOFLY is a leading Manufacturer, Supplier and Exporter of a wide range of gas Equipement, available under the brand name AFK. Wofly's success yields from high-quality, innovative products, exceptional customer service, and unequaled technical expertise in the gas& oil industry. WOFLY offers an extensive line of components including tube fittings, control valves, shut-off and solenoid valves, pressure relief and regulators. Through the years we have learned how to properly match the gas regulation equipment with the application. Using the proper equipment for the job eliminates problems such as contamination, pressure variances, safety issues, and equipment mismatch.

Product Description

Features OF Male Branch Tee

High smoothness ensures smooth circulation. Each elbow has aradius junction in order to remove the entrapment area and achieve smooth flow in all elbows including fluid pipe fittings. Thefine thread meets the ASME/ANSI B1.20. 1 standard require-ments to ensure maximum thread engagement. The working pressure is higher than the traditional pipeline grade, 3000 fluid pipe fittings meet ASME B16.11 standard.

Materia of Male Branch Tee

AFK fluid pipe fittings are available in the following materialsStraight accessories use bar stock Manufacture, special-shapedparts are manufactured for forging. For more details or Special applications, Please contact your local dealer.

Materials	Bar Stock	Forgings
316 SS or 316L SS	ASTM A479ASME SA479	ASTM A182ASME SA182
Brass	ASTM B16ASTM B453	ASTM B283

Specification

Brand Name	AFKLOK
Model Number	BT-01
Technics	Forged
Connection	Female/male
Shape	Equal
Head Code	Square
Product name	Male Branch Tee
Material	SS316L
Application	Industry
Size	1/8
Certification	ISO9001 CE
Color	Silver
MOQ	1pcs
Working Pressure	3000psi

Female NPT to Male NPT
Part No.	P	Dimensions(mm)
	NPT	L	S	E	F
		L	S	E	inch	mm
BT-02N	1/8	26.4	22.1	4.8	1/2	12.7
BT-04N	1/4	29.7	29.7	7.1	11/16	17.46
BT-06N	3/8	36.1	32	9.6	13/16	20.63
BT-08N	1/2	39.6	39.6	11.9	1	25.4

Packing & Delivery

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

FAQ

1. Who are we?: We are based in Guangdong, China, start from 2011, sell to Domestic Market(50.00%), Southeast Asia(14.00%), North America(8.00%), Northern Europe(8.00%), Eastern Europe(5.00%), South Asia(2.00%), South America(2.00%), Western Europe(2.00%), Southern Europe(2.00%), Central America(2.00%), Mid East(2.00%), Eastern Asia(1.00%), Oceania(1.00%), Africa(1.00%). There are total about 51-100 people in our office.

2. How can we guarantee quality?: Always a pre-production sample before mass production;; Always final Inspection before shipment;

3. What can you buy from us?: Pressure Regulator, Instrumentation Valve, Gas Cabinet, Tube Fitting, Tubing.

4. Why should you buy from us not from other suppliers?: We have a couple of years with professional engineers and dedicated technicians. can provide security products for you.

5. What services can we provide?: Accepted Delivery Terms: FOB, CIF, EXW; Accepted Payment Currency: USD, CNY;; Accepted Payment Type: T/T, L/C, Western Union;; Language Spoken: English, Chinese
