Diaphragm Valve

AFKLOK

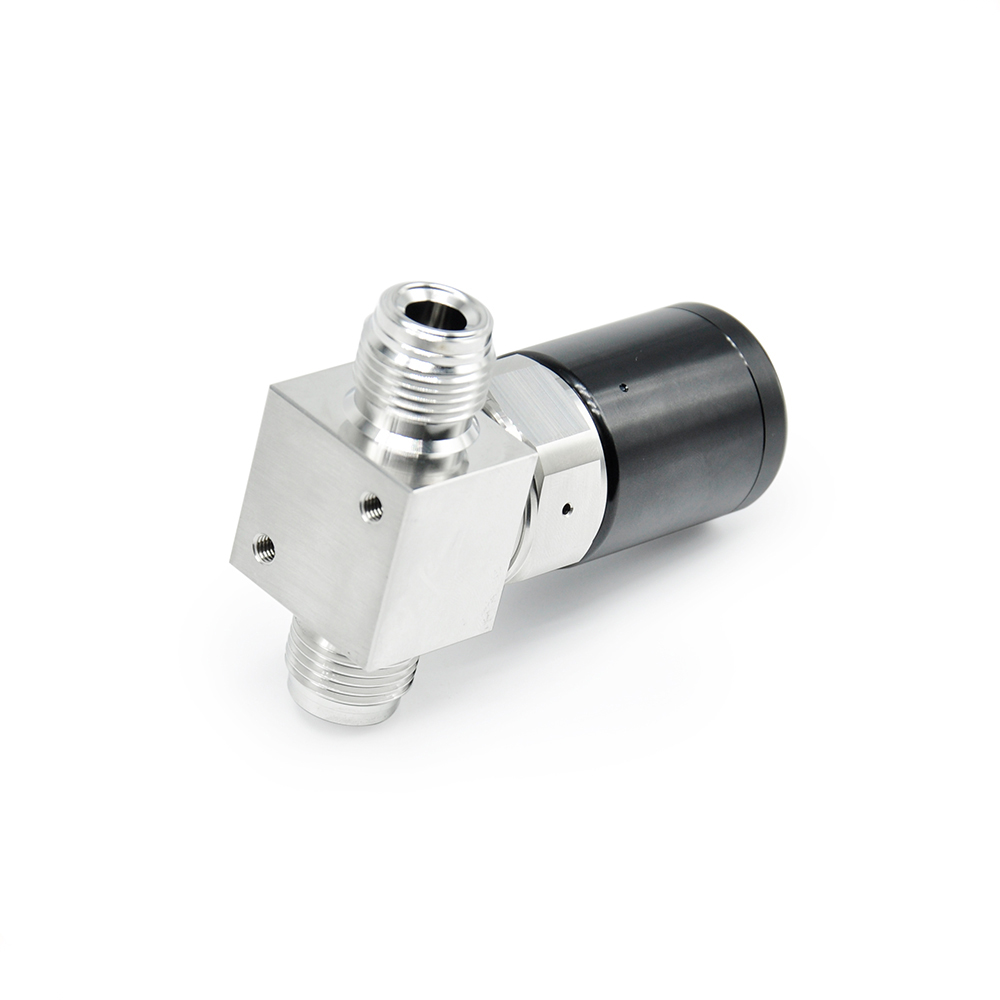

Launching the UHP Diaphragm Sealed Valve 1/4 In. Feminine VCR Fitting for semiconductor. You recognize how crucial it’s to obtain dependable and gear accurate the big event you make use of the semiconductor industry. Here is the valid reason we've developed a valve specifically made to meet in the needs of this industry.

Having an UHP Diaphragm Sealed Valve 1/4 In. Female VCR Fitting for semiconductor, this valve is ideal for connecting to your overall gear. The diaphragm seal means that there is no contamination connected with procedure fluids or gases. This could be important whenever using semiconductors delicate would like an environment clean.

The UHP Diaphragm Sealed Valve 1/4 In. Feminine VCR Fitting for semiconductor from AFKLOK is initiated with top-notch materials being developed to last. The anatomy valve made from 316L metal stainless understood for the corrosion opposition and durability. The diaphragm is made of PTFE, an item resistant to both high and conditions being reduced in addition to compound corrosive.

This valve ended up being made with precision at heart. The stem and diaphragm were engineered to make both control precise to cut back particle generation. The stem is manufactured out of high-strength steel, alongside diaphragm is done having an exceptional area finish that guarantees a smooth, clean procedure. Which means that your procedures are accurate and dependable, and you shall not require to be concerned about contamination.

The UHP Diaphragm Sealed Valve 1/4 In. Female VCR Fitting for semiconductor from AFKLOK can be simple to use alongside its precision and durability. The valve anatomy human created for effortless installation, the 1/4-inch feminine VCR fitting makes it simple in order to hook up to your current gear. The valve can be an easy task to keep, with effortless use of the stem and diaphragm.

Product Introduction

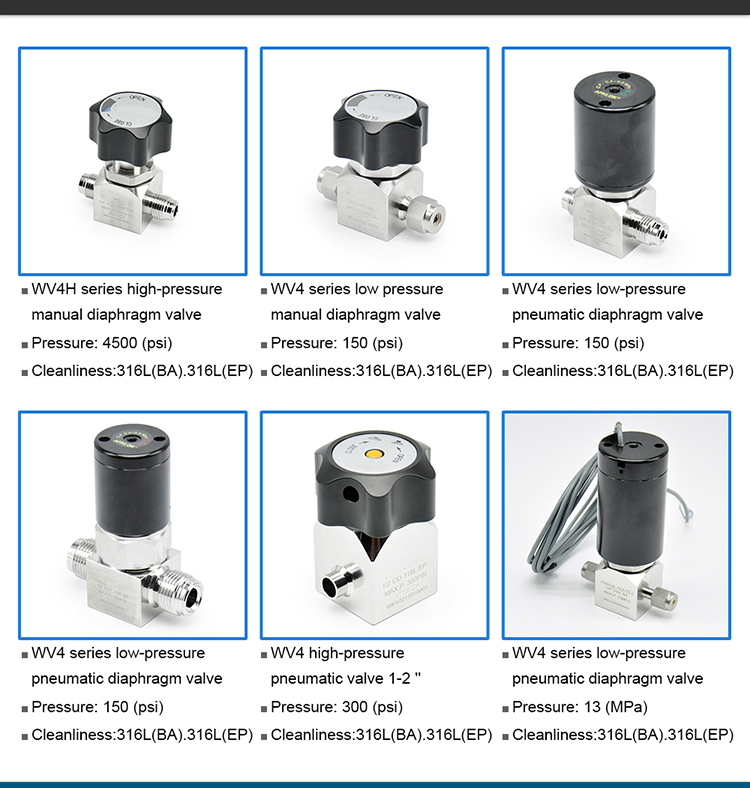

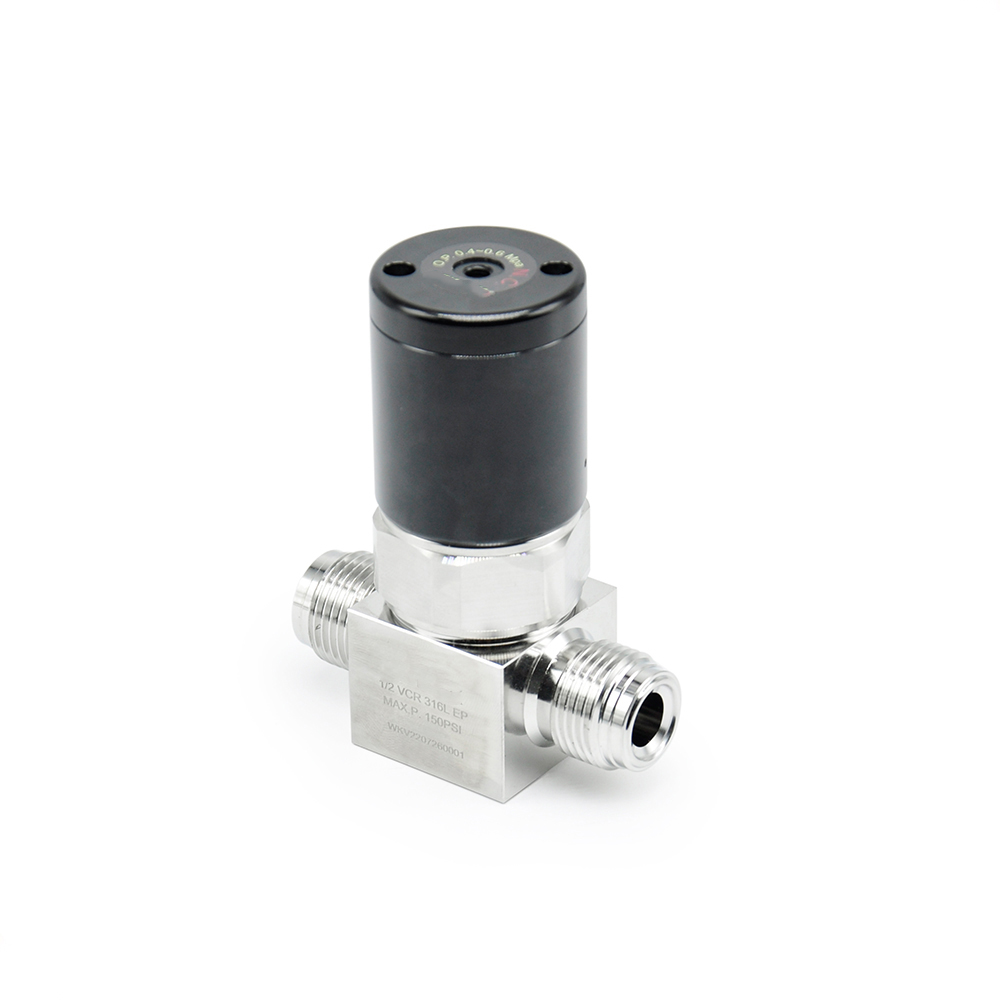

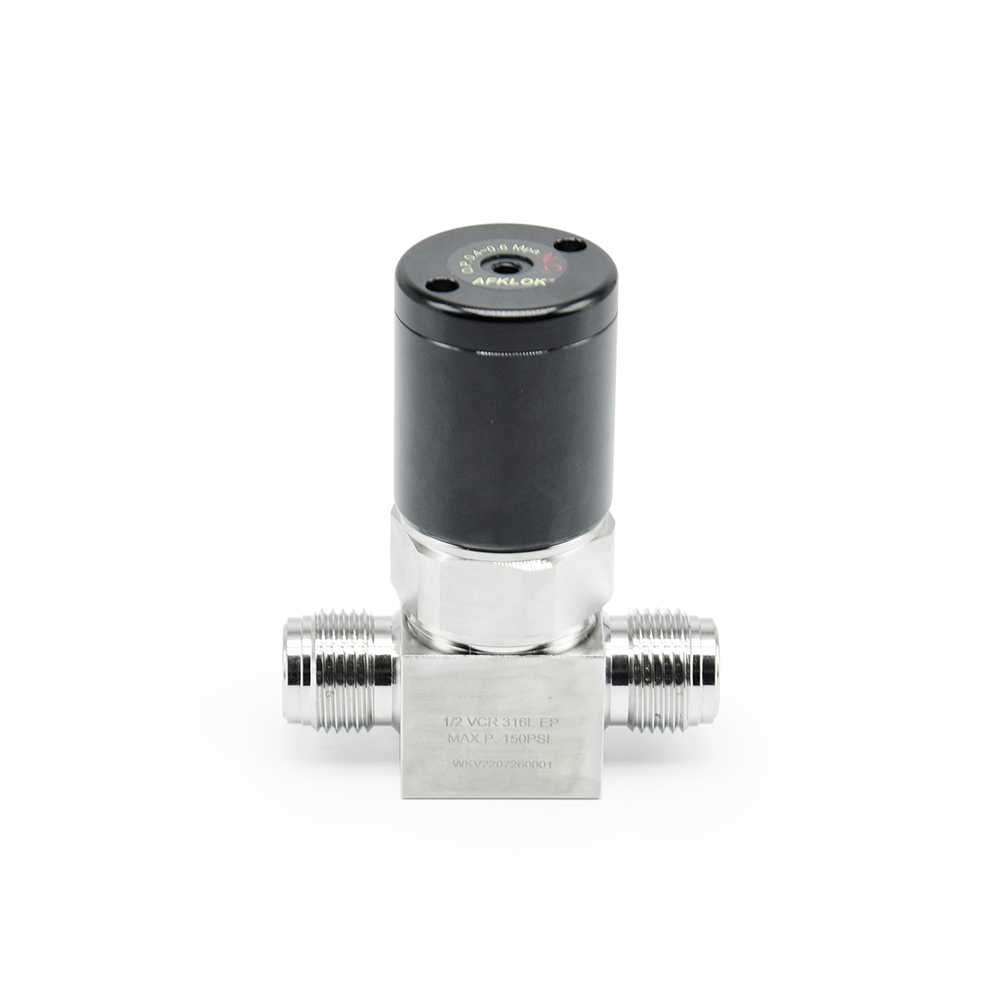

Diaphragm Valve with Male/Female VCR F

AFK-LOK has a diaphragm valve solution to meet the needs of any industry and application. Diaphragm valve are commonly utilized in a variety of applications and industries such as semiconductor, manufacturing, biotech & pharmaceutical.

Specification

SeatPCTFE9

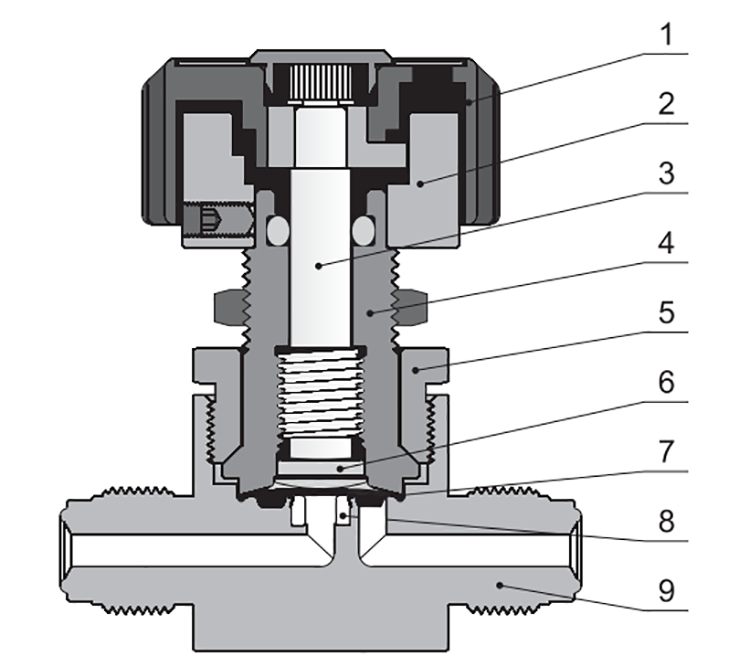

NO	Part Description	Material
1.	handle	Aluminium
2.	Actuator	Aluminium
3.	Valve Stem	304 SS
4.	Bonnet	S17400
5.	Bonnet Nut	316 SS
6.	Button	Brass
7.	Diaphragm	Nickel cobalt alloy
8.	Valve
	Valve Body	316L SS

Application:

▪ Semiconductor

▪ Biotech

▪ Pharmacetical

Features:

▪ The maximum working pressure can reach 31mpa▪ Fully wrapped valve seat design, with superior anti expansion and pollution ability

▪ Nickel cobalt alloy diaphragm has higher durability and corrosion resistance▪ The standard roughness is Ra0 twenty-five μ M (grade BA), or electropolishing Ra0 thirteen μ M (EP grade) optional▪ Helium test leakage rate < 1x10-9 STD cm3 / S▪ Pneumatic actuators are available▪ The service life of pneumatic valve can reach 100000 times

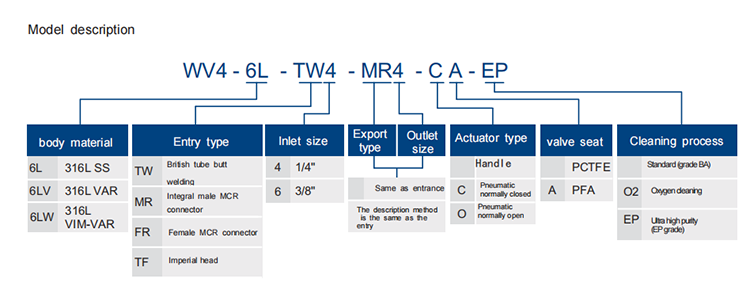

Ordering Information

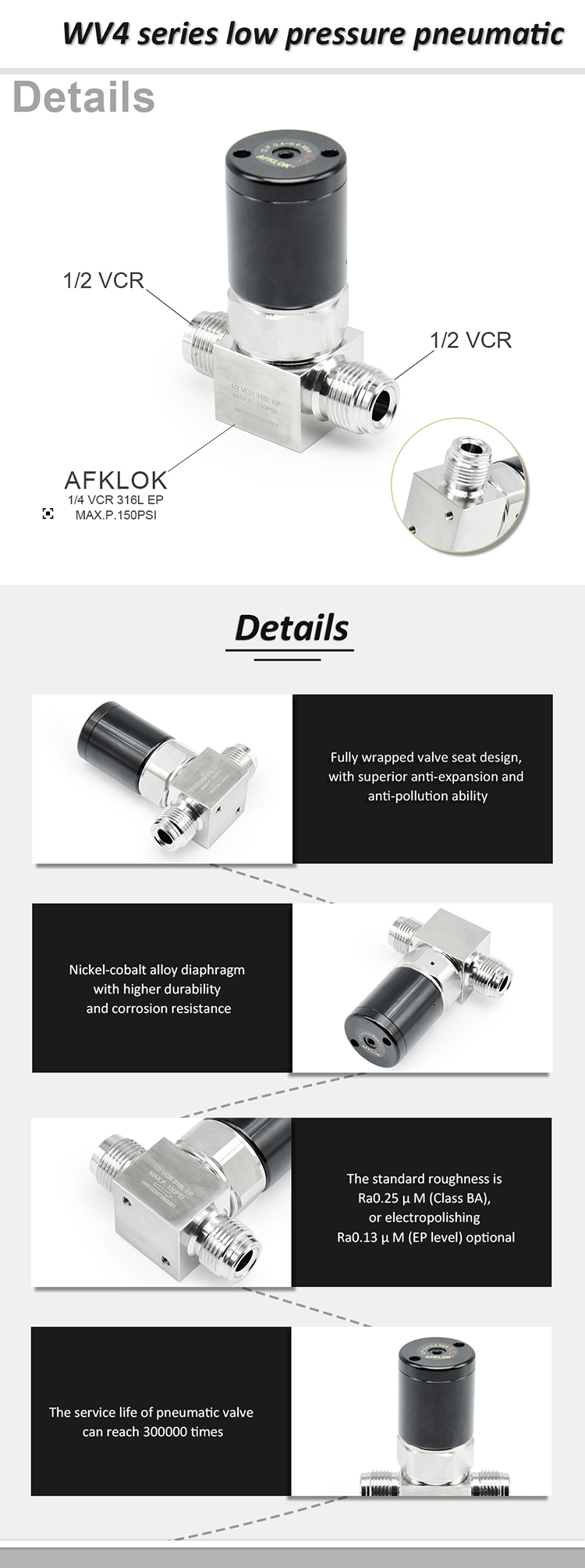

Product Description

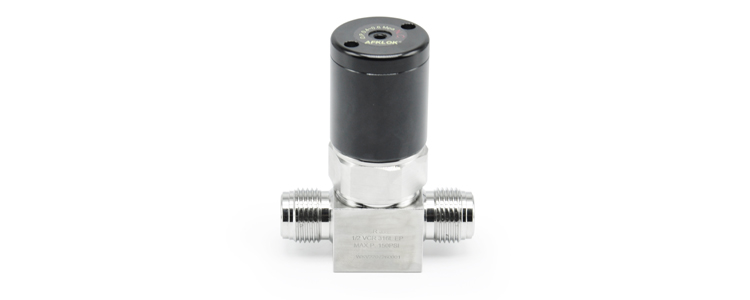

NO 1. Round non-slip handle, switch two-color display, blue represents off, red represents on, easy to control
NO 2. High -purity 316L stainless steel, domestic first-class forging process, smooth surface of the valve body without thorns
No 3. 10 micron metal filter protects seat from contamination

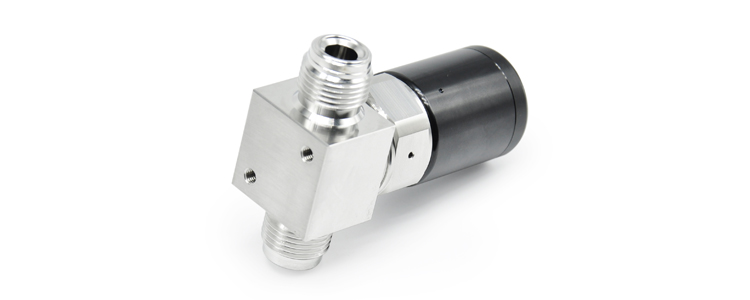

No 4. Fine machining, precise hole position

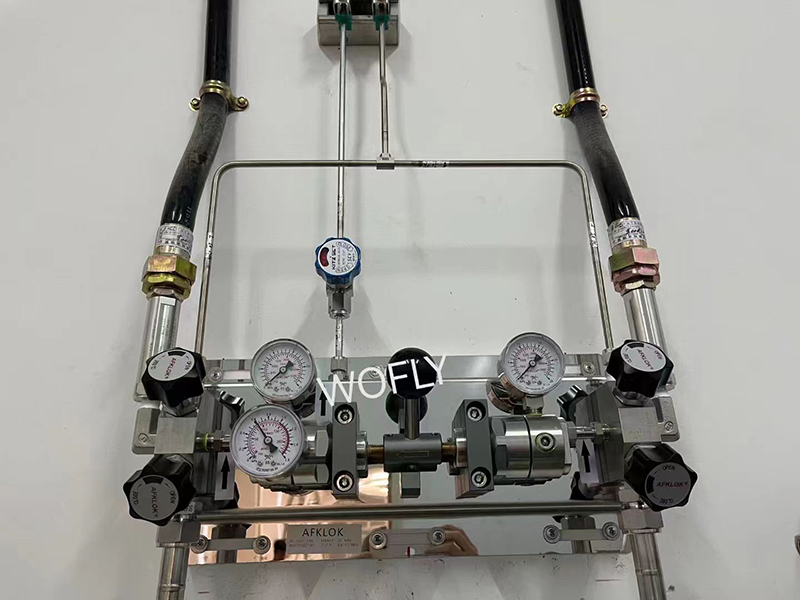

Application

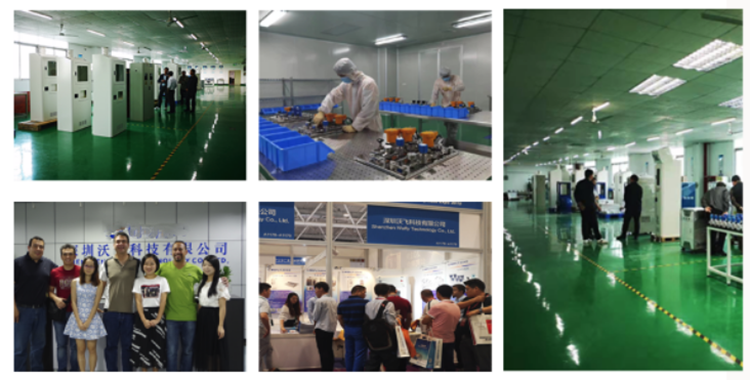

Company Profile

SHENZHEN WOFLY TECHNOLOGY CO,. Ltd. is one of the pioneer suppliers for gas pressure regulators, gas full/semi-automatic switching devices, valve instruments, pipe fittings and other products. Founded in the year 2001 with passion and committed to fulfilling customer’s demands with excellent products and service.

WOFLY has been a leader in the industry due to the design and manufacture of high-performance “Dual ferrule compression heat transfer tube accessories” UHP(Ultra High Purity Application Parts and Valves” designed with its own technology since 2019.150Workers, 5000 m2 workshop, ISO, CE, RoHS, EN certificated, one hour reach ShenZhen port, this is how we keep superior quality and competitive cooperation for global valued customers.

We work closely with our customers to provide not only high-quality products but also technical product knowledge in order to meet the demanding application requirements.

Certifications

FAQ

1. What’s the MOQ?: All products are in stock, MOQ is 1 pcs, Generally according to the requirements of customers, no matter how many we can accept.

2. Do you test all goods before delivery?: We have the strict QC process and offer you the videos of all step.

3. If any question when I got the product, how to solve it?: The product have warranty and we will offer you the online or video technical support.

4. Do you accept OEM order? Can I make in my brand or any sticker?: Yes, MOQ is 100 piece.

5. How long will the shipment take?: If it by sea, it will take about 20~30days. If it's express, it will take 3~7days.

6. What kinds of payment do you accept?: T/T, Western Union, Paypal, credit card and trade assurance on Alibaba.
