Diaphragm Valve

AFKLOK

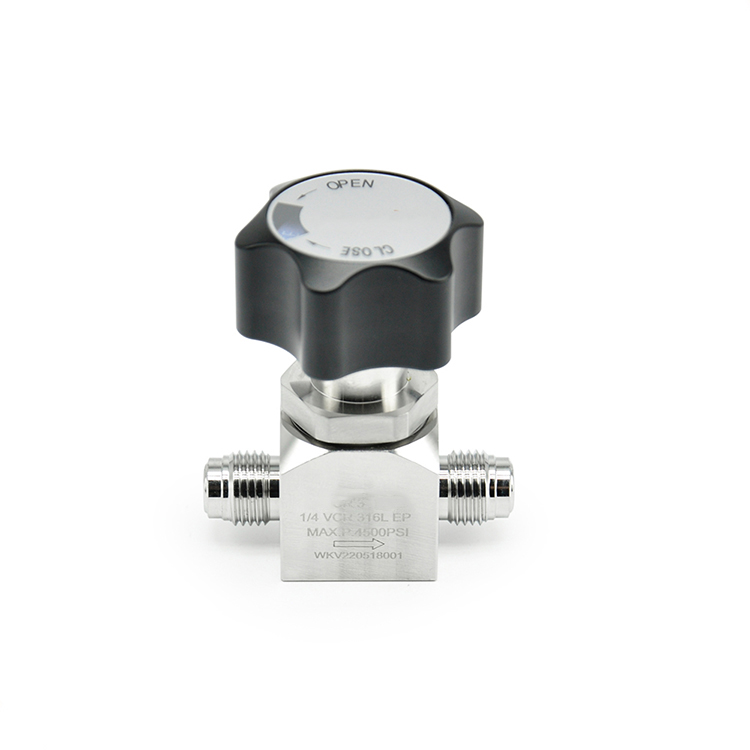

Presenting the Ultra High Purity Diaphragm valves VCR in single port M VCR 3000PSI, a product top-of-the-line that guarantees the merchandise quality greatest and reliability for the commercial requirements.

These valves are manufactured to provide a dependable and movement solution efficient companies looking for strict legislation of fluid news. The VCR program enables a leak-tight, repeatable connection high-purity removes contamination danger and provides a frequent movement towards the body. This valve is preferably suited to applications where low movement prices and tight shutoff are expected which consists of solitary slot M design.

Among the list of key highlights of these diaphragm valves could be the purity ultra-high construction. Created from top-notch AFKLOK materials like Stainless-steel and PTFE, these valves meet or surpass the industry's many purities strict. This can cause them to well suited for use within clean applications semiconductor production, biotech, and pharmaceuticals.

Another crucial function of this Ultra High Purity Diaphragm valves VCR in single port M VCR 3000PSI is the stress exemplary ability. These valves can manage as much as 3000PSI, making them worthy of high-pressure applications for instance chromatography superior is liquid HPLC) systems, gasoline distribution systems, other demanding industrial procedures.

These valves additionally boast a design exclusive combines excellent movement prices with minimal stress fall, leading to superior performance and effectiveness. The diaphragm design guarantees a seal tight preventing leakages and contamination whilst supplying smooth and control exact of fluid news.

Furthermore, the Ultra High Purity Diaphragm valves VCR in single port M VCR 3000PSI are easy to install, run, and keep maintaining. Their lightweight size and design straightforward them suitable for a number of applications, as the top-quality materials ensure lasting use and reliability.

Ultra High Purity Diaphragm valves VCR in single port M VCR 3000PSI details

suitable for a number of applications, as the top-quality materials ensure lasting use and reliability.

Product Introduction

Diaphragm Valve with Male/Female VCR F

AFK-LOK has a diaphragm valve solution to meet the needs of any industry and application. Diaphragm valve are commonly utilized in a variety of applications and industries such as semiconductor, manufacturing, biotech & pharmaceutical.

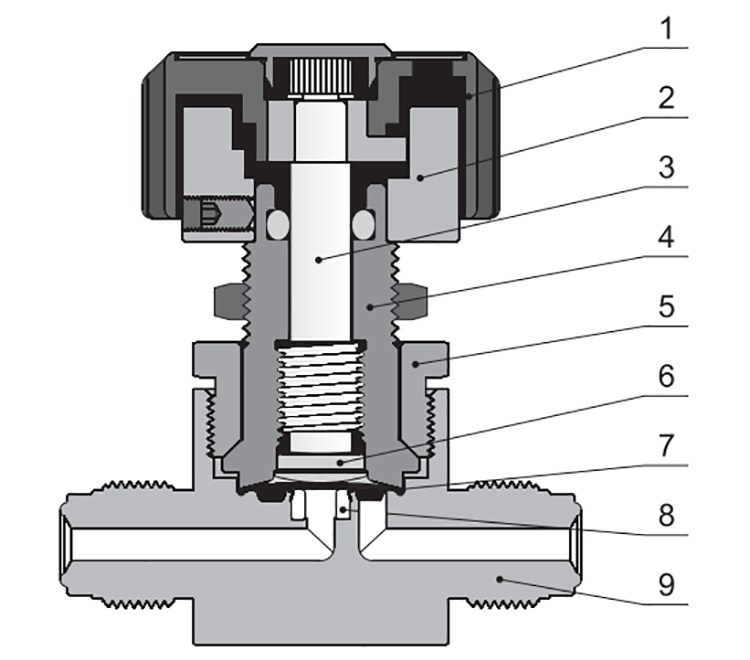

Specification

NO	Part Description	Material
1.	handle	Aluminium
2.	Actuator	Aluminium
3.	Valve Stem	304 SS
4.	Bonnet	S17400
5.	Bonnet Nut	316 SS
6.	Button	Brass
7.	Diaphragm	Nickel cobalt alloy
8.	Valve Seat	PCTFE
9.	Valve Body	316L SS

Application:

▪ Semiconductor

▪ Biotech

▪ Pharmacetical

Features:

▪ The maximum working pressure can reach 31mpa▪ Fully wrapped valve seat design, with superior anti expansion and pollution ability

▪ Nickel cobalt alloy diaphragm has higher durability and corrosion resistance▪ The standard roughness is Ra0 twenty-five μ M (grade BA), or electropolishing Ra0 thirteen μ M (EP grade) optional▪ Helium test leakage rate < 1x10-9 STD cm3 / S▪ Pneumatic actuators are available▪ The service life of pneumatic valve can reach 100000 times

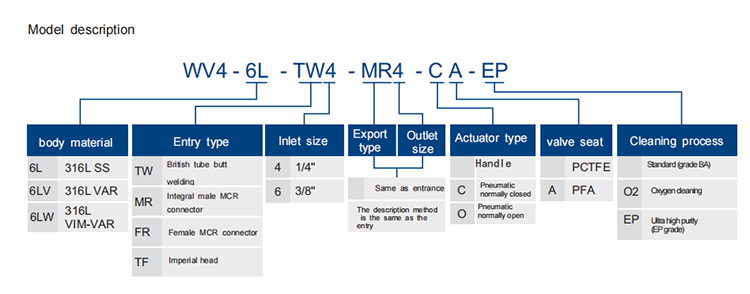

Ordering Information

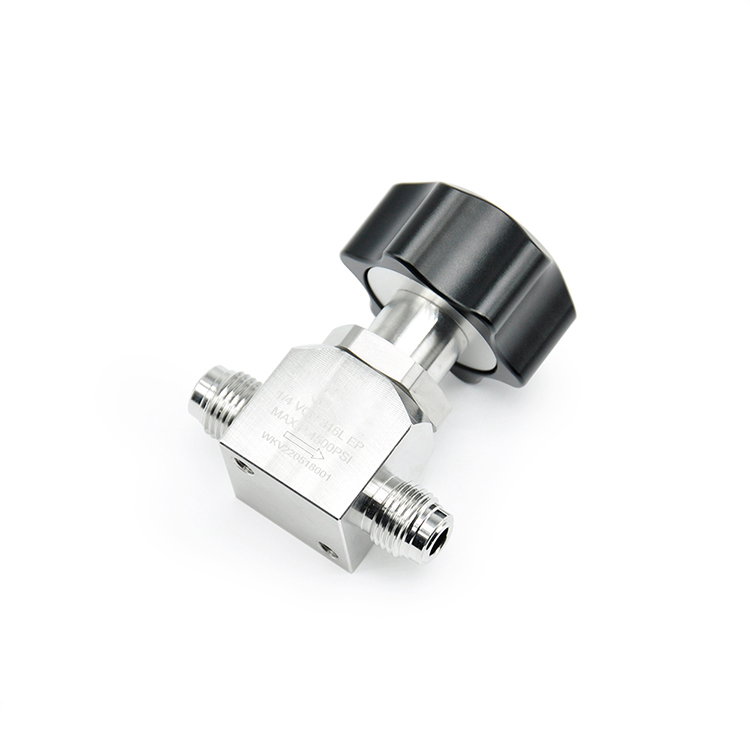

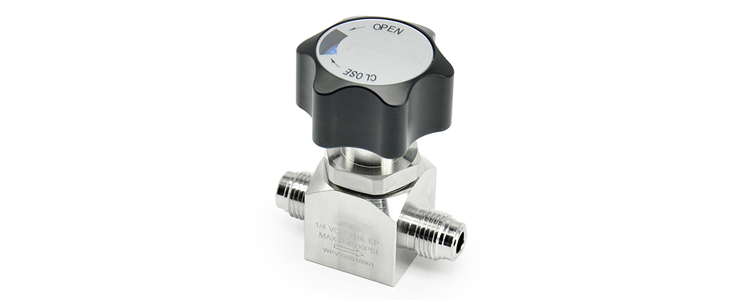

Product Description

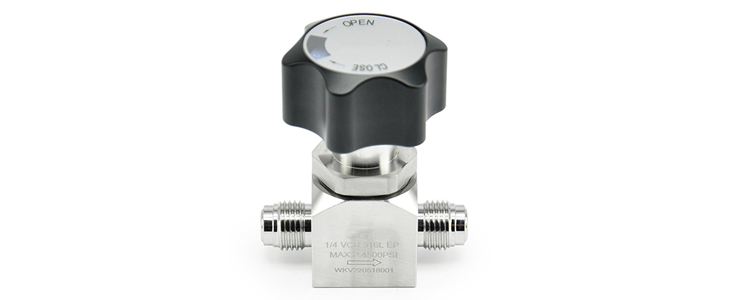

NO 1. Round non-slip handle, switch two-color display, blue represents off, red represents on, easy to control
NO 2. High -purity 316L stainless steel, domestic first-class forging process, smooth surface of the valve body without thorns
No 3.10 micron metal filter protects seat from contamination
No 4. Fine machining, precise hole position

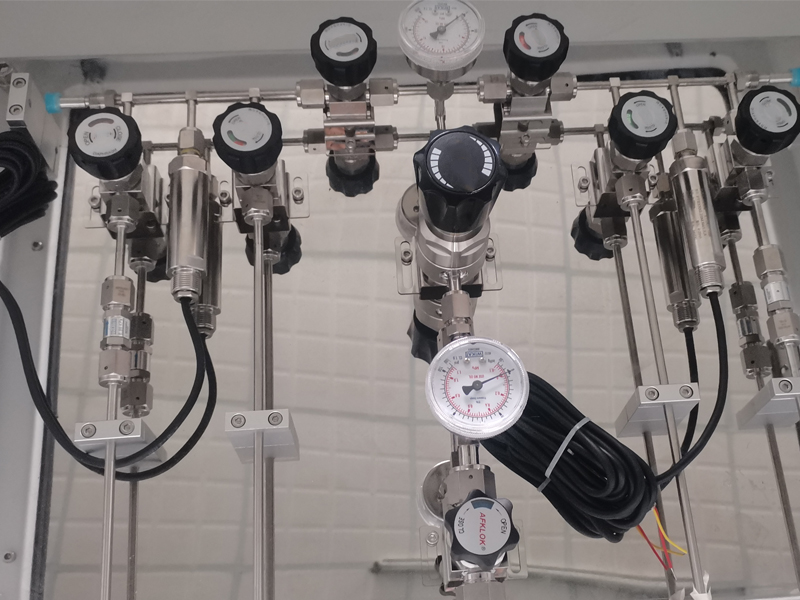

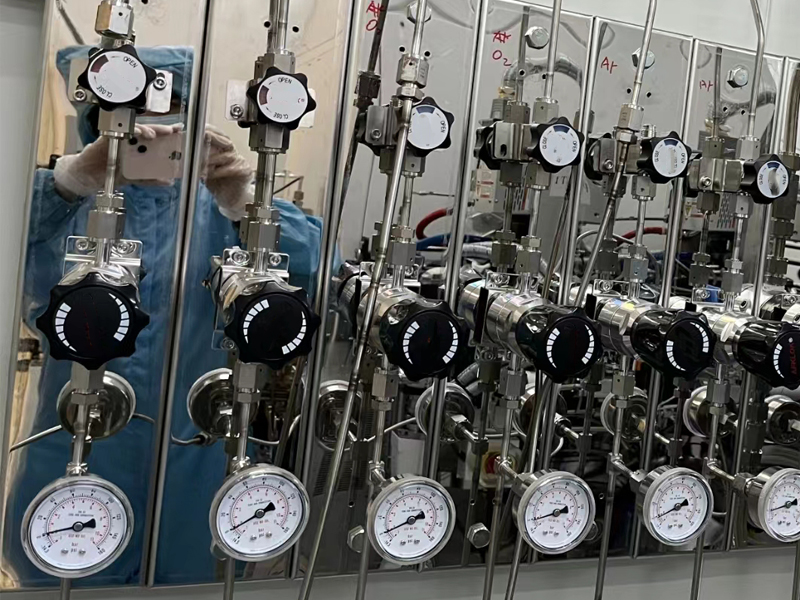

Application

Company Profile

SHENZHEN WOFLY TECHNOLOGY CO,. Ltd. is one of the pioneer suppliers for gas pressure regulators, gas full/semi-automatic switching devices, valve instruments, pipe fittings and other products. Founded in the year 2001 with passion and committed to fulfilling customer’s demands with excellent products and service.

WOFLY has been a leader in the industry due to the design and manufacture of high-performance “Dual ferrule compression heat transfer tube accessories” UHP(Ultra High Purity Application Parts and Valves” designed with its own technology since 2019.150Workers, 5000 m2 workshop, ISO, CE, RoHS, EN certificated, one hour reach ShenZhen port, this is how we keep superior quality and competitive cooperation for global valued customers.

We work closely with our customers to provide not only high-quality products but also technical product knowledge in order to meet the demanding application requirements.

Certifications

FAQ

1. What’s the MOQ?: All products are in stock, MOQ is 1 pcs, Generally according to the requirements of customers, no matter how many we can accept.

2. Do you test all goods before delivery?: We have the strict QC process and offer you the videos of all step.

3. If any question when I got the product, how to solve it?: The product have warranty and we will offer you the online or video technical support.

4. Do you accept OEM order? Can I make in my brand or any sticker?: Yes, MOQ is 100 piece.

5. How long will the shipment take?: If it by sea, it will take about 20~30days. If it's express, it will take 3~7days.

6. What kinds of payment do you accept?: T/T, Western Union, Paypal, credit card and trade assurance on Alibaba.
