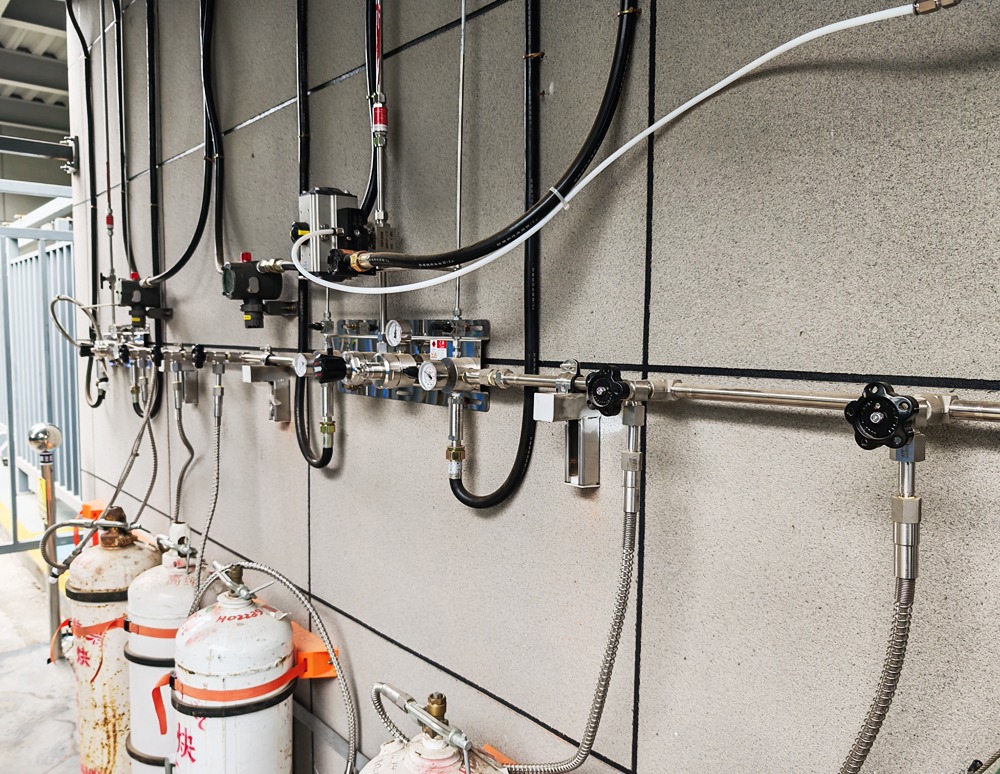

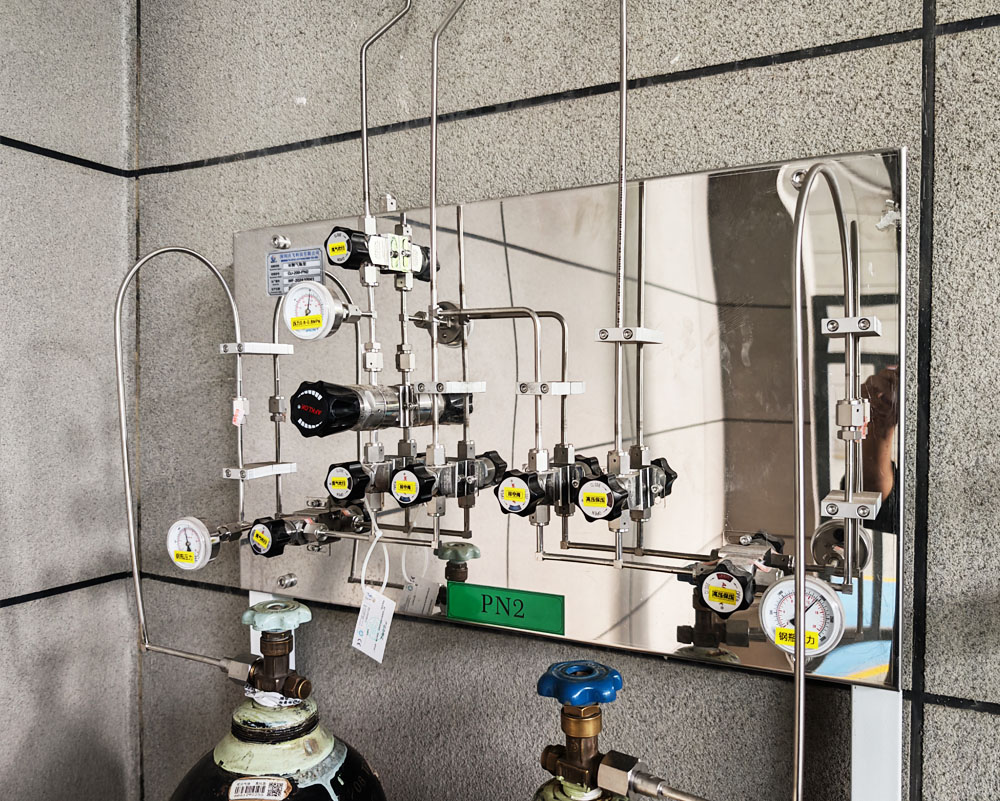

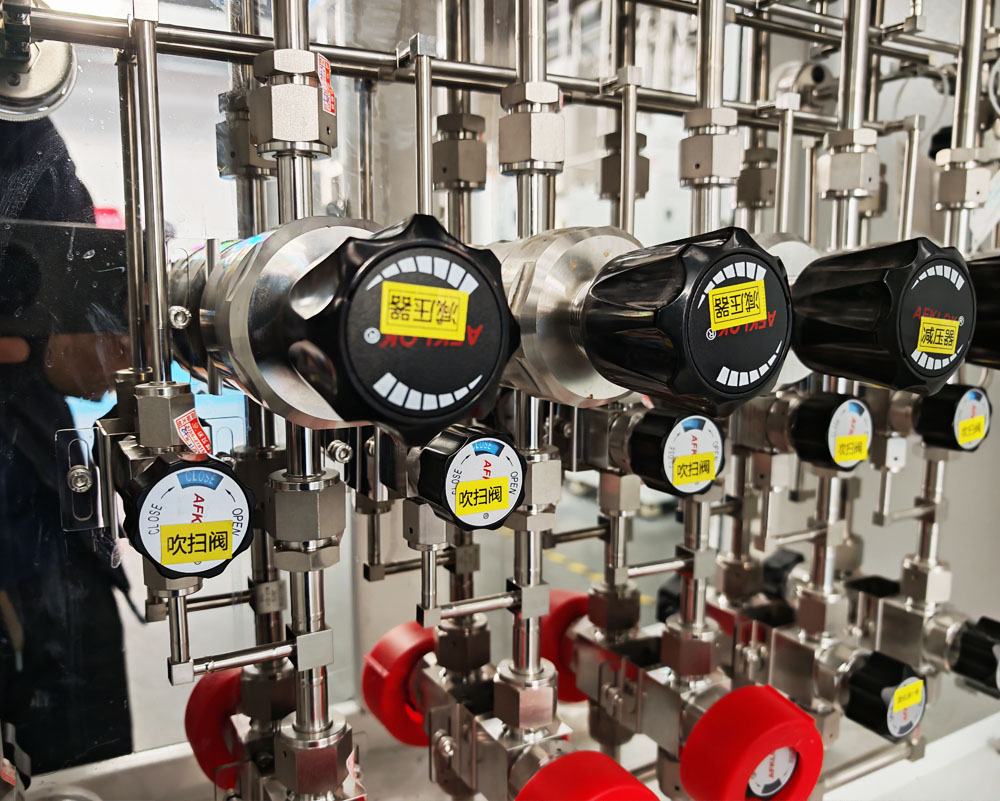

The application is at the end of the gas pipeline, easy to use to control the size of the gas flow. Maximum input pressure up to 20.7mpa (3000psi), corrosion-resistant, clean room assembly test, suitable for laboratory, gas analysis and other high-purity gas use.

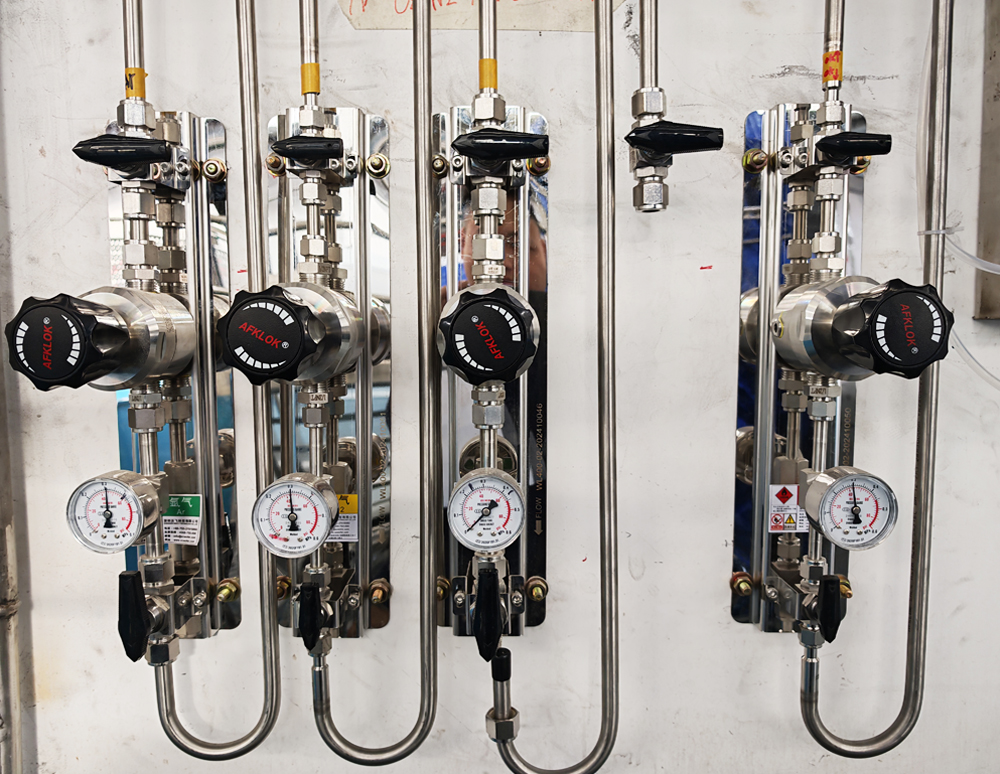

List of system components

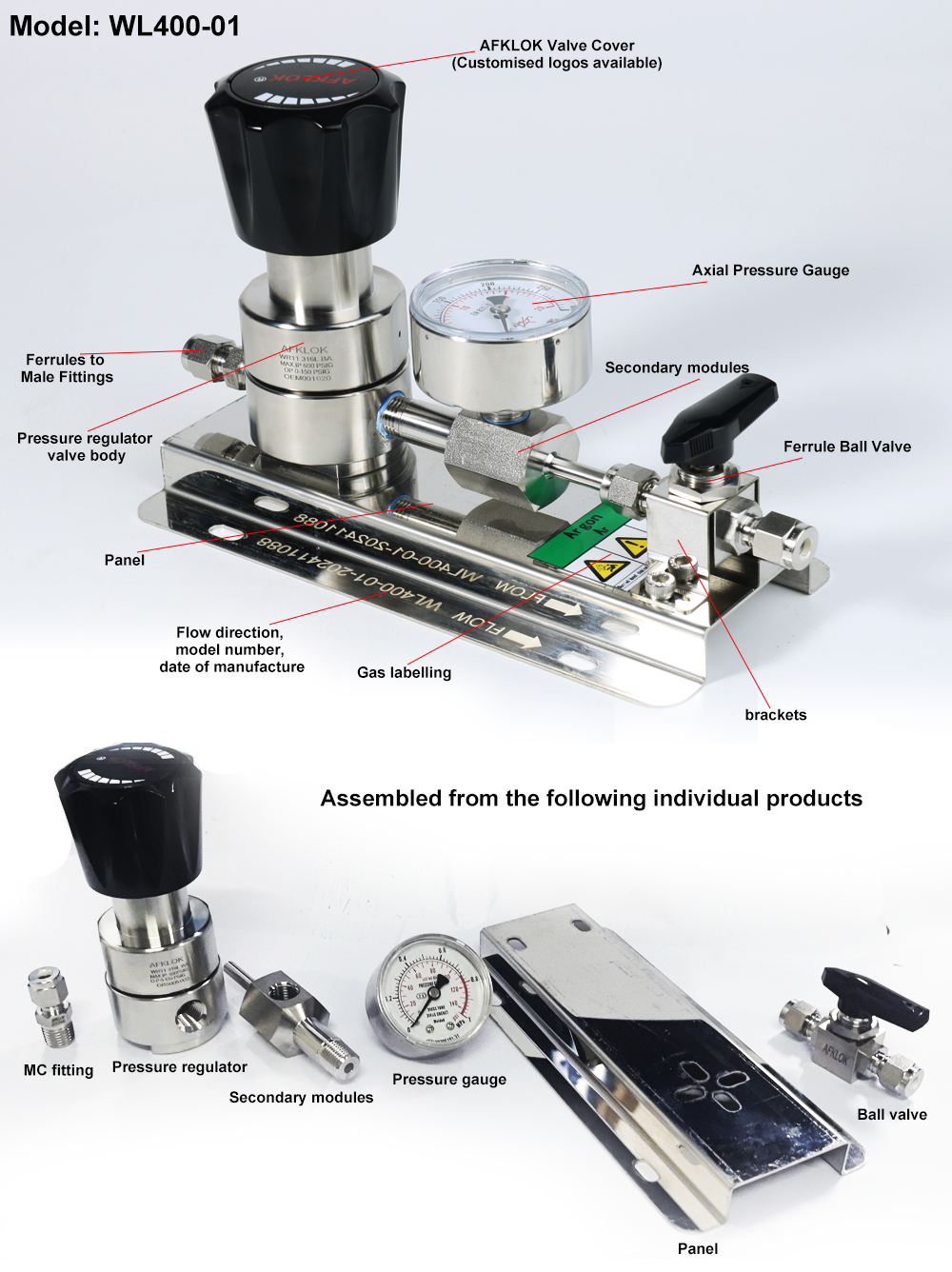

| No. | Part Name | Specification | Qty. |
| 1 | Diaphragm type pressure reducer |
R11 Series inlet 600psi outlet 150psi |
1 |
| 2 | Axial Pressure Gauge |
1.6 grade accuracy 0-300psi range 1/4’ NPT bottom connection |
1 |
| 3 | Ferrule Type Instrumentation Ball Valves | 316L stainless steel 1/4"OD | 1 |
| 4 | Secondary control module | 1 | |
| 5 | Ferrules to Male Fittings |
1/4’ NPT male threads to 1/4’ ferrule |
1 |
| 6 | Mounting accessories |
Stainless steel screws, Fixing bracket |
1 |

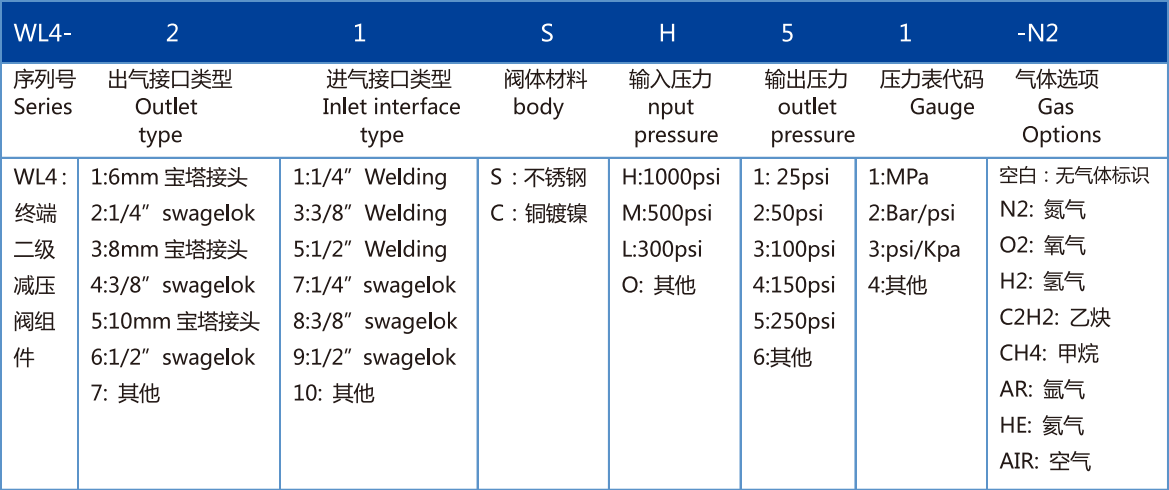

Technical parameters
| max inlet pressure | 3000,2200psi |
| max outlet pressure | 25,50,100,150,250psi |
| working temperature | -40℃~230℃ |

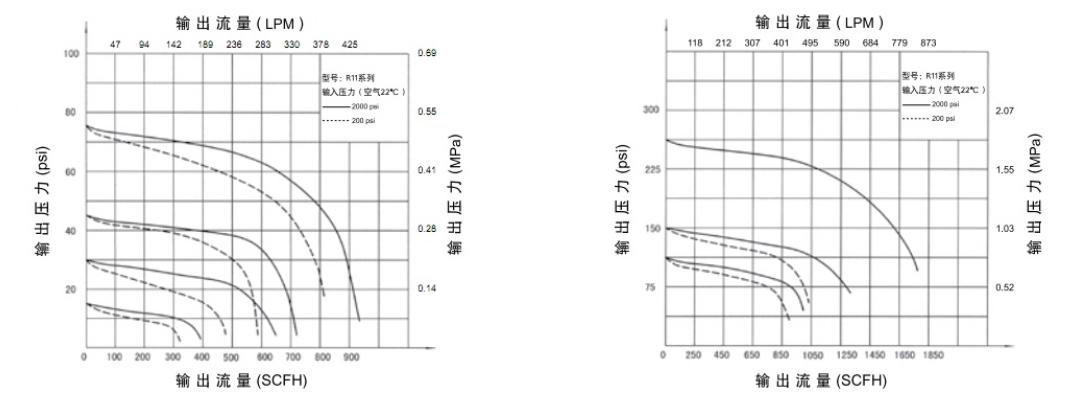

| flow | See flow rate graph |
| Pressure reducer leakage rate: | 2 x 10-8 atm.cc/sec He |
| cv | 0.14 |
