Technical Parameters
Max inlet pressure： 600,3500 psig
Outlet pressure：0~25, 0~50，0~100，0~250，0~500 psig
Proof pressure:1.5 times of maximum rated pressure
Working tem: -40~+165℉(-40~+74℃)
Leakage rate:2*10 -8 atm cc/sec He

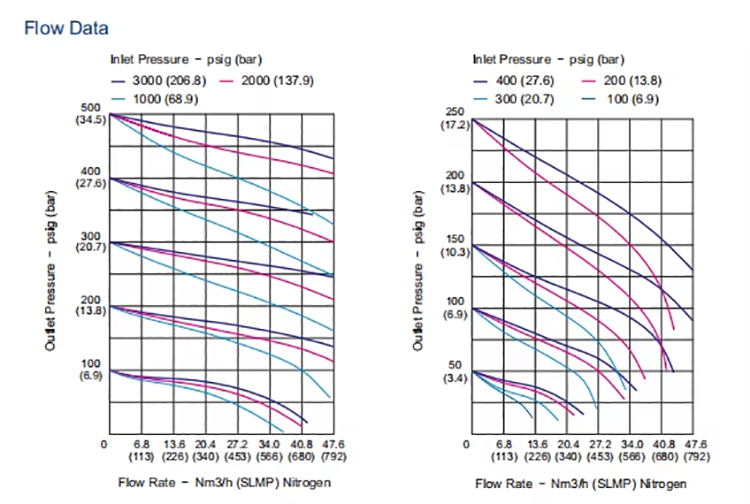

Cv :0.08
DESIGN FEATURES
Single-stage diaphragm structure
Corrugated diaphragm design for excellent
sensitivity and cycle life
Suitable for corrosive and toxic gases
20 μm fifilter element installed at inlet
Oxygen environment options are available

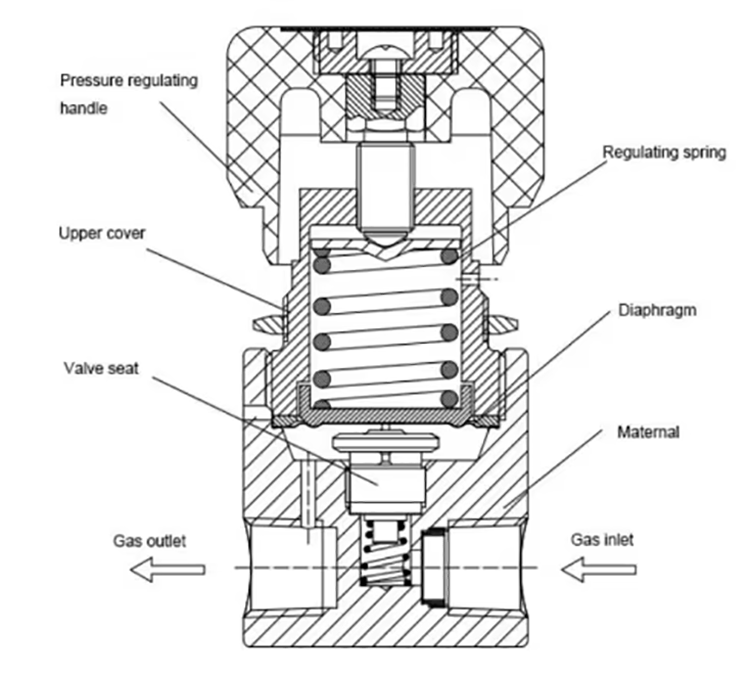

| NO. | Part Name | Material |
| 1 | Body | 316L |
| 2 | Roof | 316L |
| 3 | Diaphgram | PCTFE,PTFE,Vespel |
| 4 | Fliter mesh | 316L |
| 5 | Valve seat | 316L |
| 6 | Spring loaded | 316L |
| 7 | Valve disc regulation pole | 316L |
