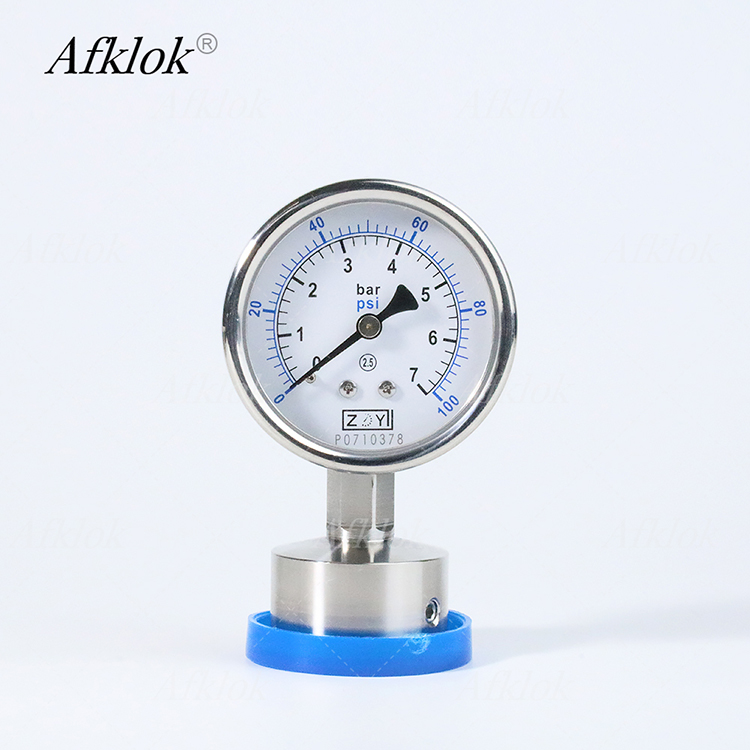

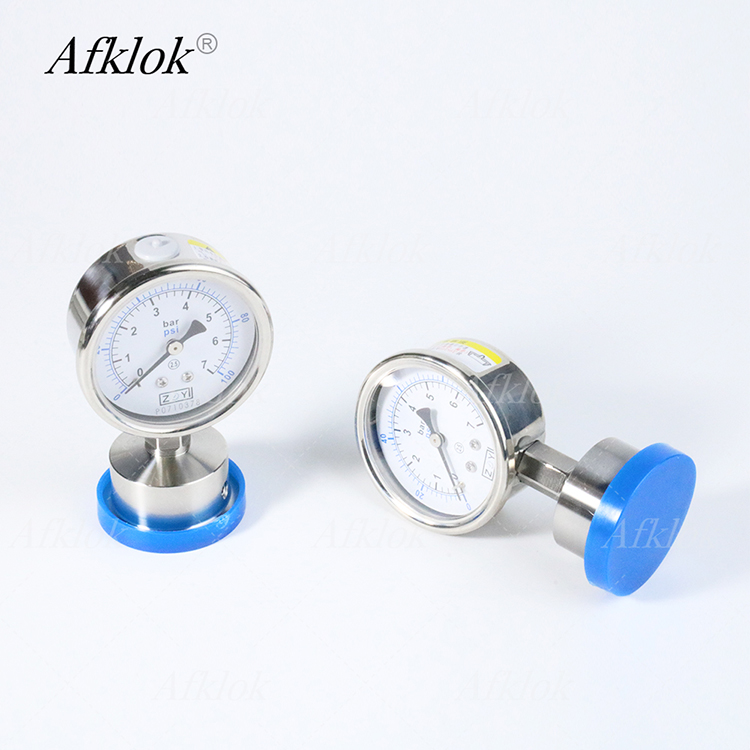

0-100psi Radial Connection Diaphragm Pressure Gauge 1-1/2" 50.5mm 316 Stainless Steel for Measuring Gas Pressure

1. Good corrosion resistance

2. High measurement accuracy

3. Good stability

4. Clear reading

5. Safe and reliable

Model No：YXC-63

Dial：63mm

Pressure Gauge Range：0-100psi

Bottom Connection：1-1/2"(50.5mm)

Connection: Radial connection

Body Material：SS316

1. What are the accuracy ratings of diaphragm pressure gauge?

Common accuracy levels are 1.6, 2.5, etc., but the specific accuracy level varies according to different manufacturers and different product series.

2. What dial sizes are available?

Generally, there are various conventional sizes such as 40mm (1.6 inches), 60mm (2.5 inches), 100mm (4 inches) and so on.

3. What are the connection methods?

There are mainly threaded connections (such as common NPT threads, etc.), flange connections (such as DN25 and other different specifications of the size of the flange) and so on.

4. Material of diaphragm?

316 stainless steel (suitable for some of the less corrosive media, etc.

5. What should I pay attention to when installing?

1. The installation position should be easy to observe and operate;

2. In case of threaded connection need to ensure good sealing;

3. flange connection should ensure that the gasket between flanges is installed correctly and pressed tightly;

4. install vertically (except for special cases, but need to correct the error according to the regulations) avoid strong vibration;

5. avoid installation in strong vibration, strong electromagnetic field interference and other environments

6. Does the temperature of the measuring medium have any effect on the diaphragm pressure gauge?

If the medium temperature is too high or too low, it may affect:

1. the performance and volume of sealing liquid (if there is sealing liquid inside), which may affect the pressure conduction and gauge head indication;

2. the elasticity and physical properties of the diaphragm itself;

3. the overall accuracy of the gauge;

7. How often do I need to calibrate?

It is usually recommended to calibrate once in 6 - 12 months, if the use of harsh environments (such as severe temperature changes, strong corrosion, strong vibration, etc.) or high requirements for accuracy may need to shorten the calibration period; if used for critical process monitoring or safety monitoring, the calibration period should also be shorter.

8. What does routine maintenance mainly include?

1. Regular exterior inspection to check for breakage, leakage, abnormal pointers, etc;

2. clean the surface to prevent the accumulation of dust, oil, etc. to affect the readings;

3. check the connection parts for looseness;

4. if it is not used for a long time, it should be stored properly to prevent aging of the diaphragm, etc
